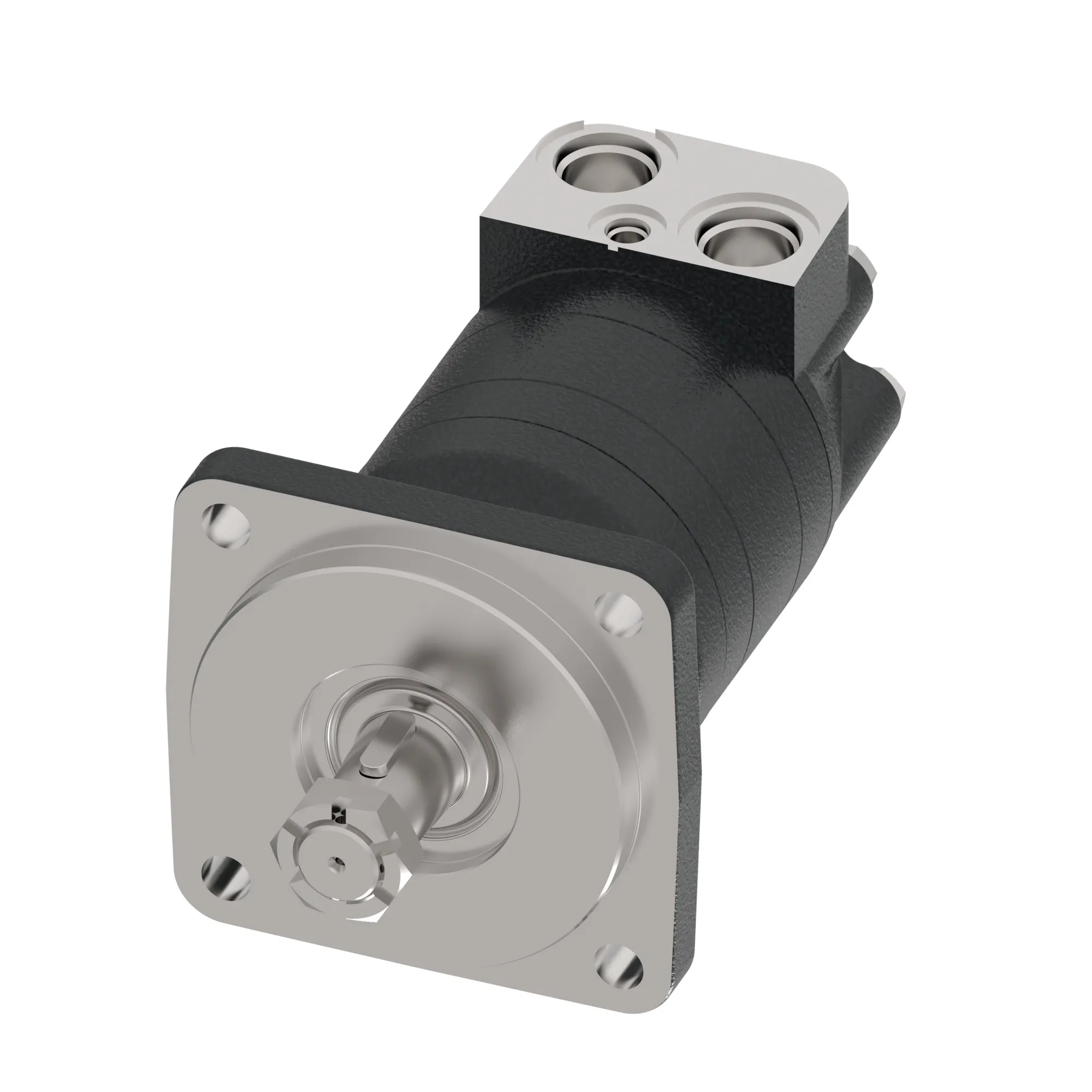

Danfoss (Drives) 151F6130
MOTOR-ORBITAL,TMK SERIES 160 [9.7], TMK-0160-A-NN-C17-AV-2E-B26-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN – 151F6130
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,TMK SERIES 160 [9.7], TMK-0160-A-NN-C17-AV-2E-B26-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN – 151F6130
Specification
| Volume | 18093.713 Cubic centimeter |
|---|---|
| Brake Release Port Dimension | n/a |
| Check Valve Function | Yes |
| Design Code | 00 |
| Drain Port Dimension | 7/16-20 UNF-2B O-Ring port |
| Dust Seal | Standard |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 158.0 [9.64] |
| Hydraulic Valve Function | None |
| Main Port Dimension | 1 1/16 – 12 UN-2B SAE O-Ring port, |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | UN / UNF |
| Model Code | TMK-0160-A-NN-C17-AV-2E-B26-A-A-2B-1-N-NN-AAE12-NN-NN-NN-SP-NNN |
| Motor Function | Standard |
| Motor Series | TMK Series |
| Motor Size | 160 |
| Motor Type | Standard |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 12.4, 161.9, 14.4 [5.00 x 0.49, 6.37, 0.57] |
| Mounting Flange Type | 4 Bolt – C |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | Painted, Black, Medium gloss |
| Painted | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 151F0141 |
| Sensor | None |
| Shaft Dimension | Dia. 1 1/4 inch, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | Rectangular key, 5/16 x 5/16 x 1 1/4 inch (B.S. 46) |
| Shaft Seal | NBR – Standard |
| Shaft Type | Straight |
| Size/ Dimensions | L23.8XW44.2XH17.2 CM |
| Special Features Assembly | Standard |
| Valve System | Disc valve with valve drive |
