Danfoss (Drives) 151B4016

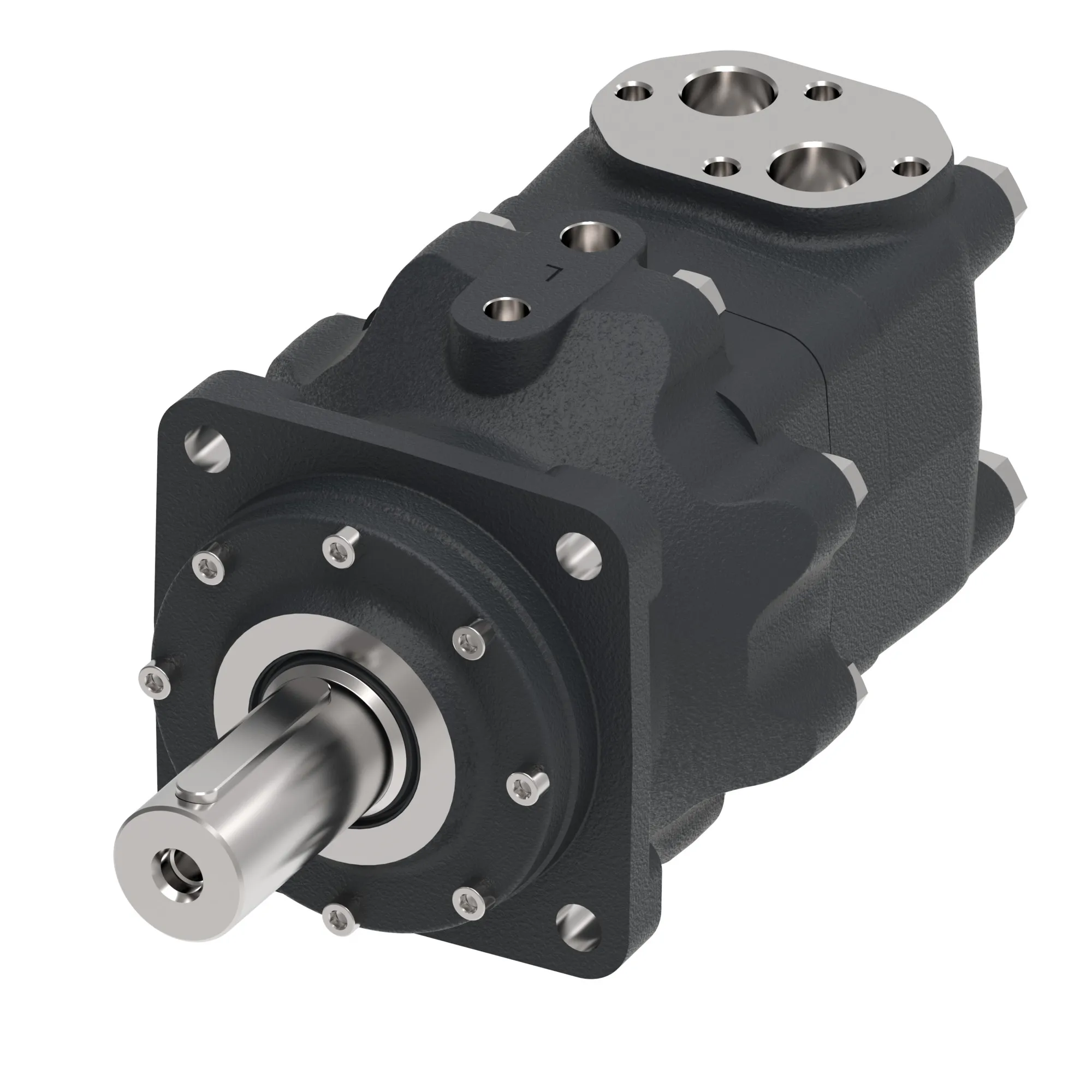

OMT 250 FL HYDRAULIC MOTOR, OMT-0250-E-BA-G22-AD-1D-F18-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN – 151B4016
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
OMT 250 FL HYDRAULIC MOTOR, OMT-0250-E-BA-G22-AD-1D-F18-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN – 151B4016
Specification
| Brake Release Port Dimension | G 1/4 |
|---|---|
| Check Valve Function | No |
| Design Code | 2 |
| Drain Port Dimension | G 3/8 |
| Dust Seal | Standard |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 251.8 [15.36] |
| Hydraulic Valve Function | None |
| Main Port Dimension | G 3/4, 4 x M10 block mounting threads |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | BSP |
| Model Code | OMT-0250-E-BA-G22-AD-1D-F18-A-A-1C-0-A-NN-NNNNN-NN-NN-NN-SP-NNN |
| Motor Function | Brake – Low release pressure |
| Motor Series | OMT Series |
| Motor Size | 250 |
| Motor Type | Motor – Brake |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 125.0 x 12.0, 160.0, 14.0 [4.92 x 0.47, 6.30, 0.55] |
| Mounting Flange Type | 4 Bolt – Square |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | n/a |
| Painted | No |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 151B0153 |
| Sensor | None |
| Shaft Dimension | Dia. 45 mm, 1:10, 2 x M30 thread in shaft end |
| Shaft Key | Rectangular key, B12 x 8 x 28 mm, DIN 6885 |
| Shaft Seal | NBR – Standard |
| Shaft Type | TAPERED |
| Special Features Assembly | Standard |
| Special Features Hardware | Standard |
| Valve System | Disc valve with valve drive |
