Danfoss (Drives) 151B3205

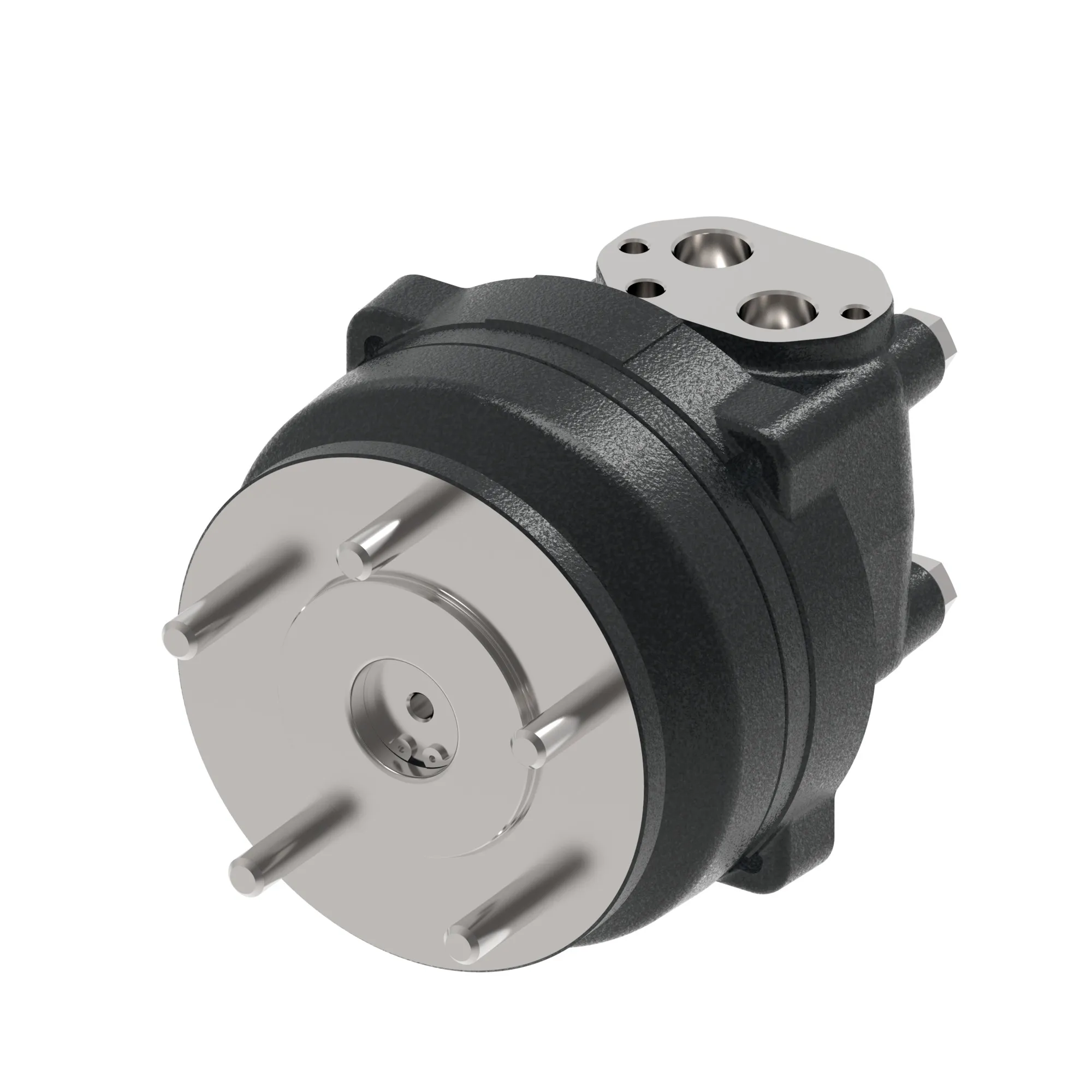

MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3205
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3205
Specification
| Brake Release Port Dimension | G 1/4 |
|---|---|
| Check Valve Function | No |
| Design Code | 2 |
| Drain Port Dimension | G 1/4 |
| Dust Seal | n/a |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 523.6 [31.95] |
| Hydraulic Valve Function | None |
| Main Port Dimension | G 3/4, 2 x M10 block mounting threads |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | BSP |
| Model Code | OMT-0500-F-BA-W50-AB-1D-K13-C-N-1B-0-A-NN-NNNNN-NN-NN-NN-SP-NNN |
| Motor Function | Brake – Low release pressure |
| Motor Series | OMT Series |
| Motor Size | 500 |
| Motor Type | Motor – Brake |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 172.0 x 7.0, 200.0, M12 [6.77 x 0.32, 7.87, M12] |
| Mounting Flange Type | 4 Bolt – Wheel |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | n/a |
| Painted | No |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 151B0152 |
| Sensor | None |
| Shaft Dimension | Thread Hole Flange: 10 x M12 – BCD 100 mm [3.9 inch] |
| Shaft Key | n/a |
| Shaft Seal | NBR – Low pressure |
| Shaft Type | Wheel hub |
| Special Features Assembly | Standard |
| Valve System | Disc valve with valve drive |
