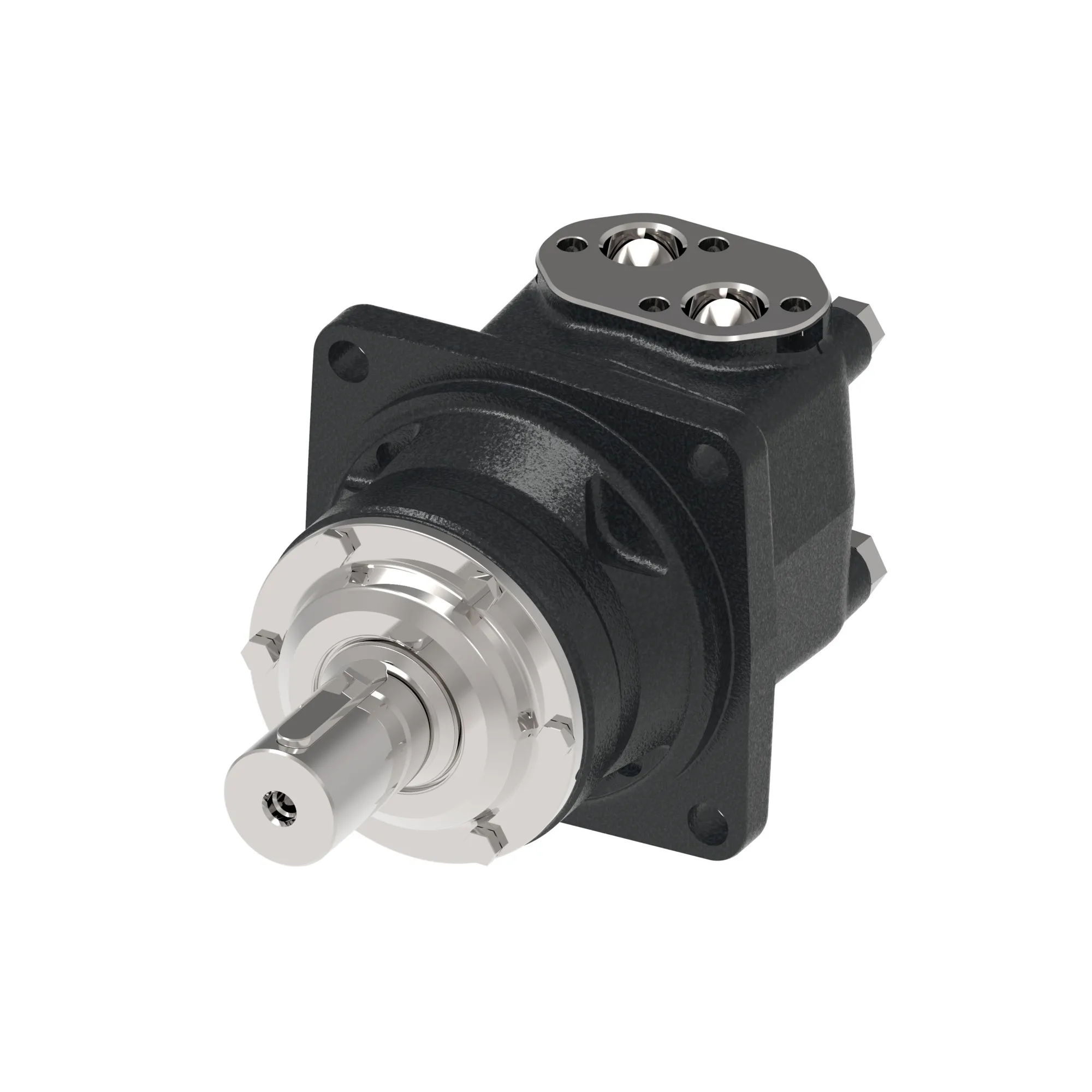

Danfoss (Drives) 151B3120
MOTOR-ORBITAL,OMV SERIES 315 [19.2], OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3120
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,OMV SERIES 315 [19.2], OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3120
Specification
| Brake Release Port Dimension | n/a |
|---|---|
| Check Valve Function | Yes |
| Design Code | 2 |
| Drain Port Dimension | G 1/4 |
| Dust Seal | Standard |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 314.5 [19.19] |
| Hydraulic Valve Function | None |
| Main Port Dimension | G 1, 4 x M12 block mounting threads |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | BSP |
| Model Code | OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN |
| Motor Function | Standard |
| Motor Series | OMV Series |
| Motor Size | 315 |
| Motor Type | Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 180.0 x 10.6, 224.0, 18.0 [7.08 x 0.42, 8.82, 0.71] Rear: 194.0 x 3.4, 224.0, 18.0 [7.64 x 0.13, 7.87, 0.71] |
| Mounting Flange Type | 4 Bolt – Wheel |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | n/a |
| Painted | No |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 151B0129 |
| Sensor | None |
| Shaft Dimension | Dia. 60 mm, 1:10, 3 x M42 thread in shaft end |
| Shaft Key | Rectangular key, B16 x 10 x 32 mm, DIN 6885 |
| Shaft Seal | NBR – Standard |
| Shaft Type | TAPERED |
| Size/ Dimensions | L24.2XW44.2XH22.2 CM |
| Special Features Assembly | Standard |
| Valve System | Disc valve with valve drive |
