Danfoss (Drives) 151B3104

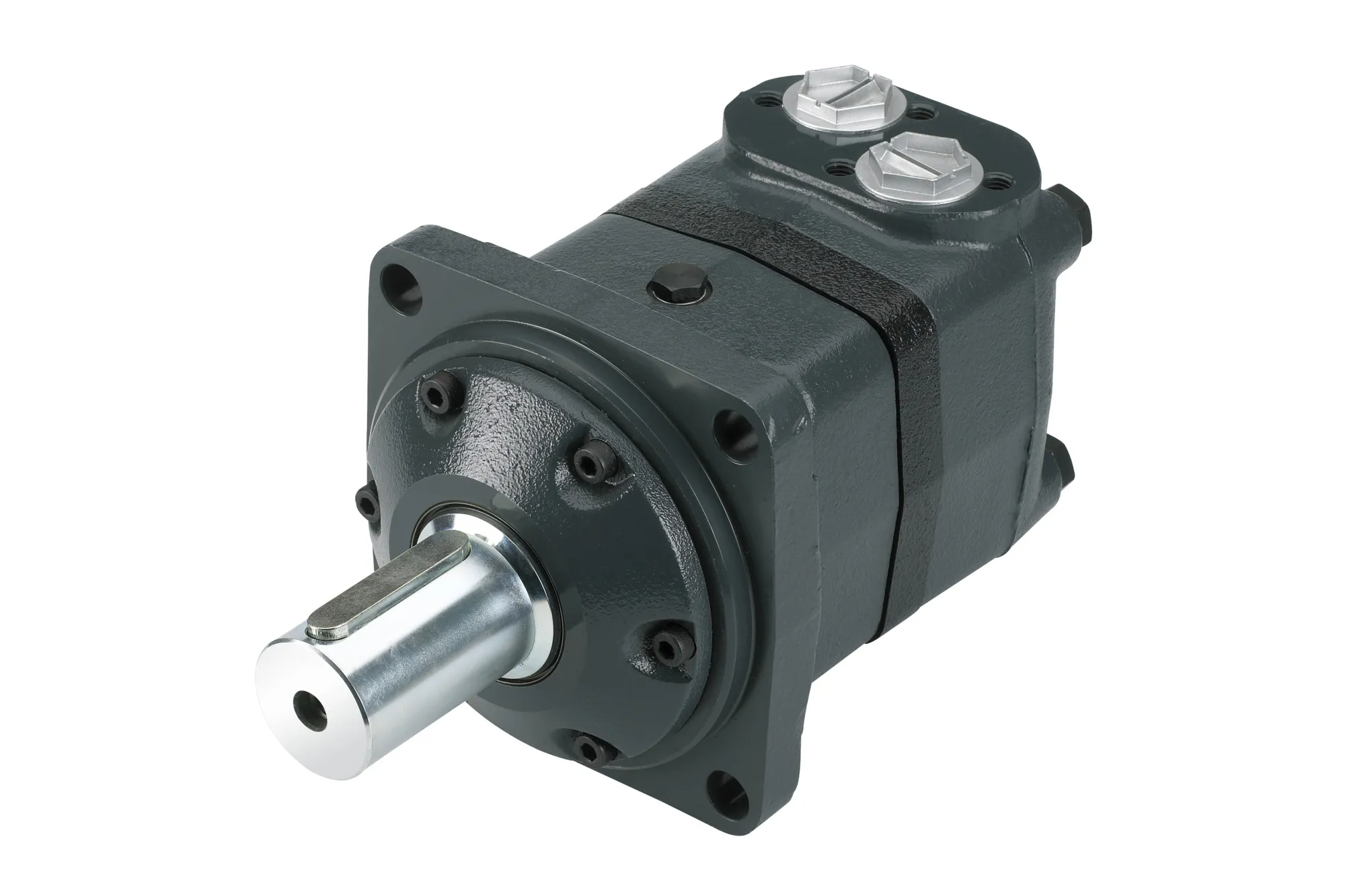

MOTOR-ORBITAL,OMV SERIES 800 [48.8], OMV-0800-A-NN-G34-AE-1E-A35-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3104
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,OMV SERIES 800 [48.8], OMV-0800-A-NN-G34-AE-1E-A35-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3104
Specification
| Brake Release Port Dimension | n/a |
|---|---|
| Check Valve Function | Yes |
| Design Code | 2 |
| Drain Port Dimension | G 1/4 |
| Dust Seal | Standard |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 801.8 [48.93] |
| Hydraulic Valve Function | None |
| Main Port Dimension | G 1, 4 x M12 block mounting threads |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | BSP |
| Model Code | OMV-0800-A-NN-G34-AE-1E-A35-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN |
| Motor Function | Standard |
| Motor Series | OMV Series |
| Motor Size | 800 |
| Motor Type | Standard |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 160.0 x 11.0, 200.0, 18.0 [6.30 x 0.43, 7.87, 0.71] |
| Mounting Flange Type | 4 Bolt – Square |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | n/a |
| Painted | No |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 151B0129 |
| Sensor | None |
| Shaft Dimension | Dia. 50 mm, M12 x 1.75-6H thread in shaft end |
| Shaft Key | Rectangular key, A14 x 9 x 70 mm, DIN 6885 |
| Shaft Seal | NBR – Standard |
| Shaft Type | Straight |
| Size/ Dimensions | L24.6XW45XH21 CM |
| Special Features Assembly | Standard |
| Valve System | Disc valve with valve drive |
