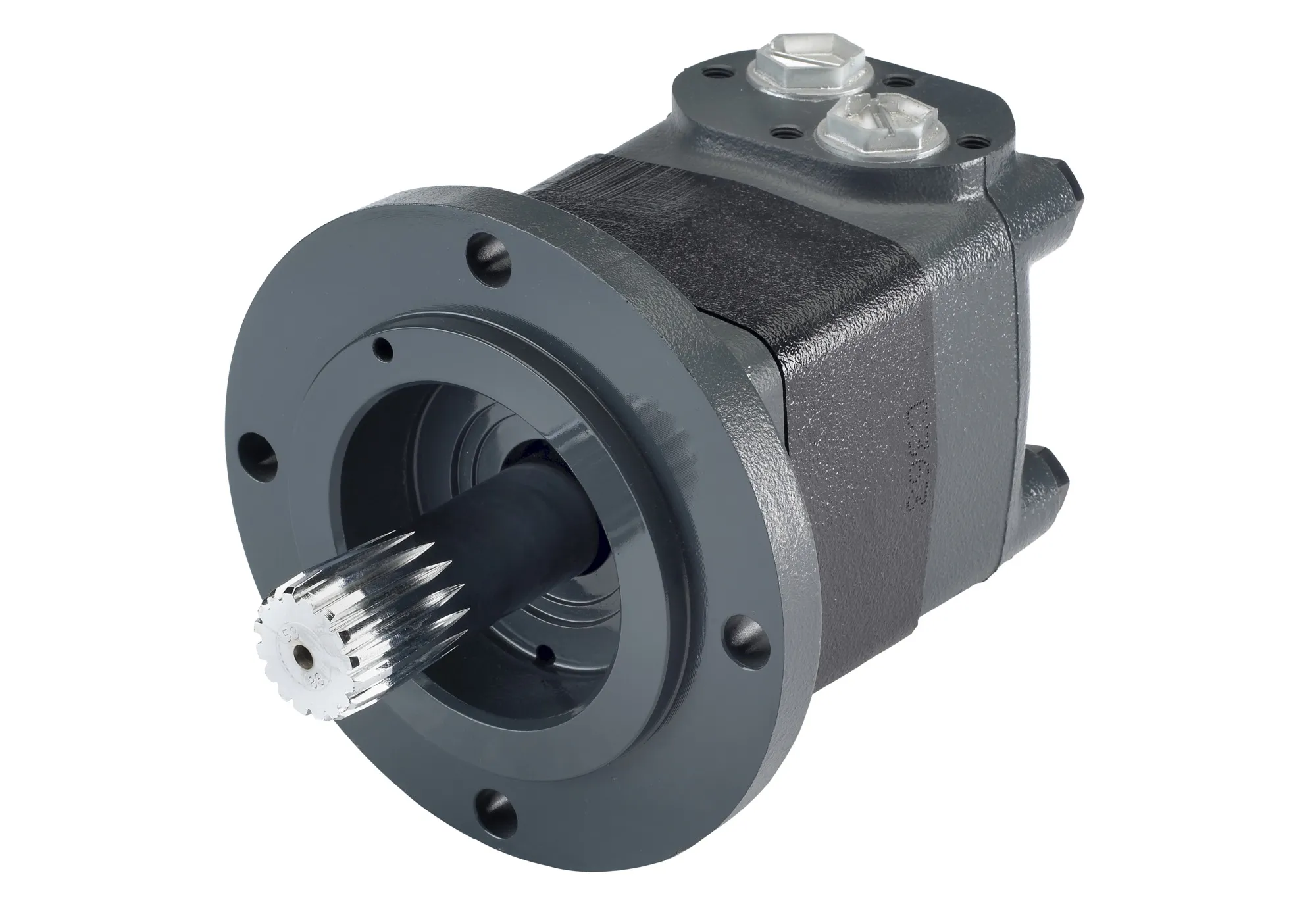

Danfoss (Drives) 151B3040
MOTOR-ORBITAL,OMT SERIES 400 [24.4], OMT-0400-C-NN-S14-AD-1D-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3040
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,OMT SERIES 400 [24.4], OMT-0400-C-NN-S14-AD-1D-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN – 151B3040
Specification
| Model Code | OMT-0400-C-NN-S14-AD-1D-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN |
|---|---|
| Motor Series | OMT Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 400 |
| Geometric Displacement [Cm3/R [In3/R]] | 410.9 [25.07] |
| Motor Type | Short |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Short |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 124.9 x 8.0, 160.0, 14.0 [4.92 x 0.325, 6.30, 0.55] |
| Shaft Type | None |
| Shaft Dimension | n/a |
| Shaft Key | n/a |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 3/4, 4 x M10 block mounting threads |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Assembly | Standard |
| Dust Seal | n/a |
| Shaft Seal | n/a |
| Seal Kit | 151B0114 |
| Front Bearing Type | n/a |
| Rear Bearing Type | n/a |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 2 |
| Proposition 65 | Cancer and Reproductive Harm |
| Size/ Dimensions | L24.8XW44.4XH22.4 CM |
