Danfoss (Drives) 1469X10X6Z

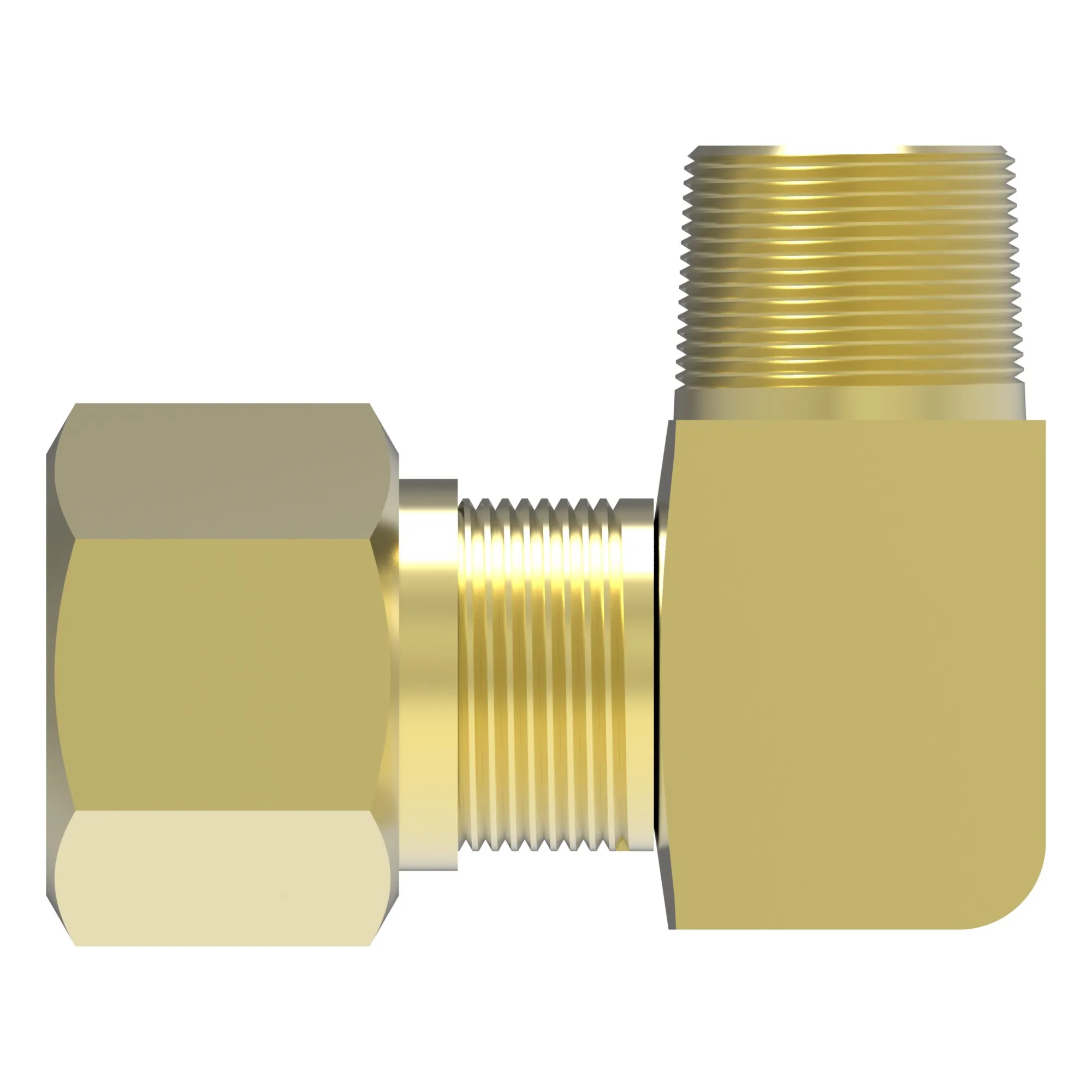

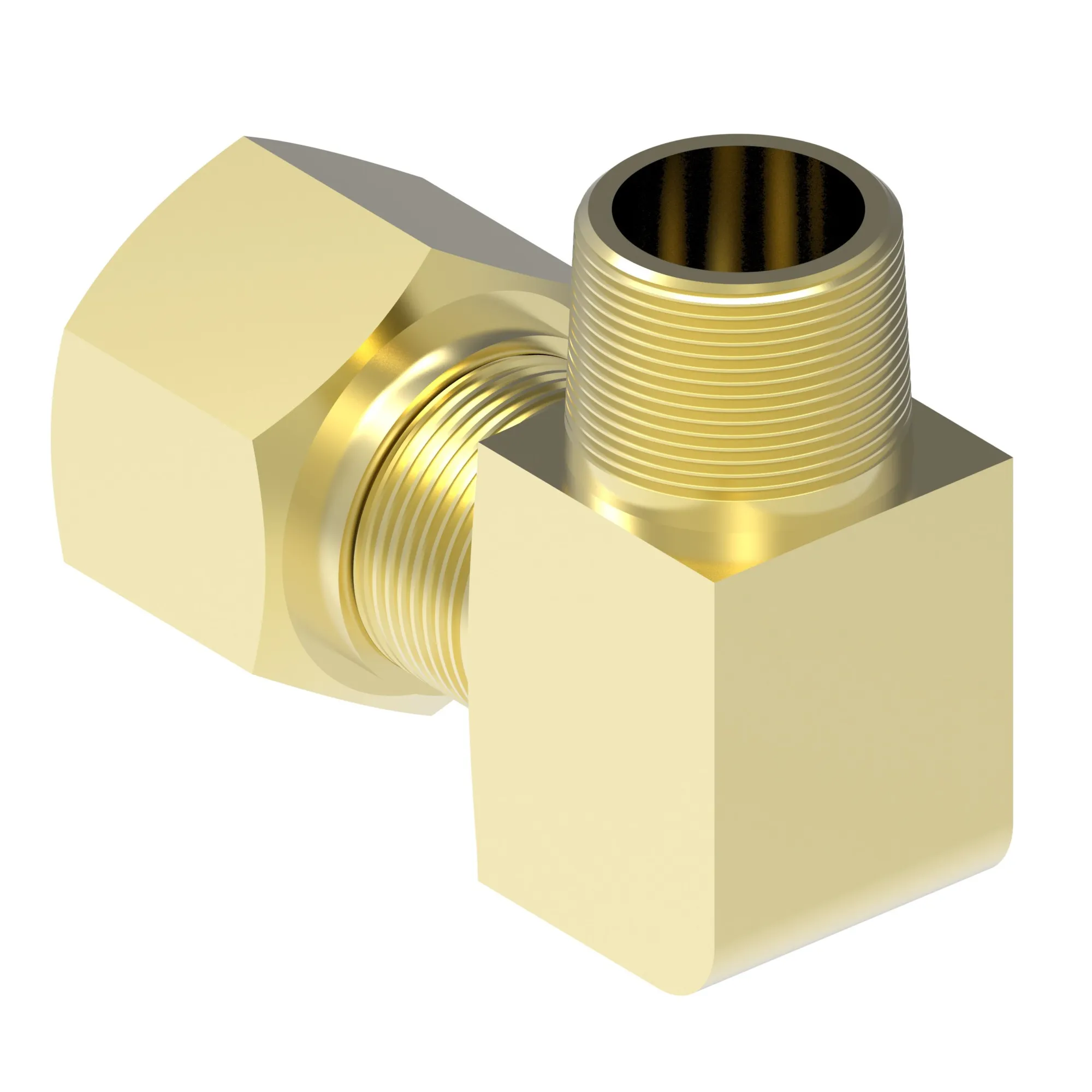

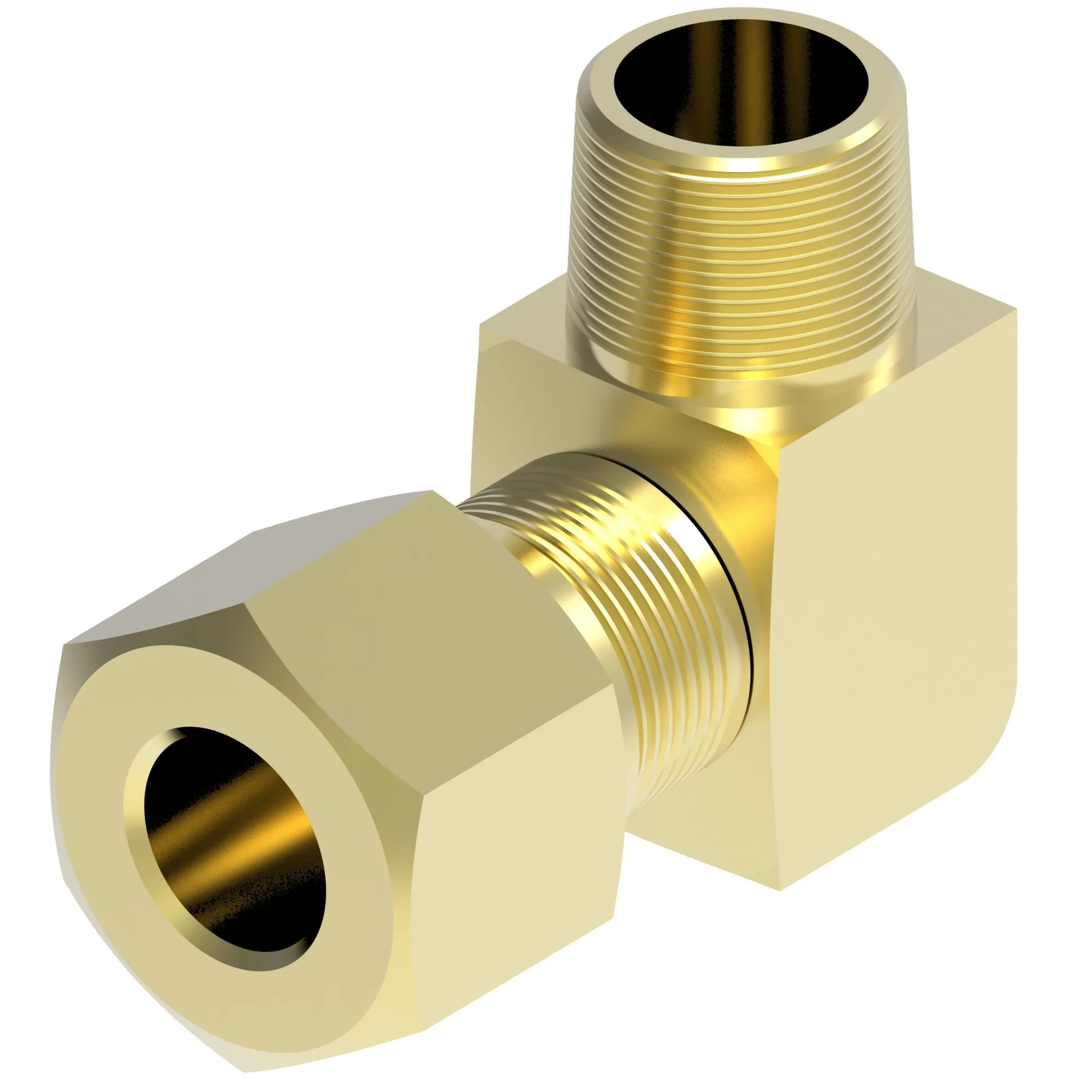

116-43610-46 90 DEG ELBO W ASSY – 1469X10X6Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
116-43610-46 90 DEG ELBO W ASSY – 1469X10X6Z
Specification
| E A N/ U P C | 725975711620 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Danfoss |
| Drop Dimension In | 1.020 |
| Drop Dimension Mm | 25.90 |
| End Type 1 | Male pipe (NPTF) |
| End Type 2 | Line/hose/tube |
| Hex Size 1 In | 0.830 |
| Hex Size 1 Mm | 21.100 |
| Hex Size 2 In | 0.940 |
| Hex Size 2 Mm | 23.900 |
| Item Type | Adapter-elbow |
| Product Material | Brass |
| Thread Sealant | No |
| Tube Outside Diameter 1 In | 0.410 |
| Tube Outside Diameter 1 Mm | 10.4 |
| Tube Outside Diameter 2 In | 0.640 |
| Tube Outside Diameter 2 Mm | 16.3 |
| Working Pressure Bar | 10.0 |
| Working Pressure Psi | 150 |
| Working Temp Max C | 93 |
| Working Temp Max F | 200 |
| Working Temp Min C | -40 |
| Working Temp Min F | -40 |
