Danfoss (Drives) 129-0001-002

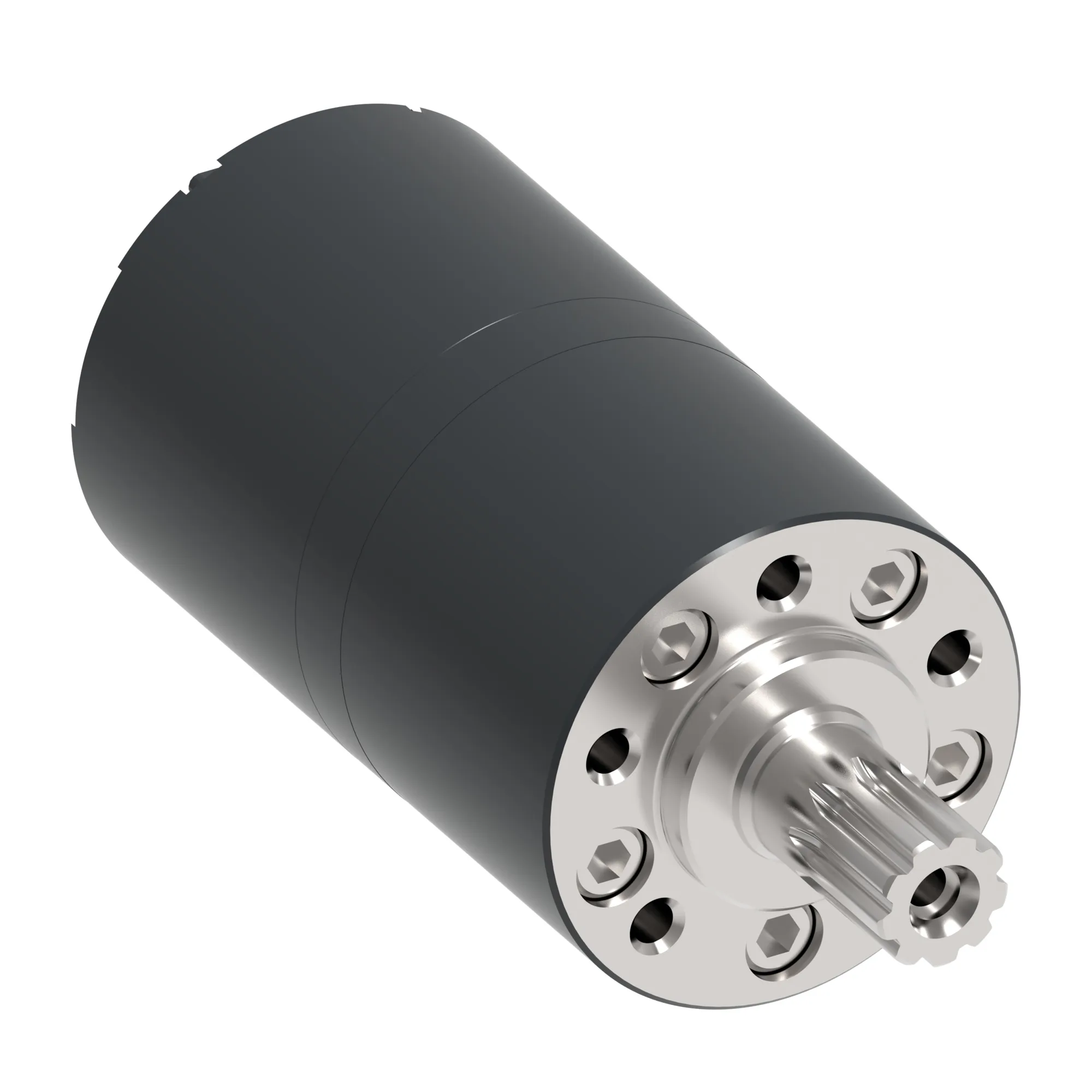

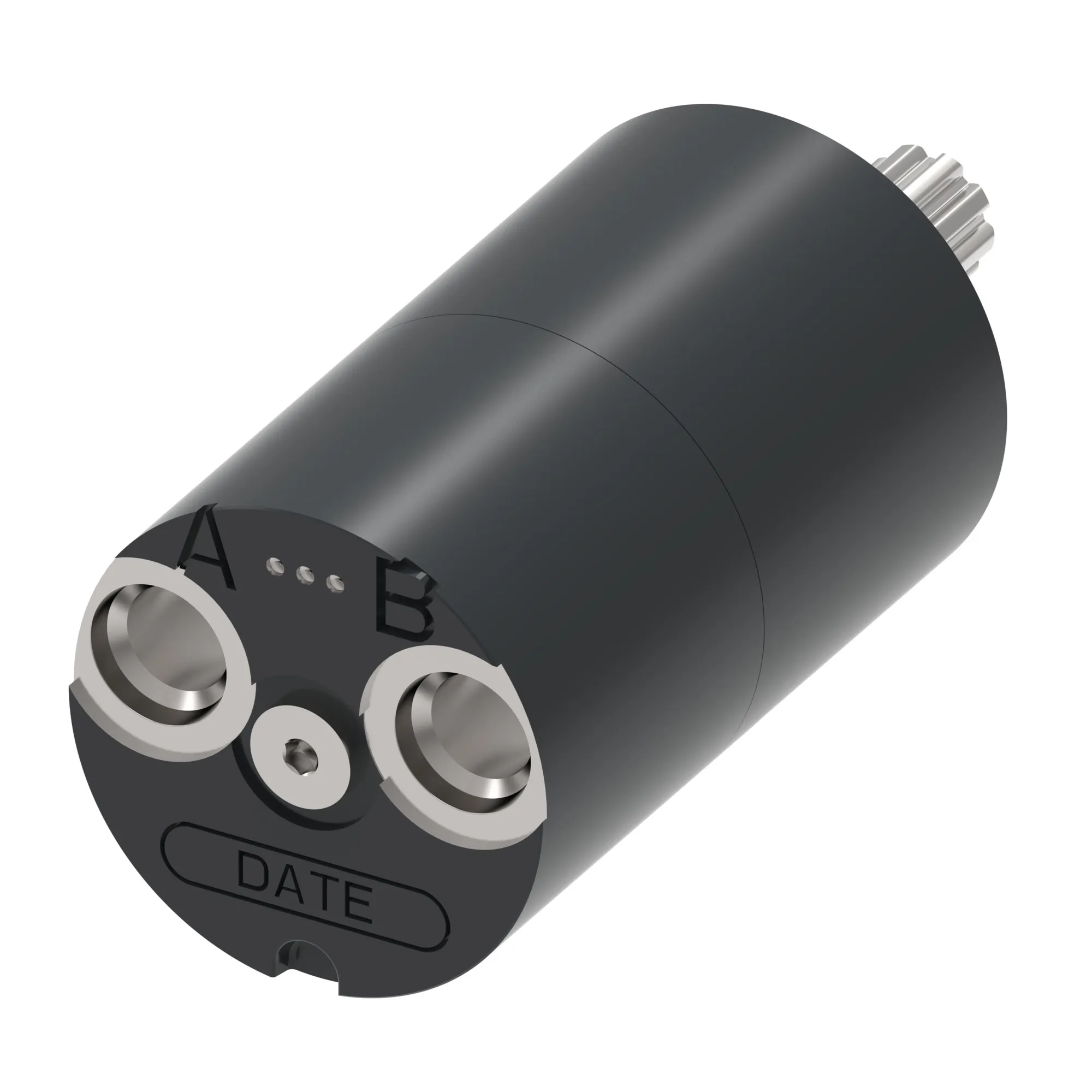

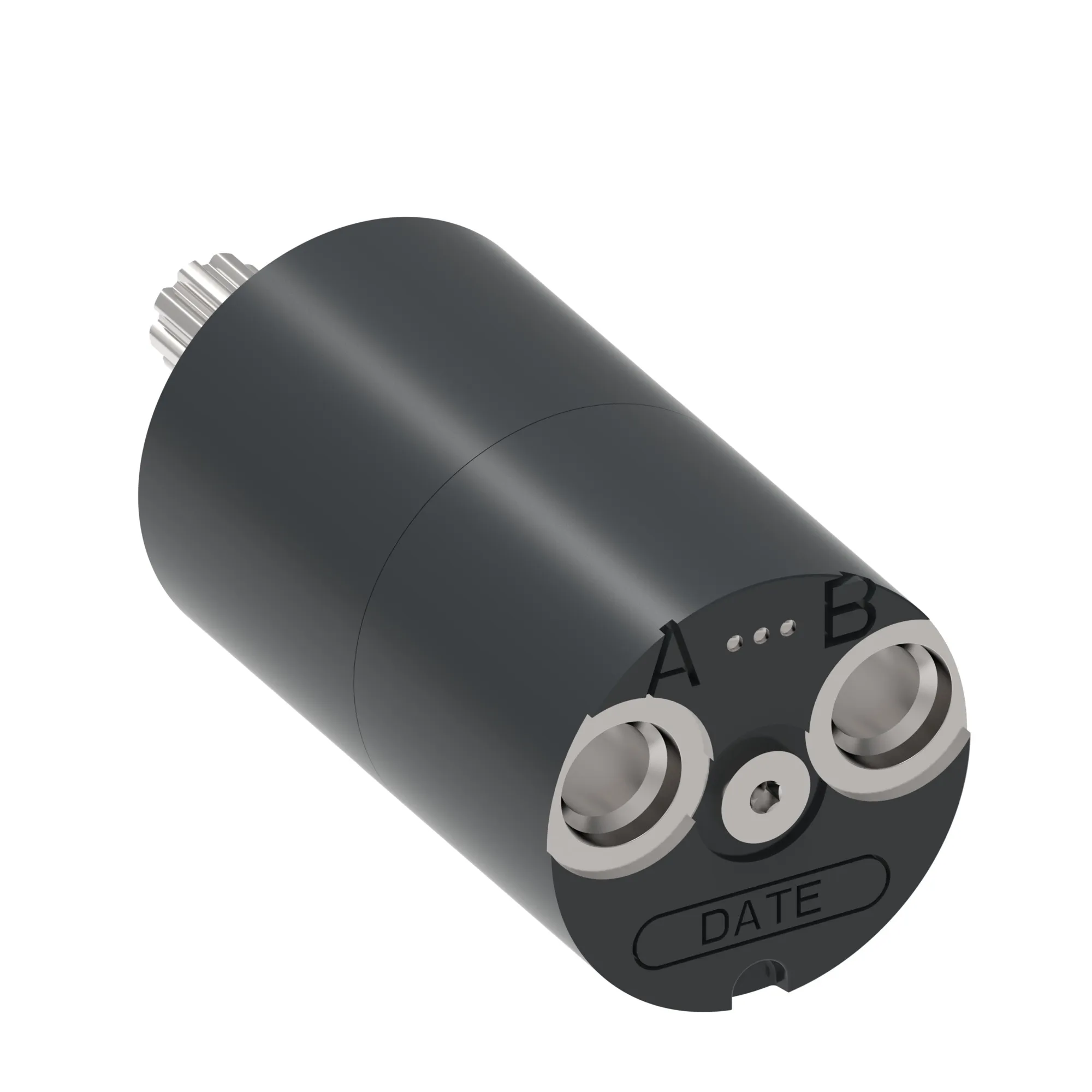

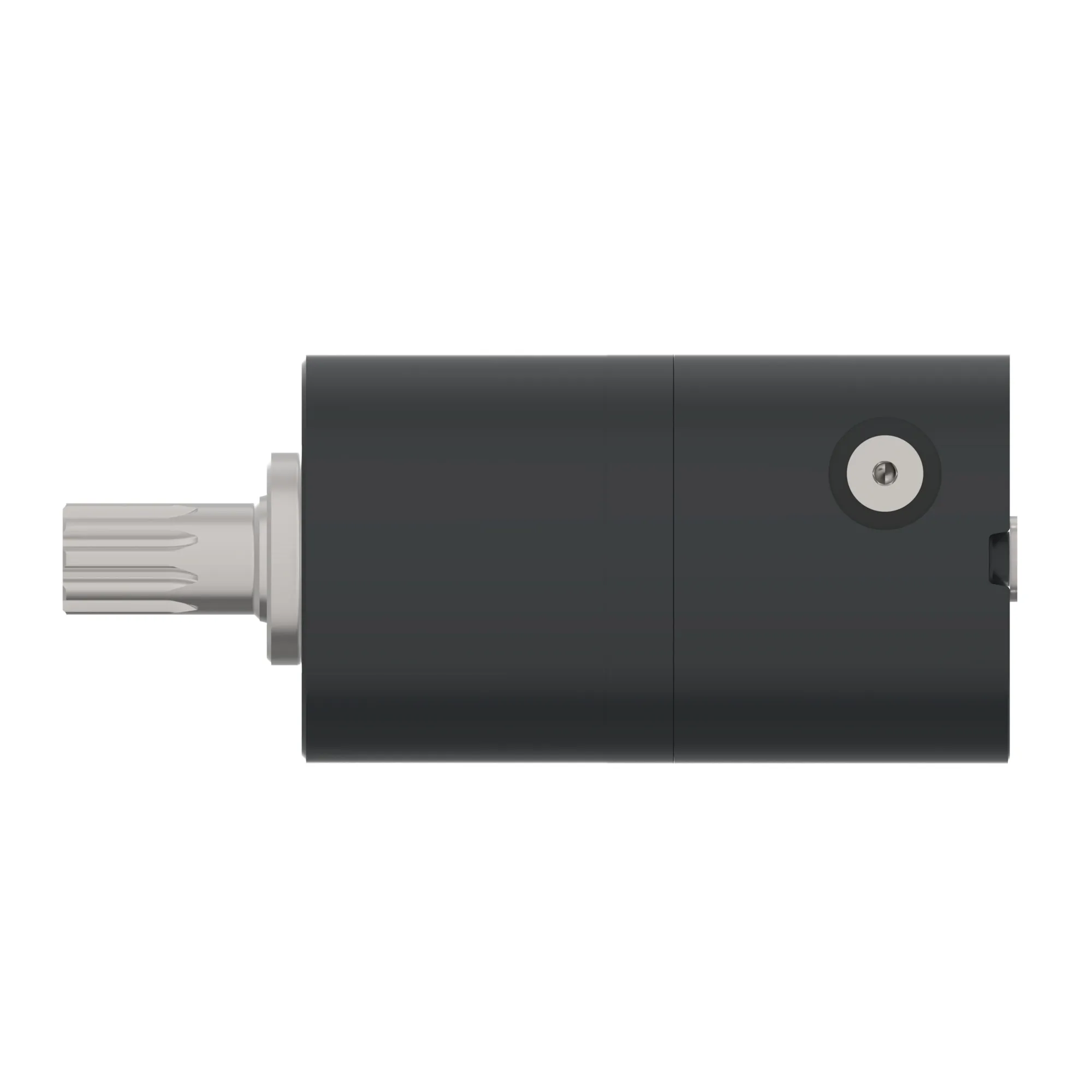

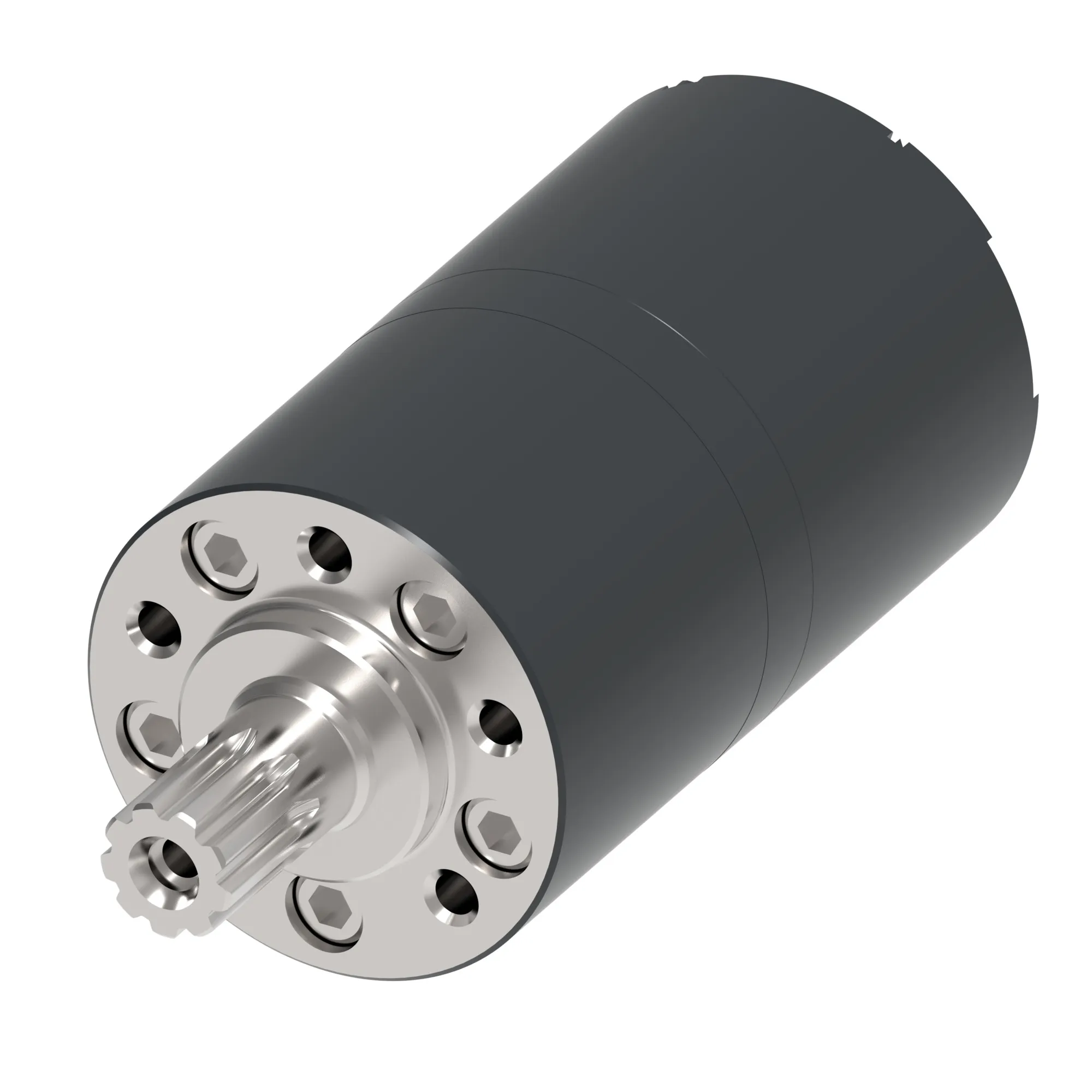

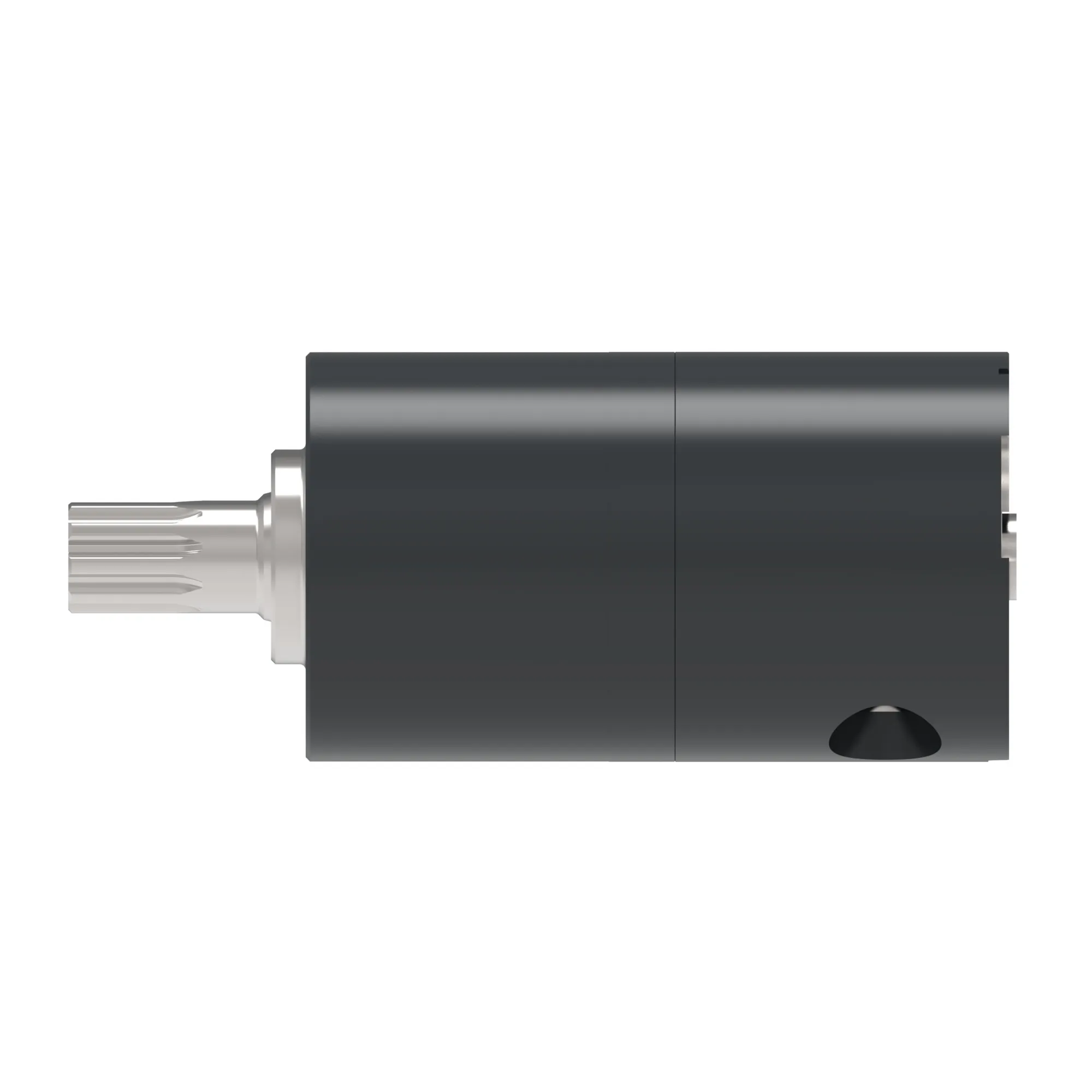

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01A1000A0B – 129-0001-002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01A1000A0B – 129-0001-002
Specification
| Model Code | M0J05A01A1000A0B |
|---|---|
| Motor Series | J Series |
| Valve System | Spool valve |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 8 |
| Geometric Displacement [Cm3/R [In3/R]] | 8.2 [0.50] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 5 Bolt – Round |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 31.5 x 5.1, 45.0, 1/4 – 28 UNF [1.24 x 0.20, 1.77, 1/4 – 28 UNF] |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 5/8 inch, 1/4 – 28 UNF-2B thread in shaft end |
| Shaft Key | Square key |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Endport – aligned |
| Main Port Dimension | 9/16 – 18 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 3/8 – 24 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | No data available |
| Front Bearing Type | Journal bearing |
| Rear Bearing Type | Journal bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
