Danfoss (Drives) 12611AY-08-06Z

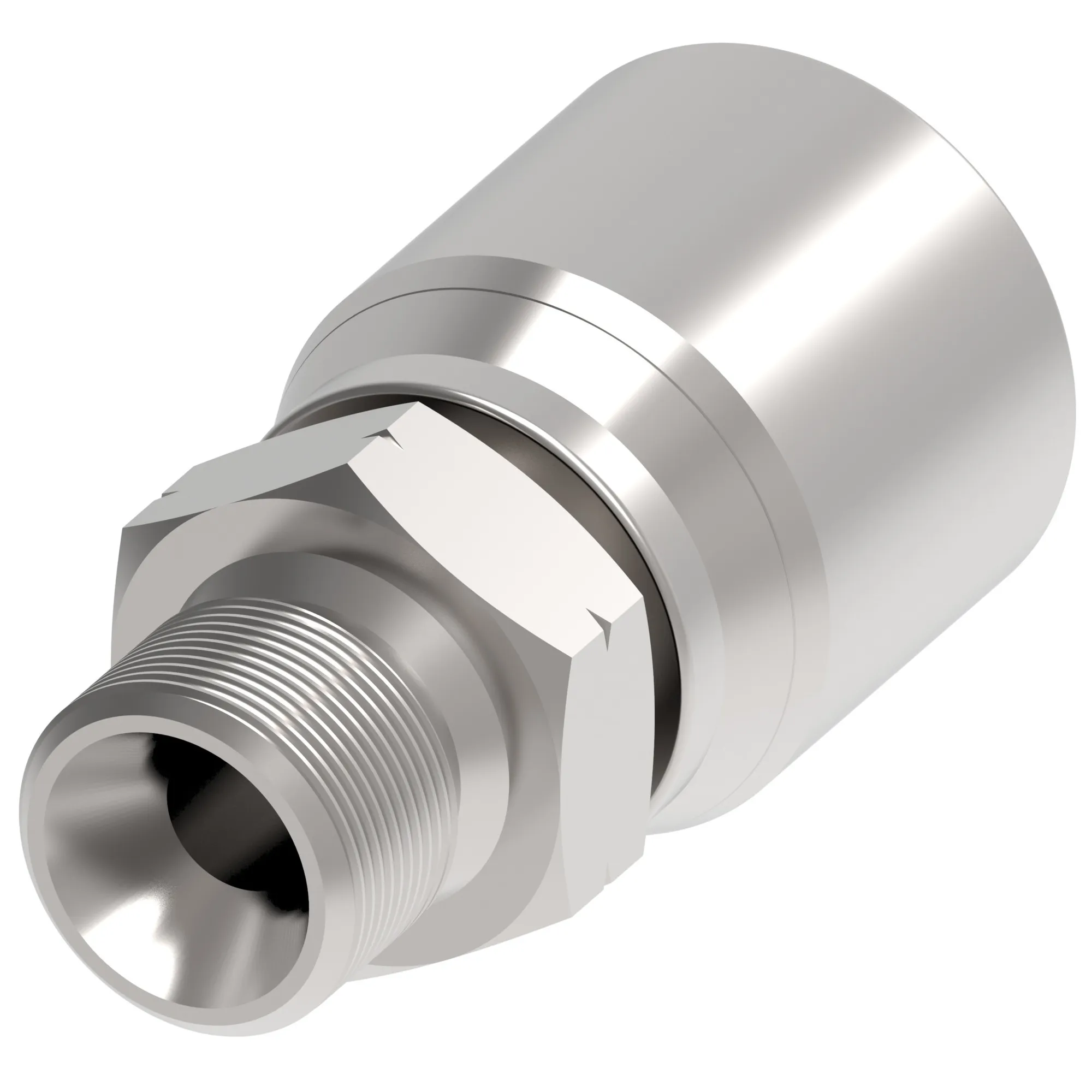

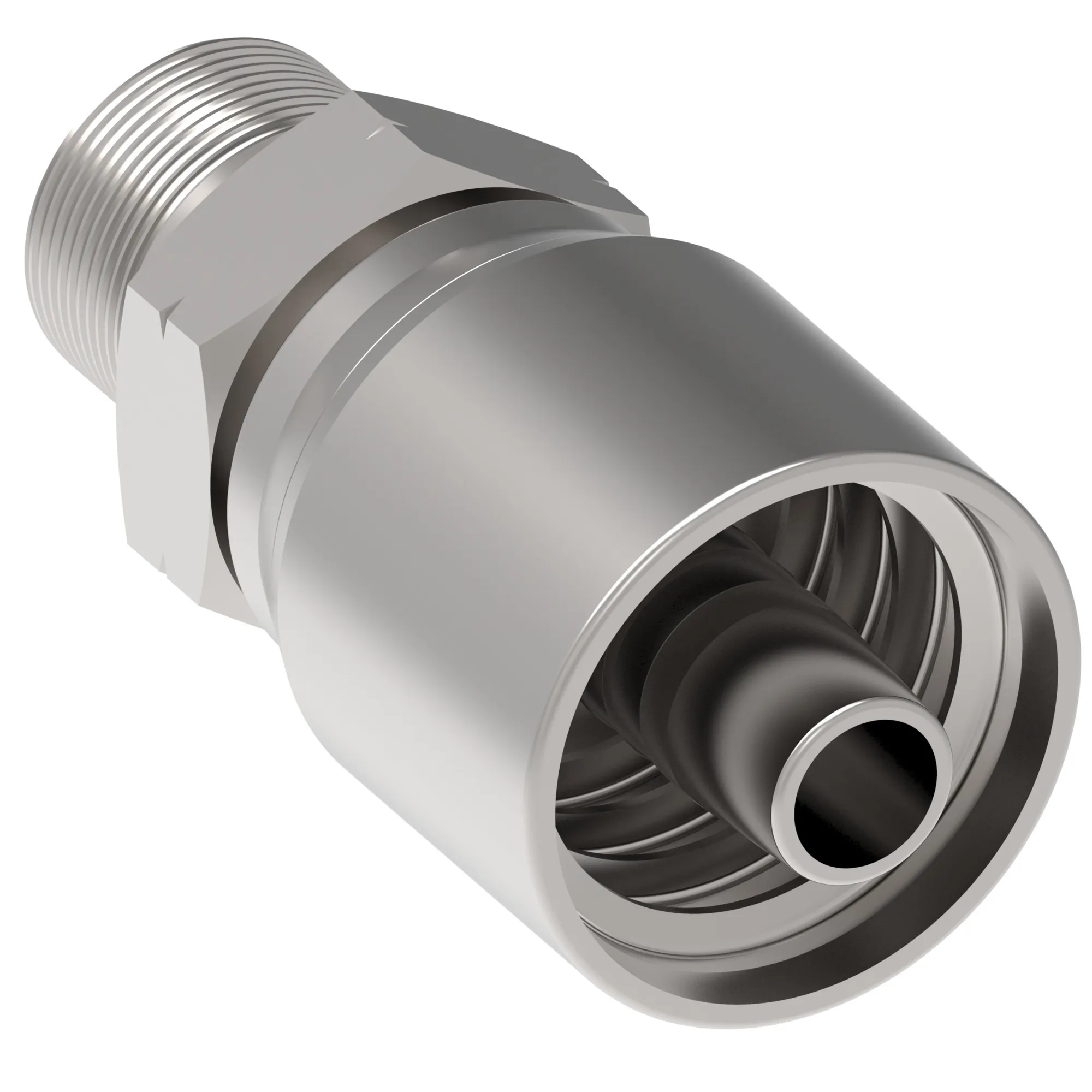

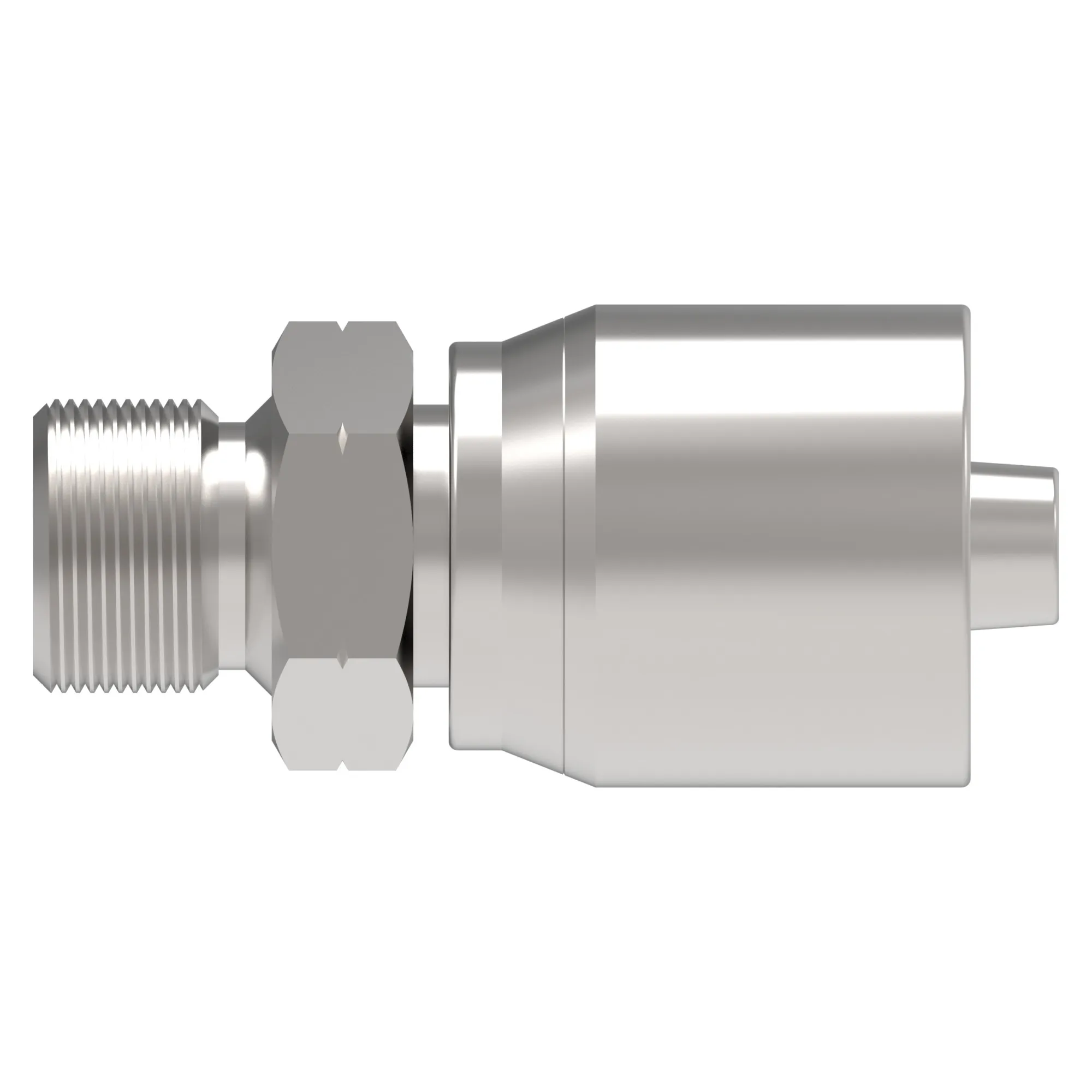

HOSE NIPPLE ASSY,1P/06,BSPJ/08,CS,STR – 12611AY-08-06Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,1P/06,BSPJ/08,CS,STR – 12611AY-08-06Z
Specification
| A Dimension In | 2.480 |
|---|---|
| A Dimension Mm | 63.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Compatible Hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| End Connection Torque | 55-70 lb-ft(75-95 Nm) |
| End Size 1 | -8 |
| End Size 2 | -6 |
| End Type 1 | Male BSPP 60 degree cone |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.063 |
| Hex Size 1 Mm | 27.000 |
| Hose Cut Off Factor In | 1.300 |
| Hose Cut Off Factor Mm | 33.000 |
| Hose Size | -6 |
| Inside Diameter In | 0.280 |
| Inside Diameter Mm | 7.000 |
| Product Height In | 1.228 |
| Product Height Mm | 31.200 |
| Product Length In | 2.480 |
| Product Length Mm | 63.000 |
| Product Material | Carbon steel |
| Product Width In | 1.063 |
| Product Width Mm | 27 |
| Thread Sealant | No |
| Thread Size 1 | G 1/2 |
| Working Pressure Max Bar | 360 |
| Working Pressure Max Psi | 5300 |
| Working Temperature Max C | 126 |
| Working Temperature Max F | 260 |
| Working Temperature Min C | -46 |
| Working Temperature Min F | -50 |
