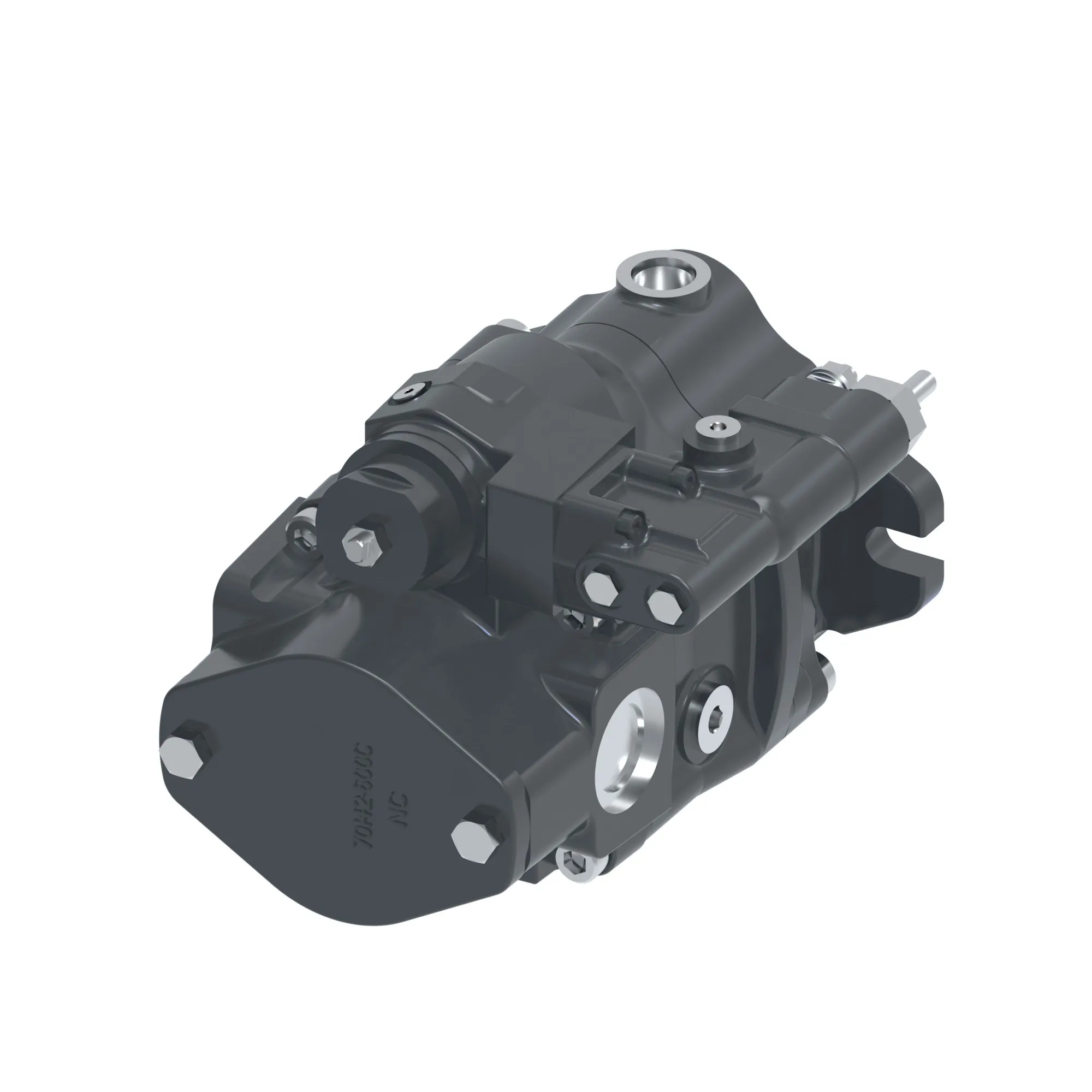

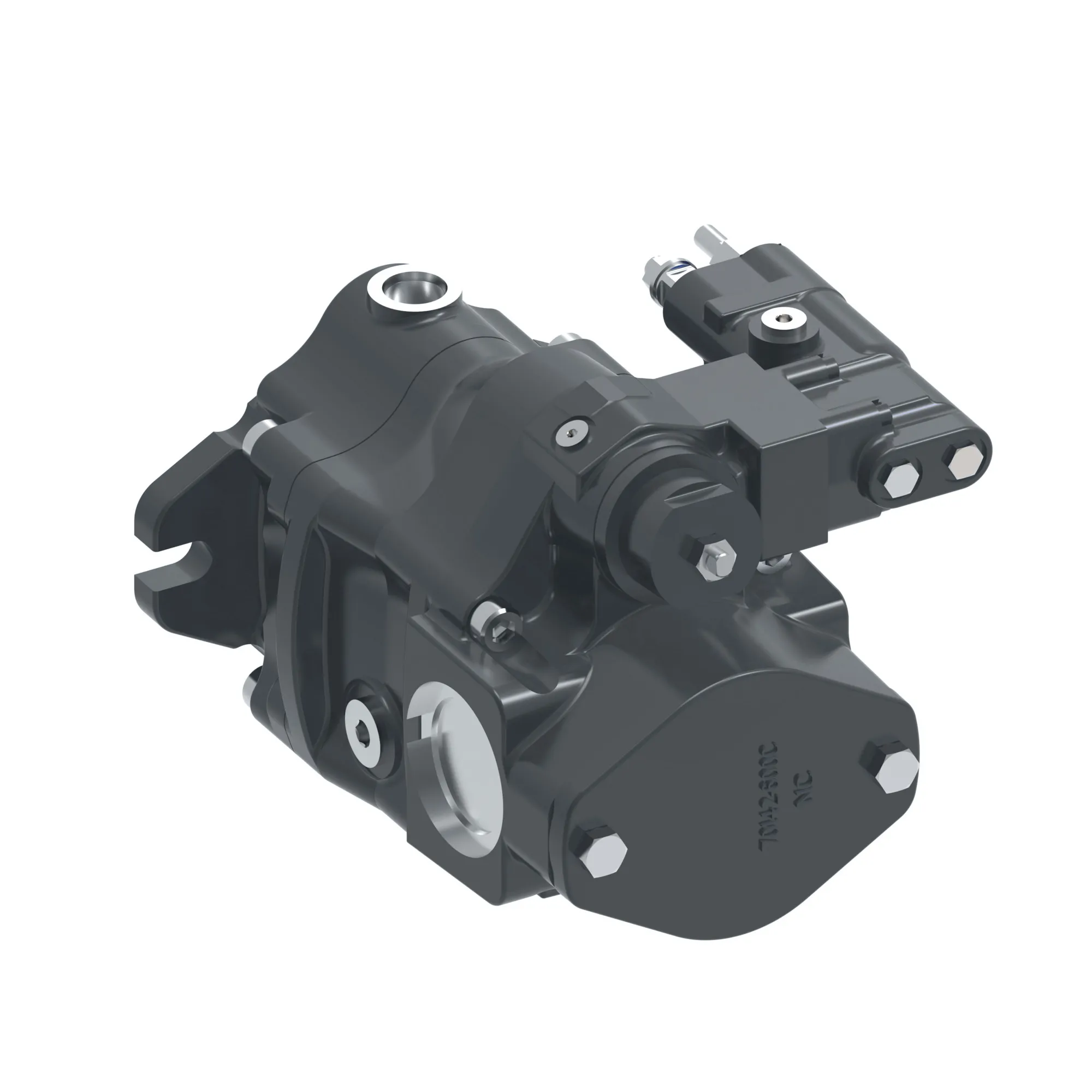

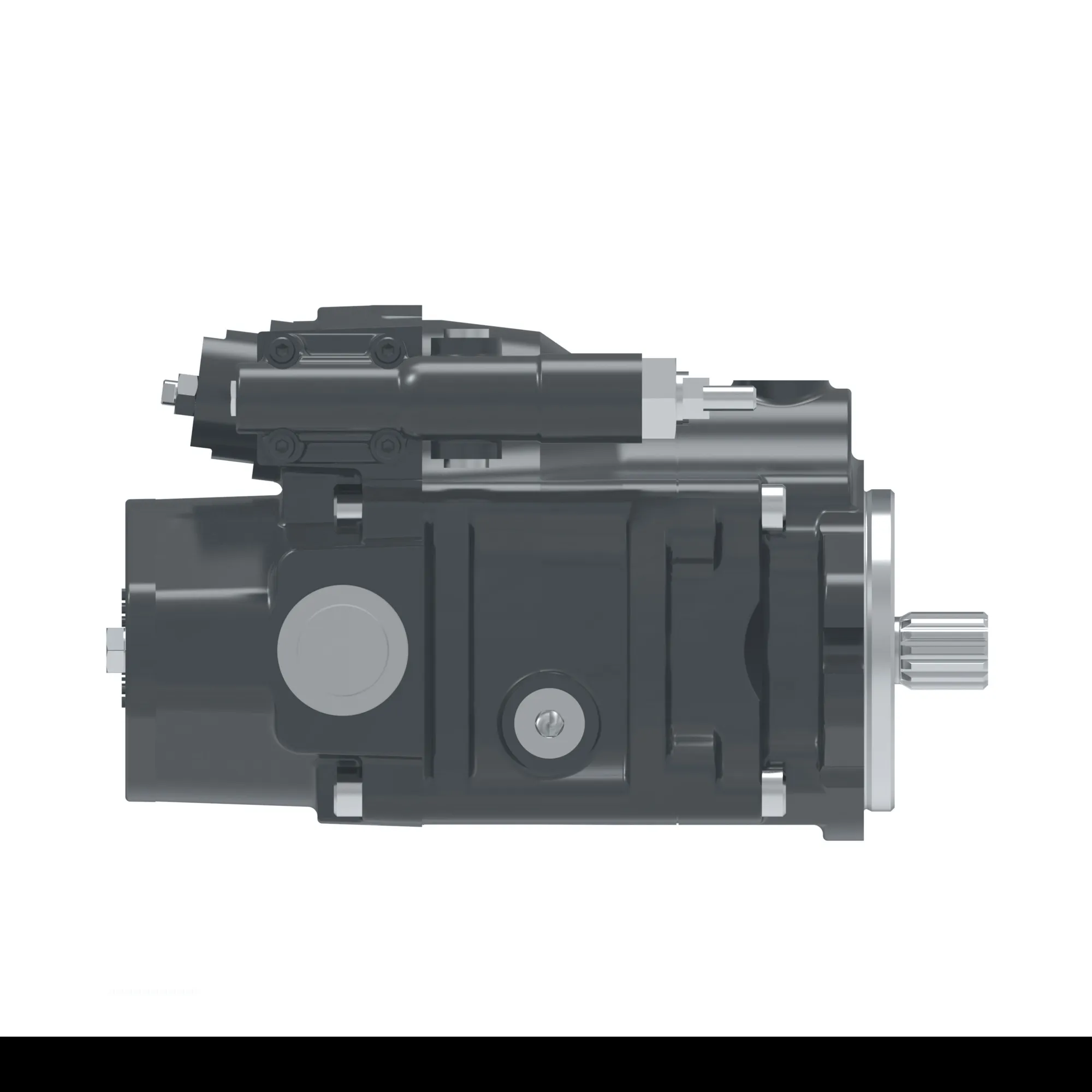

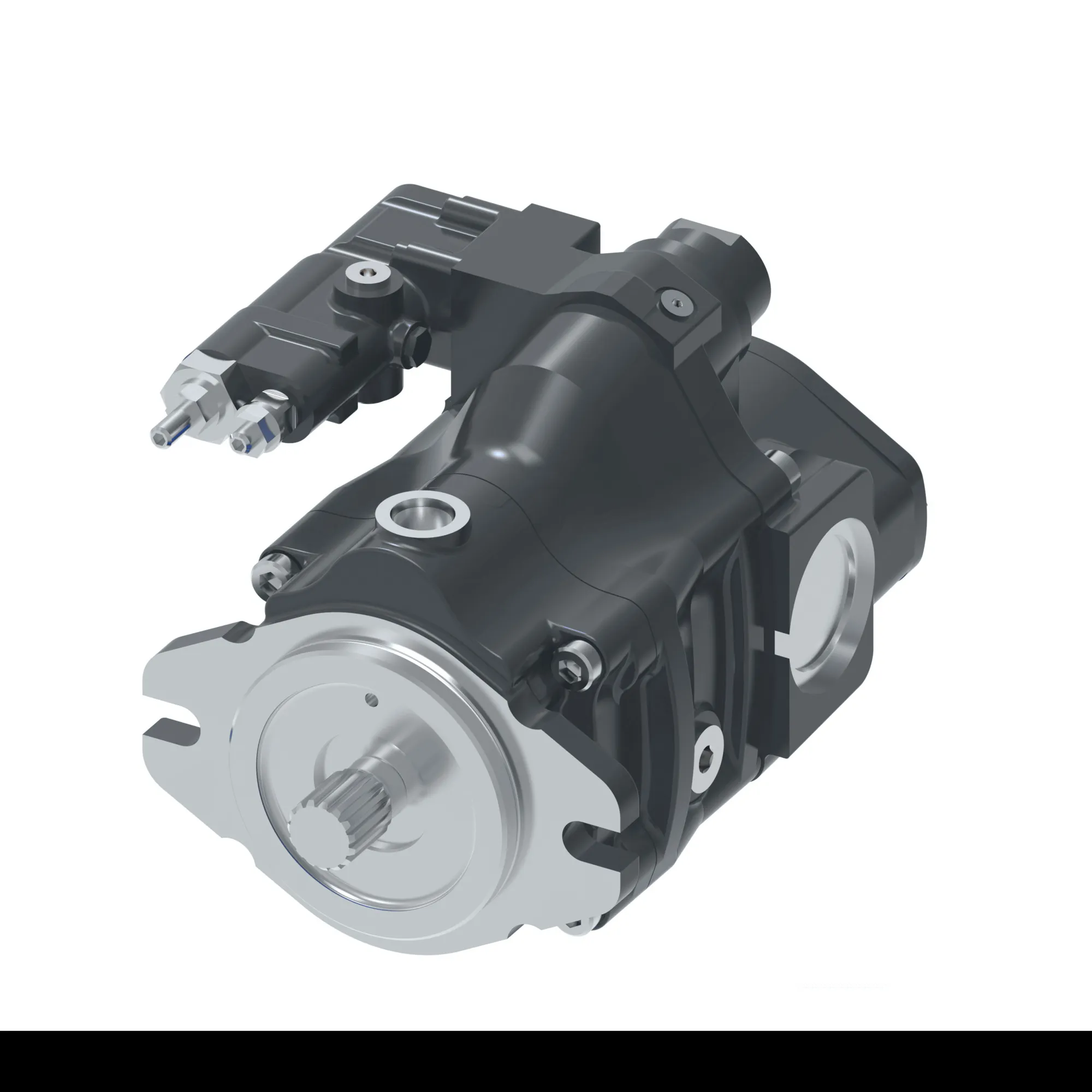

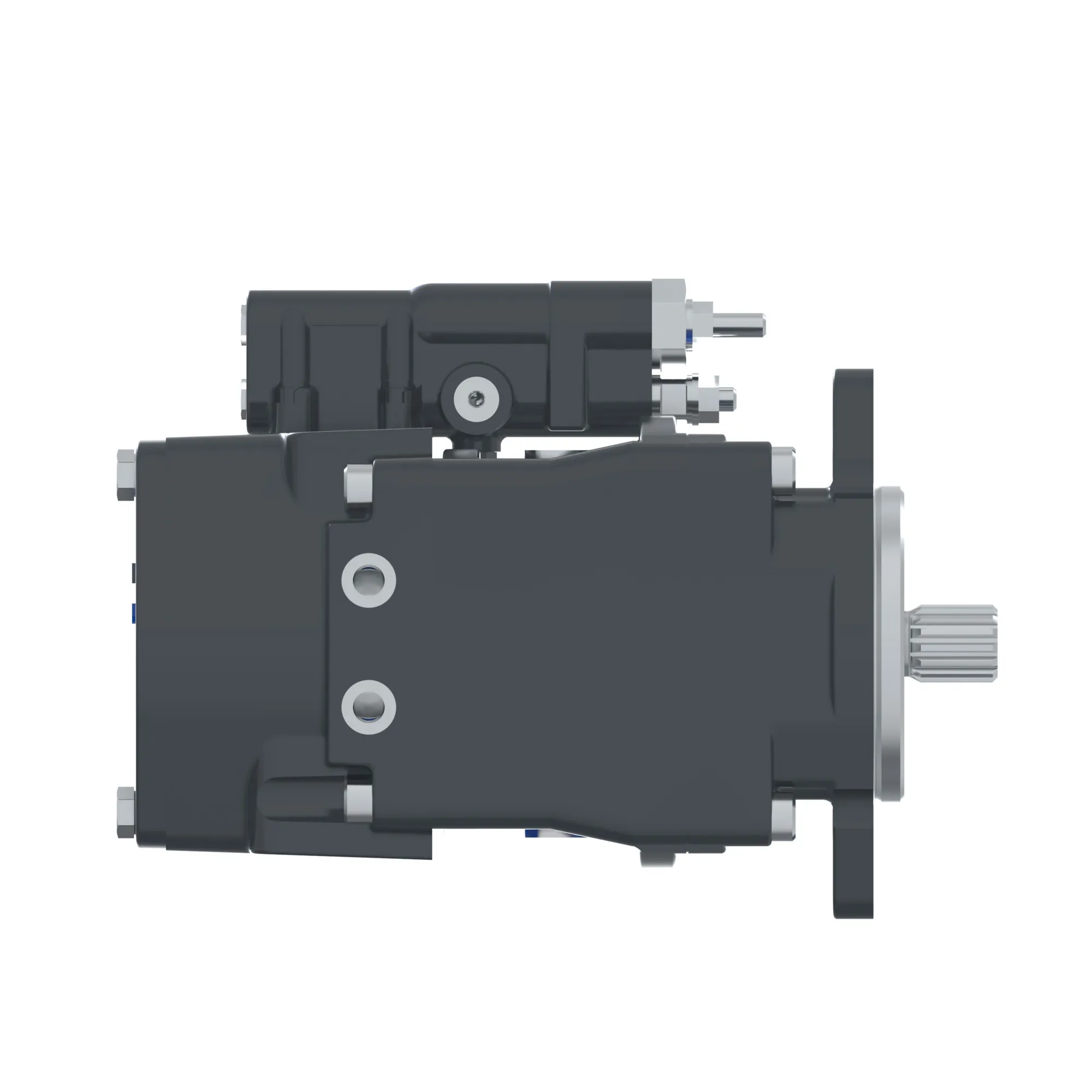

Danfoss (Drives) 123AL02136A
PVM020ER05CS01AAC23110001A0A, PVM020ER05CS01AAC23110001A0A – 123AL02136A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM020ER05CS01AAC23110001A0A, PVM020ER05CS01AAC23110001A0A – 123AL02136A
Specification
| D I S P L A C E M E N T | 21.1 cm3/r [1.29 in3/r] (230 bar MAX) |
|---|---|
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | SAE J744-22-1 SAE B STRAIGHT KEYED (MODEL 018 028 AND 045) |
| Mounting Flange | SAE J744-101-2 (B 2-BOLT) (MODELS 018 028 045) |
| Main Port Location | SIDE |
| Port Options | SAE J514 TUBE PORTS SAE AUXILIARY PORTS |
| Pump Special Features | ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL) |
| C O N T R O L | PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE |
| Pressure Comp Set | 227-234 BAR [3277-3393 LBF/IN2] |
| Flow Comp Unld Vlv Rpc Set | 10-12 BAR [145-174 LBF/IN2] |
| Unld Vlv Tq Control Set | NONE |
| Comp Special Features | NONE |
| Auxiliary Mounting | AUXILIARY MOUNT COVER PLATE |
| Paint | BLACK [DEFAULT] |
| Customer Identification | NONE |
| Design Code | A |
| Code Title | VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS |
| Ipm Frame Size | PVM Code A 20cc Pump |
| Model Code 1 | PVM020ER05CS01AAC23110001A0A |
