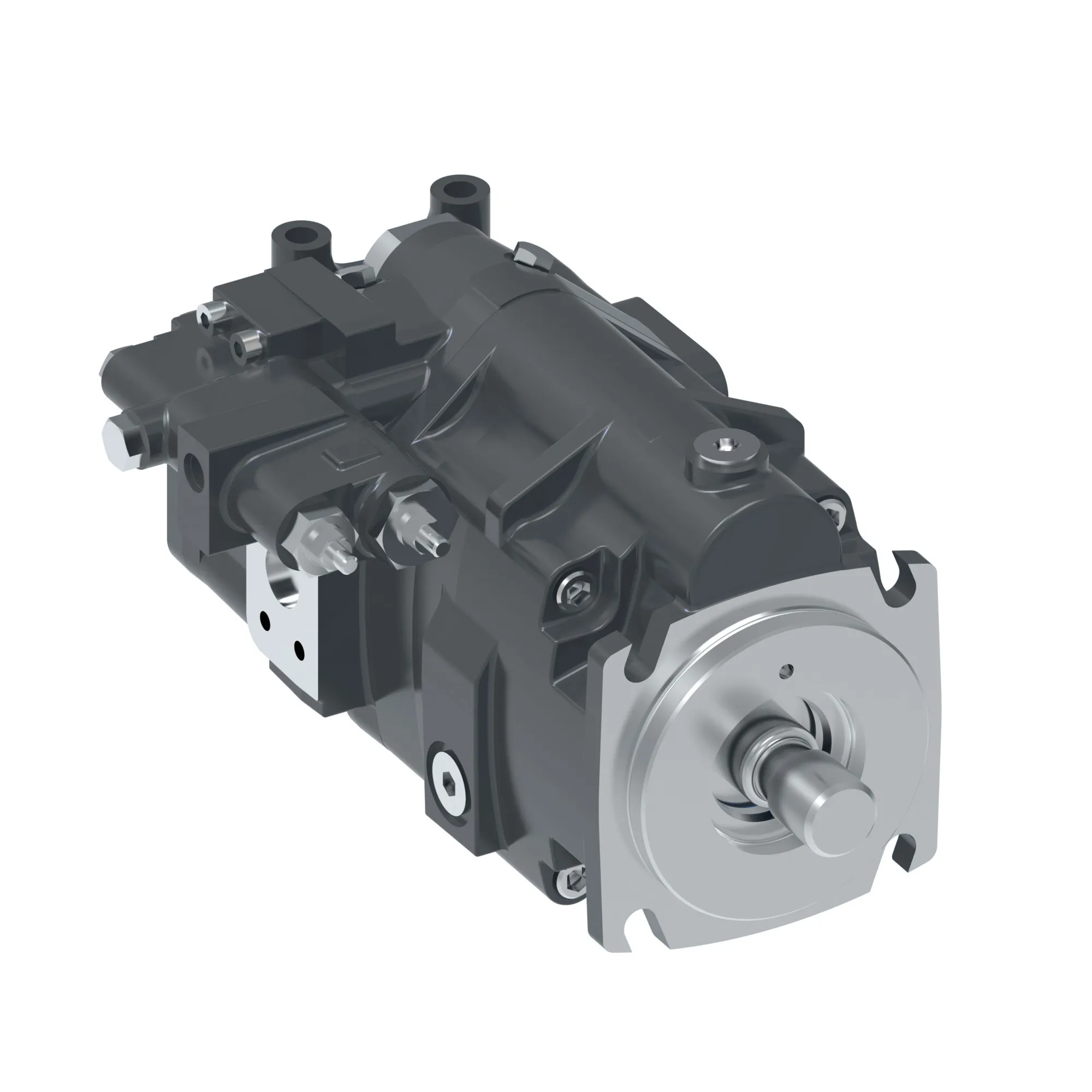

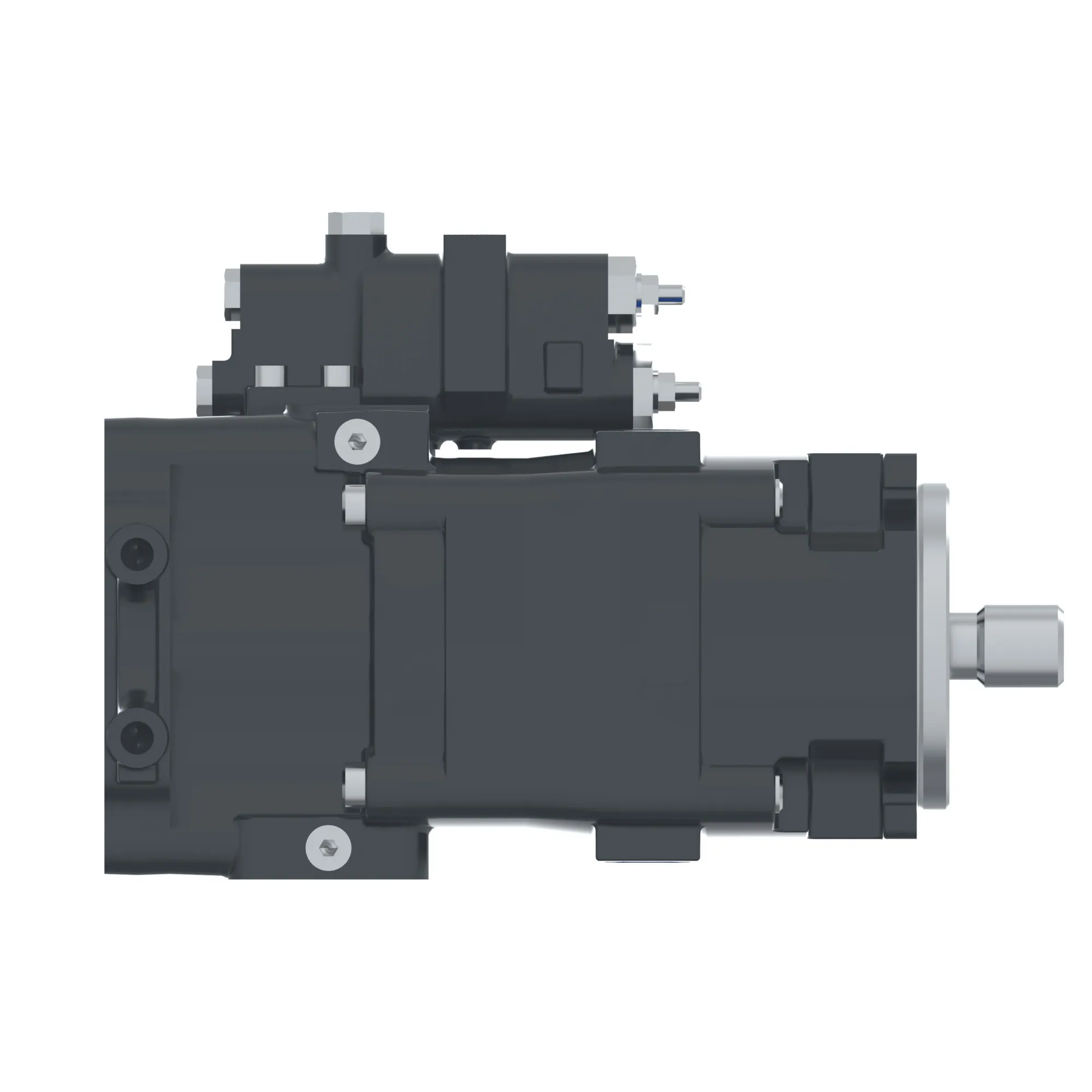

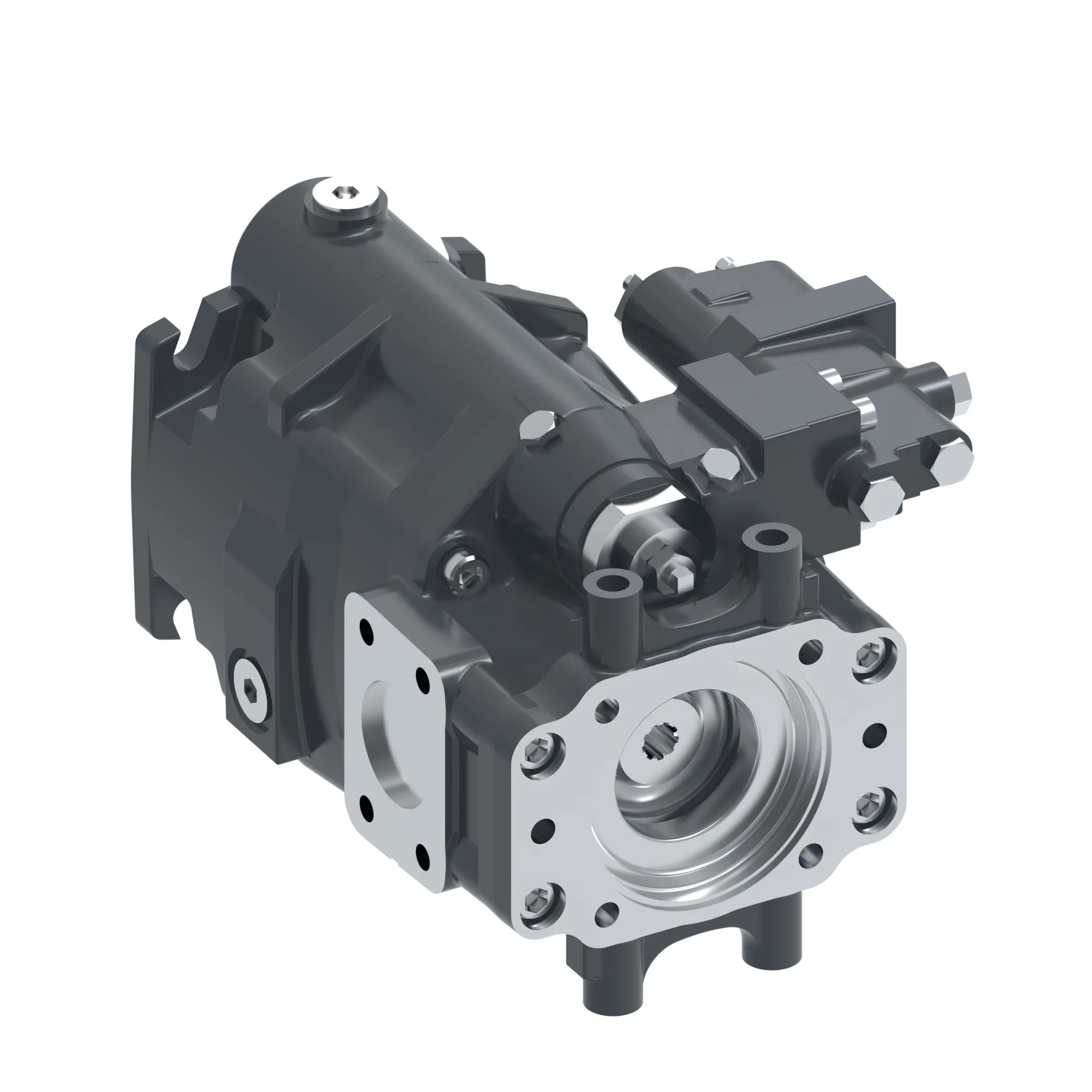

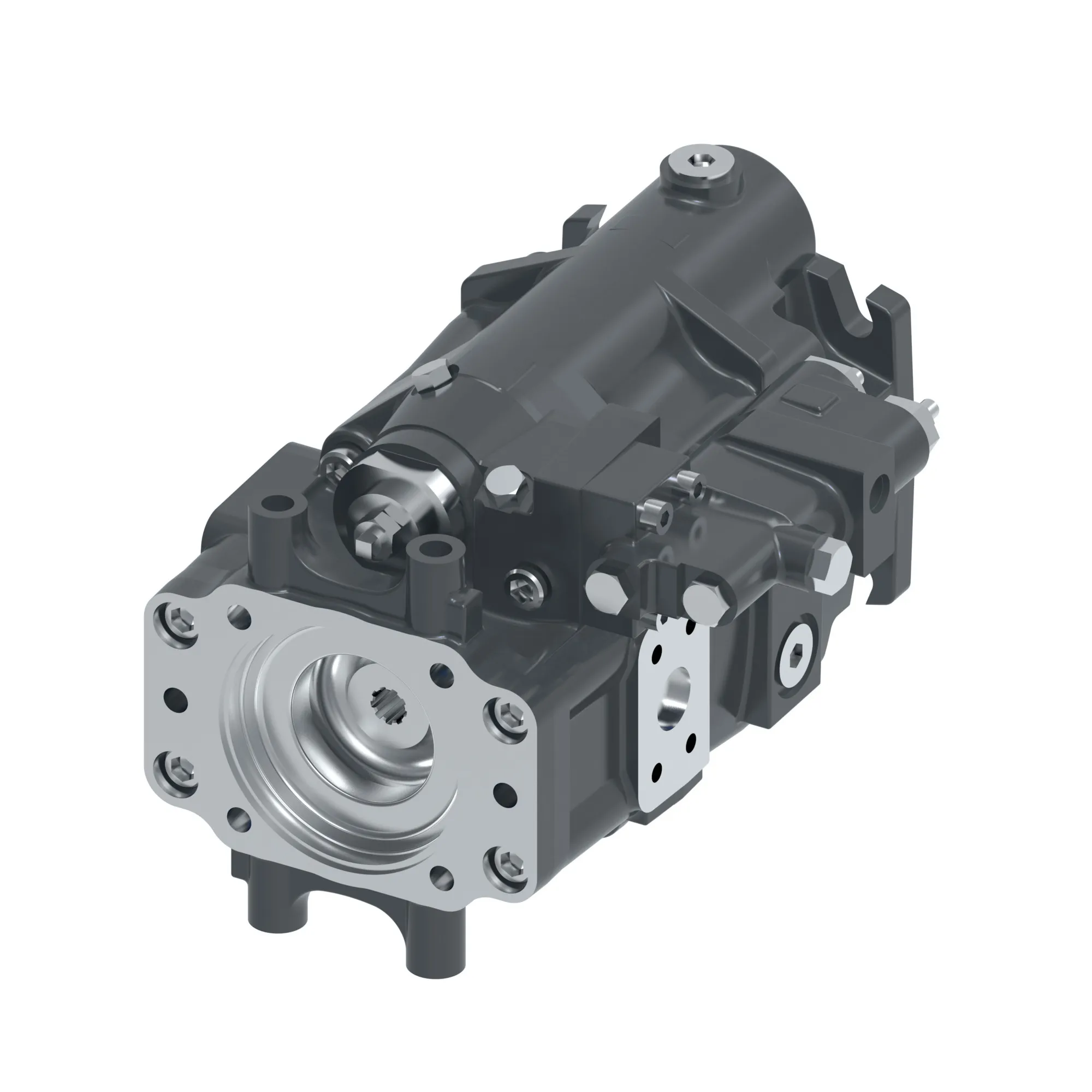

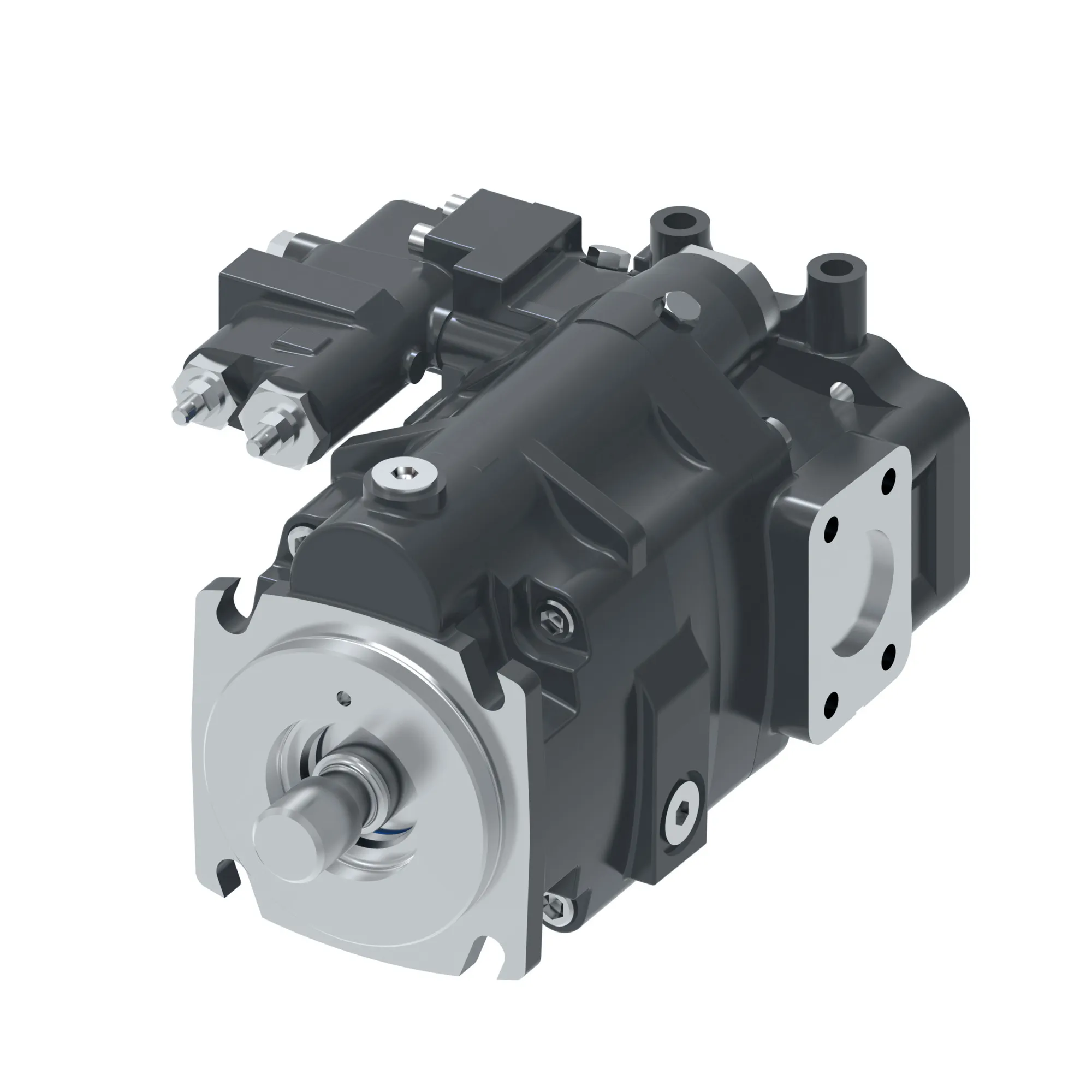

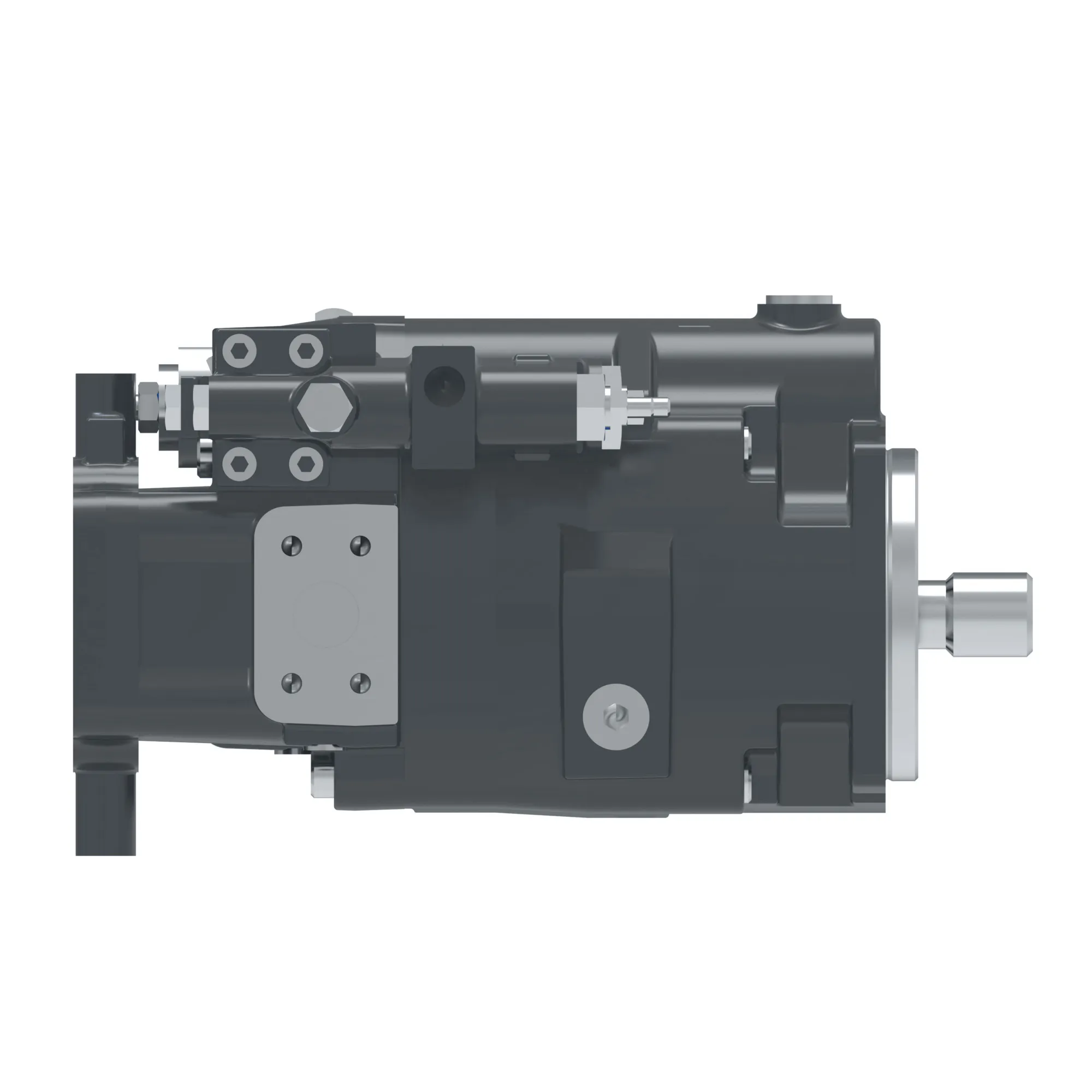

Danfoss (Drives) 123AL01782A
PVM063ER09ES02AAC2611000CA0A, PVM063ER09ES02AAC2611000CA0A – 123AL01782A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM063ER09ES02AAC2611000CA0A, PVM063ER09ES02AAC2611000CA0A – 123AL01782A
Specification
| P R O D U C T | VAR DISP OCP PVM PUMP |
|---|---|
| D I S P L A C E M E N T | 63.1 cm3/r [3.85 in3/r] (230 bar MAX) |
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | SAE J744-32-1 SAE C STRAIGHT KEYED (MODEL 057 074 098 AND 131) |
| Mounting Flange | SAE J744-127-2 (C 2-BOLT) (MODEL 057) |
| Main Port Location | SIDE |
| Port Options | SAE J518 FLANGE PORTS SAE AUXILIARY PORTS |
| Pump Special Features | ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL) |
| C O N T R O L | PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE |
| Pressure Comp Set | 256-264 BAR [3712-3828 LBF/IN2] |
| Flow Comp Unld Vlv Rpc Set | 10-12 BAR [145-174 LBF/IN2] |
| Unld Vlv Tq Control Set | NONE |
| Comp Special Features | NONE |
| Auxiliary Mounting | AUXILIARY MOUNT COVER PLATE |
| Paint | BLACK [DEFAULT] |
| Customer Identification | NONE |
| Design Code | A |
| Brand | Vickers by Danfoss |
| Code Title | VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS |
| Ipm Frame Size | PVM Code A 63cc Pump |
| Model Code 1 | PVM063ER09ES02AAC2611000CA0A |
