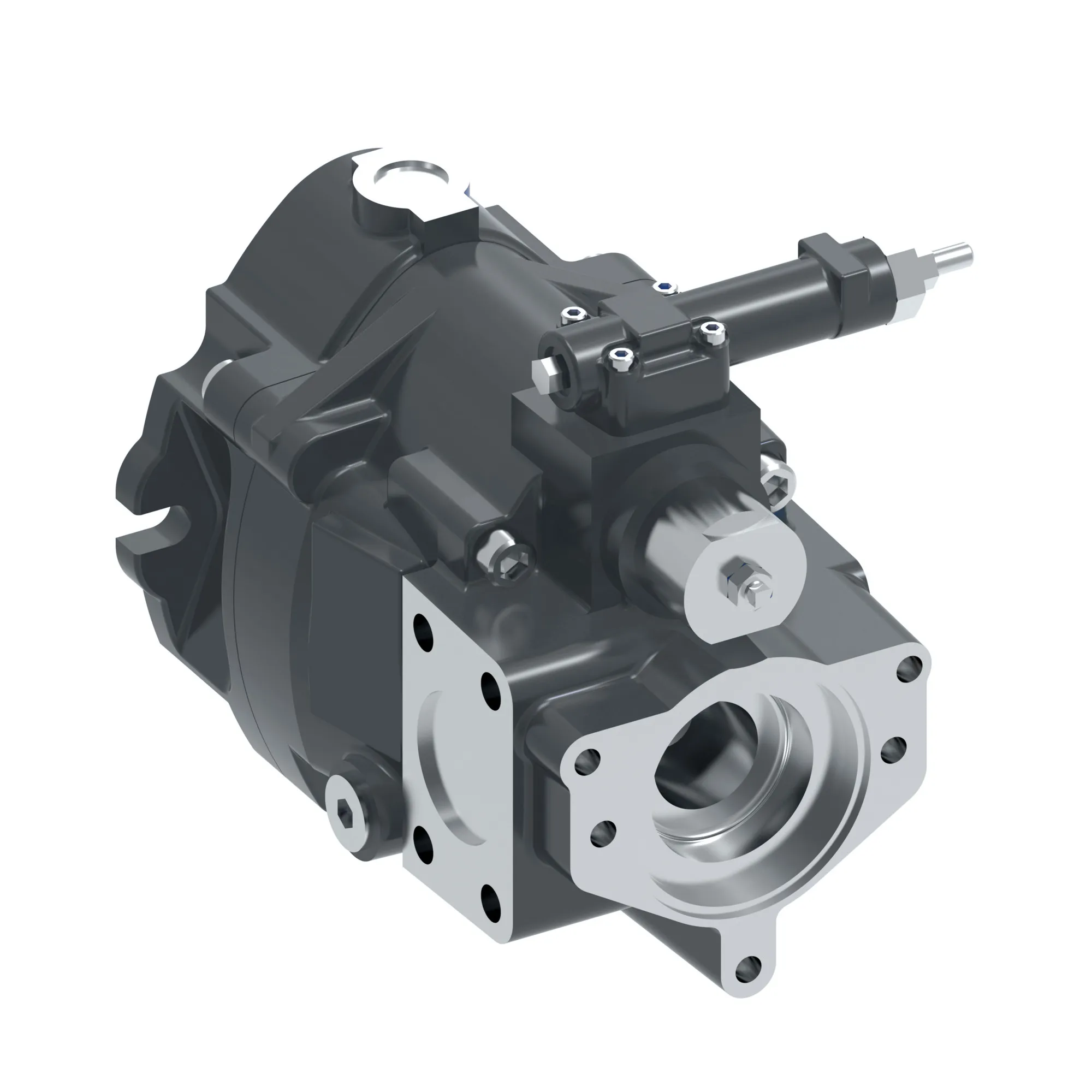

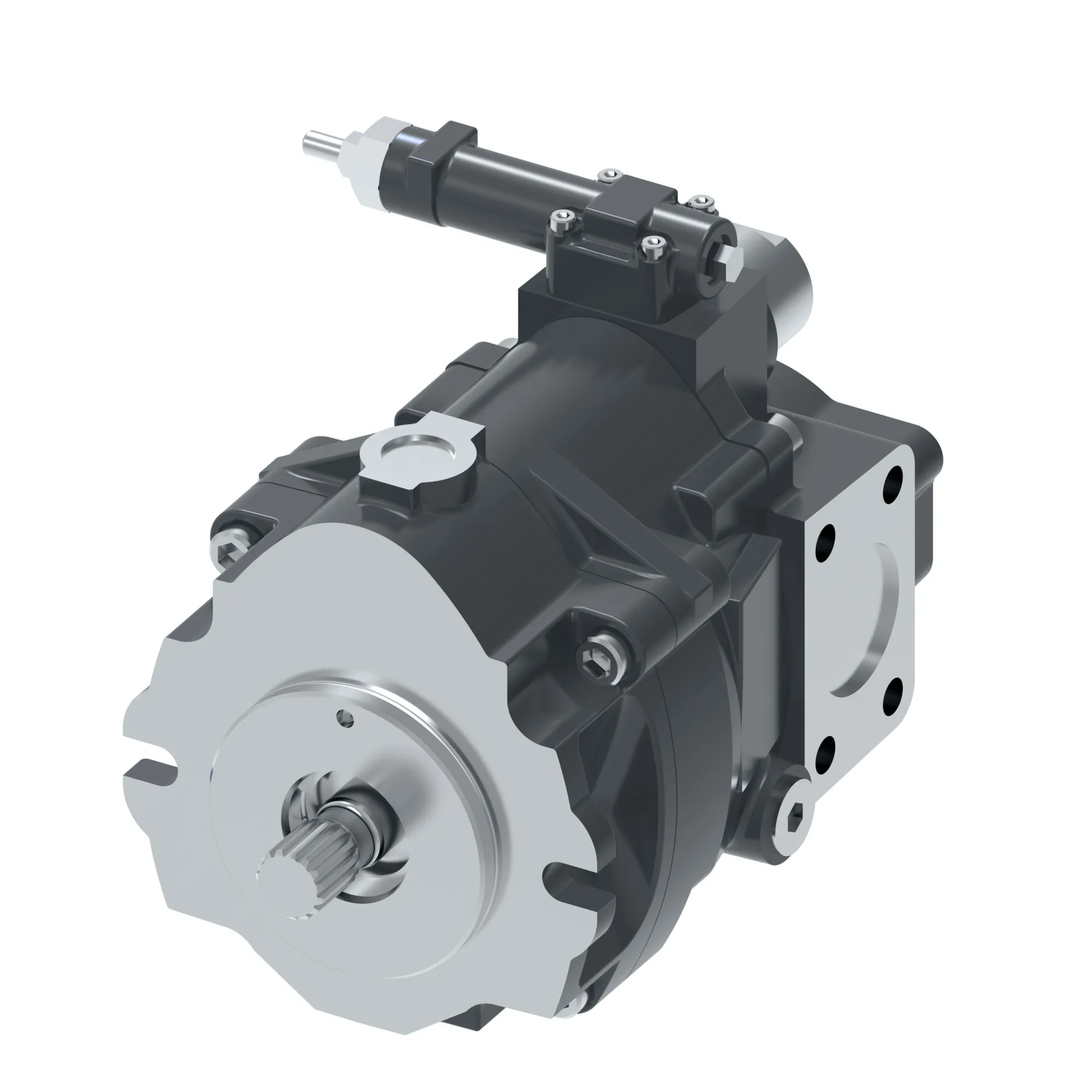

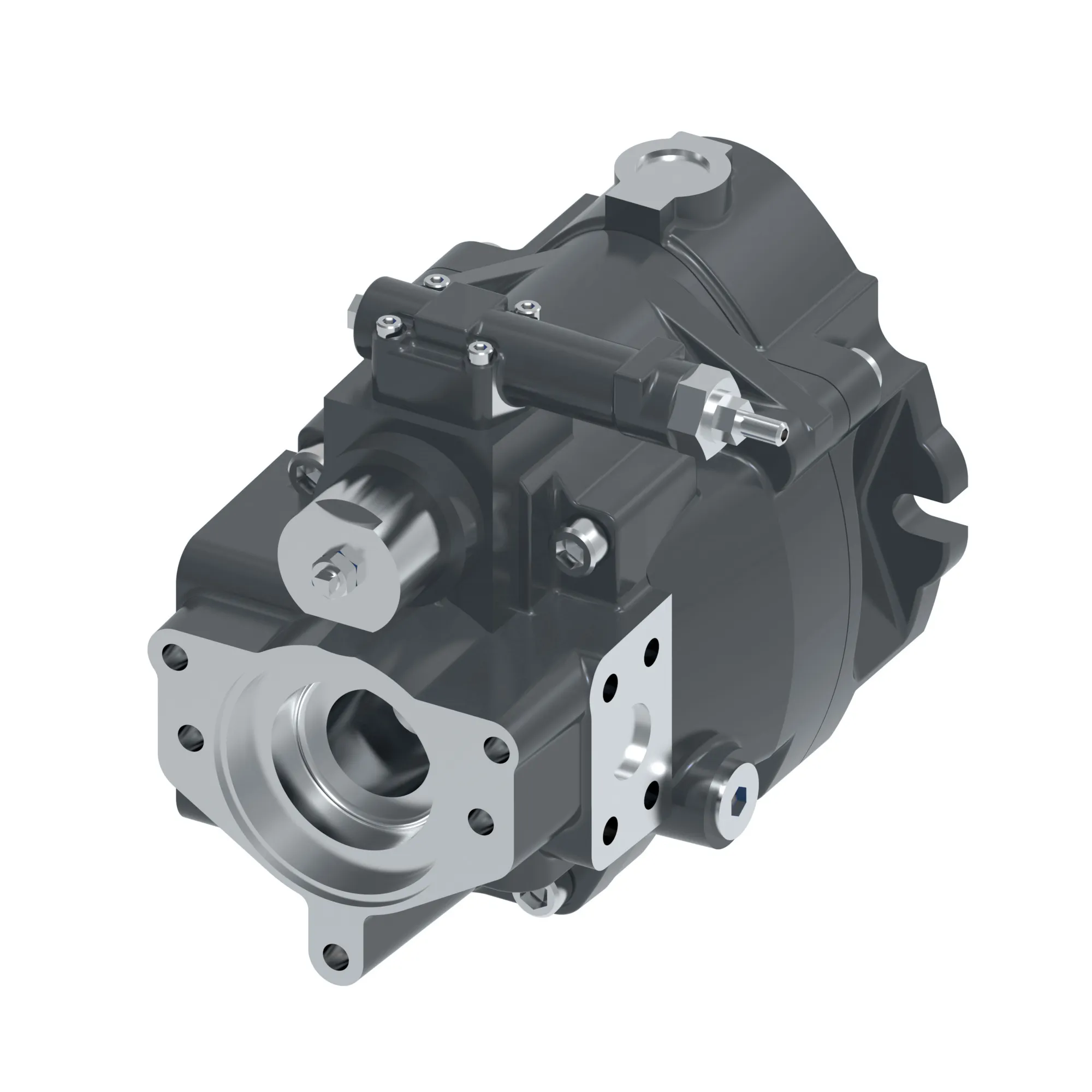

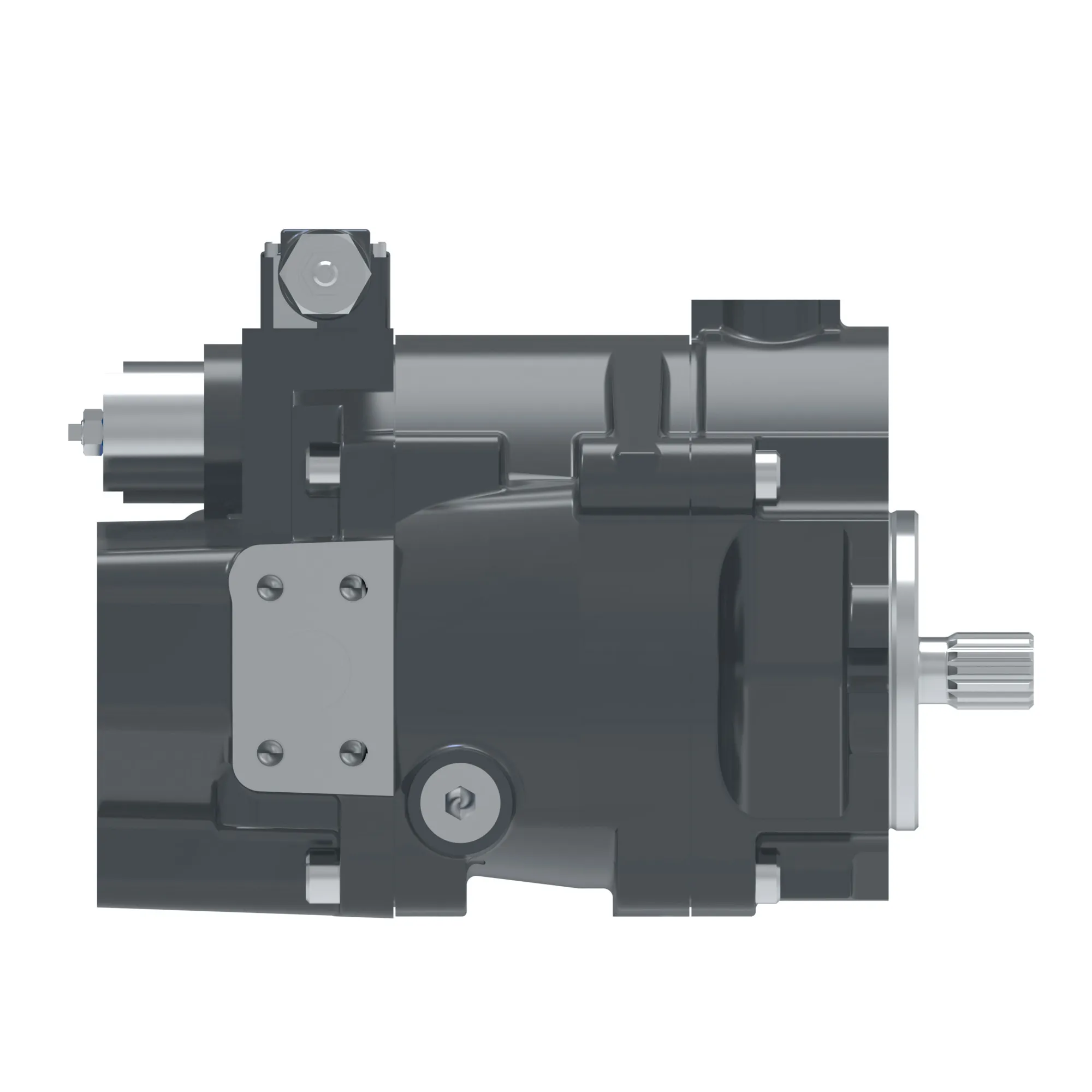

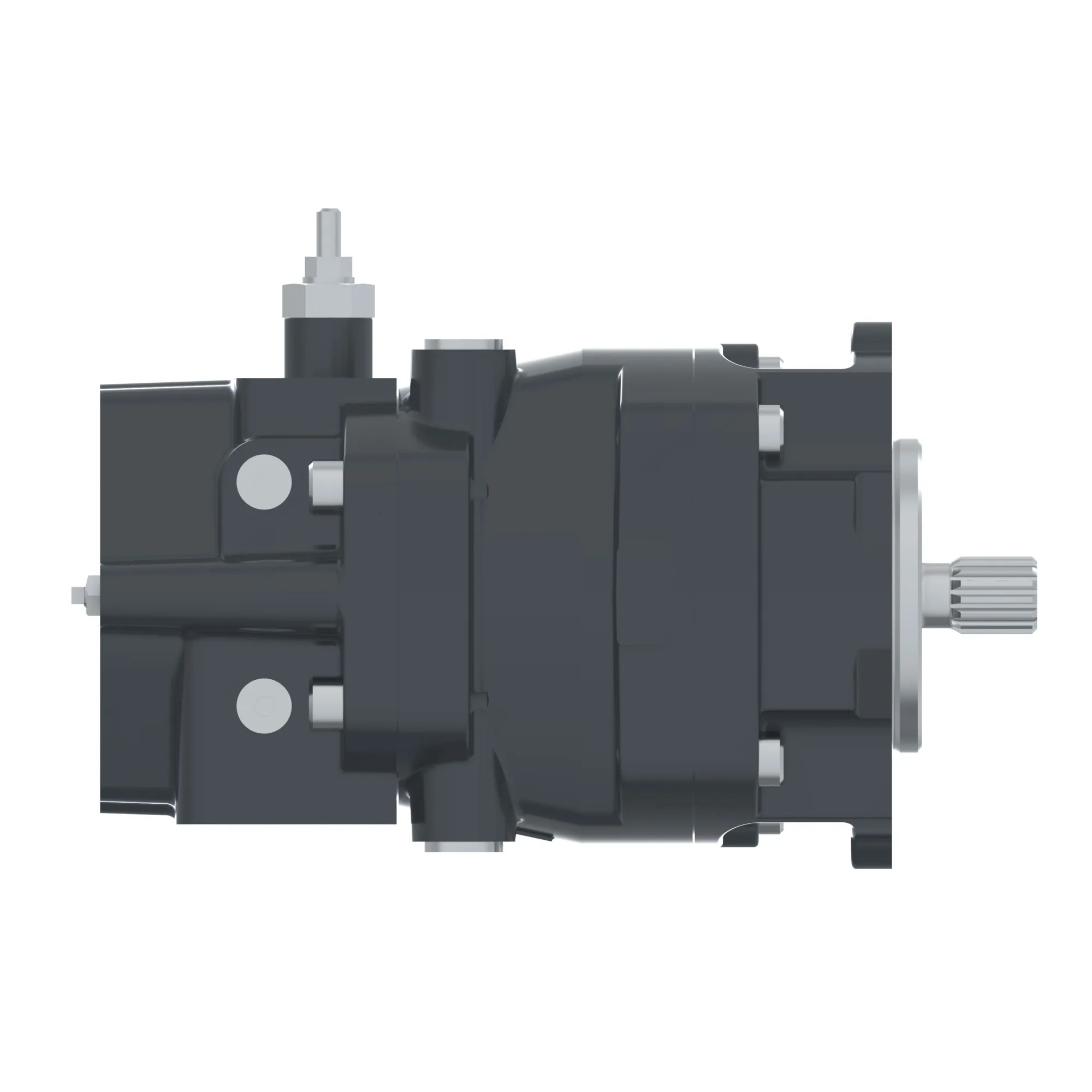

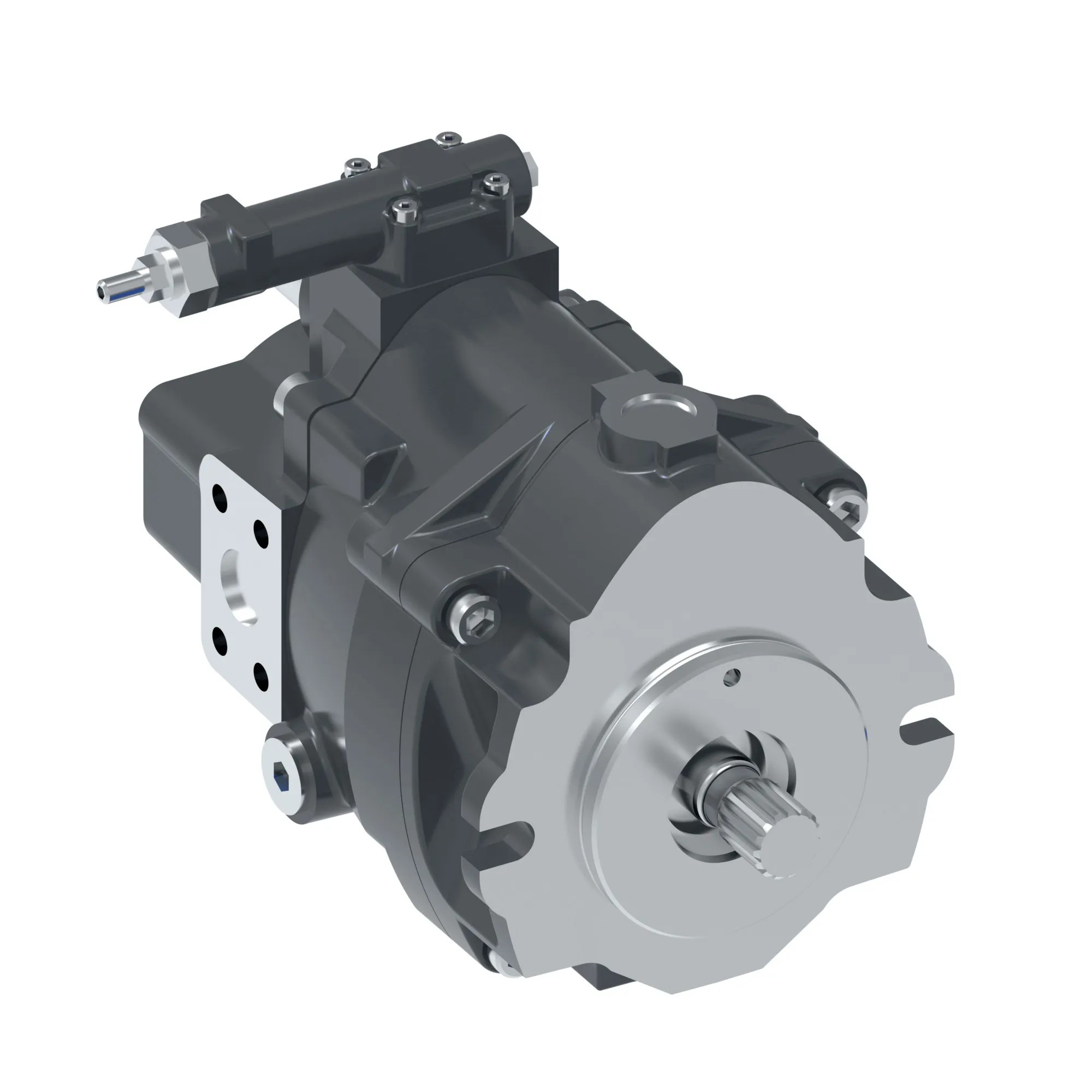

Danfoss (Drives) 123AL01585A
PVM045ER07CS02AAA2800000AA0A, PVM045ER07CS02AAA2800000AA0A – 123AL01585A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM045ER07CS02AAA2800000AA0A, PVM045ER07CS02AAA2800000AA0A – 123AL01585A
Specification
| P R O D U C T | VAR DISP OCP PVM PUMP |
|---|---|
| D I S P L A C E M E N T | 45.1 cm3/r [2.75 in3/r] (280 bar MAX) |
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | SAE J744-22-4 SAE B 13T SPLINE (MODEL 018 028 045 AND 057) |
| Mounting Flange | SAE J744-101-2 (B 2-BOLT) (MODELS 018 028 045) |
| Main Port Location | SIDE |
| Port Options | SAE J518 FLANGE PORTS SAE AUXILIARY PORTS |
| Pump Special Features | ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL) |
| C O N T R O L | PRESSURE COMPENSATOR |
| Pressure Comp Set | 276-284 BAR [4002-4118 LBF/IN2] |
| Flow Comp Unld Vlv Rpc Set | NONE |
| Unld Vlv Tq Control Set | NONE |
| Comp Special Features | NONE |
| Auxiliary Mounting | SAE A 2-BOLT 9T SPLINE ALL MODELS |
| Paint | BLACK [DEFAULT] |
| Customer Identification | NONE |
| Design Code | A |
| Brand | Vickers by Danfoss |
| Code Title | VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS |
| Ipm Frame Size | PVM Code A 45cc Pump |
| Model Code 1 | PVM045ER07CS02AAA2800000AA0A |
