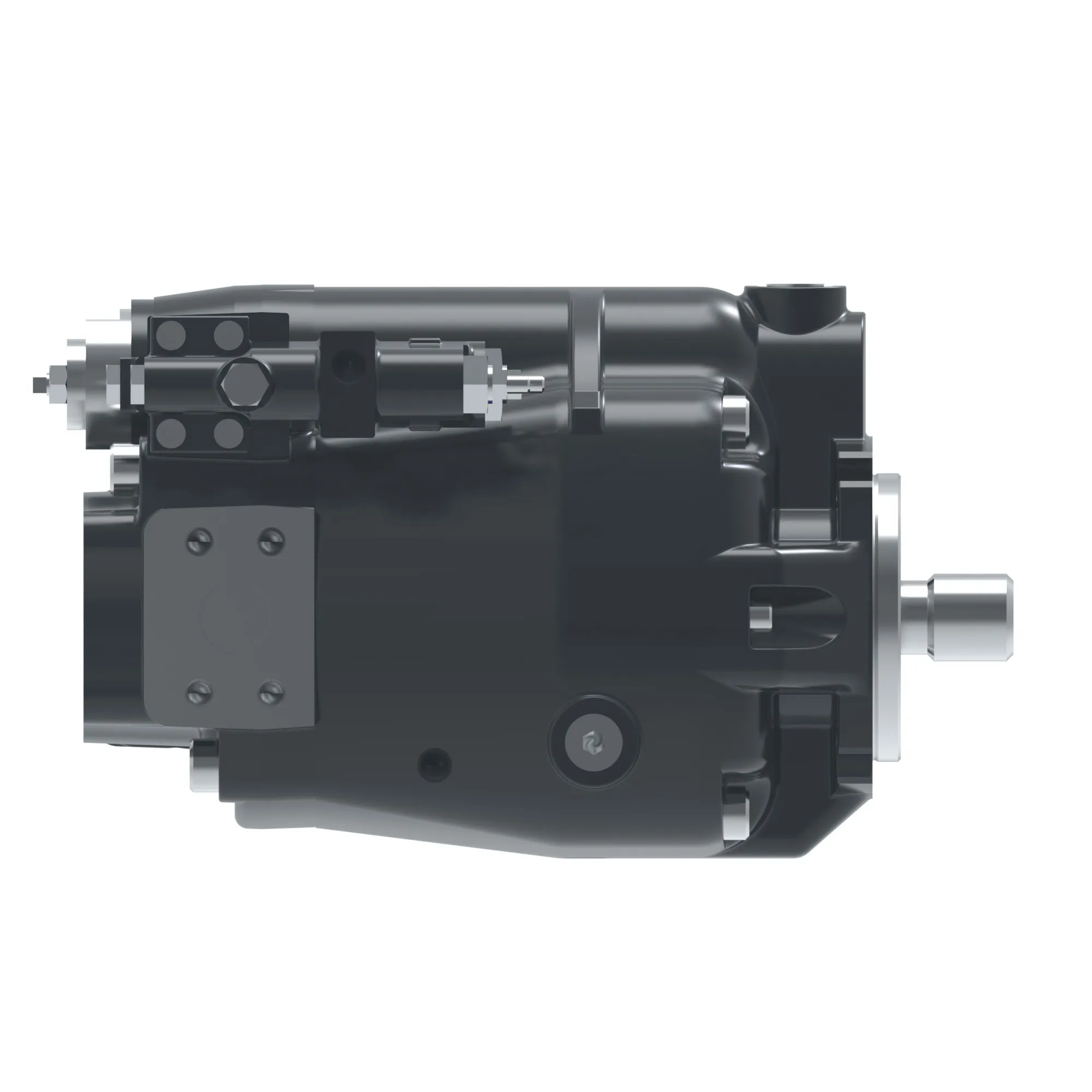

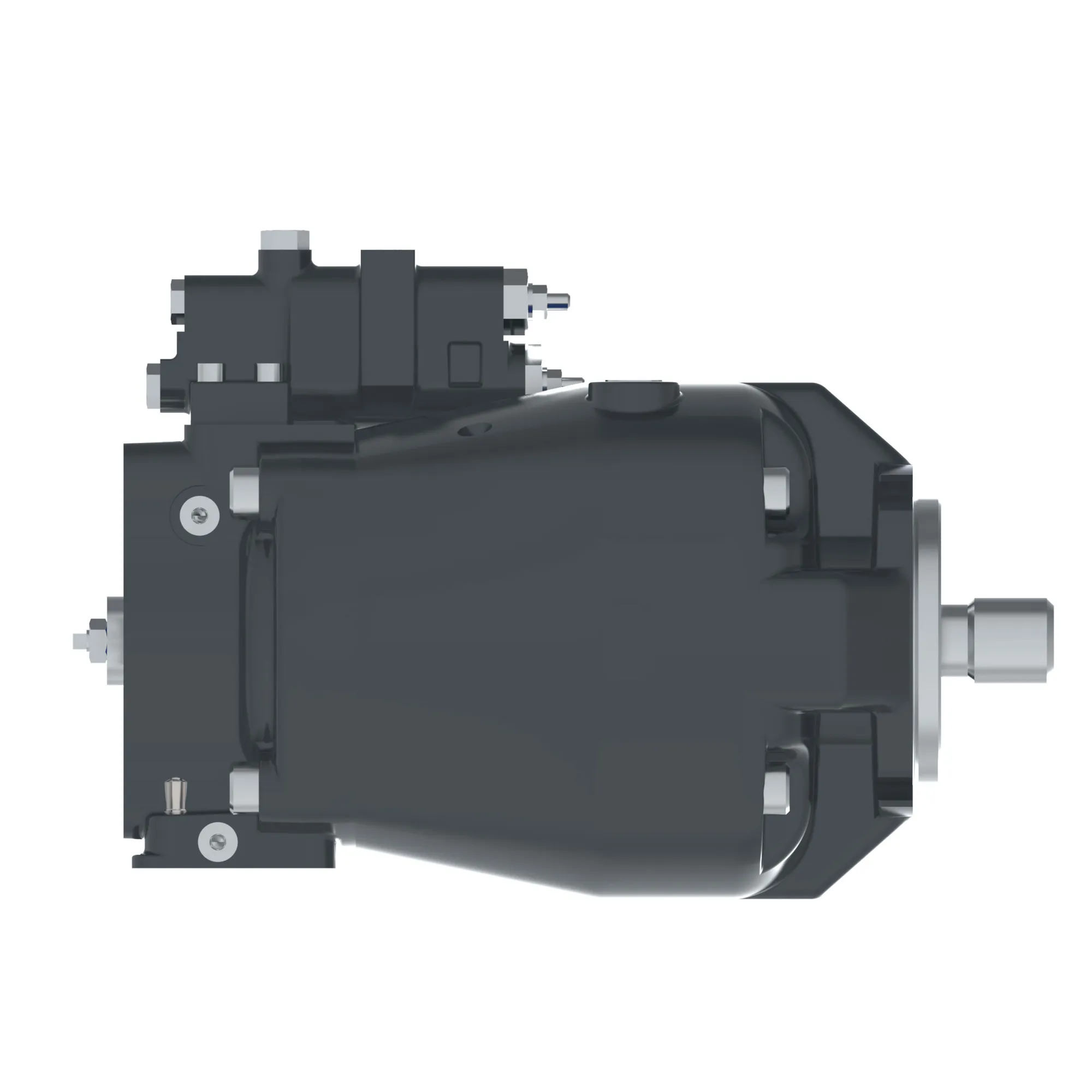

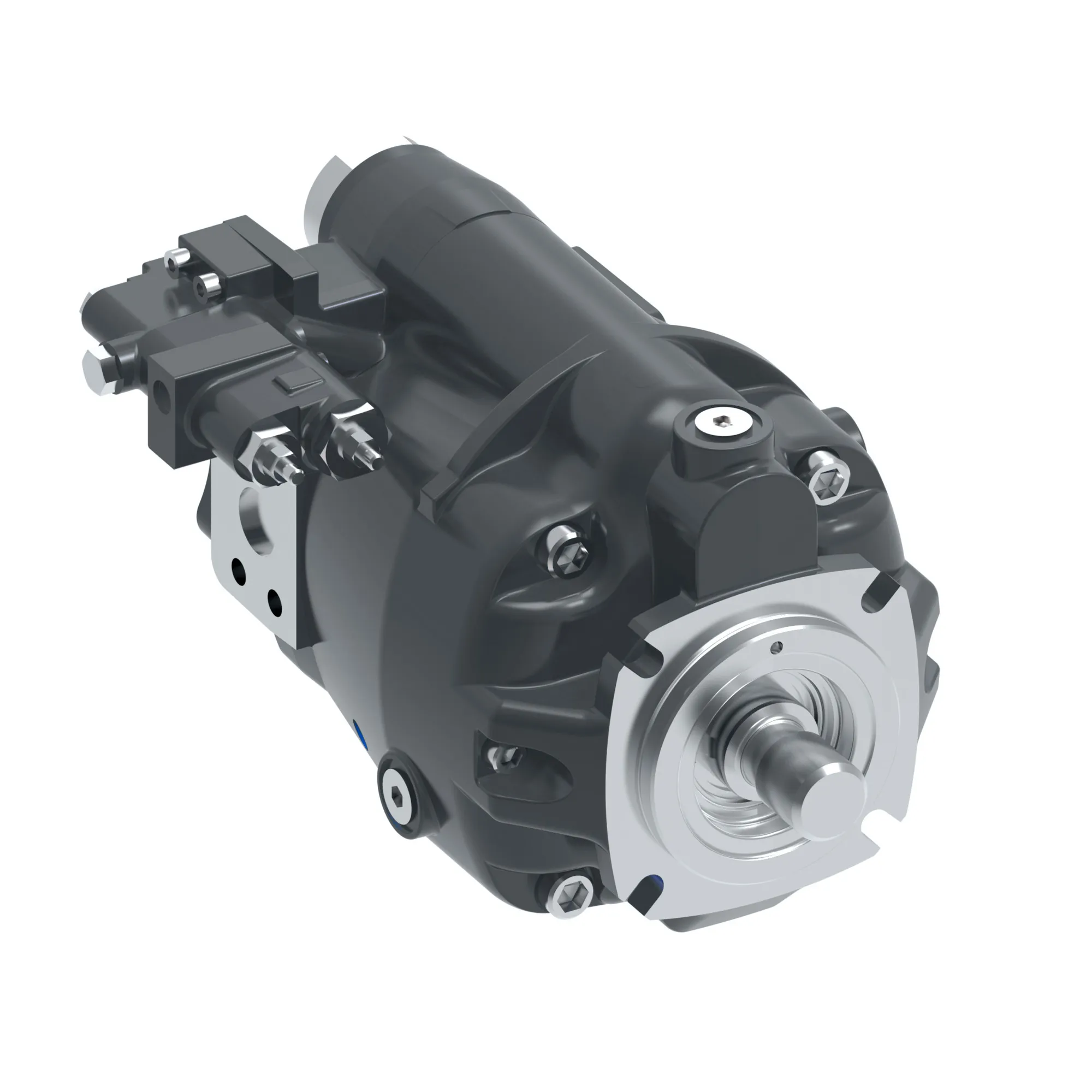

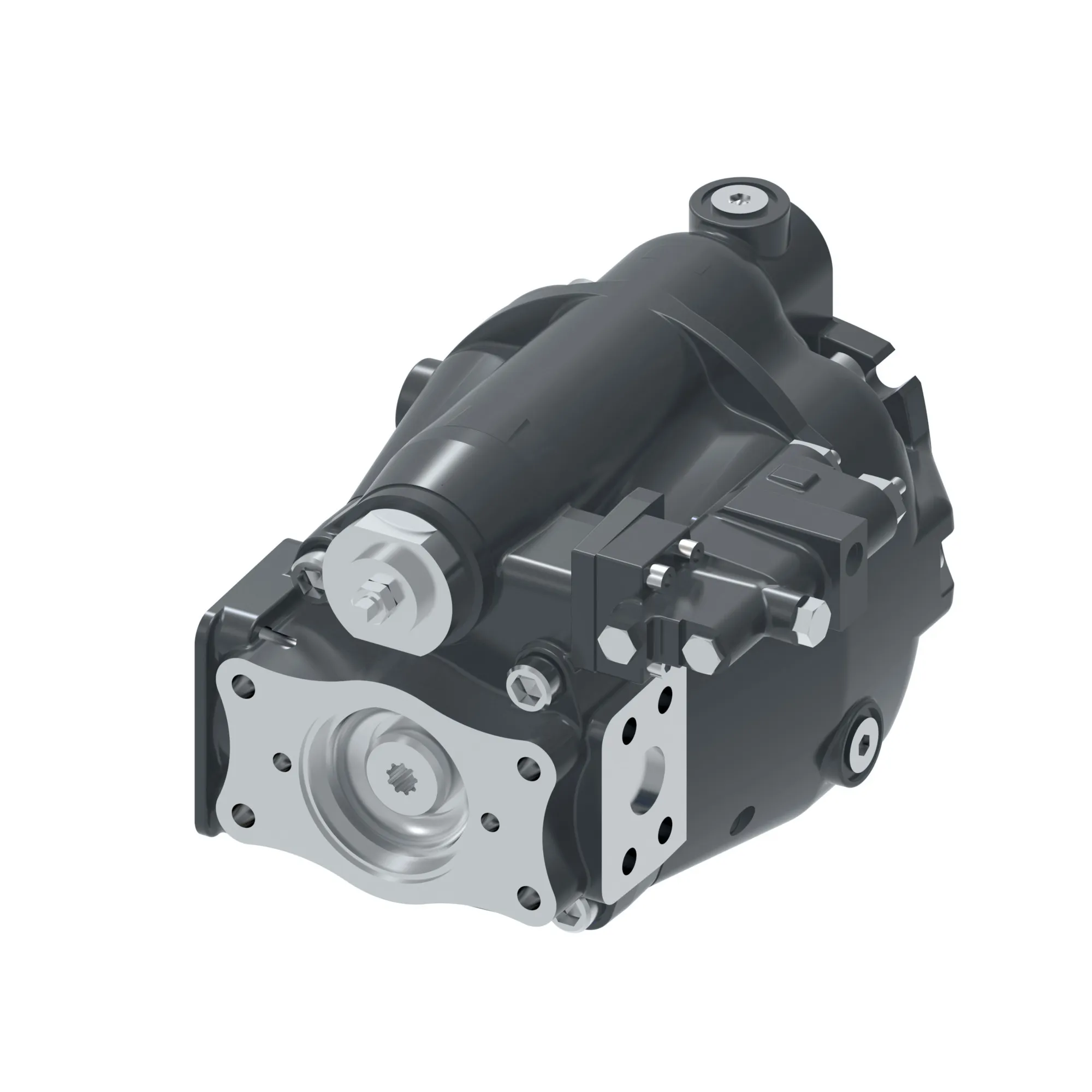

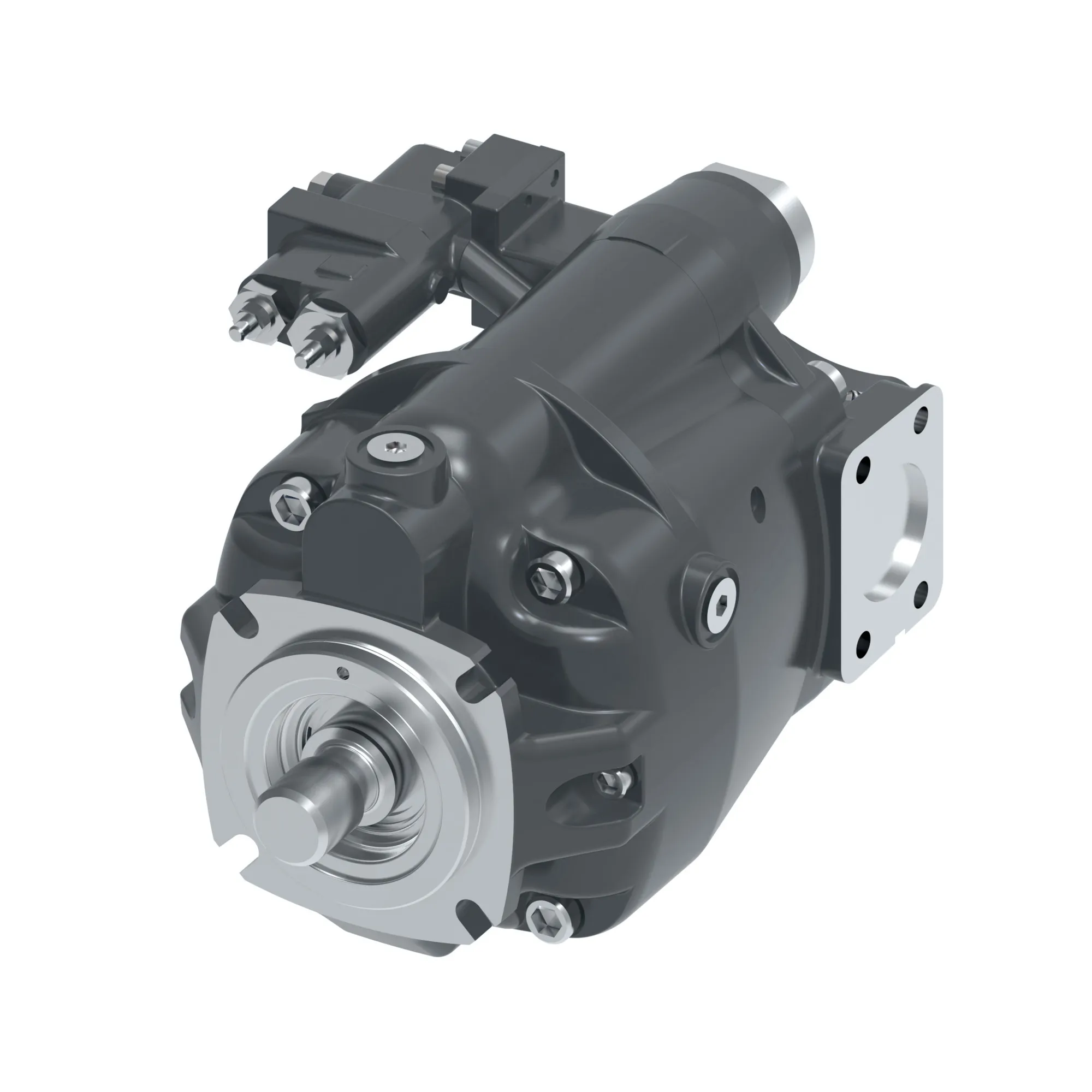

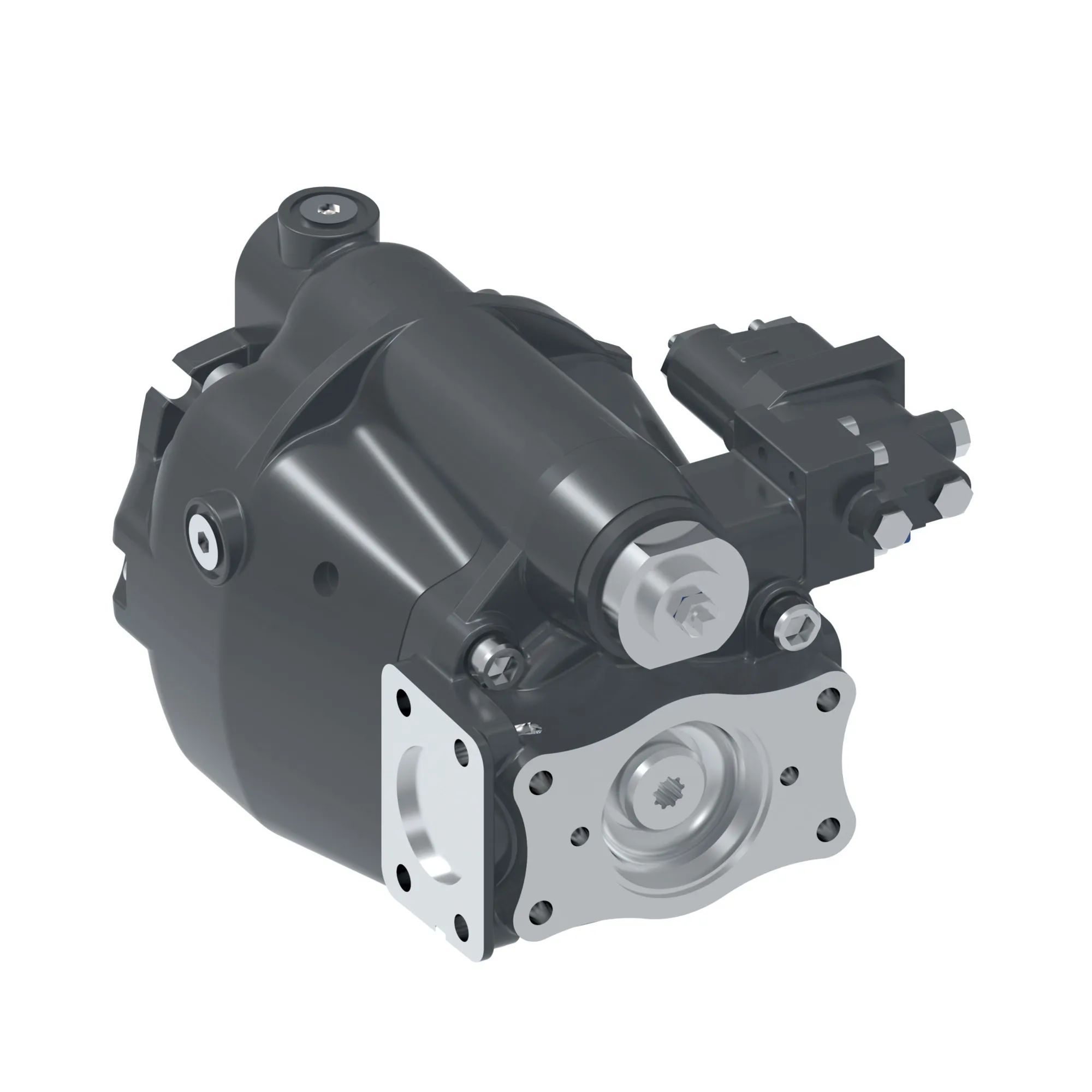

Danfoss (Drives) 123AL00499A
PVM141ER14JS02AAB2311000 FA0A, PVM141ER14JS02AAB2311000 FA0A – 123AL00499A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM141ER14JS02AAB2311000 FA0A, PVM141ER14JS02AAB2311000 FA0A – 123AL00499A
Specification
| P R O D U C T | VAR DISP OCP PVM PUMP |
|---|---|
| D I S P L A C E M E N T | 141.0 CM3/R [8.60 IN3/R] (230 BAR MAX) |
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | SAE J744-44-4 SAE D 13T SPLINE (MODEL 131) |
| Mounting Flange | SAE J744-152-4 (D 4-BOLT) (MODEL 131) |
| Main Port Location | SIDE |
| Port Options | SAE J518 FLANGE PORTS SAE AUXILIARY PORTS |
| Pump Special Features | ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL) |
| C O N T R O L | PRESSURE AND FLOW COMPENSATOR WITH BLEED DOWN ORIFICE |
| Pressure Comp Set | 227-234 BAR [3277-3393 LBF/IN2] |
| Flow Comp Unld Vlv Rpc Set | 10-12 BAR [145-174 LBF/IN2] |
| Unld Vlv Tq Control Set | NONE |
| Comp Special Features | NONE |
| Auxiliary Mounting | SAE C-C 2-/4-BOLT 17T SPLINE MODELS 074 098 AND 131 |
| Paint | BLACK [DEFAULT] |
| Customer Identification | NONE |
| Design Code | A |
| Brand | Vickers by Danfoss |
| Code Title | VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS |
| Ipm Frame Size | PVM Code A 141cc Pump |
| Model Code 1 | PVM141ER14JS02AAB2311000 FA0A |
