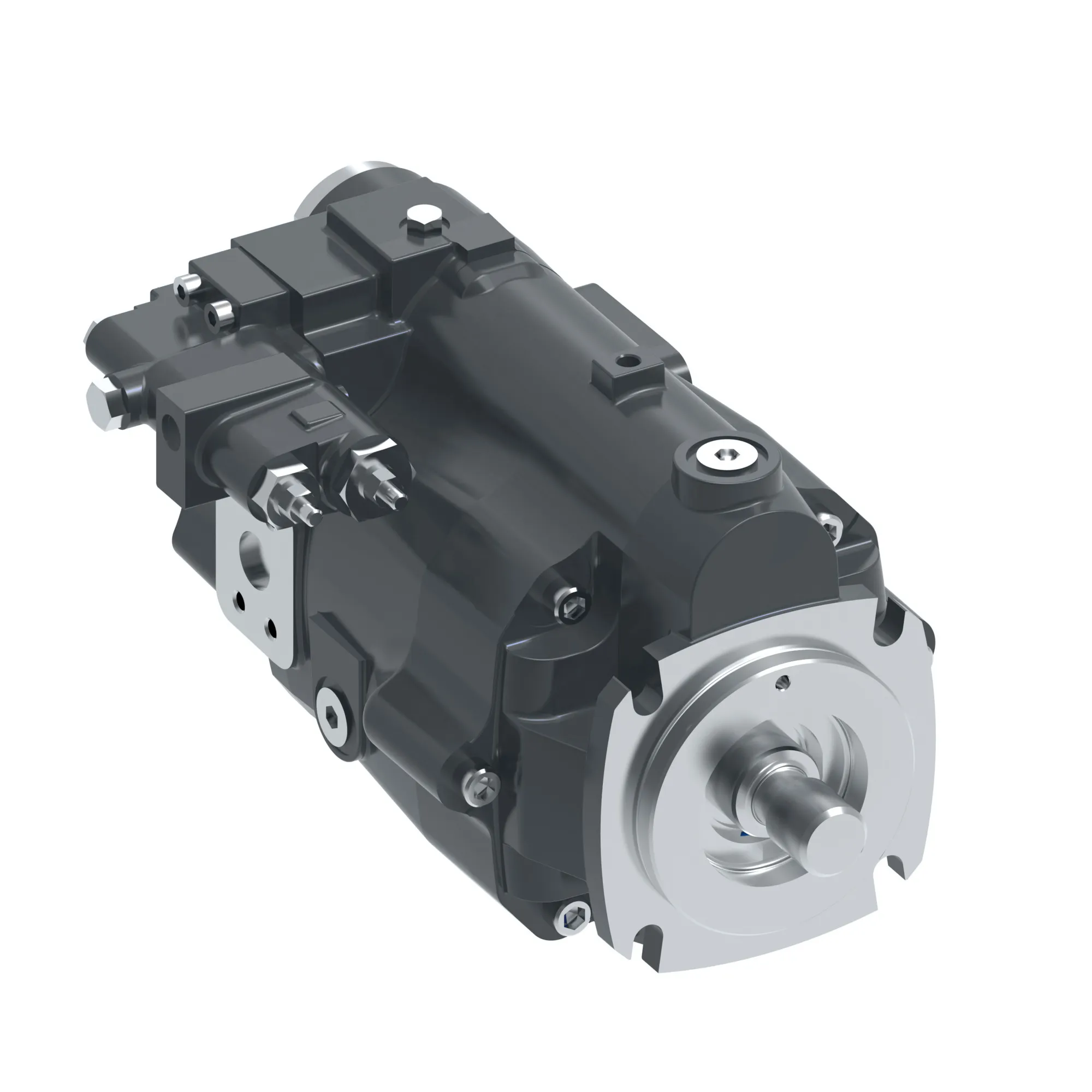

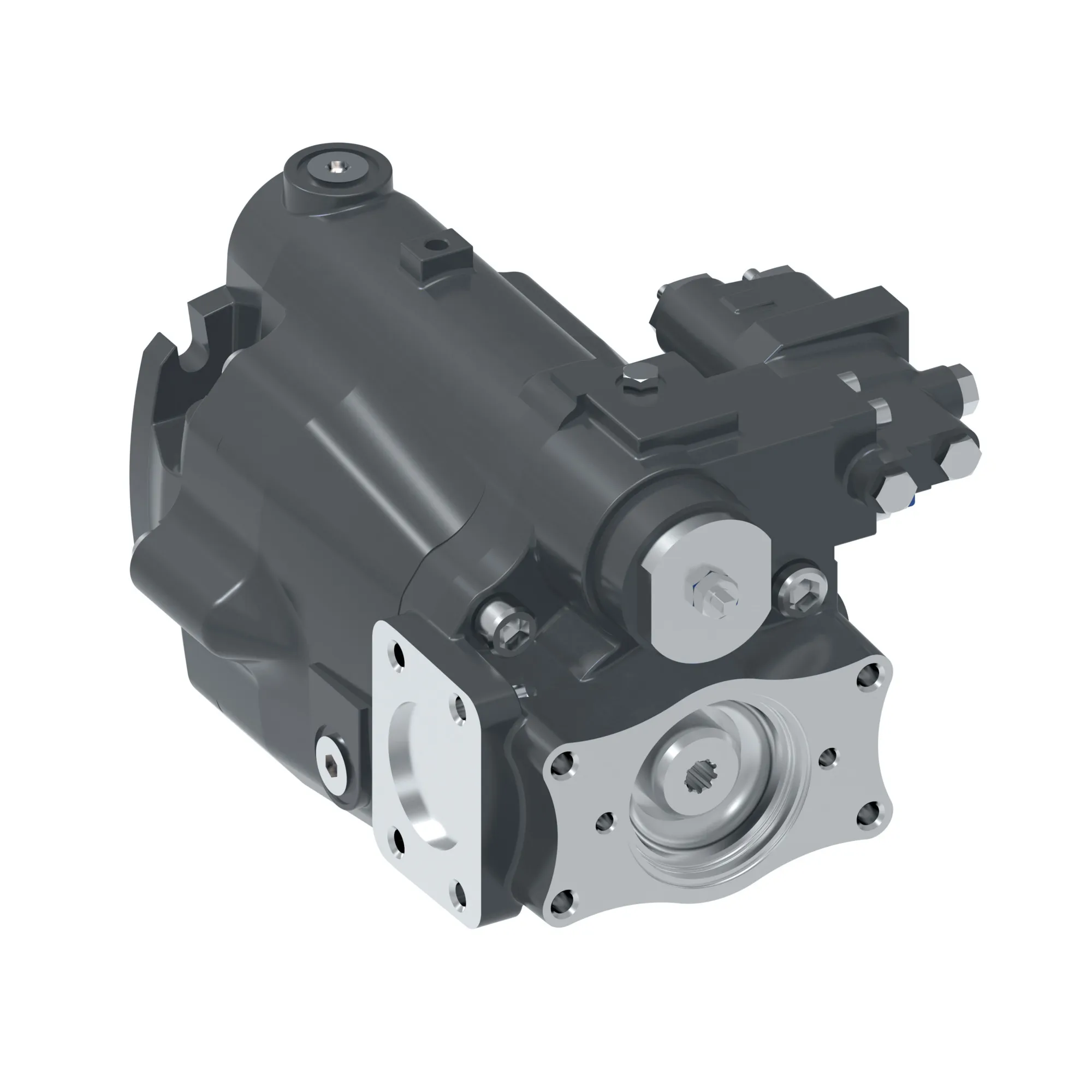

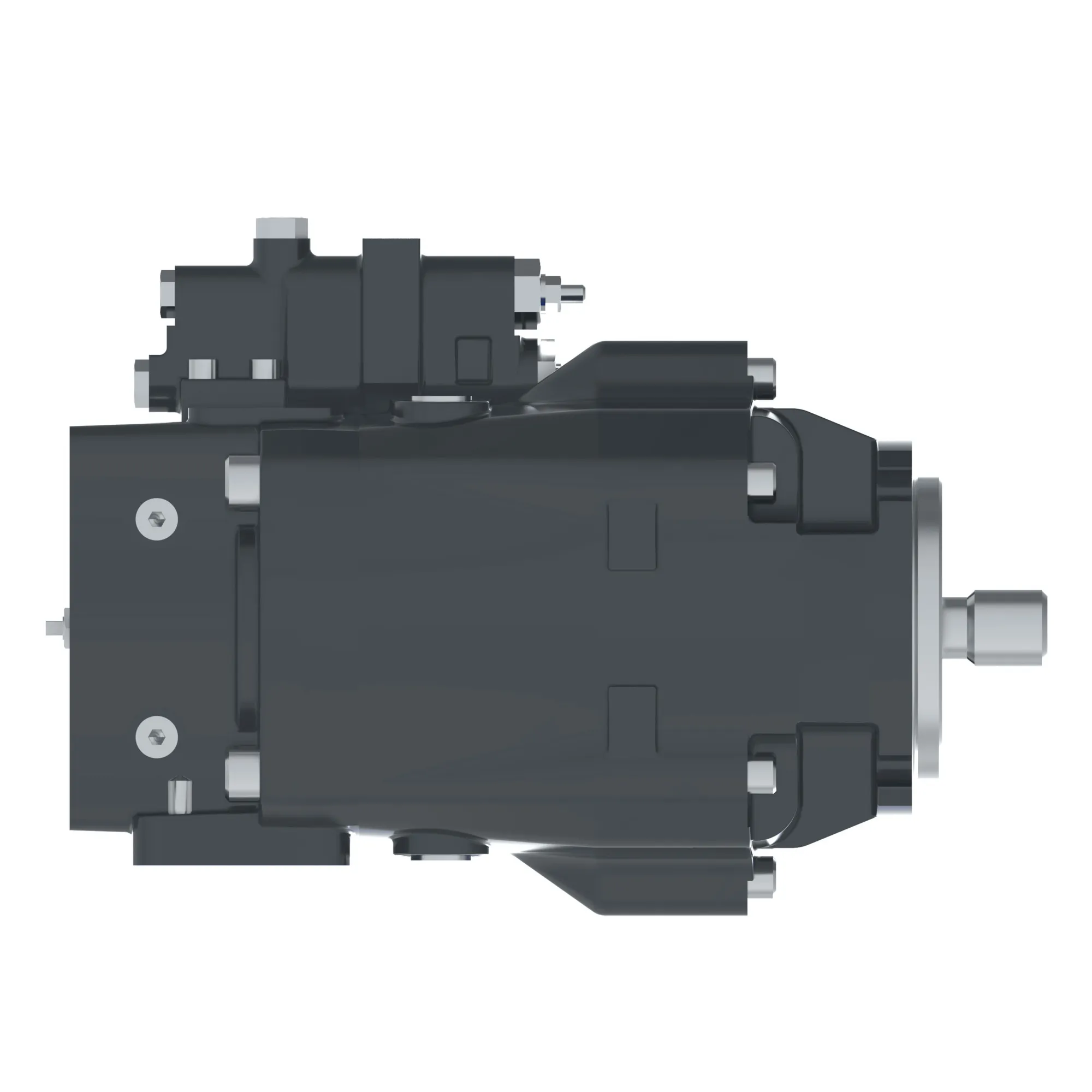

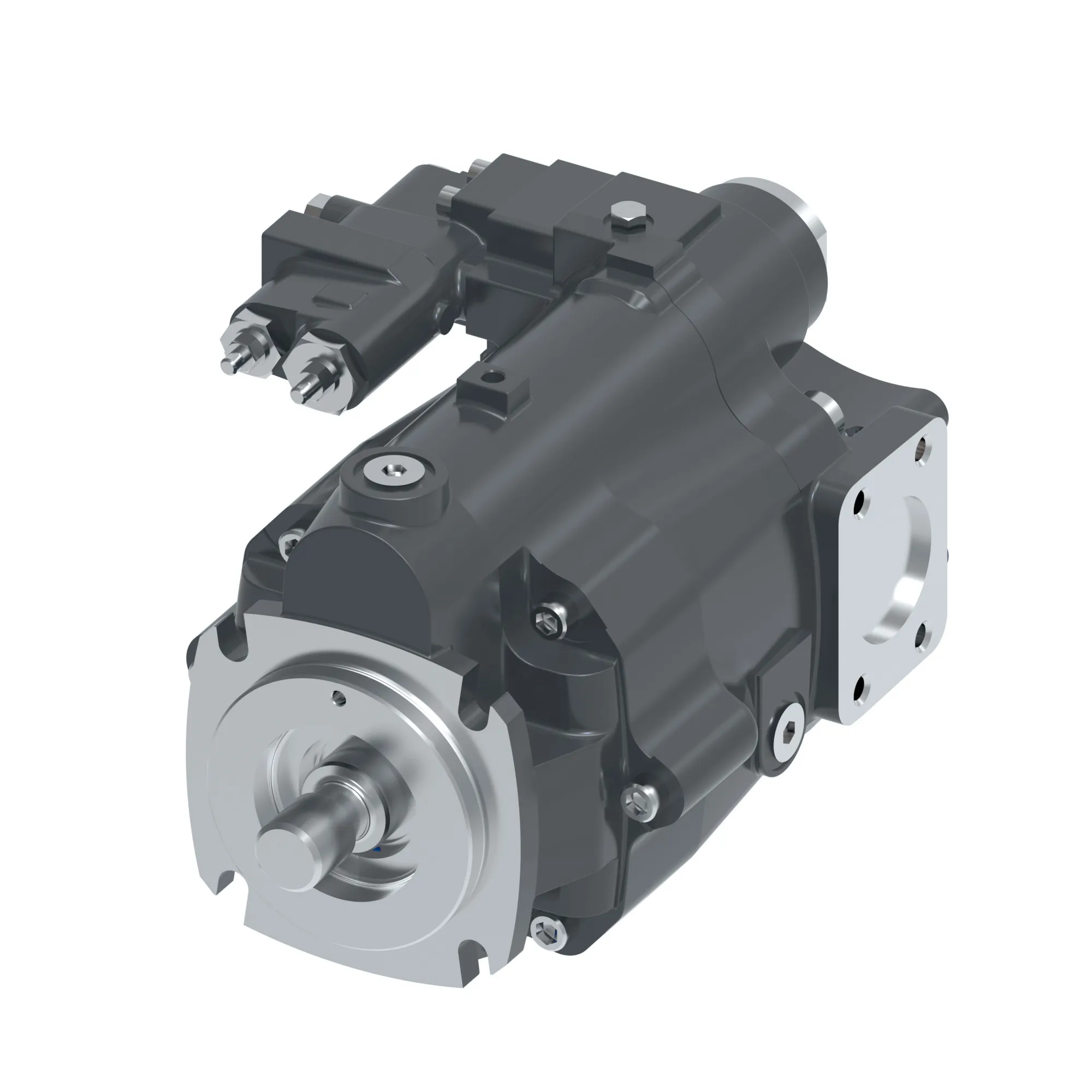

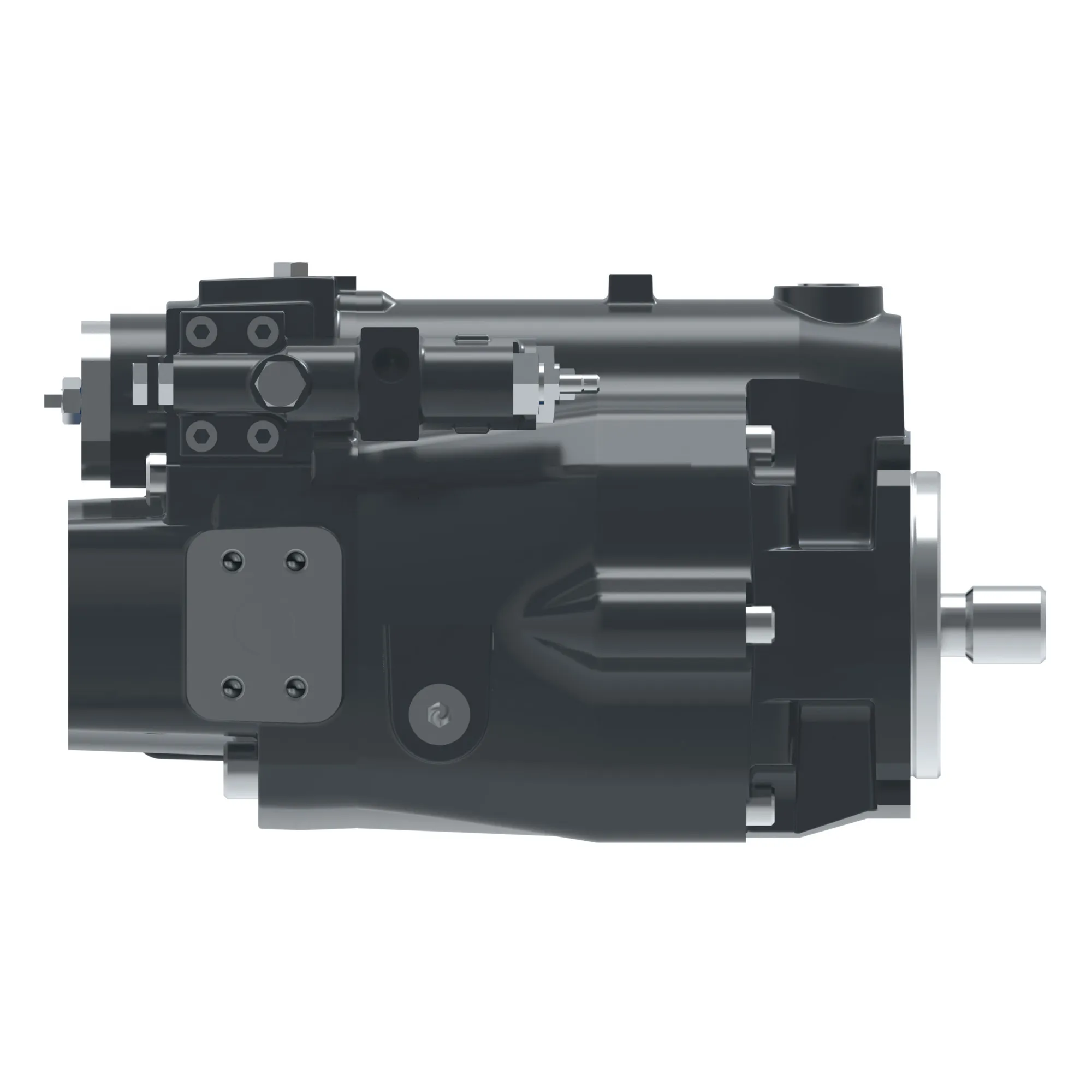

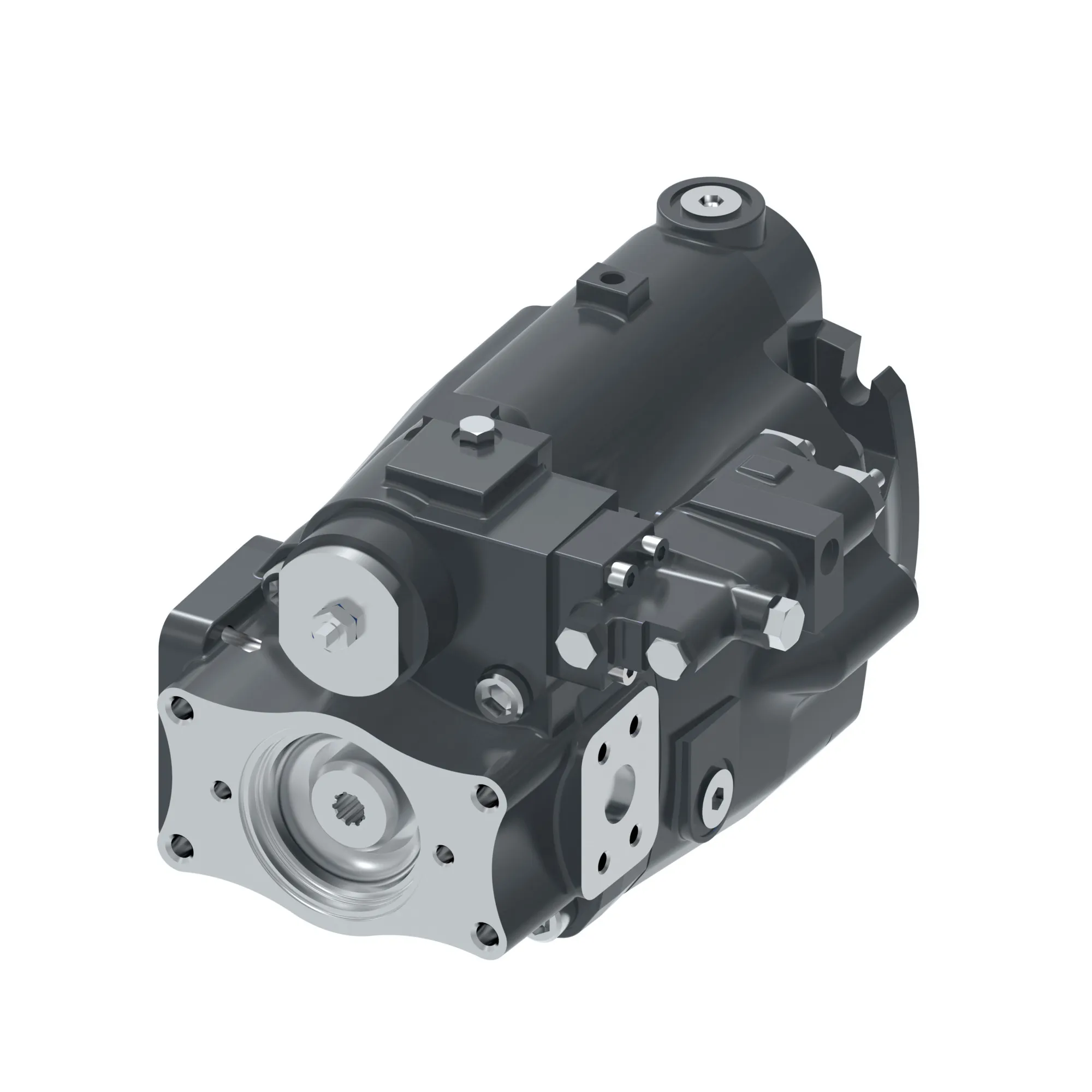

Danfoss (Drives) 123AL00466A
PVM106MR09GS02AAC2320000000A, PVM106MR09GS02AAC2320000000A – 123AL00466A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM106MR09GS02AAC2320000000A, PVM106MR09GS02AAC2320000000A – 123AL00466A
Specification
| P R O D U C T | VAR DISP OCP PVM PUMP |
|---|---|
| D I S P L A C E M E N T | 106.5 cm3/r [6.50 in3/r] (230 bar MAX) |
| Valve Plate | MOBILE EQUIPMENT SPEEDS |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | SAE J744-32-1 SAE C STRAIGHT KEYED (MODEL 057 074 098 AND 131) |
| Mounting Flange | SAE J744-127-4 (C 4-BOLT) (MODELS 057 074 098 AND 131) |
| Main Port Location | SIDE |
| Port Options | SAE J518 FLANGE PORTS SAE AUXILIARY PORTS |
| Pump Special Features | ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL) |
| C O N T R O L | PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE |
| Pressure Comp Set | 227-234 BAR [3277-3393 LBF/IN2] |
| Flow Comp Unld Vlv Rpc Set | 19-21 BAR [275.5-304.5 LBF/IN2] |
| Unld Vlv Tq Control Set | NONE |
| Comp Special Features | NONE |
| Auxiliary Mounting | AUXILIARY MOUNT COVER PLATE |
| Paint | NO PAINT |
| Customer Identification | NONE |
| Design Code | A |
| Brand | Vickers by Danfoss |
| Code Title | VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS |
| Ipm Frame Size | PVM Code A 106cc Pump |
| Model Code 1 | PVM106MR09GS02AAC2320000000A |
