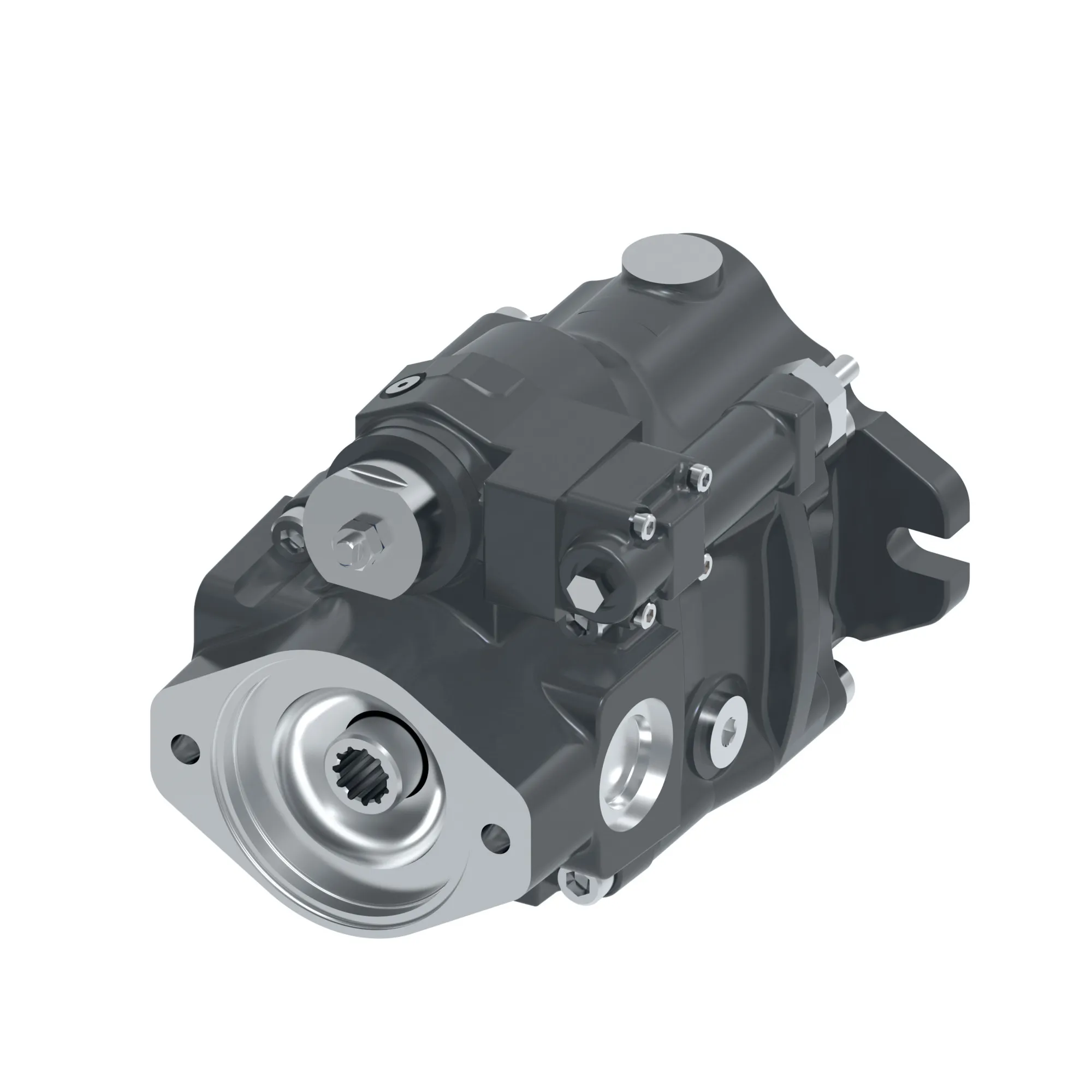

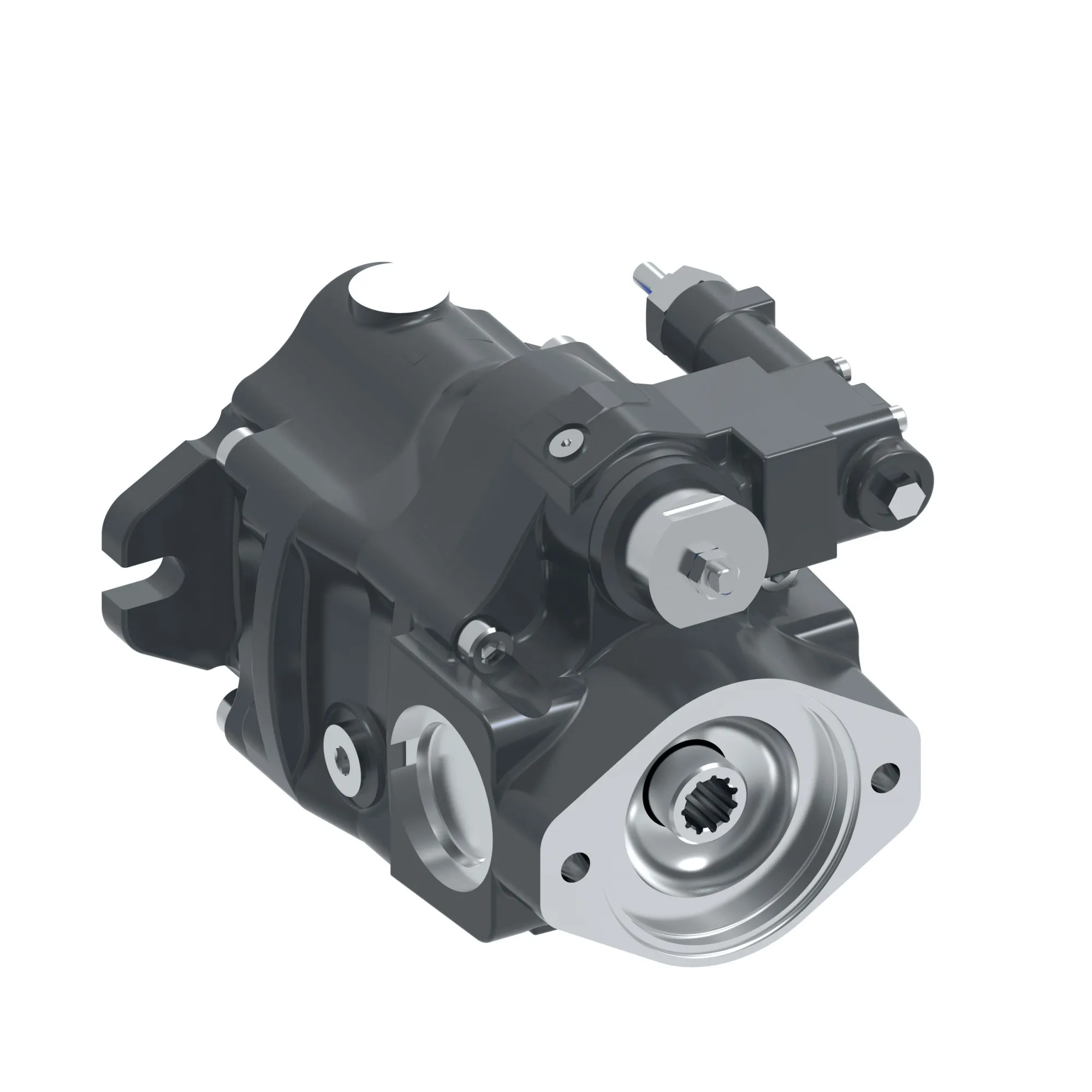

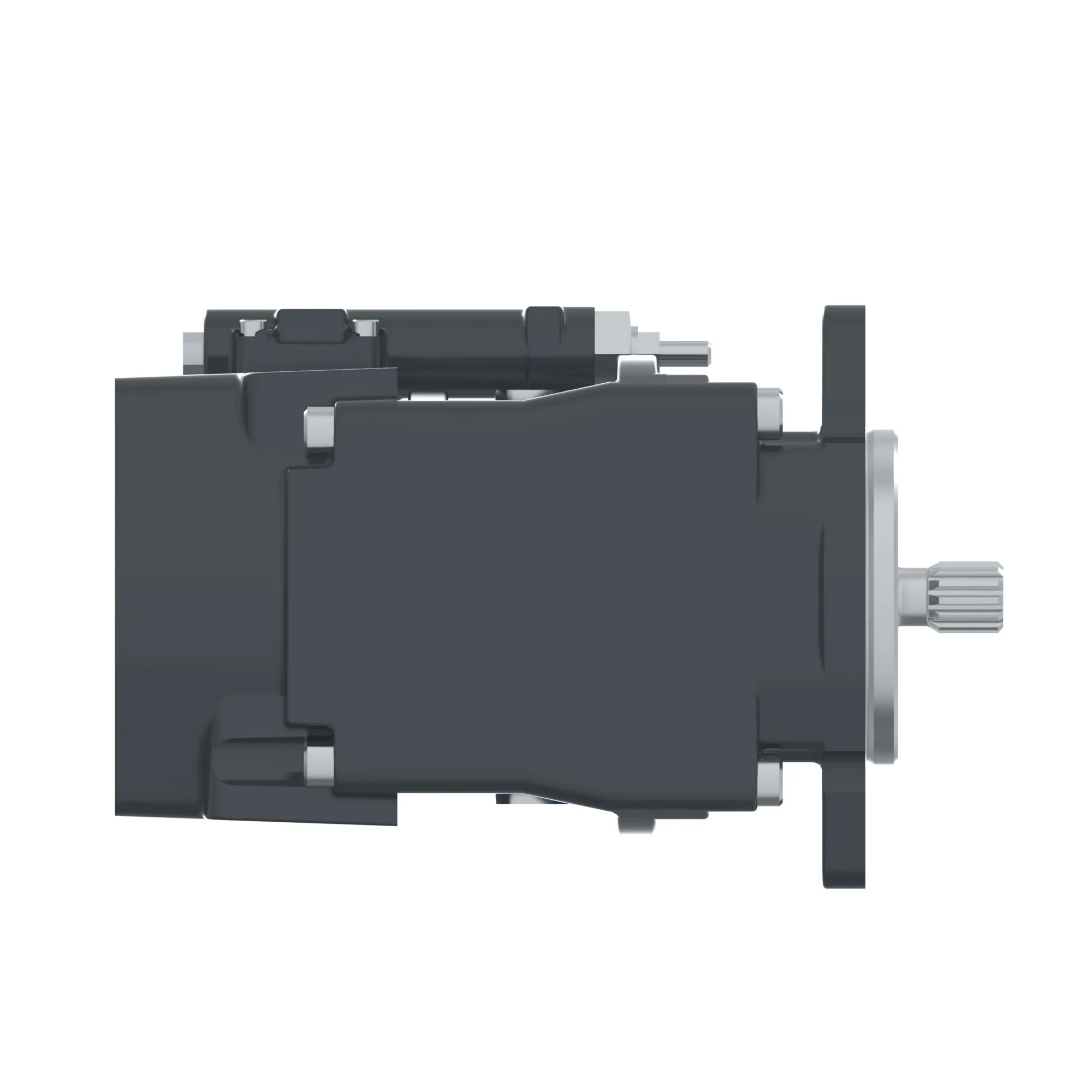

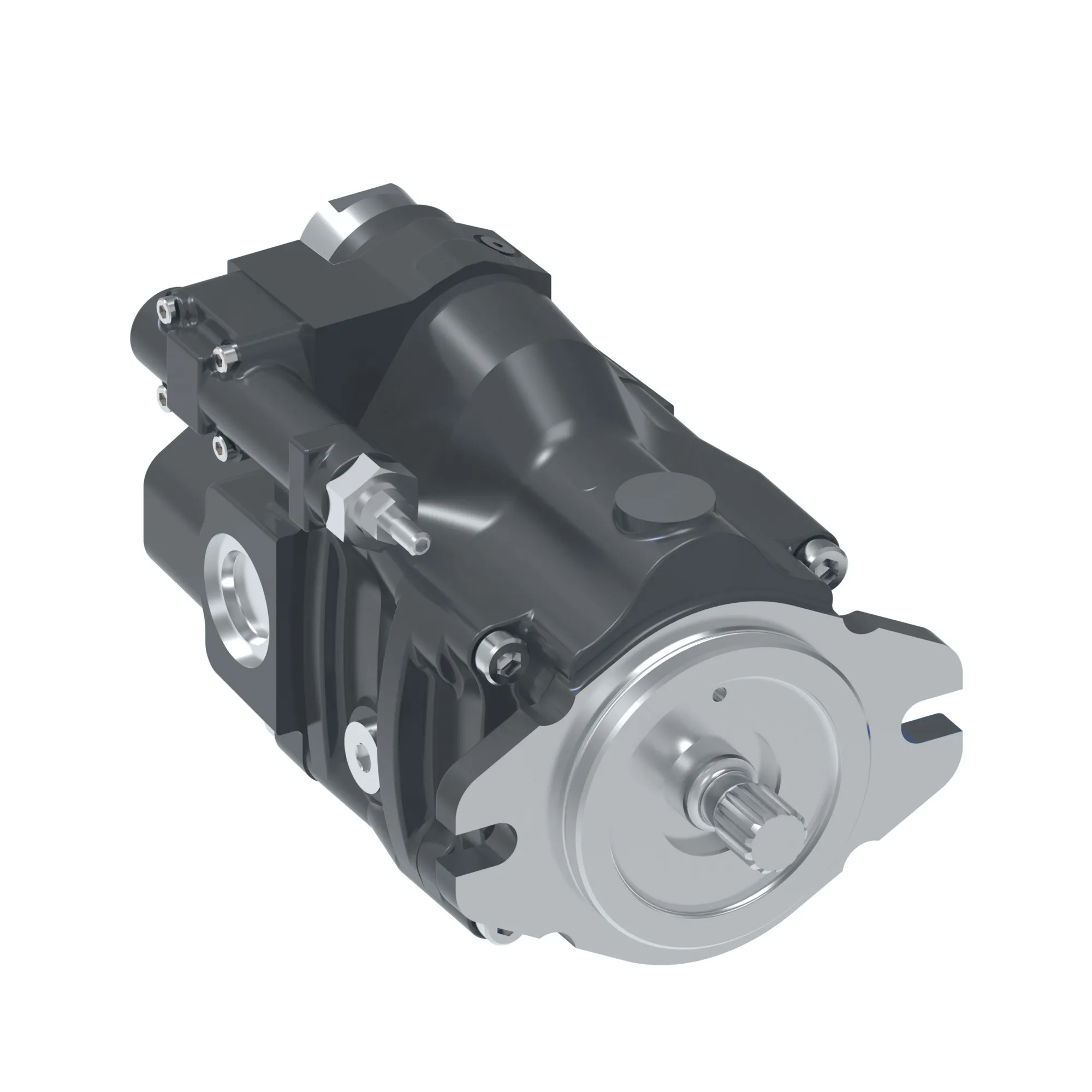

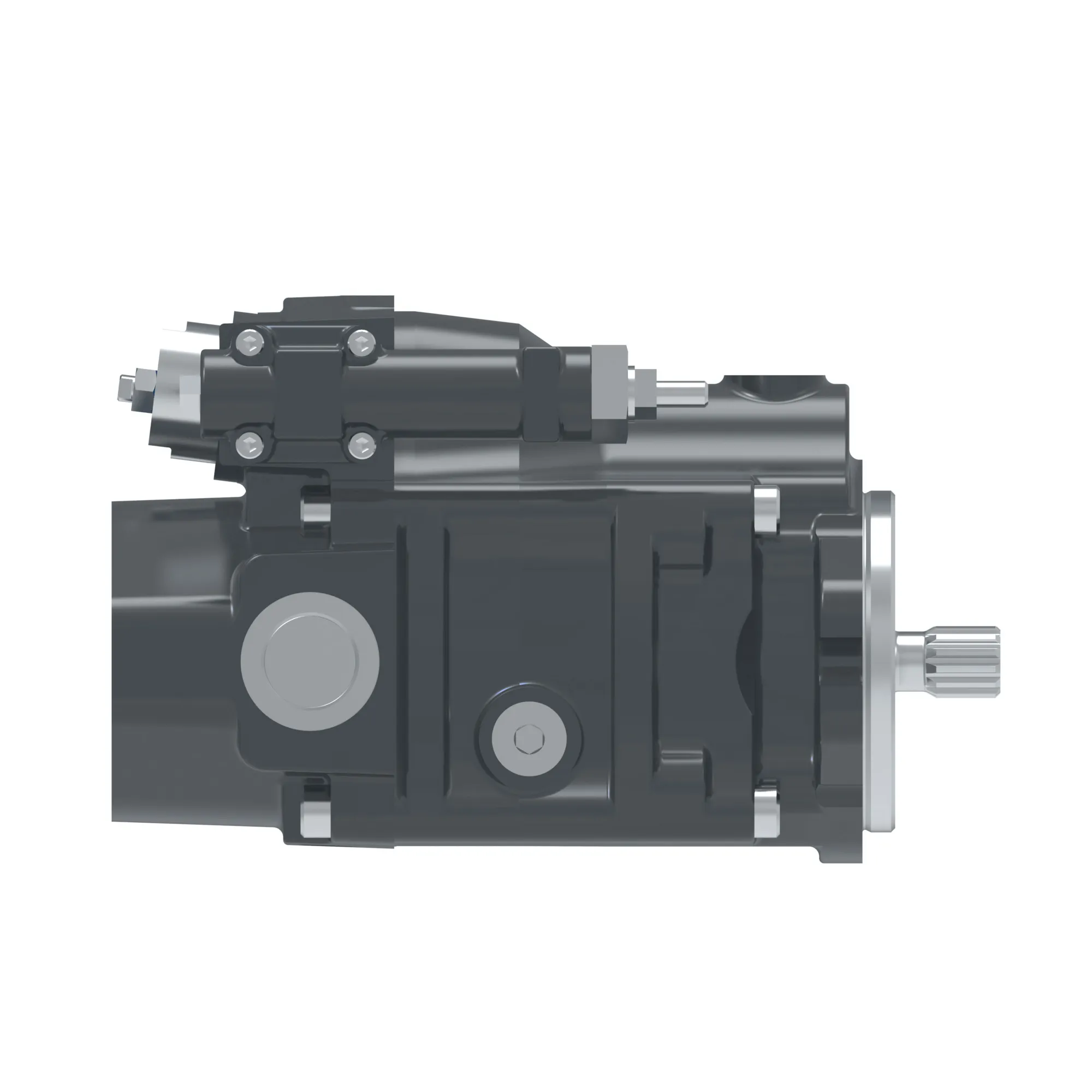

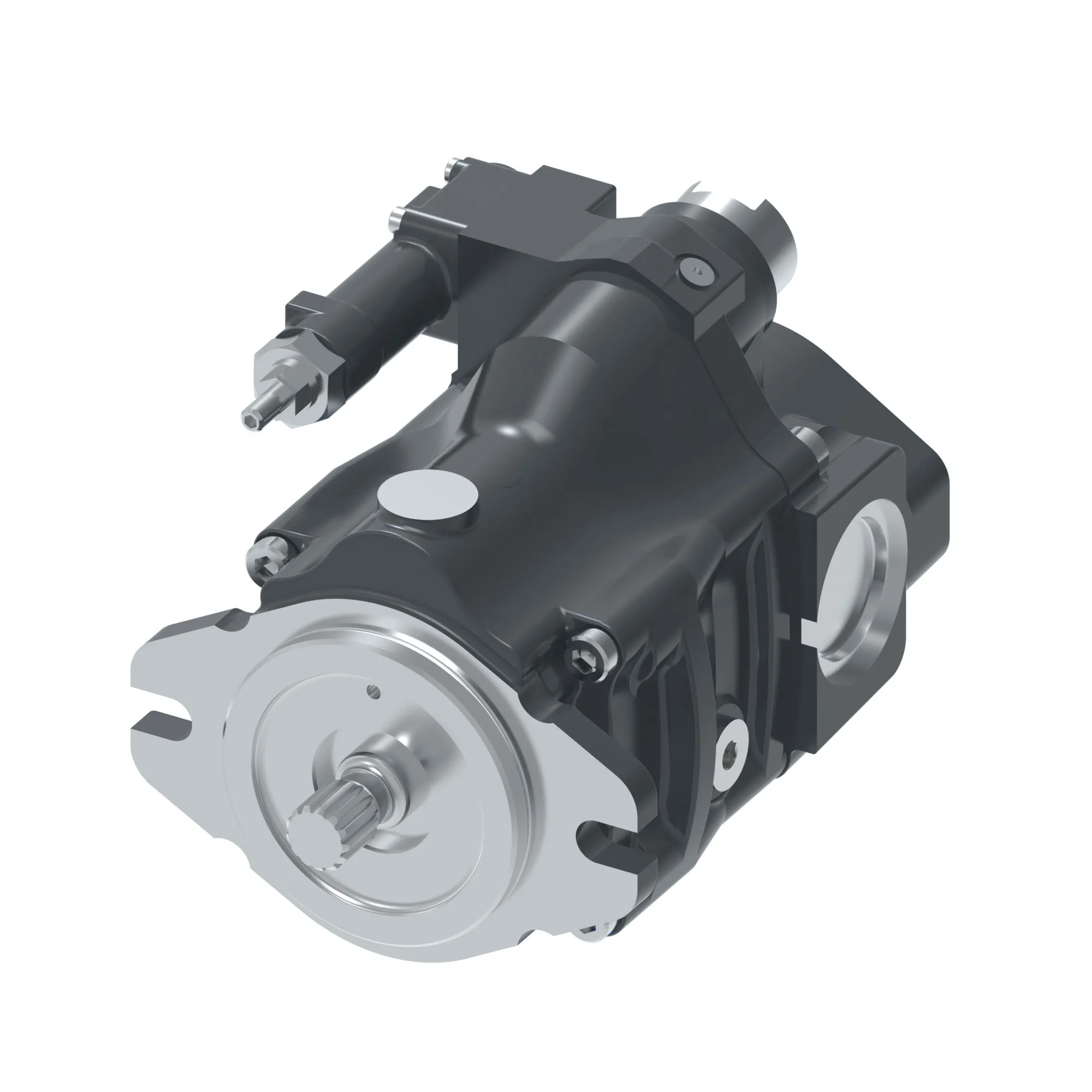

Danfoss (Drives) 123AL00362A
PVM018ER05CS01AAA0700000 AA0A, PVM018ER05CS01AAA0700000 AA0A – 123AL00362A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM018ER05CS01AAA0700000 AA0A, PVM018ER05CS01AAA0700000 AA0A – 123AL00362A
Specification
| P R O D U C T | VAR DISP OCP PVM PUMP |
|---|---|
| D I S P L A C E M E N T | 018 – REFER LONG DESCRIPTION |
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | 05 – REFER LONG DESCRIPTION |
| Mounting Flange | C – REFER LONG DESCRIPTION |
| Main Port Location | SIDE |
| Port Options | 01 – REFER LONG DESCRIPTION |
| Pump Special Features | AMDS (CONTAIN SSS) |
| C O N T R O L | PRESSURE COMPENSATOR |
| Pressure Comp Set | 66-74 BAR[957-1073 LBF/IN2] |
| Flow Comp Unld Vlv Rpc Set | NONE |
| Unld Vlv Tq Control Set | NONE |
| Comp Special Features | NONE |
| Auxiliary Mounting | A – REFER LONG DESCRIPTION |
| Paint | BLACK [DEFAULT] |
| Customer Identification | NONE |
| Design Code | A |
| Brand | Vickers by Danfoss |
| Code Title | PVM – REFER LONG DESCRIPTION |
| Ipm Frame Size | PVM Code A 18cc Pump |
| Model Code 1 | PVM018ER05CS01AAA0700000 AA0A |
