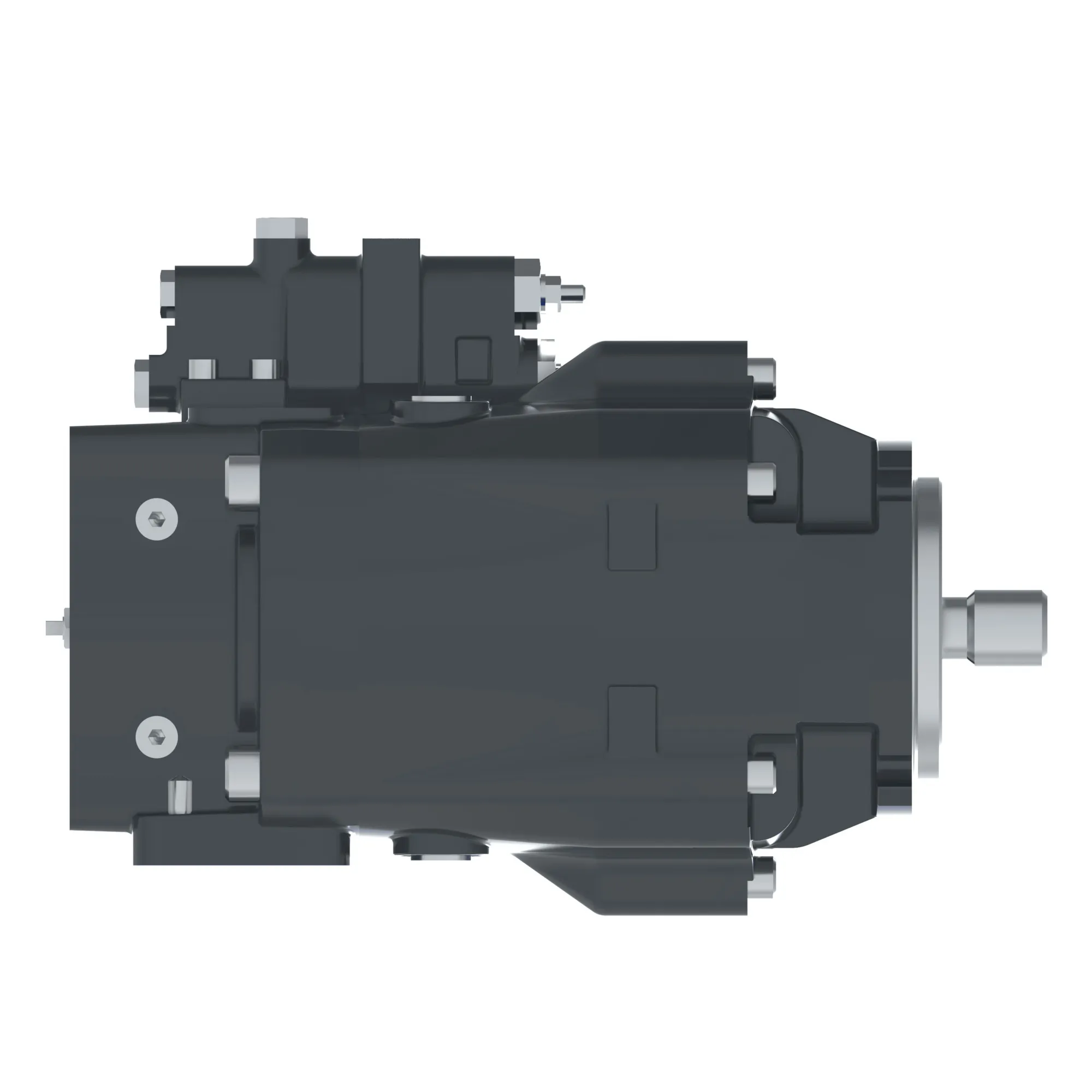

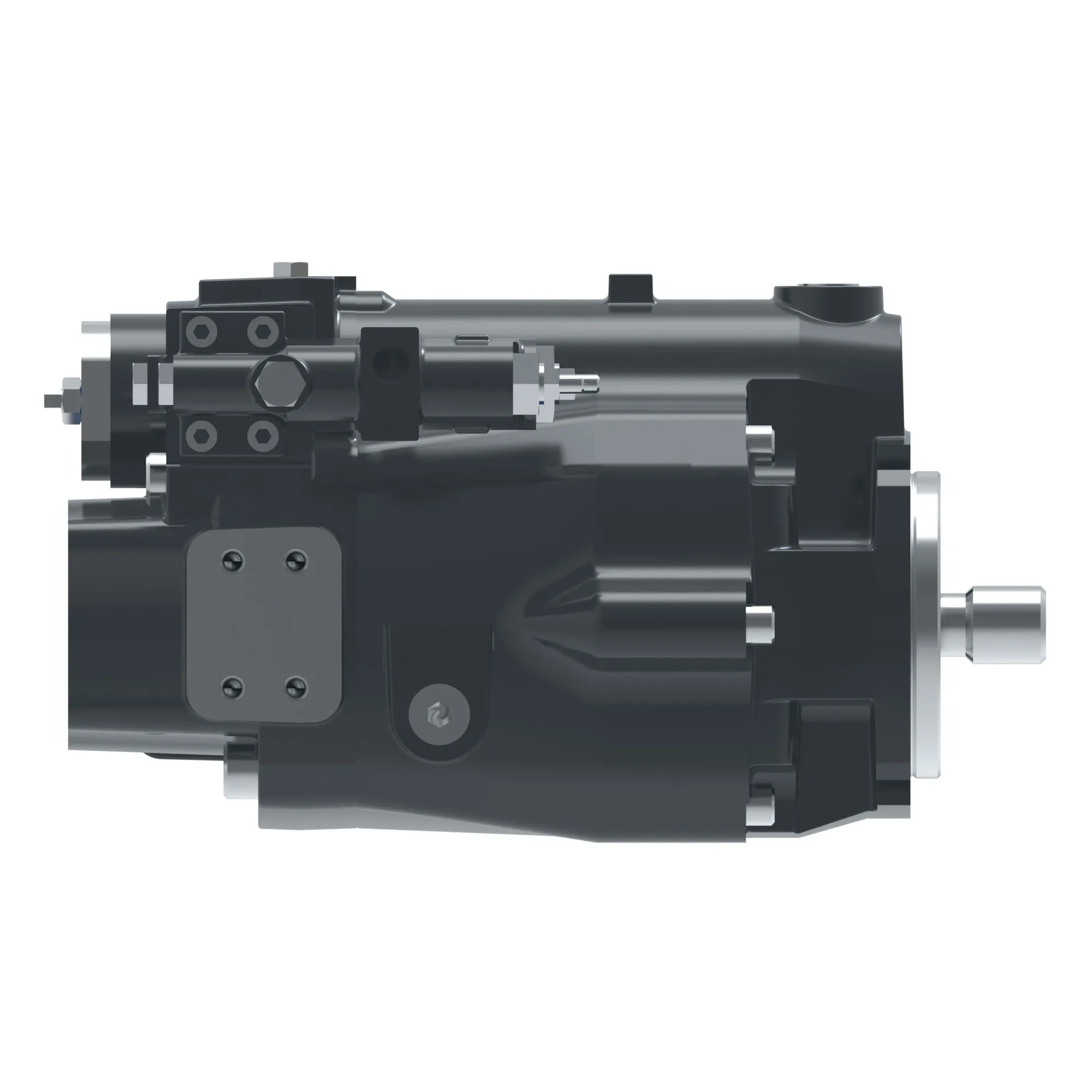

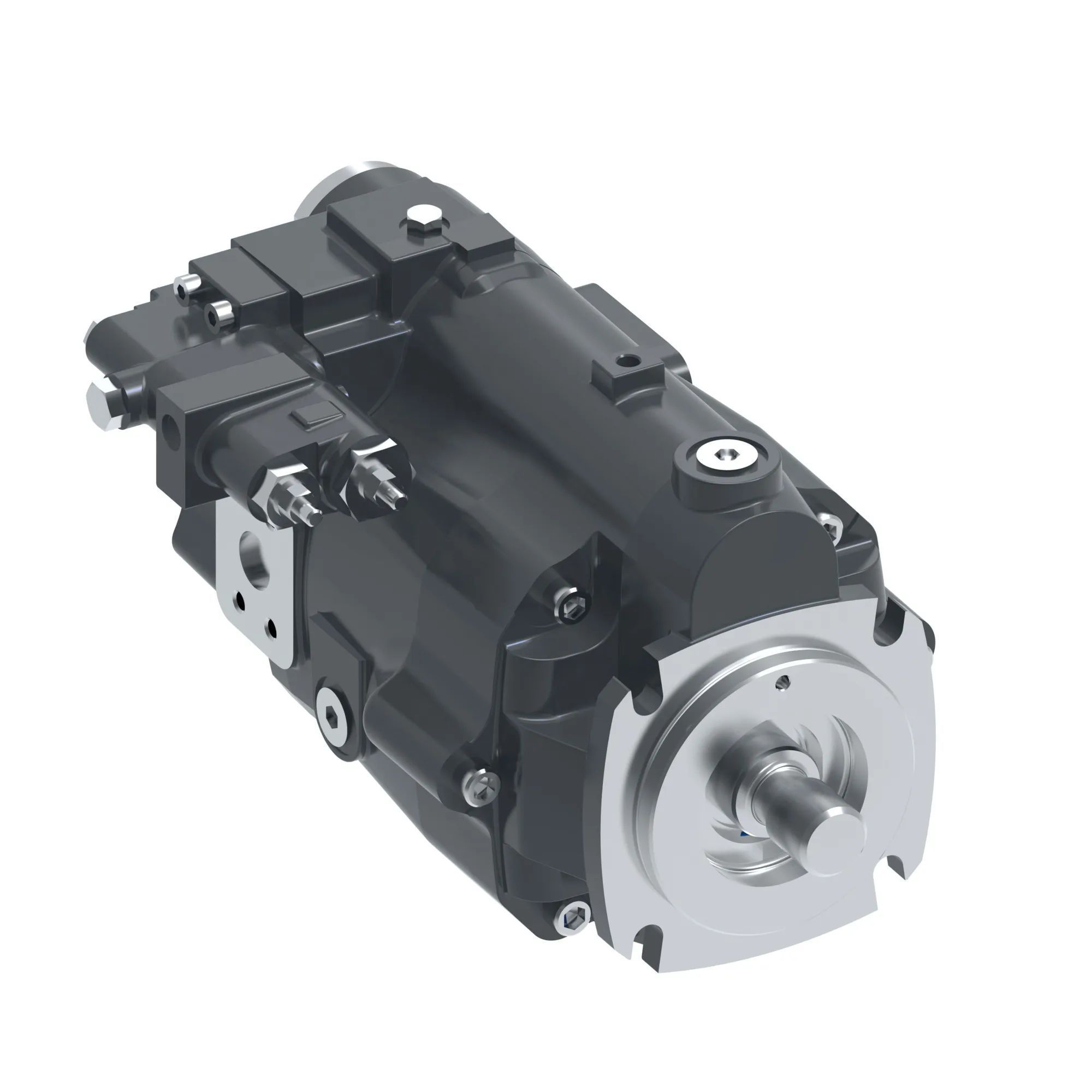

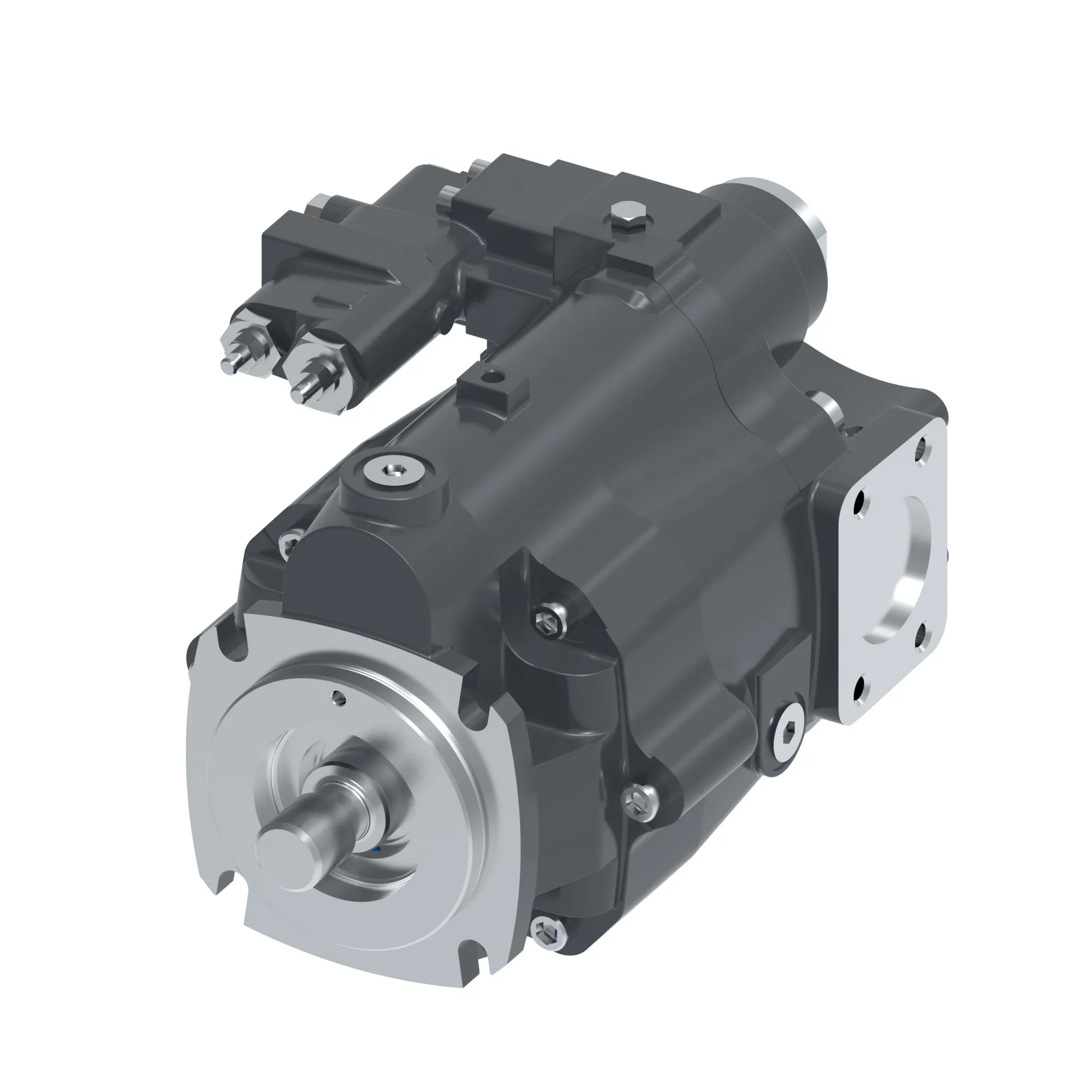

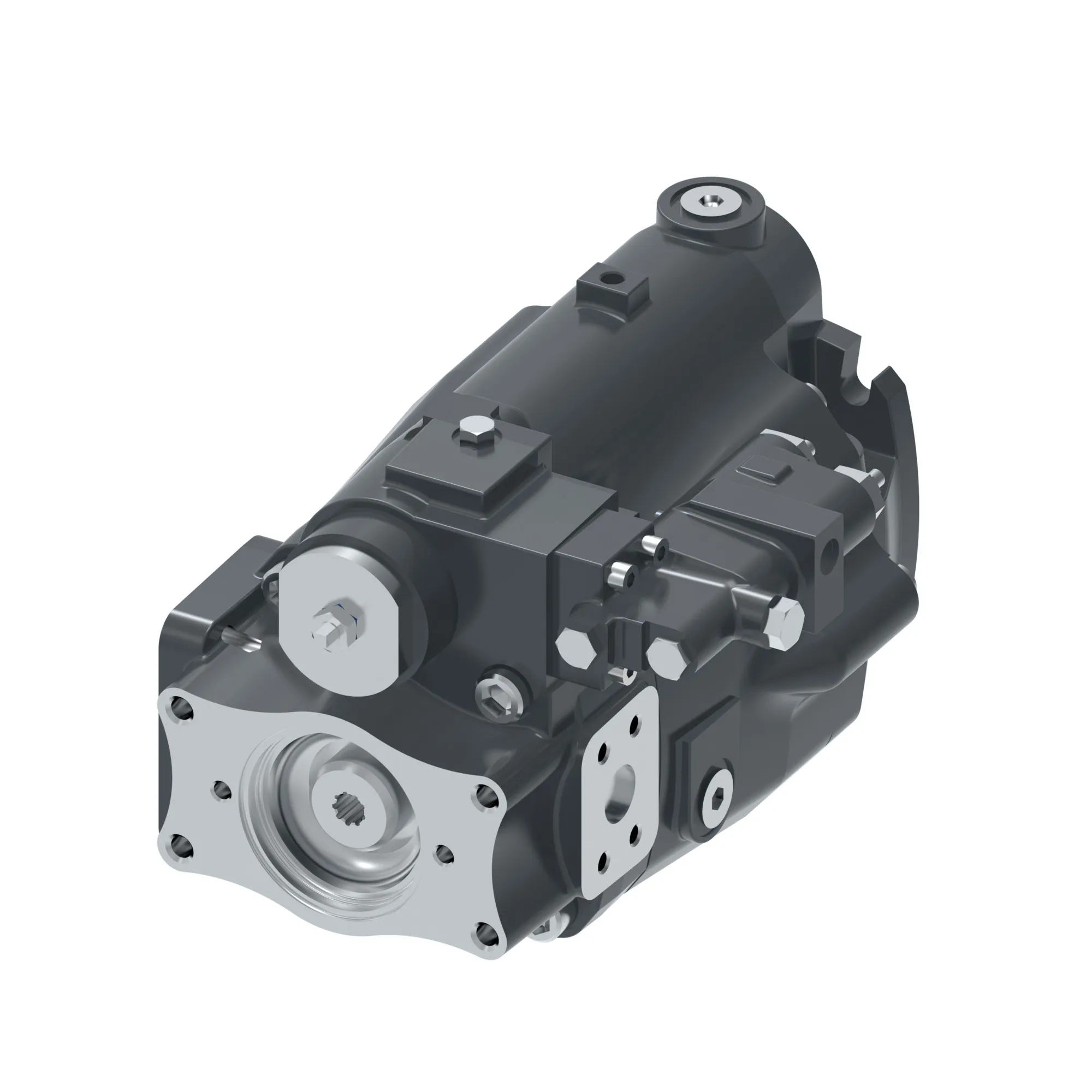

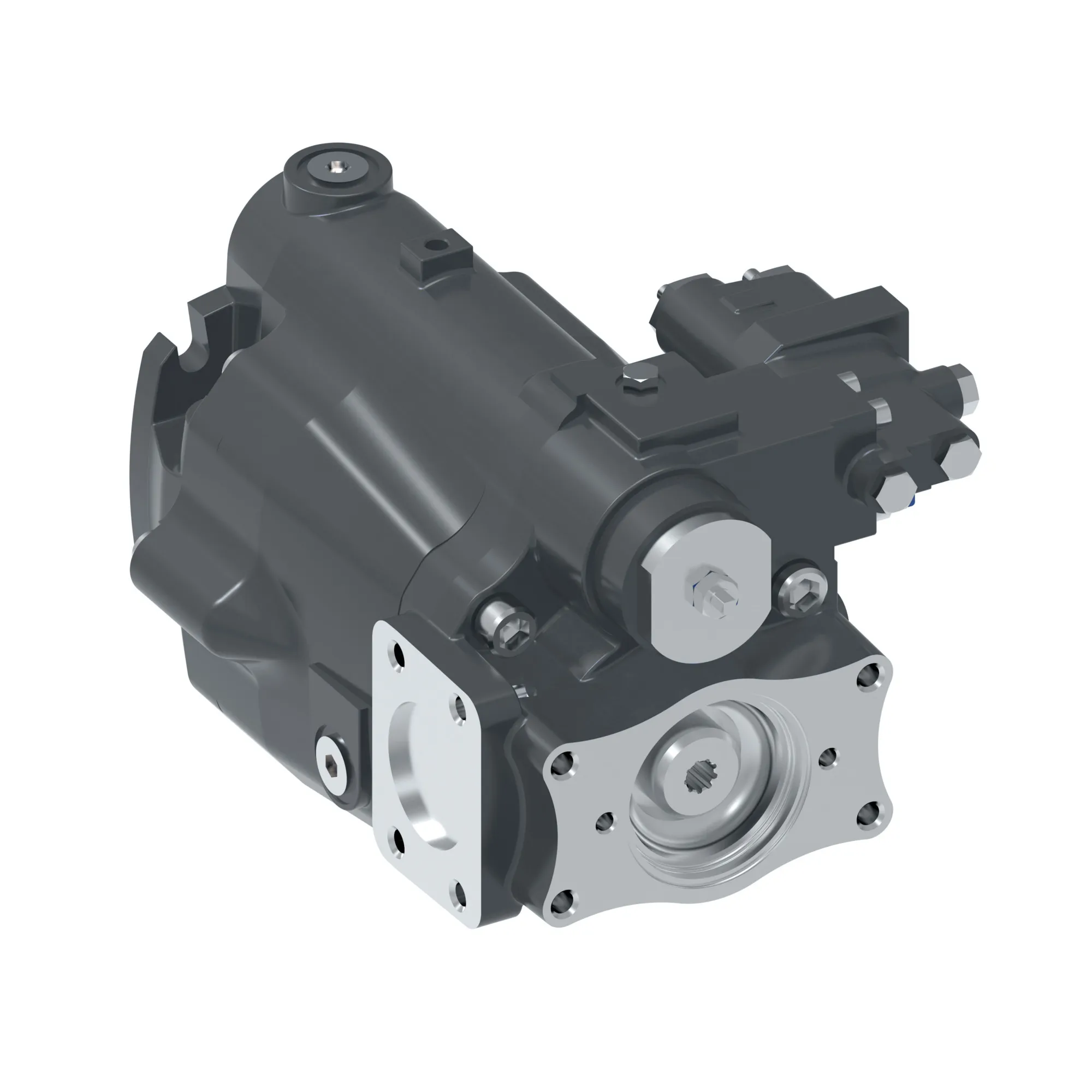

Danfoss (Drives) 123AL00286A
PVM098ER10GS02AAB2811000 AA0A, PVM098ER10GS02AAB2811000AA0A – 123AL00286A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM098ER10GS02AAB2811000 AA0A, PVM098ER10GS02AAB2811000AA0A – 123AL00286A
Specification
| D I S P L A C E M E N T | 098 – REFER LONG DESCRIPTION |
|---|---|
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | 10 – REFER LONG DESCRIPTION |
| Mounting Flange | G – REFER LONG DESCRIPTION |
| Main Port Location | SIDE |
| Port Options | 02 – REFER LONG DESCRIPTION |
| Pump Special Features | AMDS (CONTAIN SSS) |
| C O N T R O L | B – REFER LONG DESCRIPTION |
| Pressure Comp Set | 276-284 BAR[4002-4118 LBF/IN2] |
| Flow Comp Unld Vlv Rpc Set | 10-12 BAR[145-174 LBF/IN2] |
| Unld Vlv Tq Control Set | NONE |
| Comp Special Features | NONE |
| Auxiliary Mounting | A – REFER LONG DESCRIPTION |
| Paint | BLACK [DEFAULT] |
| Customer Identification | NONE |
| Design Code | A |
| Brand | Vickers by Danfoss |
| Code Title | PVM – REFER LONG DESCRIPTION |
| Ipm Frame Size | PVM Code A 98cc Pump |
| Model Code 1 | PVM098ER10GS02AAB2811000AA0A |
