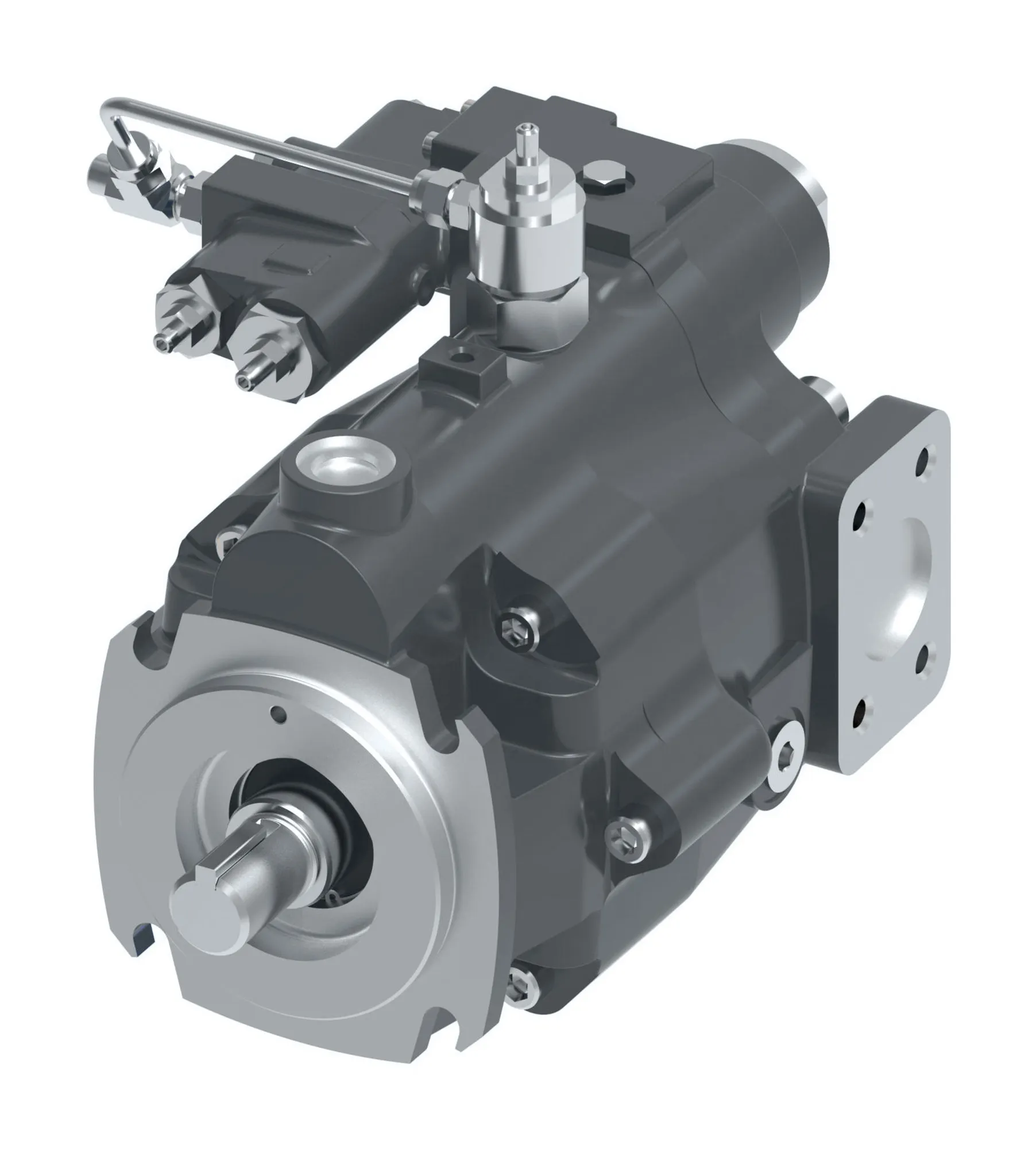

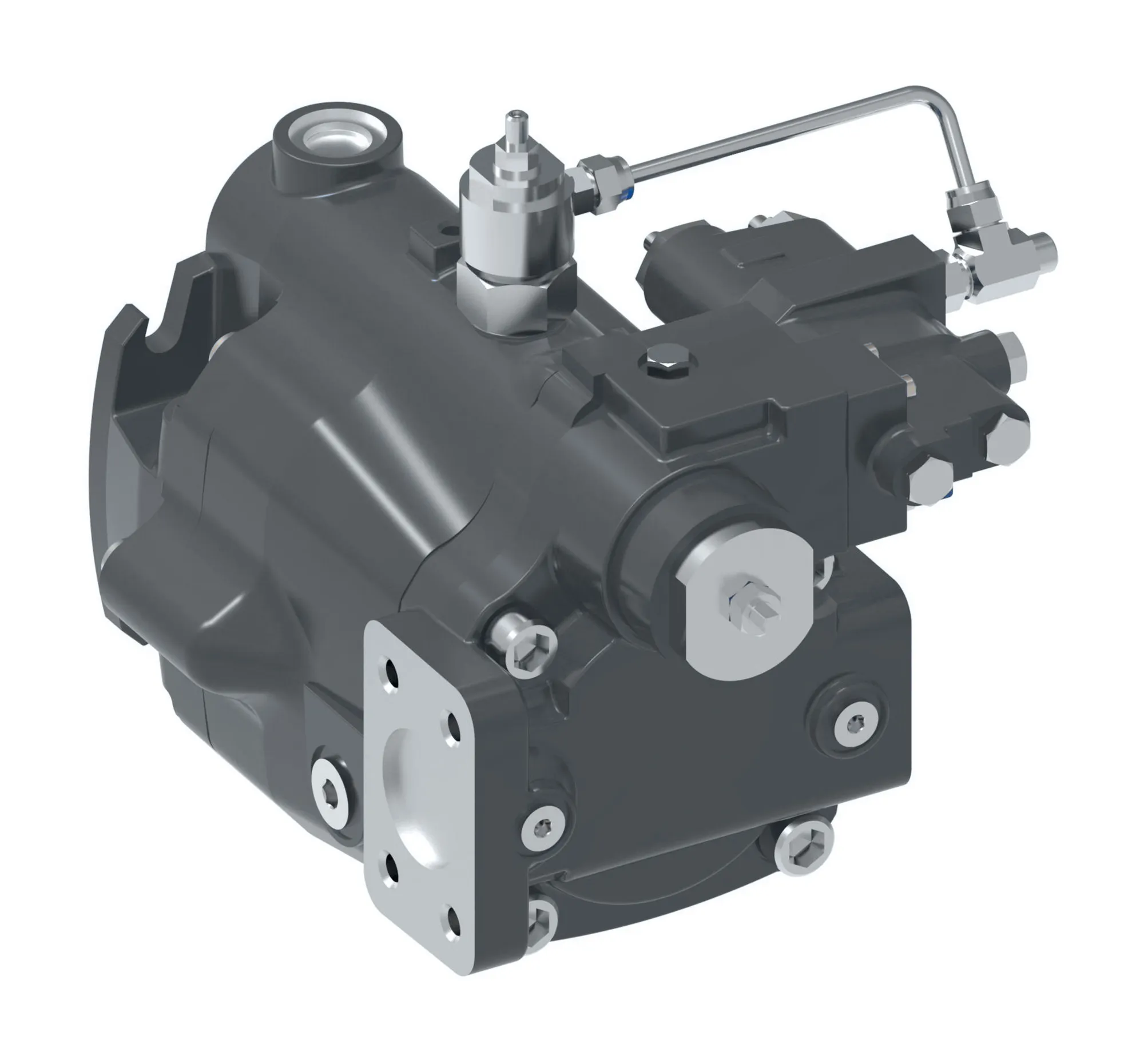

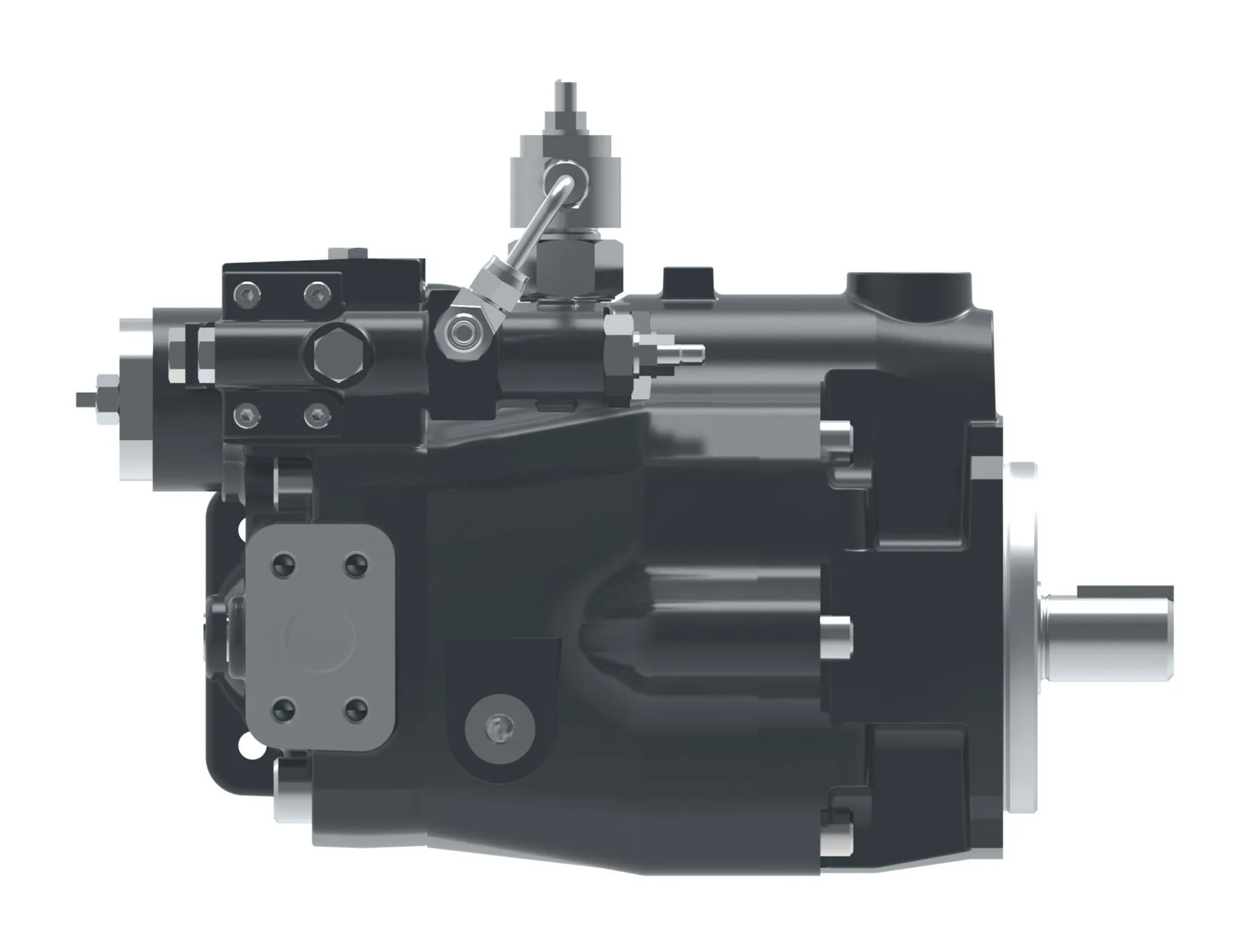

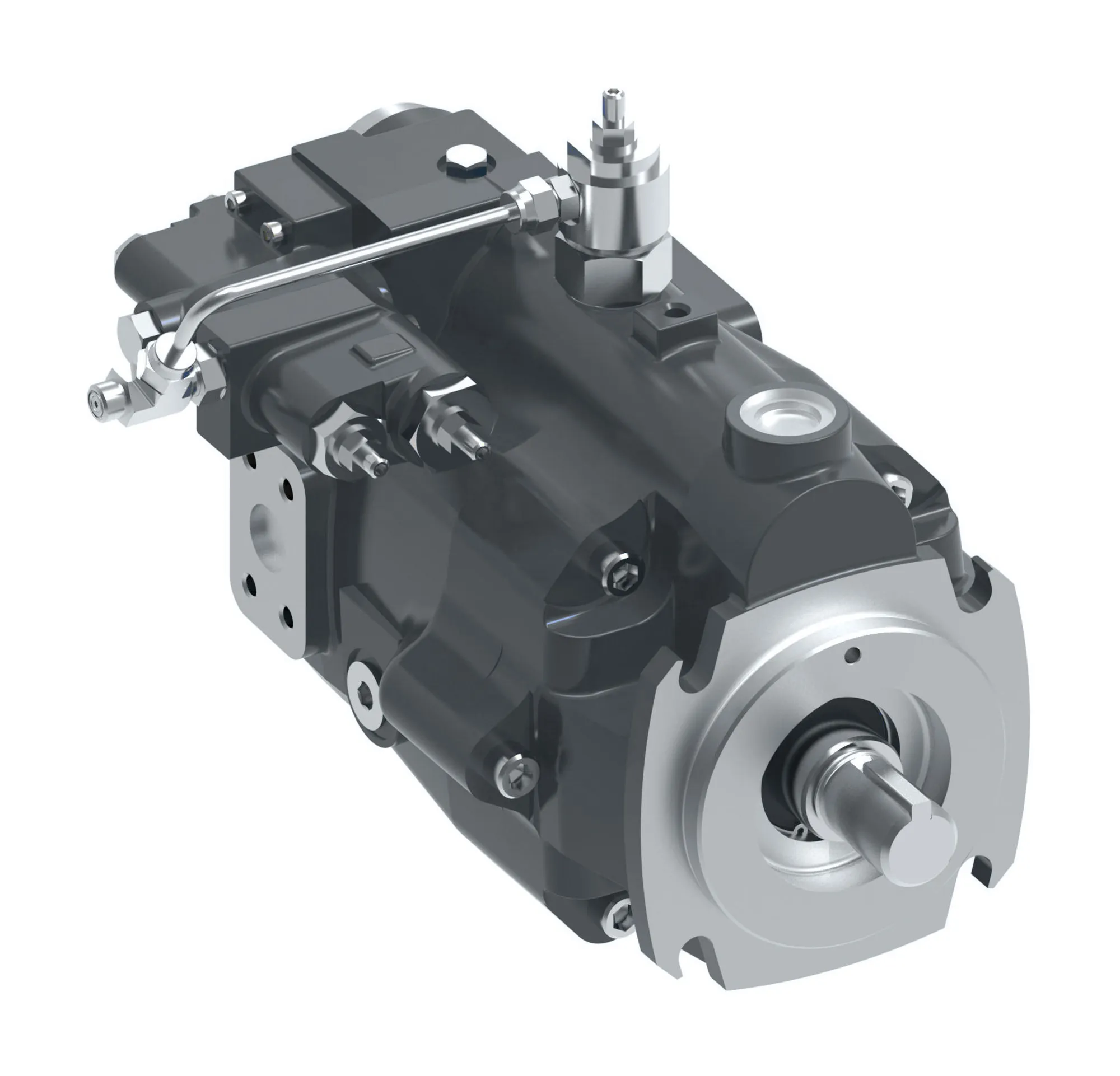

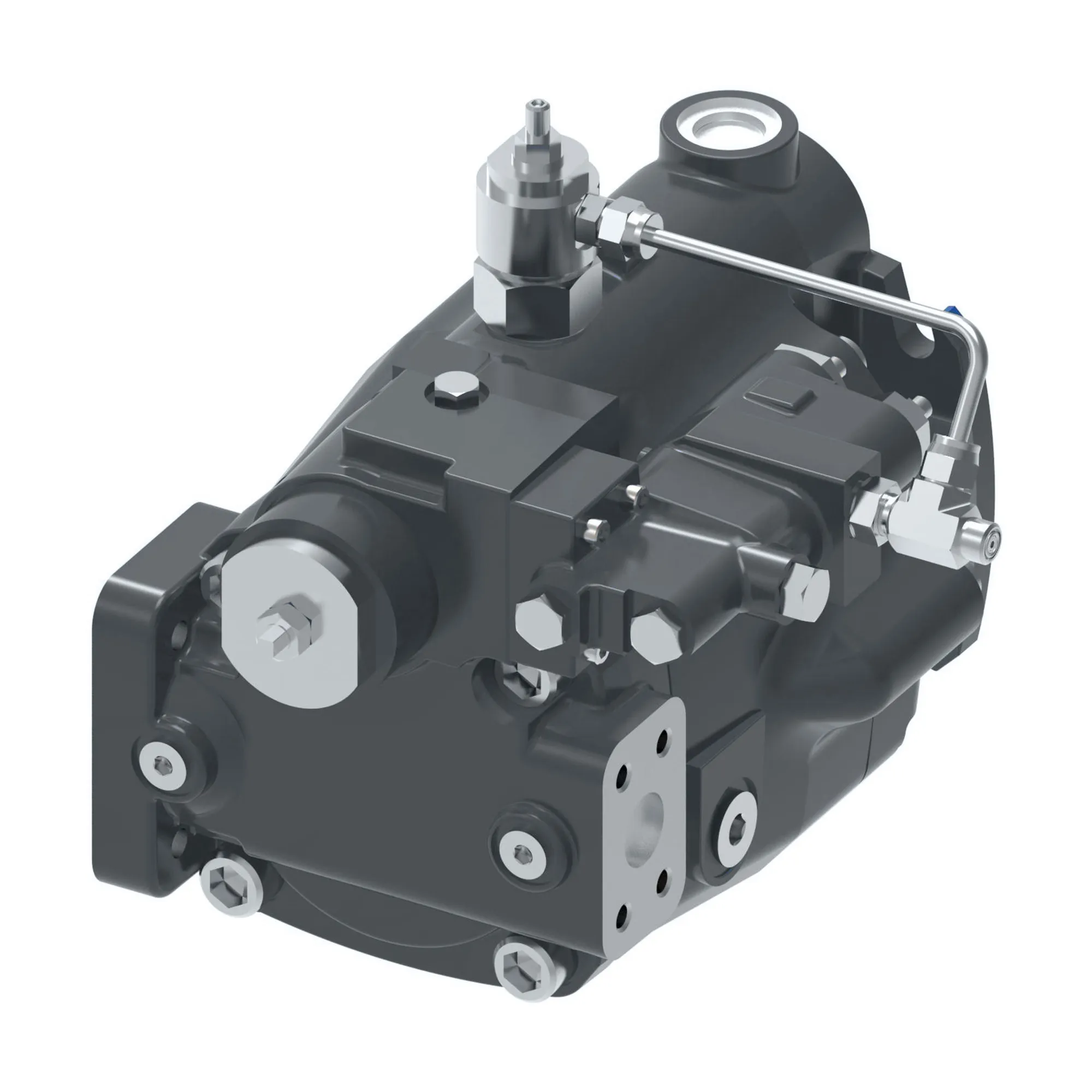

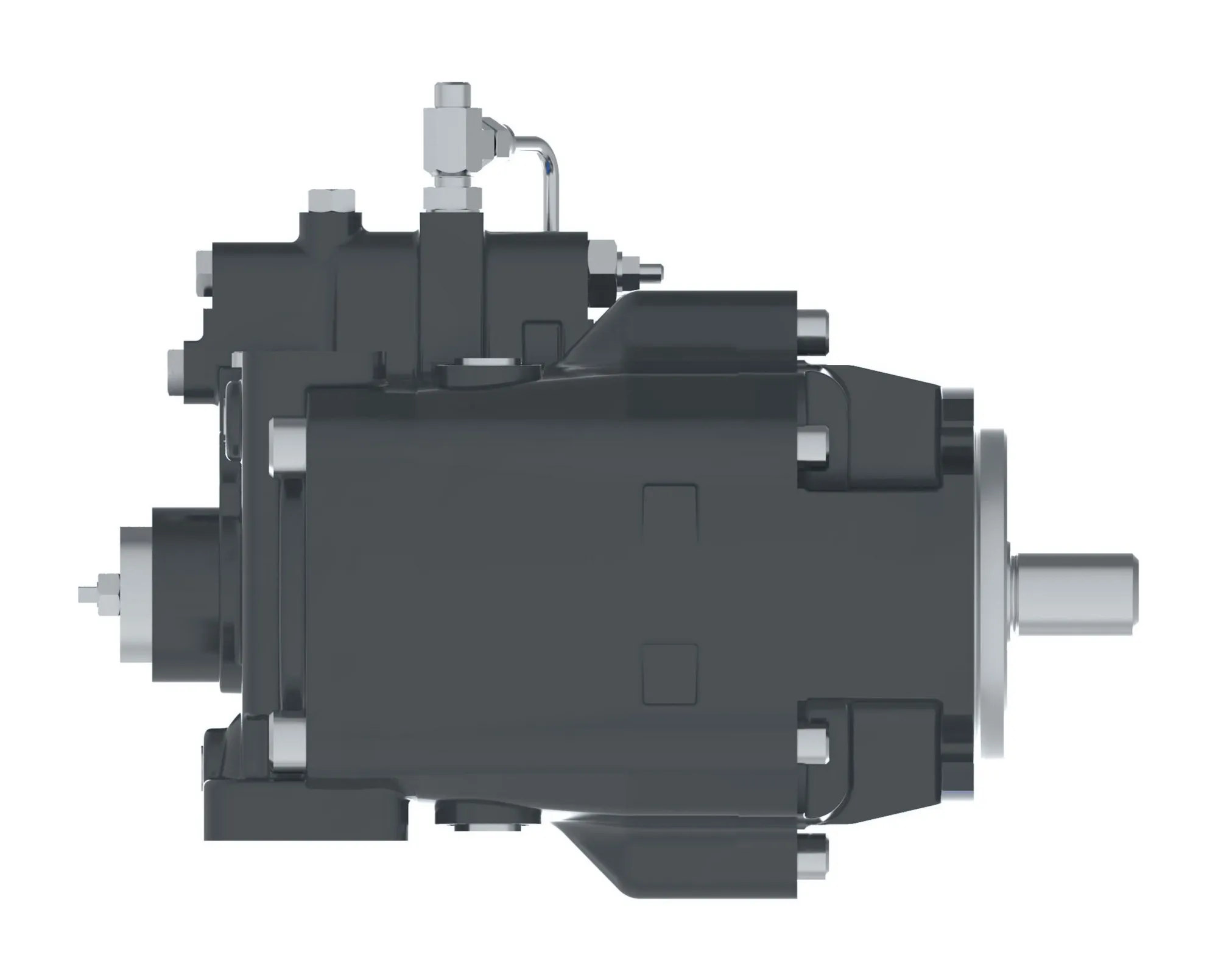

Danfoss (Drives) 123AL00073B
PVM141ER13GS2A230000000AB-AS00, PVM141ER13GS2A230000000AB-AS00 – 123AL00073B
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM141ER13GS2A230000000AB-AS00, PVM141ER13GS2A230000000AB-AS00 – 123AL00073B
Specification
| Code Title | VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS |
|---|---|
| D I S P L A C E M E N T | 141.0 cm3/r [8.60 in3/r] (230 bar MAX) |
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | SAE J744-44-1, SAE D, STRAIGHT KEYED (MODEL 131) |
| Mounting Flange | SAE J744-127-4 (C 4-BOLT)(MODELS 057,074,098 AND 131) |
| Main Port Location | SIDE |
| Port Options | SAE J518 FLANGE PORTS, SAE AUXILIARY PORTS |
| C O N T R O L | PRESSURE COMPENSATOR |
| Pressure Comp Setting | 230±4 bar [3335±58 lbf/in2][DEFAULT][OVERBORE CC] |
| Flow Comp Setting | NONE |
| Power Control Setting | NONE |
| Auxiliary Mounting | NONE (NON-THROUGH DRIVE) |
| Paint | BLACK [DEFAULT] |
| Design Code | B |
| D I F F E R E N T I A T O R | – |
| Pump Special Features | NITRILE/BUNA-N SHAFT SEAL WITH ADJUSTABLE MAX DISPLACEMENT STOP |
| Compensator Special Features | NONE |
| Customer Identification | NONE |
| Ipm Frame Size | PVM Code B 141cc Pump |
| Model Code 1 | PVM141ER13GS2A230000000AB-AS00 |
| Product Height In | 10.350 |
| Product Height Mm | 262.890 |
| Product Length In | 12.030 |
| Product Length Mm | 305.562 |
| Product Width In | 11.590 |
| Proposition 65 | Cancer and Reproductive Harm |
