Danfoss (Drives) 123AL00008B
PVM045ER07CS2C230200001AB-BD00, PVM045ER07CS2C230200001AB-BD00 – 123AL00008B
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVM045ER07CS2C230200001AB-BD00, PVM045ER07CS2C230200001AB-BD00 – 123AL00008B
Specification

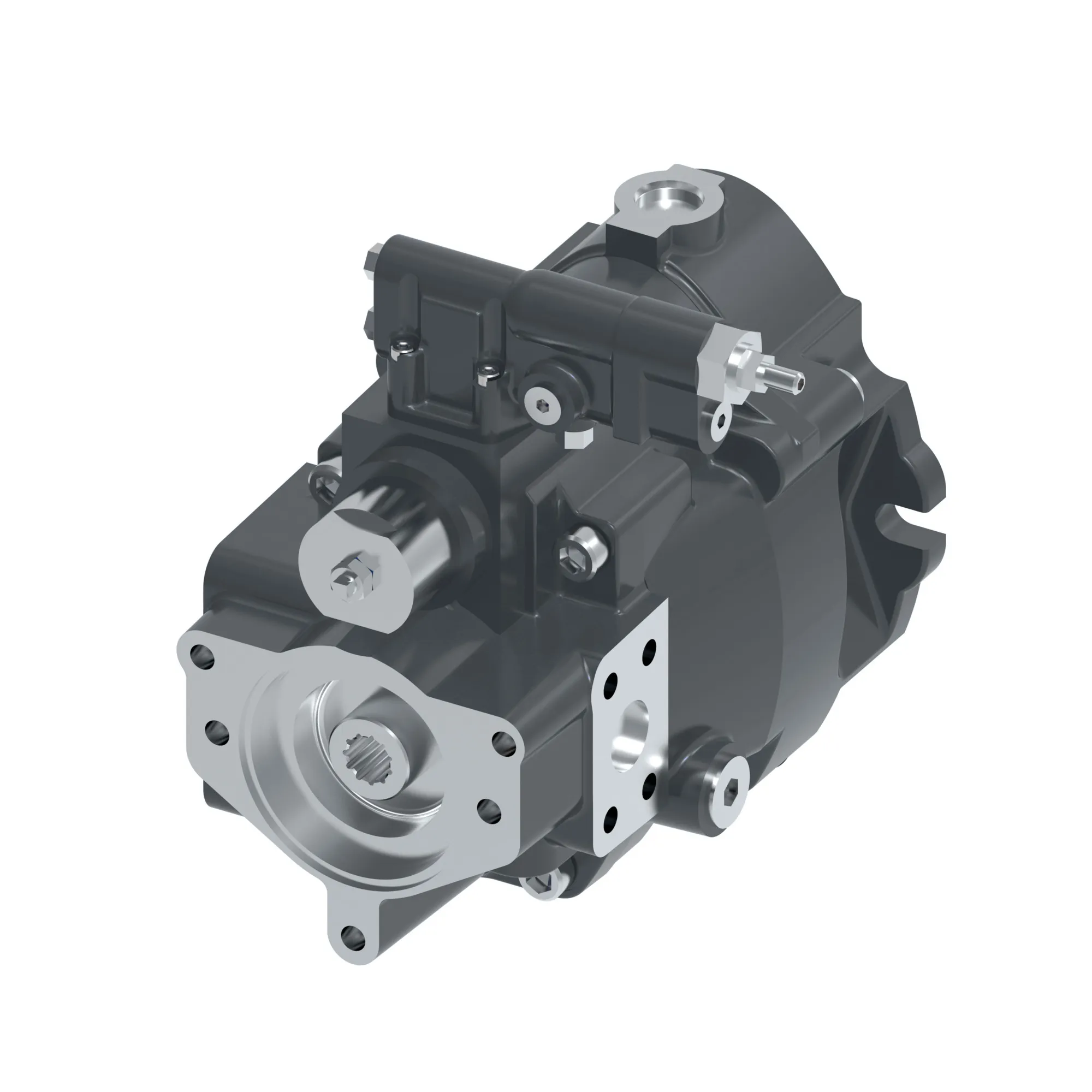

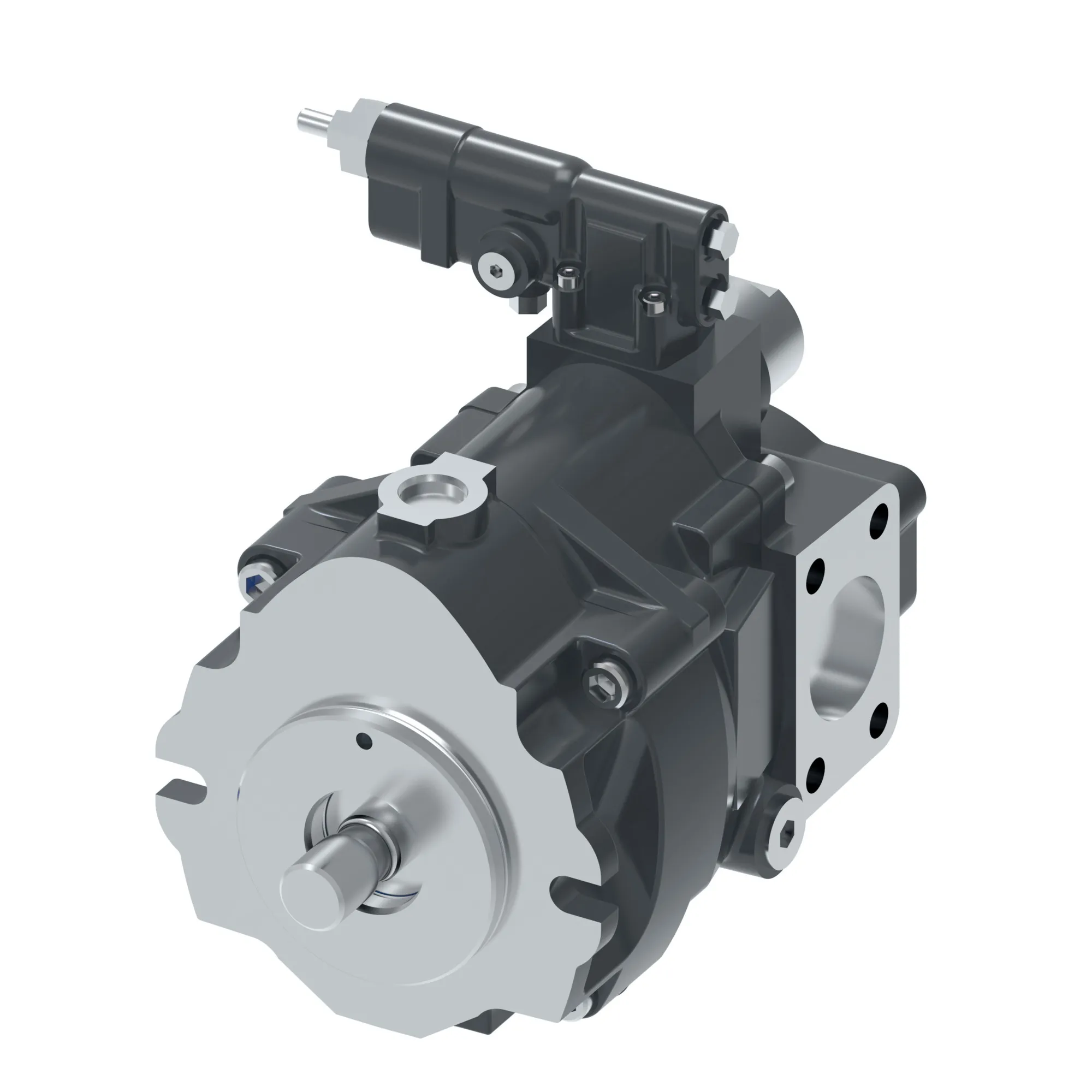

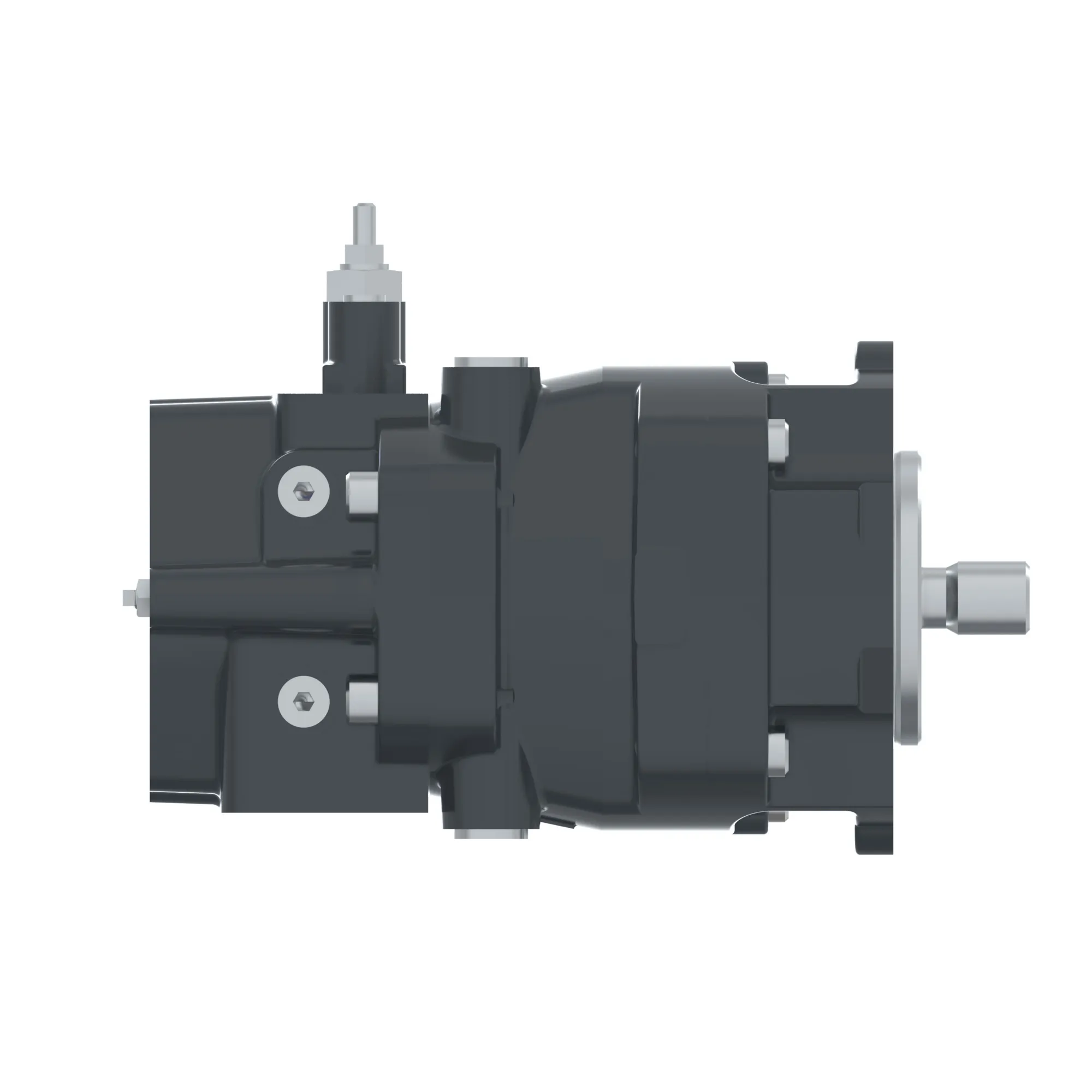

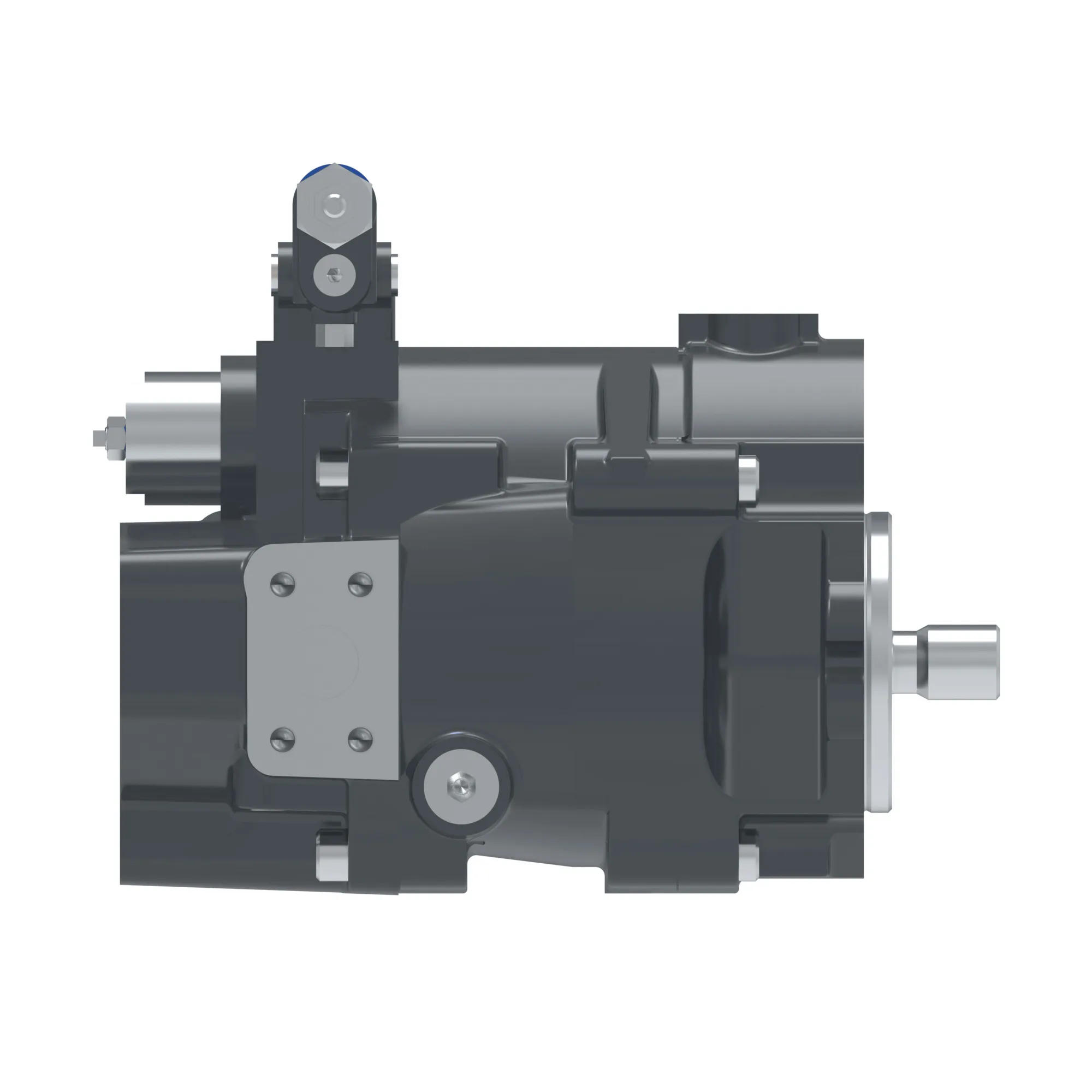

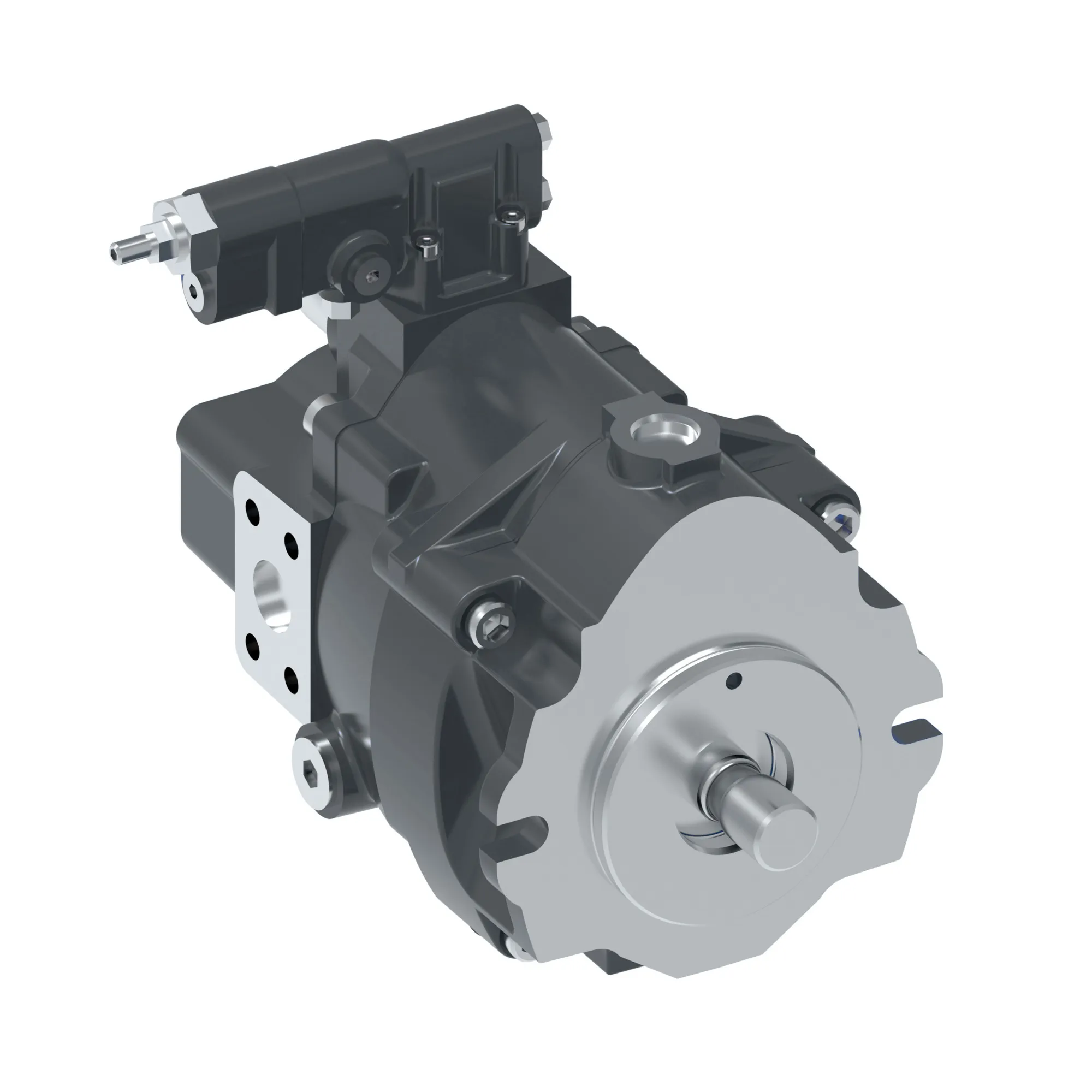

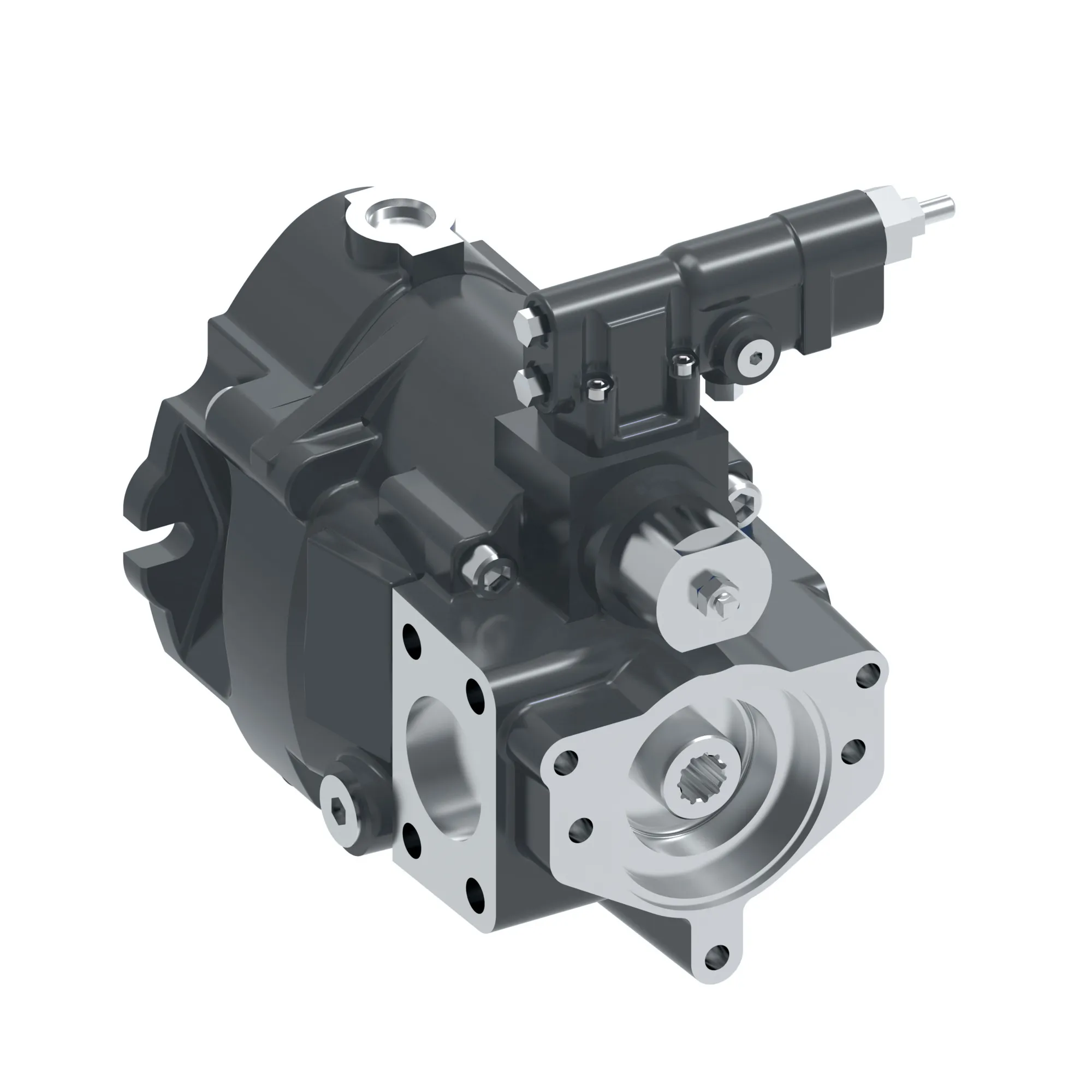

| Code Title | VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS |
|---|---|
| D I S P L A C E M E N T | 45.1 cm3/r [2.75 in3/r] (315 bar MAX) |
| Valve Plate | INDUSTRIAL (1800 r/min MAX) |
| Input Rotation | CLOCKWISE (RIGHTHAND) |
| Input Shaft | SAE J744-22-4, SAE B, 13T SPLINE (MODEL 010, 013, 018,045 AND 057) |
| Mounting Flange | SAE J744-101-2(B 2-BOLT) (MODELS 010, 013, 018 AND 045) |
| Main Port Location | SIDE |
| Port Options | SAE J518 FLANGE PORTS, SAE AUXILIARY PORTS |
| C O N T R O L | PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE |
| Pressure Comp Setting | 230±4 bar [3335±58 lbf/in2][DEFAULT][OVERBORE CC] |
| Flow Comp Setting | 20±1 bar [290±14.5 lbf/in2][DEFAULT] |
| Power Control Setting | NONE |
| Auxiliary Mounting | AUXILIARY A-MOUNT WITH COVER PLATE AND NO COUPLER |
| Paint | BLACK [DEFAULT] |
| Design Code | B |
| D I F F E R E N T I A T O R | – |
| Pump Special Features | ADJUSTABLE MAX DISPLACEMENT STOP SET AT 30-34 CM3/R [1.83-2.07 IN3/R] (CONTAINS SINGLE SHAFT SEAL) |
| Compensator Special Features | NONE |
| Customer Identification | NONE |
| Brand | Vickers by Danfoss |
| Ipm Frame Size | PVM Code B 45cc Pump |
| Model Code 1 | PVM045ER07CS2C230200001AB-BD00 |
| Proposition 65 | Cancer and Reproductive Harm |
