Danfoss (Drives) 12211-12-10WDZ

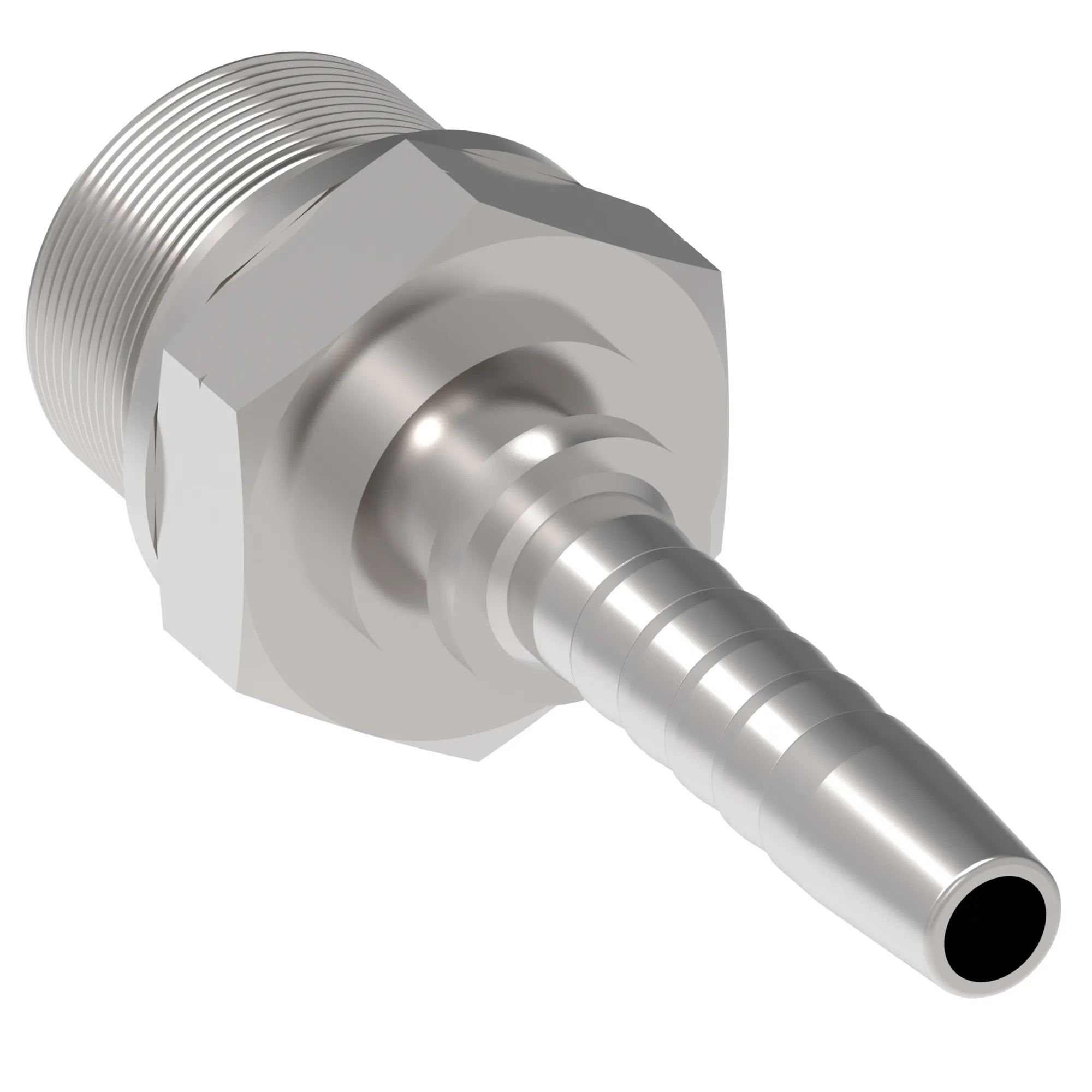

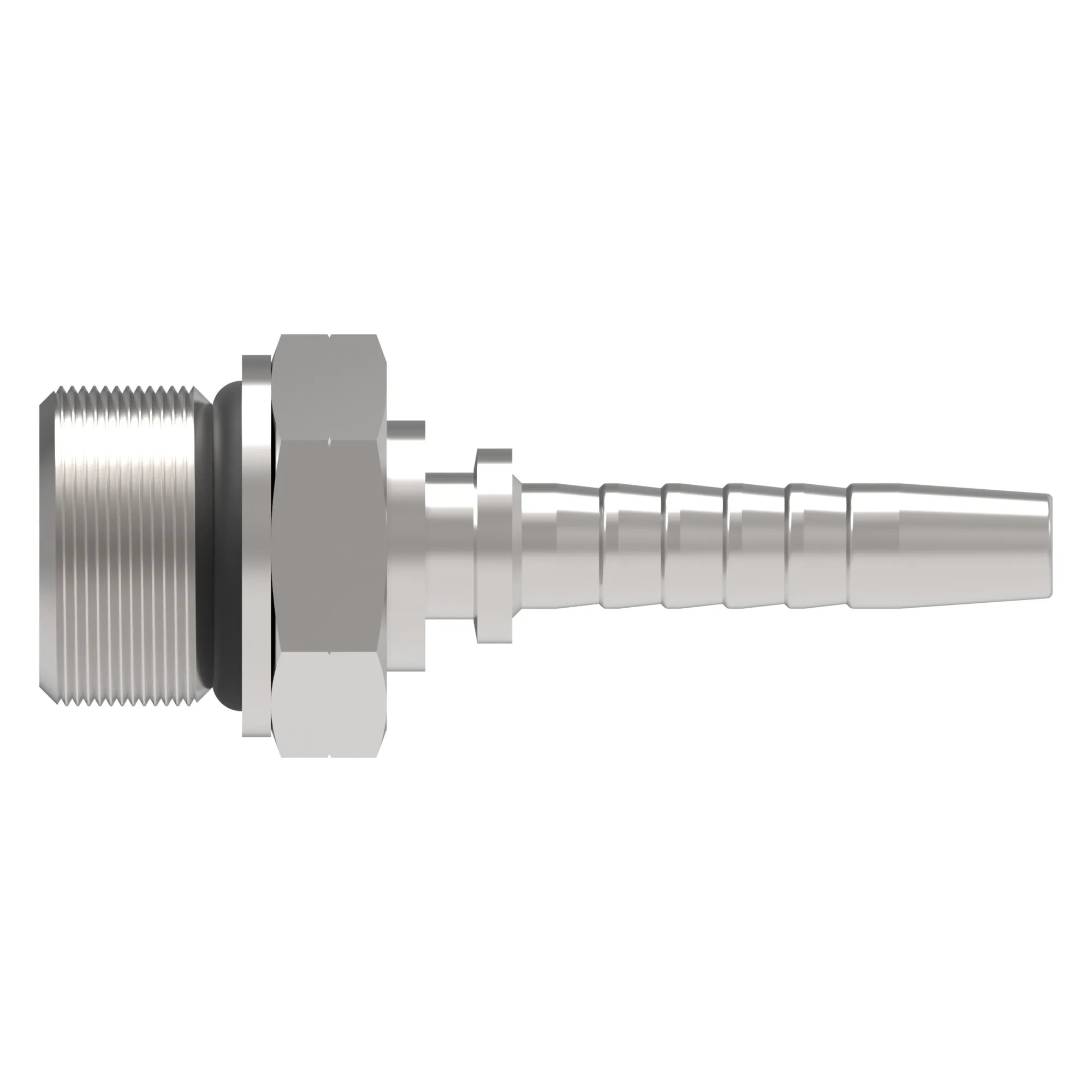

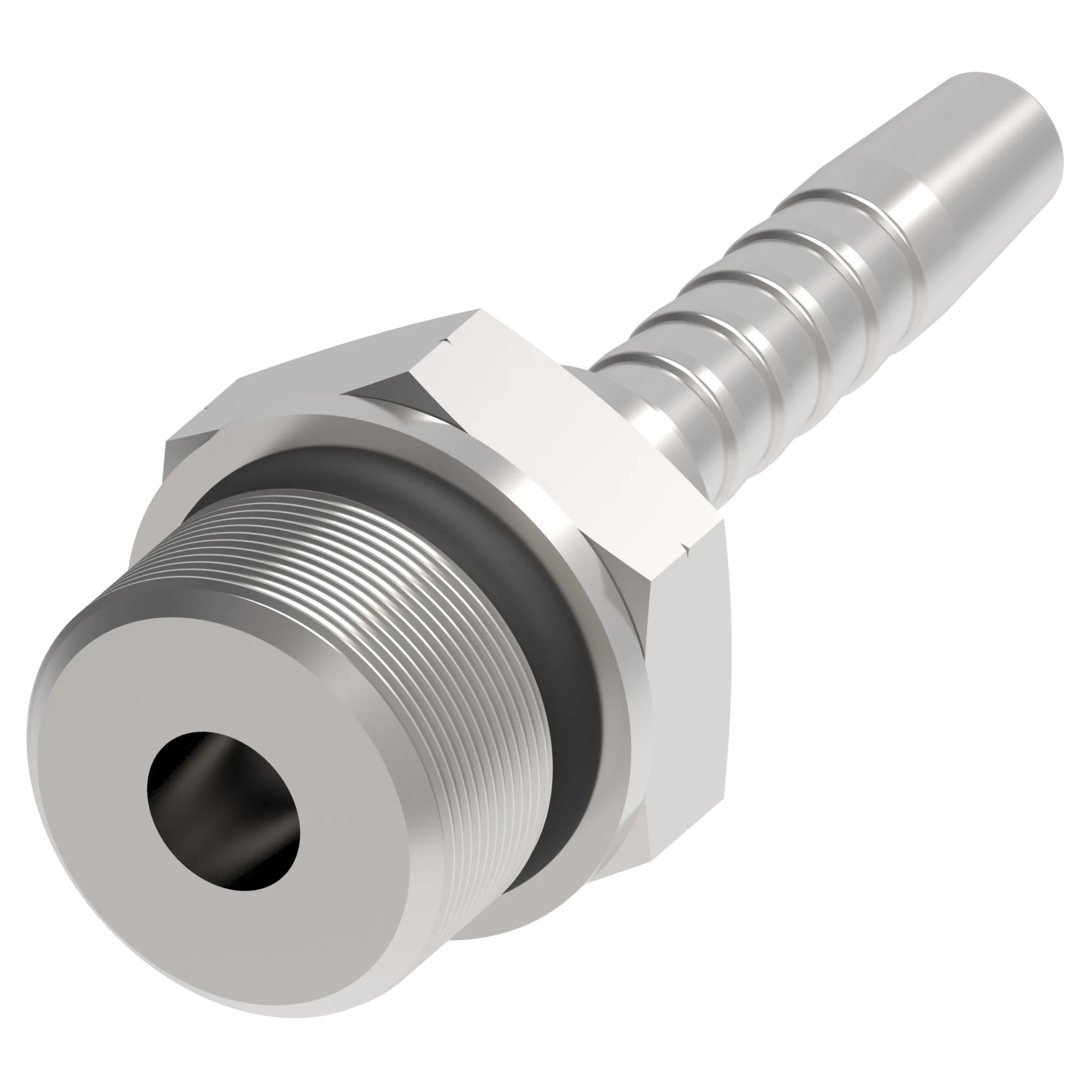

HOSE NIPPLE ASSY,2P/10,BSPP-M/12,CS,STR – 12211-12-10WDZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/10,BSPP-M/12,CS,STR – 12211-12-10WDZ
Specification
| A Dimension In | 2.637 |
|---|---|
| A Dimension Mm | 67.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.620 |
| Compatible Hose Id Mm | 15.900 |
| Construction Style | Reusable |
| End Type 1 | Male ORB BSPP |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.417 |
| Hex Size 1 Mm | 36.000 |
| Hex Size 2 In | 0.000 |
| Hose Cut Off Factor In | 1.299 |
| Hose Cut Off Factor Mm | 33.000 |
| Hose Size | -10 |
| Inside Diameter In | 0.472 |
| Inside Diameter Mm | 12.000 |
| Product Height In | 1.640 |
| Product Height Mm | 41.656 |
| Product Length In | 2.640 |
| Product Length Mm | 67.050 |
| Product Material | Carbon steel |
| Product Width In | 1.420 |
| Product Width Mm | 36.068 |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | G 3/4 |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
