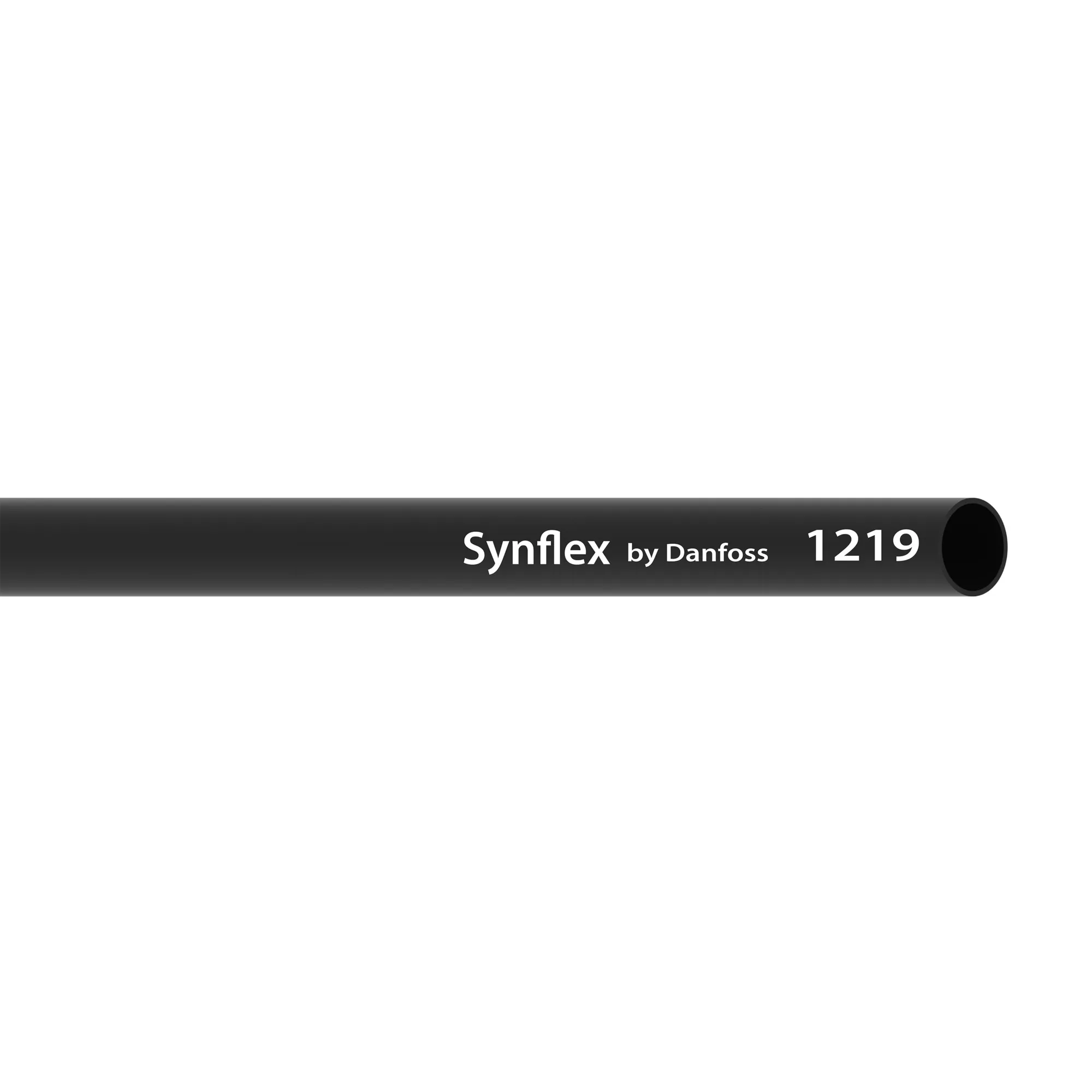

Danfoss (Drives) 1219-862E3
BLK-1/2inODx62W.FRPE/TBG GRE/STRIPED.250 – 1219-862E3
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
BLK-1/2inODx62W.FRPE/TBG GRE/STRIPED.250 – 1219-862E3
Specification
| E A N/ U P C | 813688022048 |
|---|---|
| Bend Radius Min (Inch) | 1.880 |
| Bend Radius Min (Mm) | 47.752 |
| Brand | Synflex by Danfoss |
| Burst Pressure (Bar) | 7 |
| Burst Pressure (Psi) | 100 |
| Color | Green stripe |
| Compliances | UL 94V2 |
| Construction | Extruded |
| Cover Material | Polyethylene (PE) |
| Inside Diameter (Inch) | 0.38 |
| Inside Diameter (Mm) | 9.65 |
| Outside Diameter (Inch) | 0.50 |
| Outside Diameter (Mm) | 12.70 |
| Reinforcement Material | Polyethylene |
| Series | 1219 Series |
| Size | -8 |
| Tube Material | Polyethylene (PE) |
| Tube Wall Thickness (Inch) | 0.06 |
| Tube Wall Thickness (Mm) | 1.52 |
| Working Pressure Max (Bar) | 32 |
| Working Pressure Max (Psi) | 464 |
| Working Temperature Max (C) | 80 |
| Working Temperature Max (F) | 176.0 |
| Working Temperature Min (C) | -40 |
| Working Temperature Min (F) | -40.0 |
