Danfoss (Drives) 1219-862C3

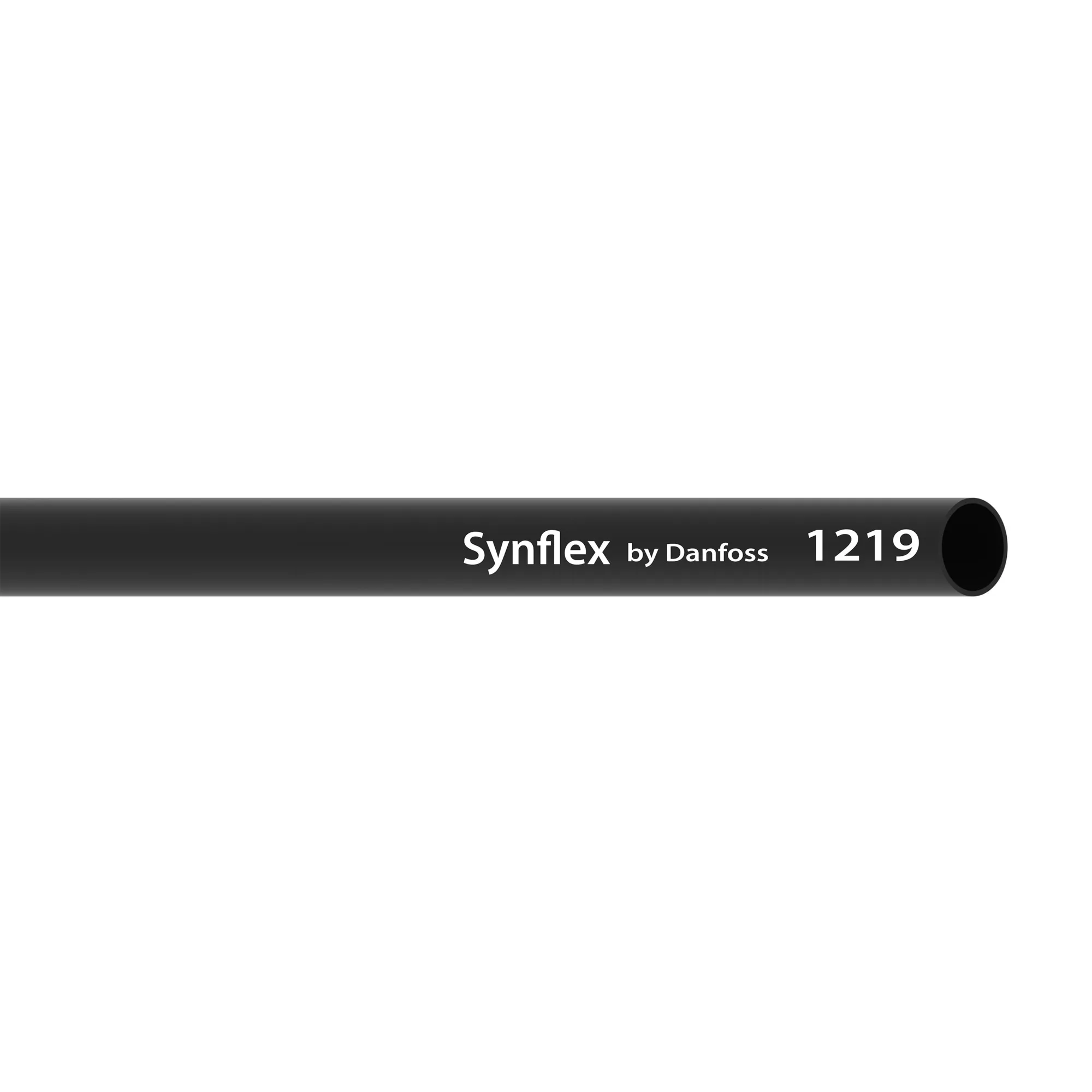

BLK-1/2″ODx62W ORG/STRIPED,250’COILS. – 1219-862C3
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
BLK-1/2″ODx62W ORG/STRIPED,250’COILS. – 1219-862C3
Specification
| E A N/ U P C | 810903032141 |
|---|---|
| Abrasion Resistance | Standard |
| Bend Radius Min (Inch) | 0.125 |
| Bend Radius Min (Mm) | 3.175 |
| Brand | Synflex by Danfoss |
| Burst Pressure (Bar) | 7 |
| Burst Pressure (Psi) | 100 |
| Color | Orange |
| Construction | Extruded |
| Cover Material | Polyethylene (PE) |
| Inside Diameter (Inch) | 0.37 |
| Inside Diameter (Mm) | 9.40 |
| Outside Diameter (Inch) | 0.50 |
| Outside Diameter (Mm) | 12.70 |
| Reinforcement Material | Polyethylene |
| Series | 1219 Series |
| Size | -8 |
| Tube Material | Polyethylene (PE) |
| Tube Wall Thickness (Inch) | 0.06 |
| Tube Wall Thickness (Mm) | 1.52 |
| Working Pressure Max (Bar) | 34 |
| Working Pressure Max (Psi) | 500 |
| Working Temperature Max (C) | 66 |
| Working Temperature Max (F) | 150.0 |
| Working Temperature Min (C) | -48 |
| Working Temperature Min (F) | -55.0 |
