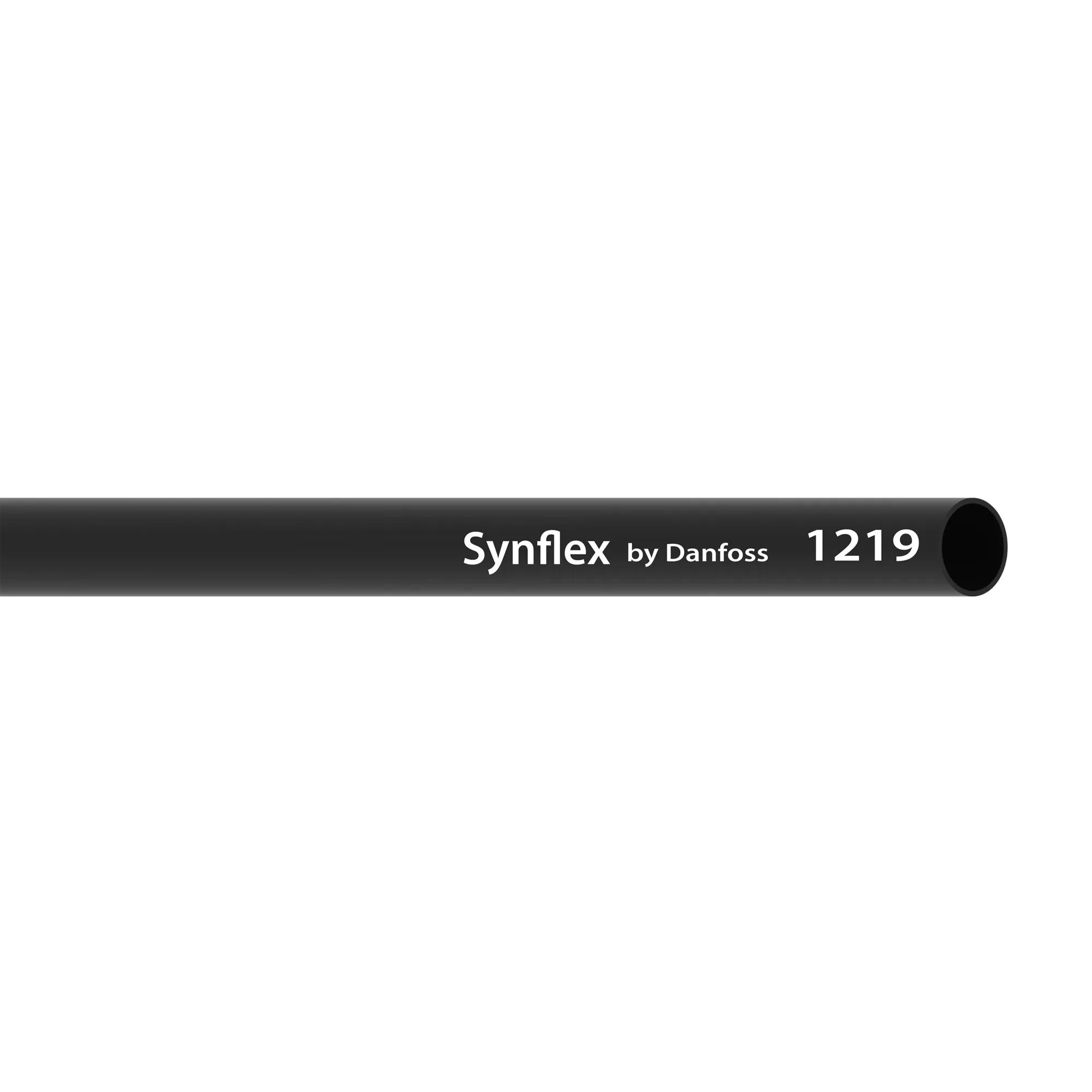

Danfoss (Drives) 1219-662E4-500
BLK-3/8INODX62W.FRPE/TBG GRN/STRIPED.500 – 1219-662E4-500
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
BLK-3/8INODX62W.FRPE/TBG GRN/STRIPED.500 – 1219-662E4-500
Specification
| E A N/ U P C | 639789360533 |
|---|---|
| Bend Radius Min (Inch) | 1.500 |
| Bend Radius Min (Mm) | 38.100 |
| Brand | Synflex by Danfoss |
| Burst Pressure (Bar) | 48 |
| Burst Pressure (Psi) | 700 |
| Color | Green stripe |
| Compliances | UL 94V2 |
| Construction | Extruded |
| Cover Material | Polyethylene (PE) |
| Inside Diameter (Inch) | 0.25 |
| Inside Diameter (Mm) | 6.35 |
| Outside Diameter (Inch) | 0.38 |
| Outside Diameter (Mm) | 9.65 |
| Package Form | Cut length |
| Reinforcement Material | Polyethylene |
| Series | 1219 Series |
| Size | -6 |
| Tube Material | Polyethylene (PE) |
| Tube Wall Thickness (Inch) | 0.06 |
| Tube Wall Thickness (Mm) | 1.52 |
| Working Pressure Max (Bar) | 36 |
| Working Pressure Max (Psi) | 522 |
| Working Temperature Max (C) | 80 |
| Working Temperature Max (F) | 176.0 |
| Working Temperature Min (C) | -40 |
| Working Temperature Min (F) | -40.0 |
