Danfoss (Drives) 1219-440T3

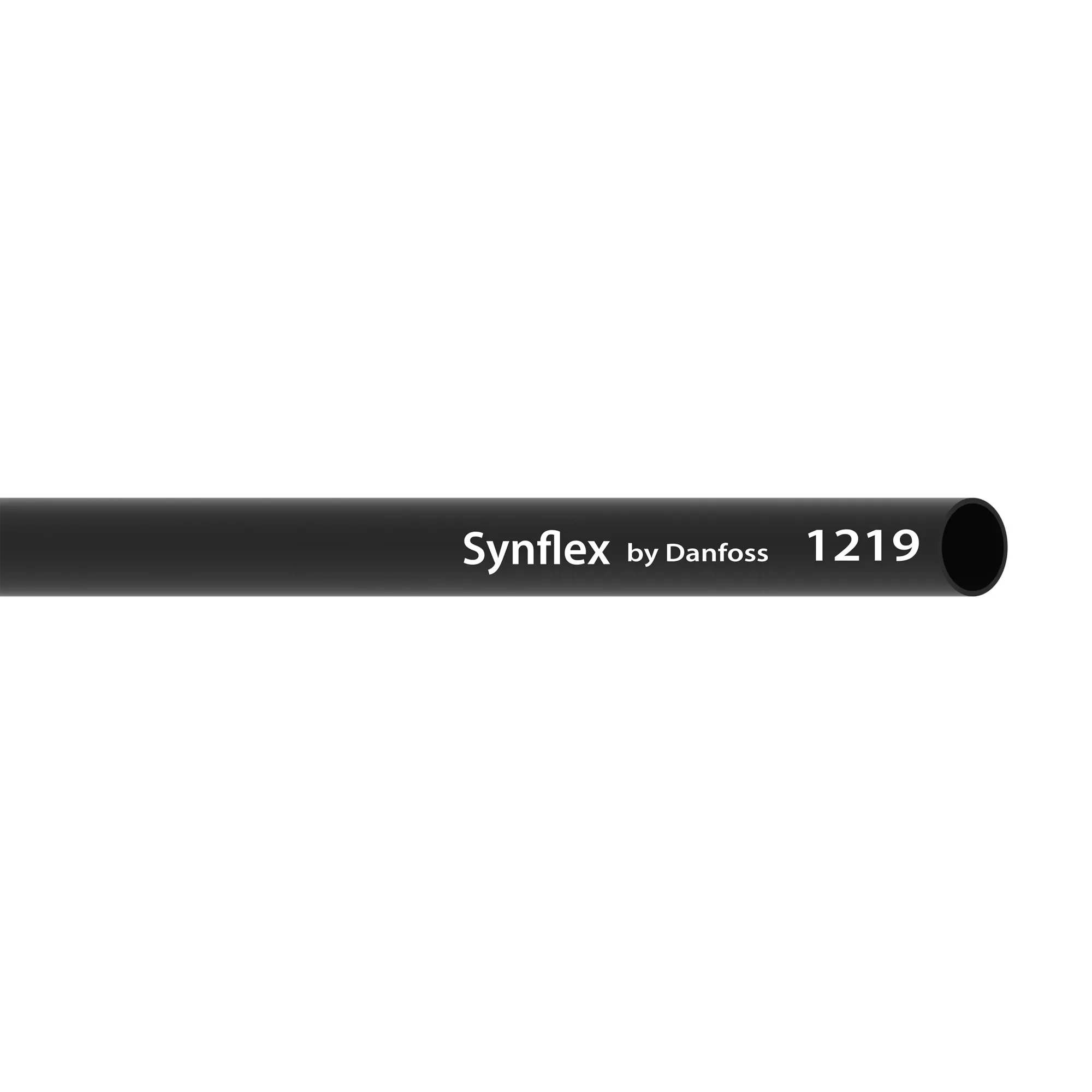

TWIN-TUBE.BLK..FRPE-250′ COILS. – 1219-440T3
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TWIN-TUBE.BLK..FRPE-250′ COILS. – 1219-440T3
Specification
| E A N/ U P C | 639789350404 |
|---|---|
| Bend Radius Min (Inch) | 0.750 |
| Bend Radius Min (Mm) | 19.050 |
| Brand | Synflex by Danfoss |
| Color | Black |
| Compliances | UL 94V2 |
| Construction | Extruded |
| Inside Diameter (Inch) | 0.17 |
| Inside Diameter (Mm) | 4.32 |
| Outside Diameter (Inch) | 0.25 |
| Outside Diameter (Mm) | 6.35 |
| Reinforcement Material | Polyethylene |
| Series | 1219 Series |
| Size | -4 |
| Tube Material | Polyethylene (PE) |
| Tube Wall Thickness (Inch) | 0.04 |
| Tube Wall Thickness (Mm) | 1.02 |
| Working Pressure Max (Bar) | 32 |
| Working Pressure Max (Psi) | 464 |
| Working Temperature Max (C) | 80 |
| Working Temperature Max (F) | 176.0 |
| Working Temperature Min (C) | -40 |
| Working Temperature Min (F) | -40.0 |
