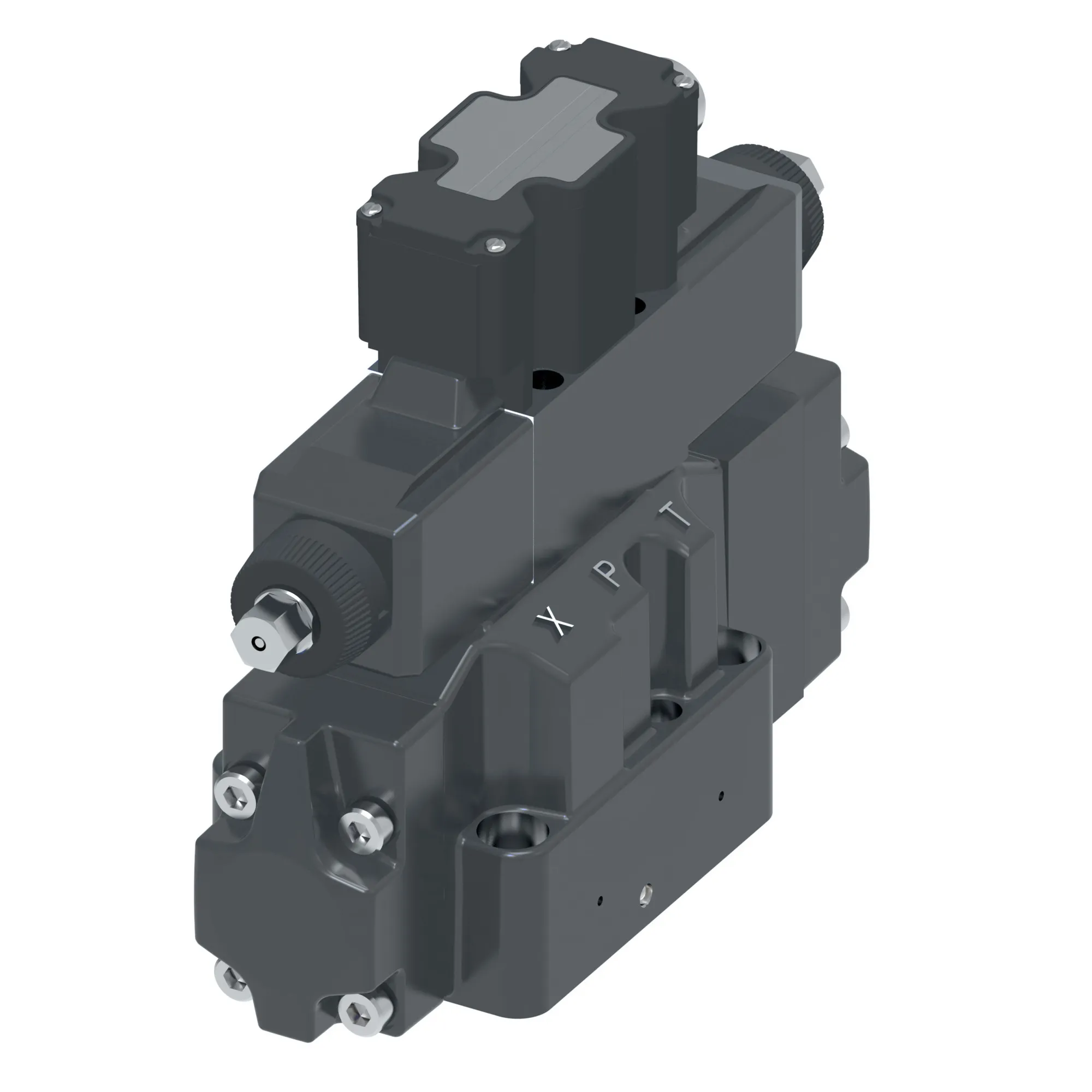

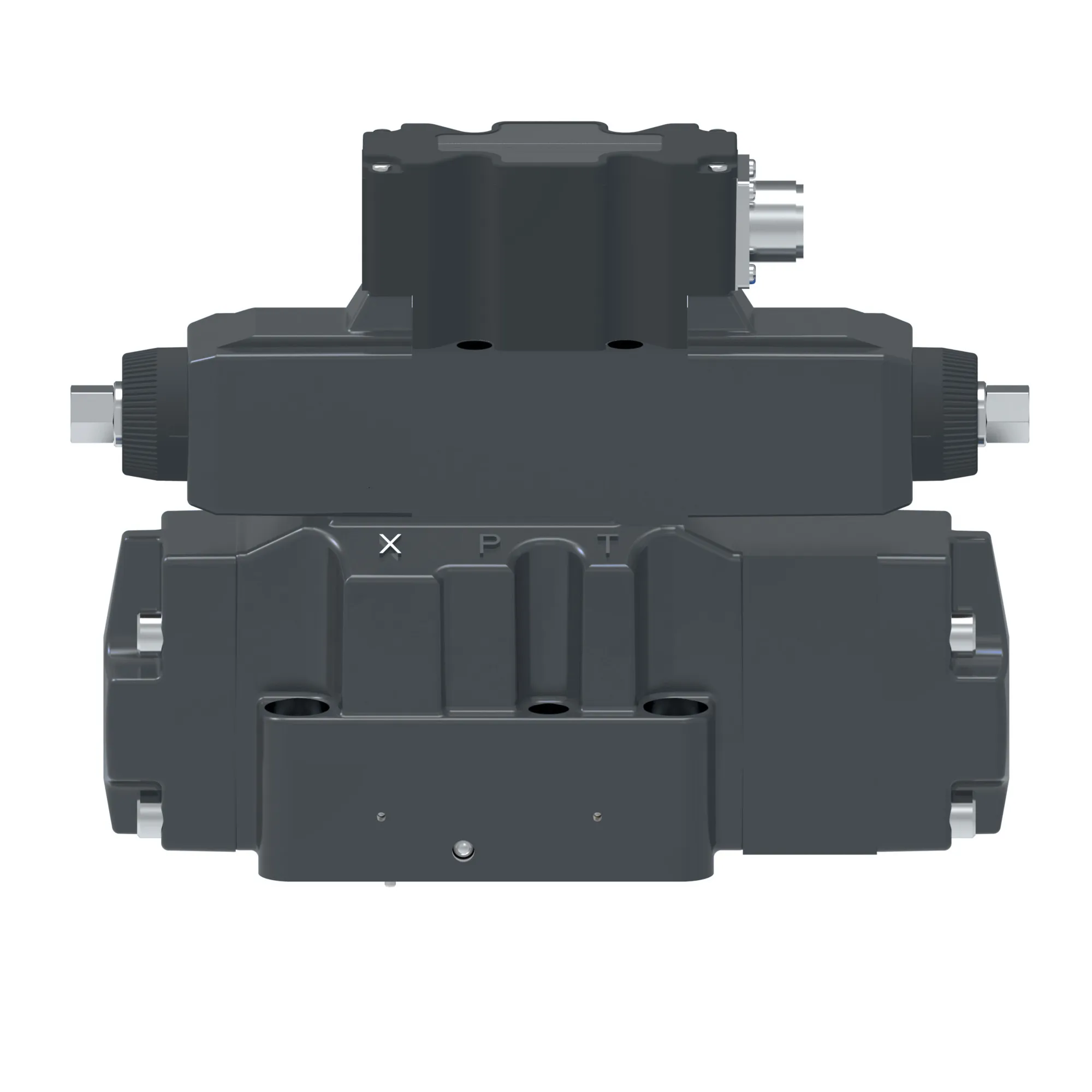

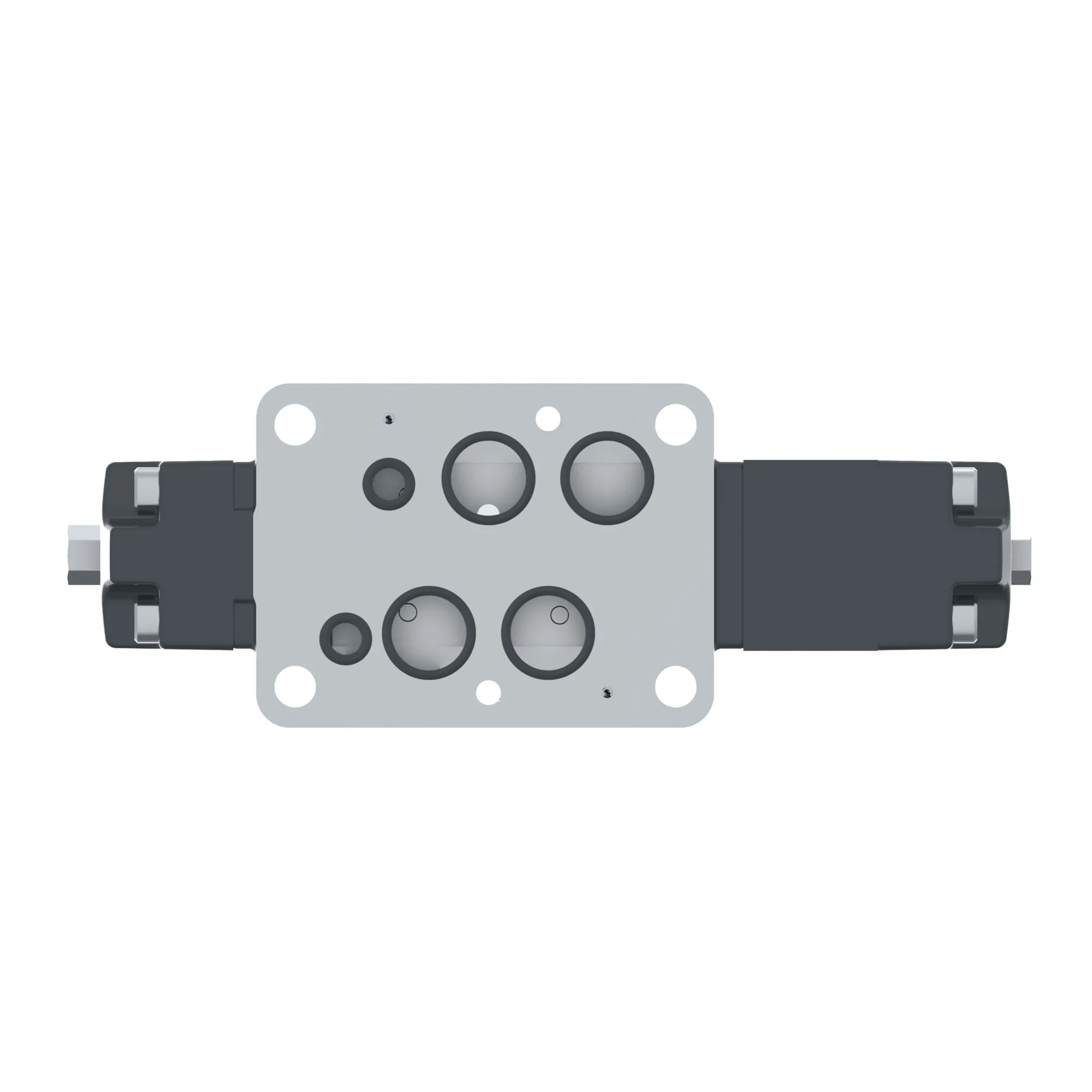

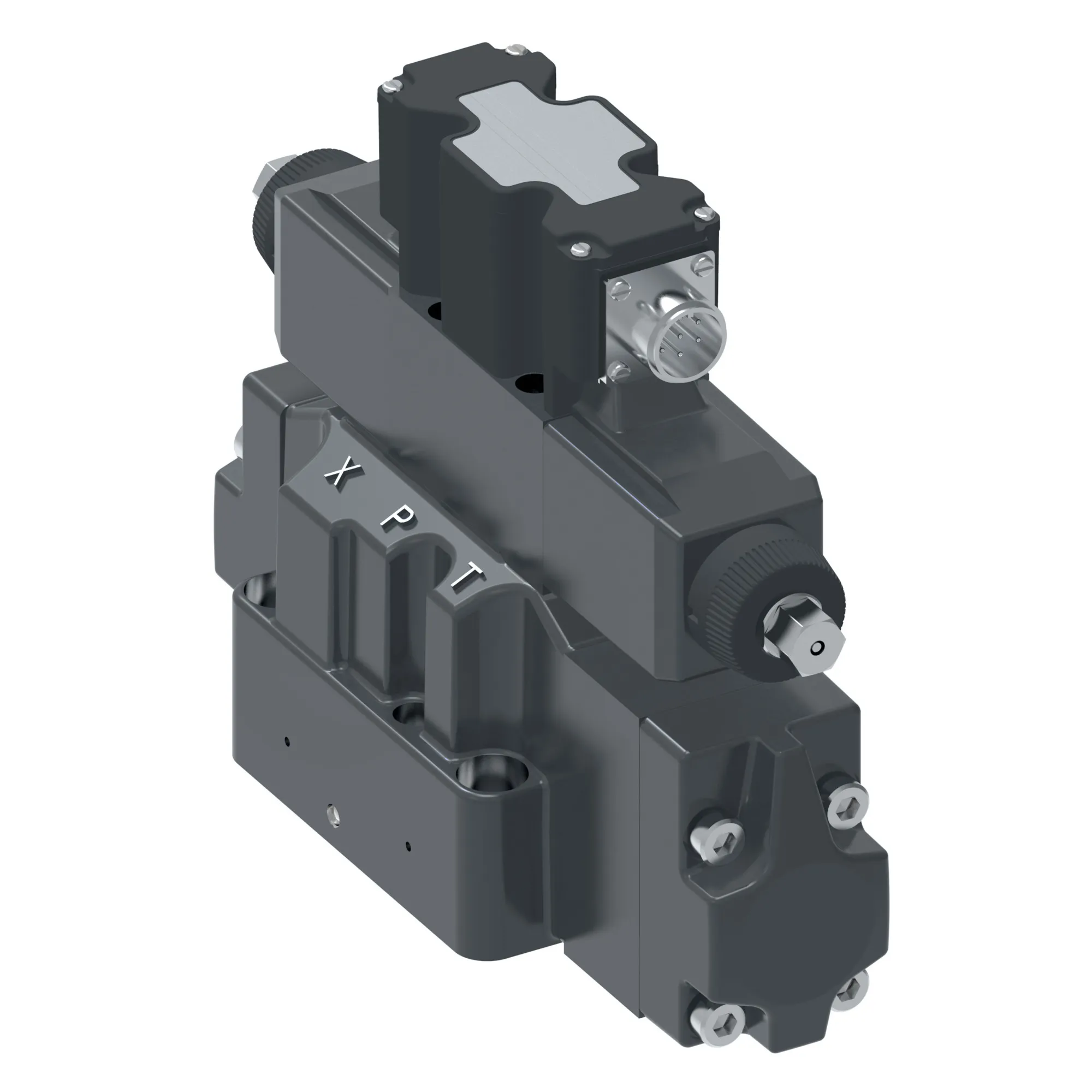

Danfoss (Drives) 12000796
KBDG5V-7-2C180N100-X-M2-PE7-H1-20-EN162, KBDG5V72C180N100XM2PE7H120EN162 – 12000796
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KBDG5V-7-2C180N100-X-M2-PE7-H1-20-EN162, KBDG5V72C180N100XM2PE7H120EN162 – 12000796
Specification
| A Port Flow Lpm | 180.00 |
|---|---|
| A Port Flow Usgpm | 48.00 |
| Actuation Type | Solenoid controlled pilot operated |
| B Port Flow Lpm | 100.00 |
| B Port Flow Usgpm | 26.40 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | 4-20mA Control signal |
| Communication Protocol | None |
| Design Series | 20 Series |
| Electrical Connection | Electrical (PE7) 7 pin electrical plug with mating half |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-07/NFPA D07/CETOP 7/NG16 |
| Manual Override | Plain |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Metering | Meter in / meter out |
| Model Code 1 | KBDG5V72C180N100XM2PE7H120EN16 |
| Model Code 2 | 2 |
| On Board Electronics | Yes |
| Performance | Standard |
| Pilot Drain | External |
| Pilot Supply | Internal |
| Profx Compatible | Yes |
| Reducer Module | Yes |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | CANOPEN communication amp |
| Spool Type | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| Stage | Two stage |
| Symmetric Flow | No |
| Tank Port Rating Bar | 350 |
| Tank Port Rating Psi | 5000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
