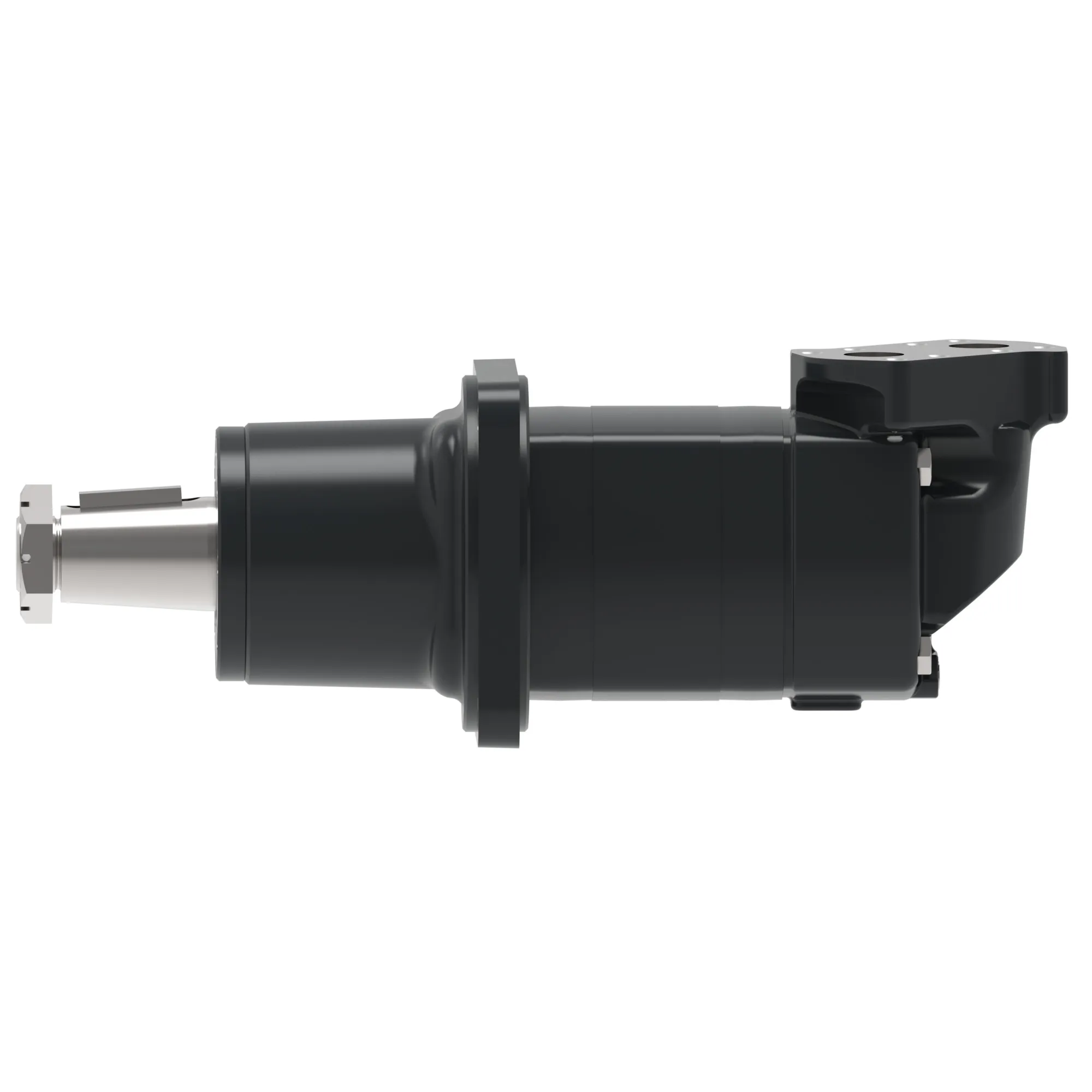

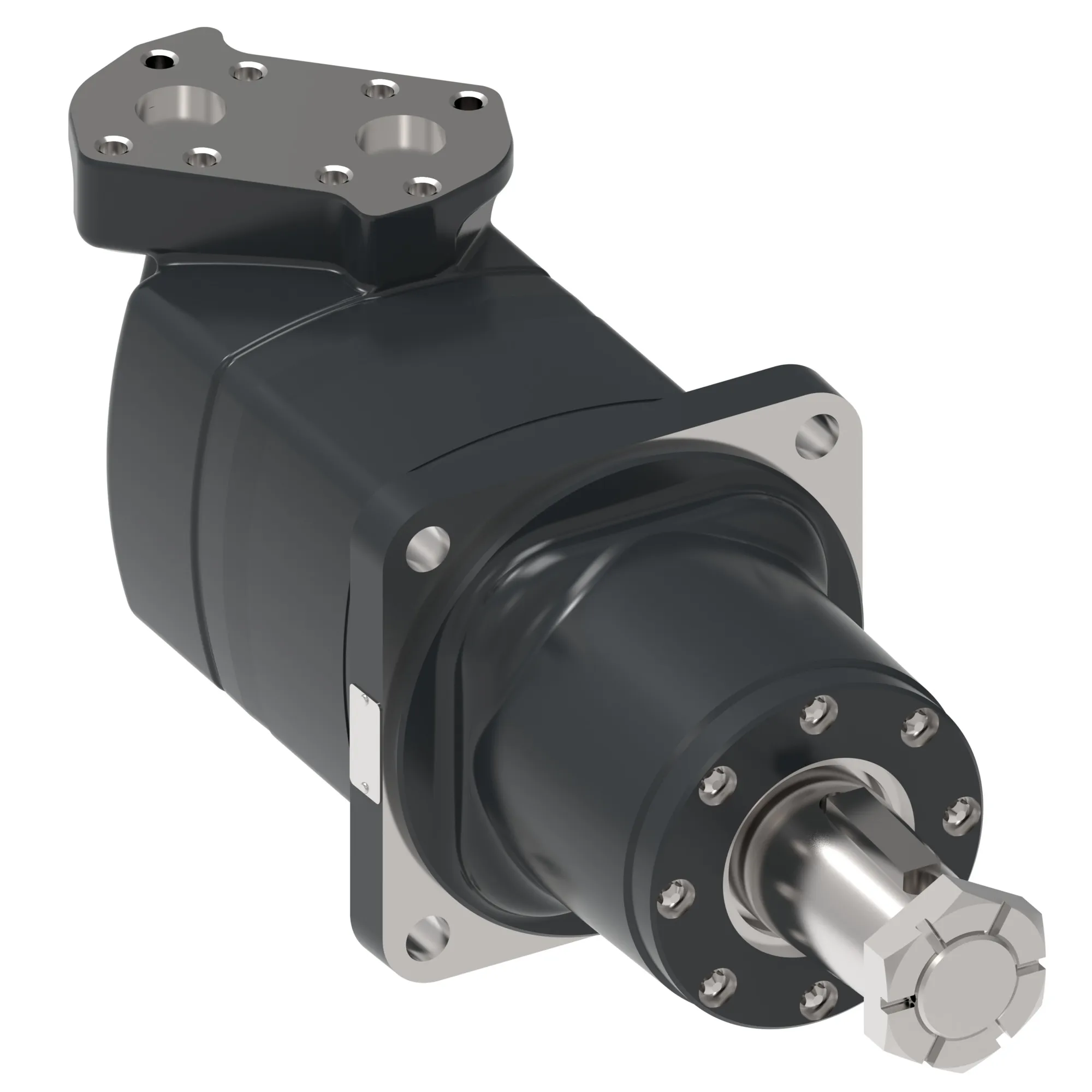

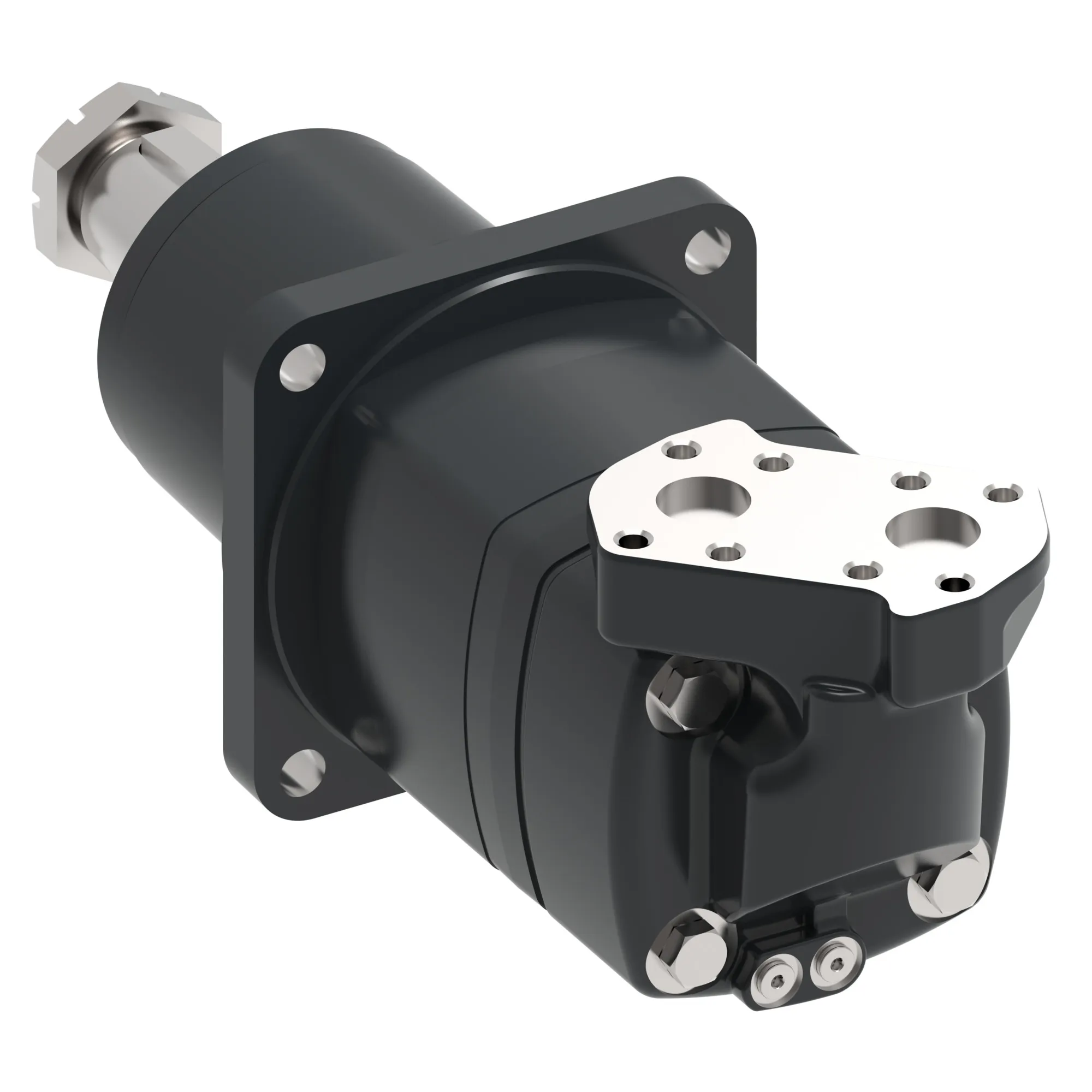

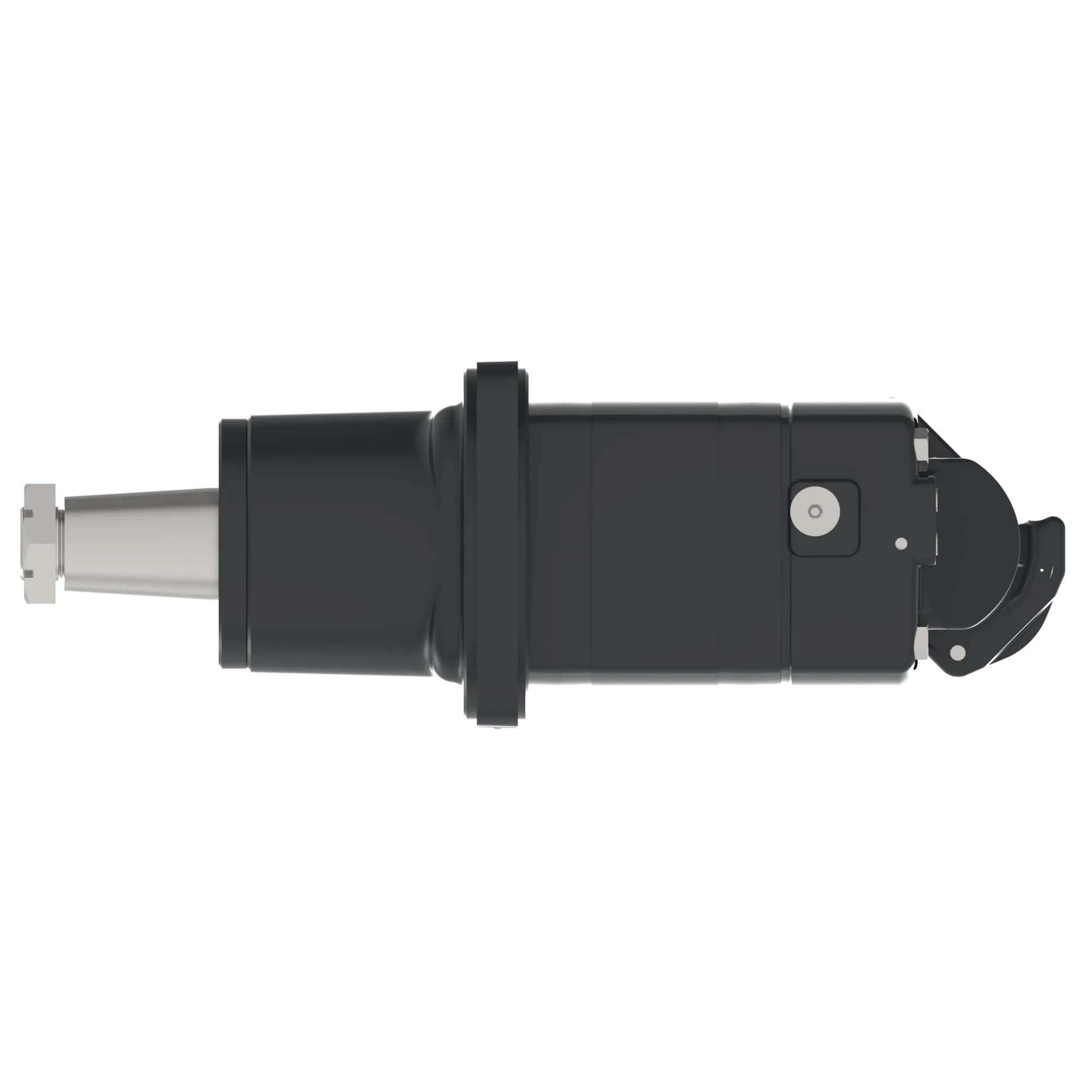

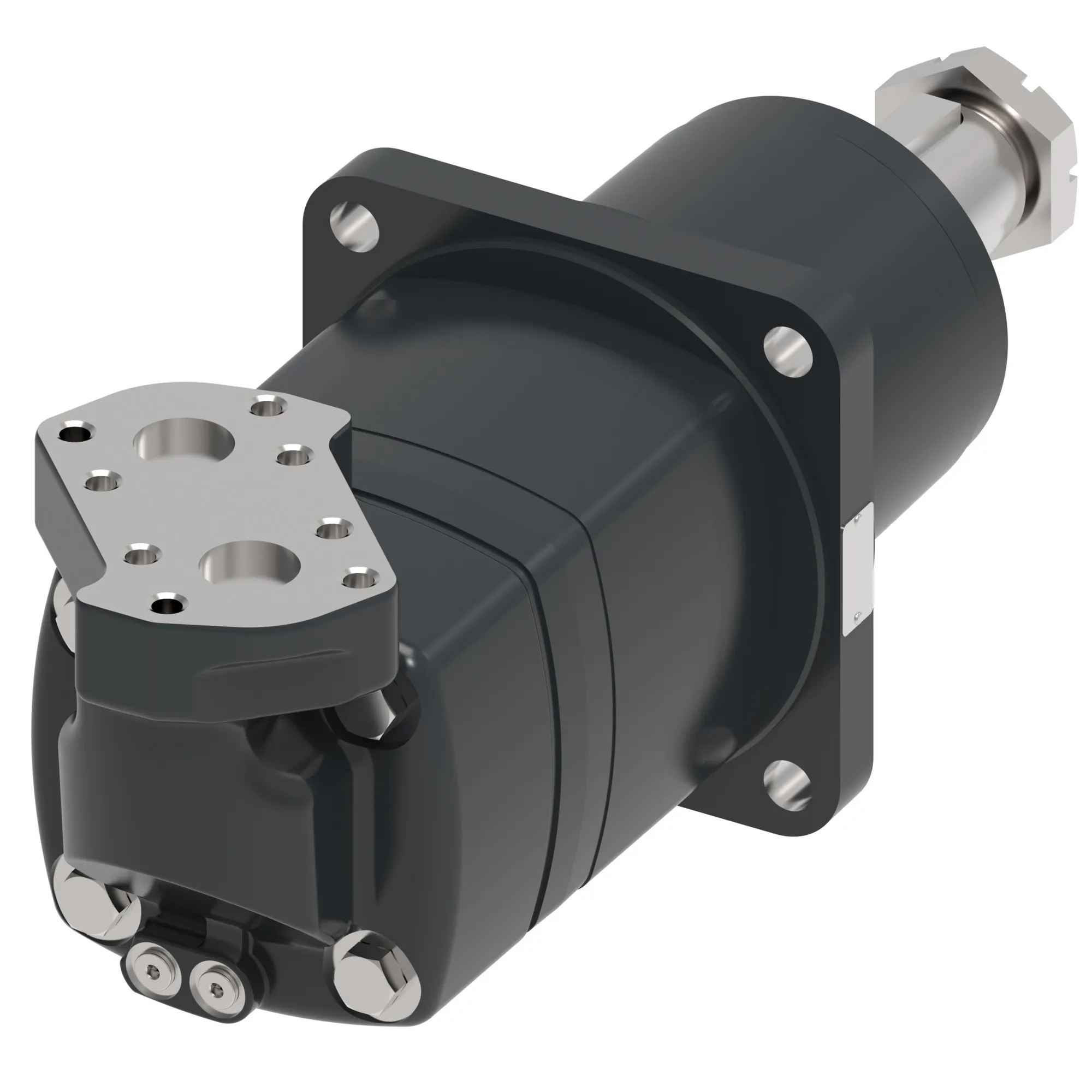

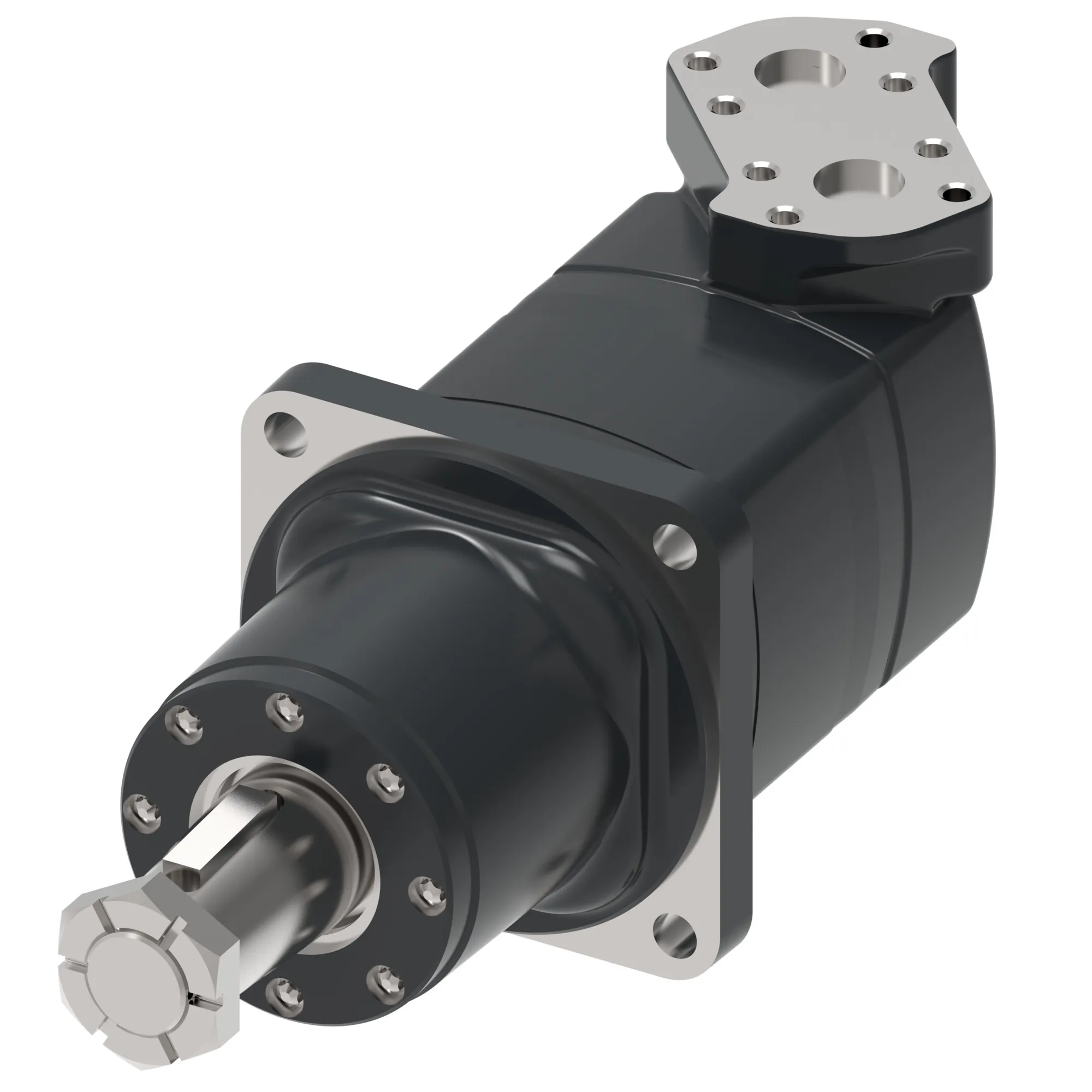

Danfoss (Drives) 120-1008-003
MOTOR-ORBITAL,10000 SERIES 940 [57.4], M10574AB01AA01000000000000000C – 120-1008-003
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,10000 SERIES 940 [57.4], M10574AB01AA01000000000000000C – 120-1008-003
Specification
| Model Code | M10574AB01AA01000000000000000C |
|---|---|
| Motor Series | 10000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 940 |
| Geometric Displacement [Cm3/R [In3/R]] | 940.8 [57.41) |
| Motor Type | Wheel |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 177.7 x 5.1, 210.0, 16.8 [7.00 x 0.20, 8.25, 0.66] Rear: 177.7 x 5.3, 210.0, 16.8 [7.00 x 0.21, 8.25, 0.66] |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 2 1/4 inch, 1/2 – 20 UNF-2B thread in shaft end |
| Shaft Key | Square key, 1/2 x 2 1/2 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 5/16 – 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 9/16 – 18 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | No data available |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 3 |
| Brand | Danfoss |
| Low Pressure Relief | None |
| Seal Options | Standard |
| Sub Brand | Char-Lynn |
