Danfoss (Drives) 11G

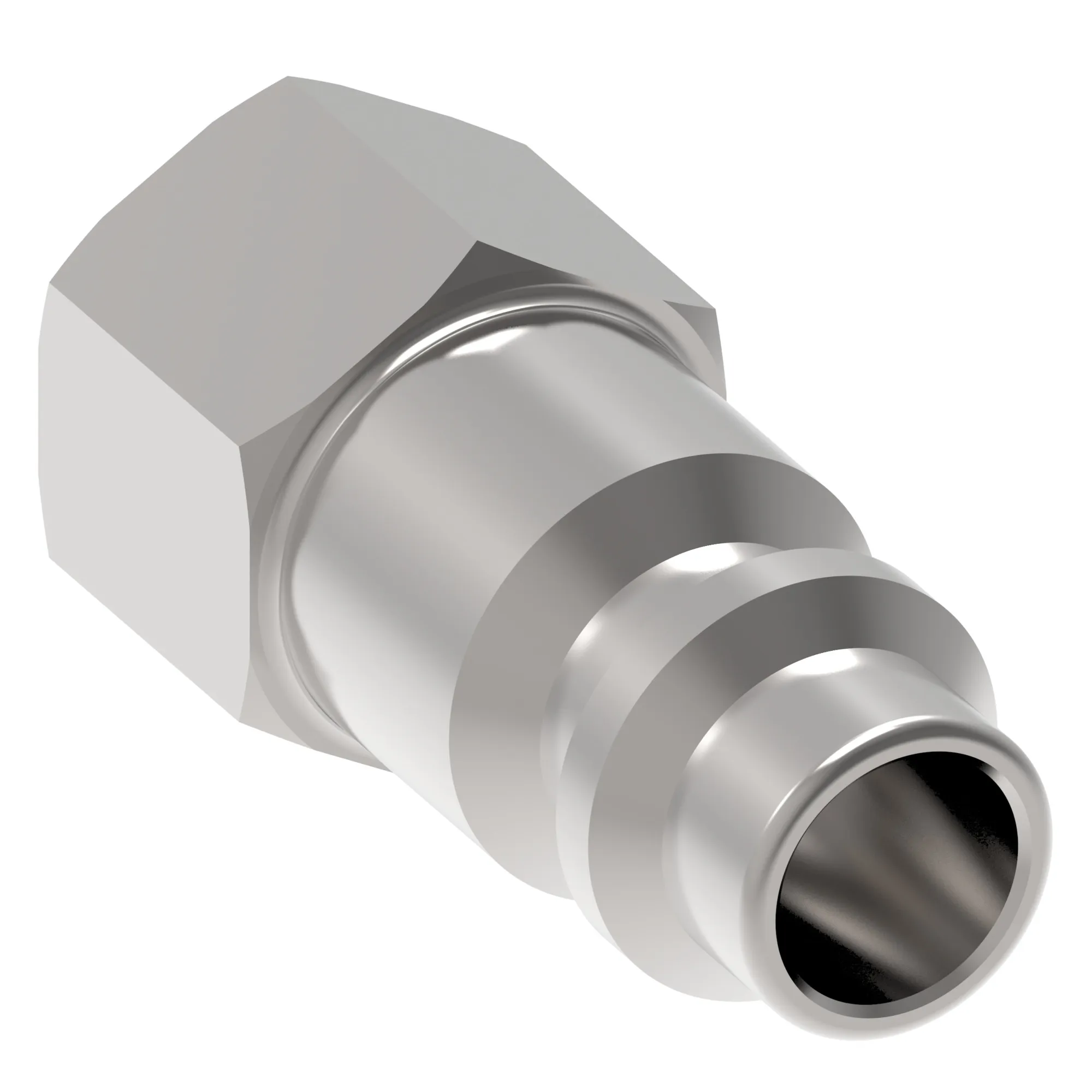

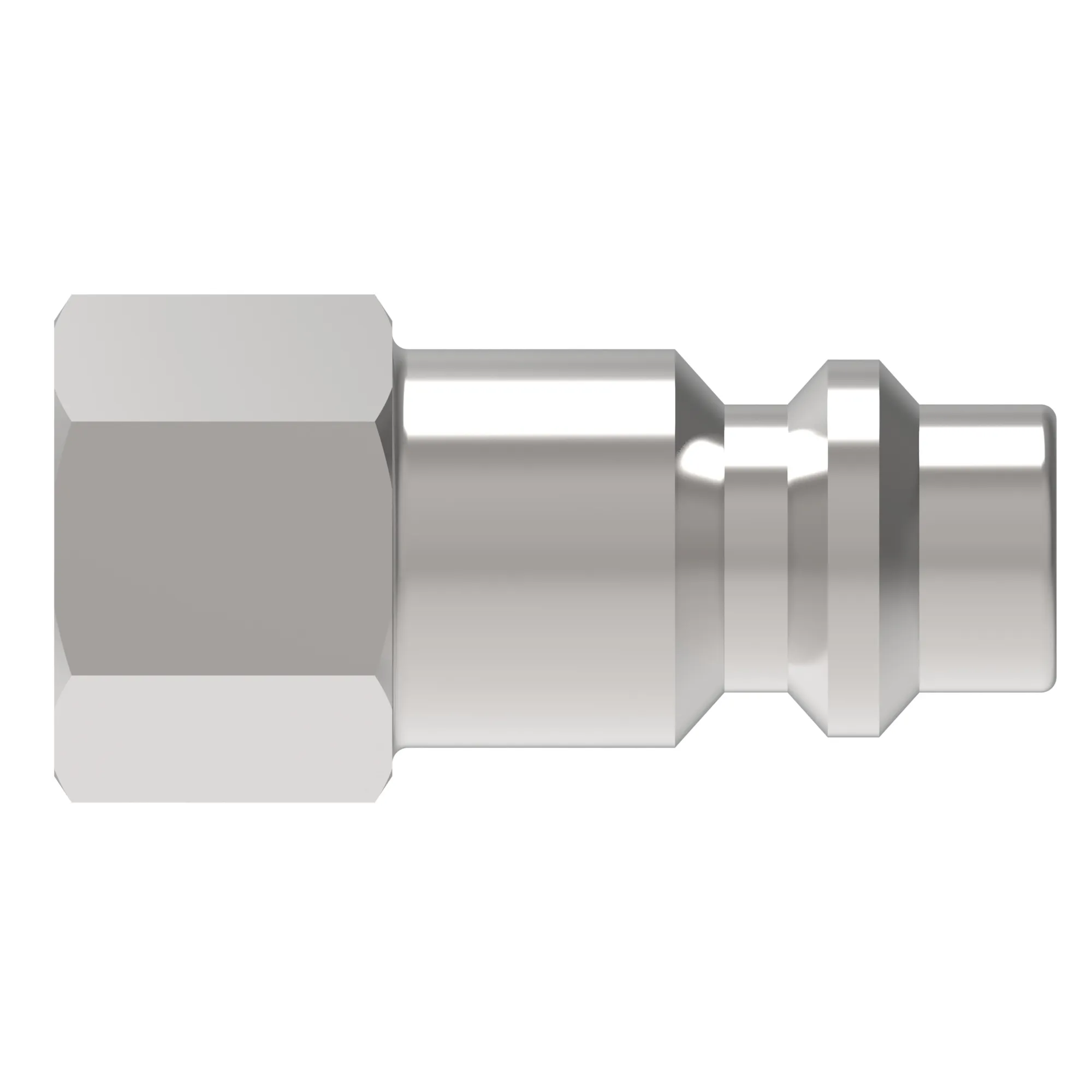

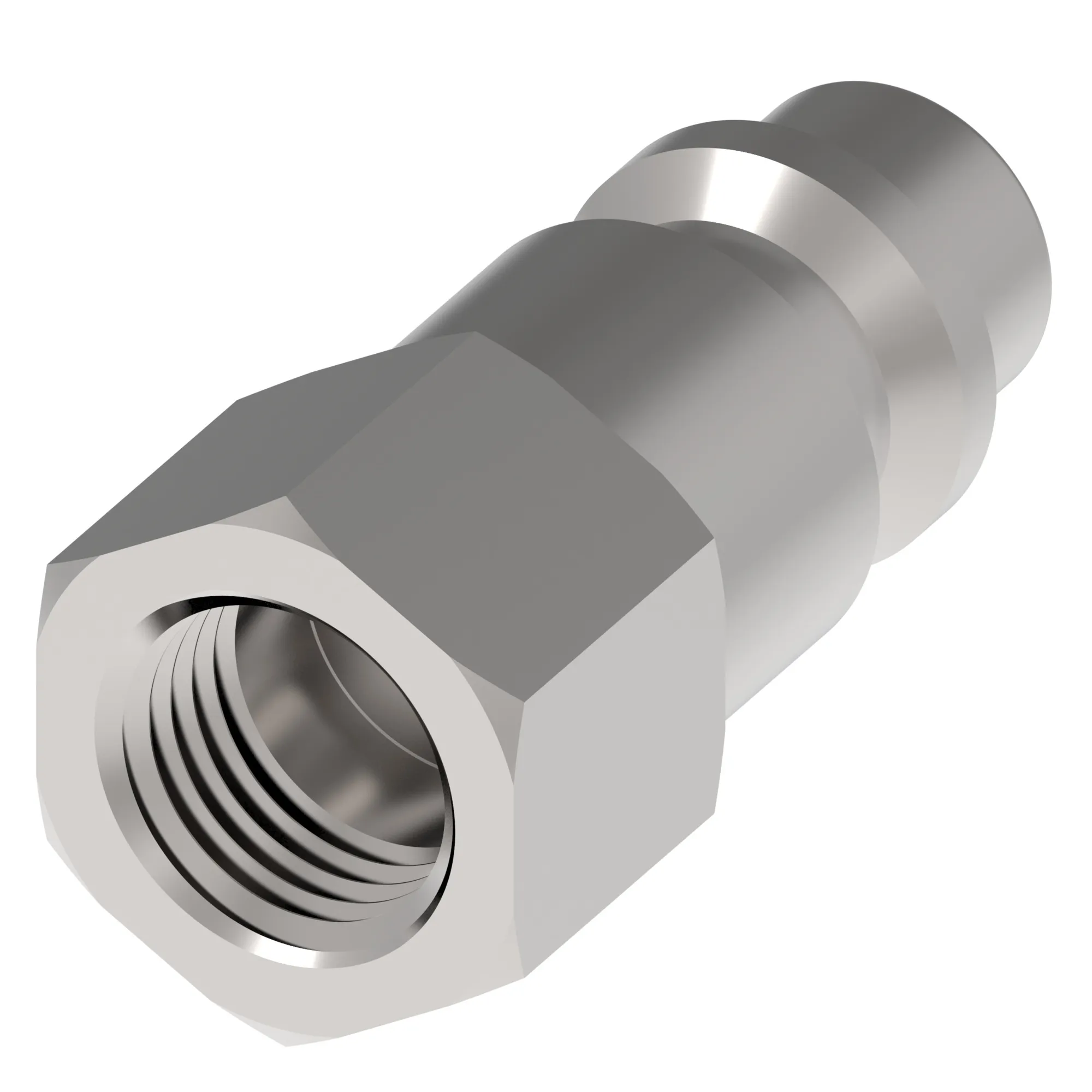

COUPLING,1000,M,1/4,CS,-4NPT,NBR – 11G
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
COUPLING,1000,M,1/4,CS,-4NPT,NBR – 11G
Specification
| E A N/ U P C | 678146196736 |
|---|---|
| Angle Shape | Straight |
| Body Size | 1/4 |
| Burst Pressure Min Bar | 552 |
| Burst Pressure Min Psi | 8000 |
| Compliances | A-A-59439 |
| Connection Style | Manual connect |
| End Size 1 | -4 |
| End Size 2 | -4 |
| End Type 1 | Male pipe (NPTF) |
| End Type 2 | Female pipe (NPTF) |
| Finish Plating | Zinc |
| Flow Rate Gpm | 179.00 |
| Flow Rate Lpm | 677.59 |
| Hex Size 1 In | 0.690 |
| Hex Size 1 Mm | 17.526 |
| Item Type | Male half |
| Product Length In | 2.440 |
| Product Material | Carbon steel |
| Seal Material | Nitrile (NBR) |
| Working Pressure Max Psi | 2000 |
| Working Pressure Max Bar | 138 |
| Working Temperature Max C | 121 |
| Working Temperature Max F | 250 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
