Danfoss (Drives) 114-1130-006

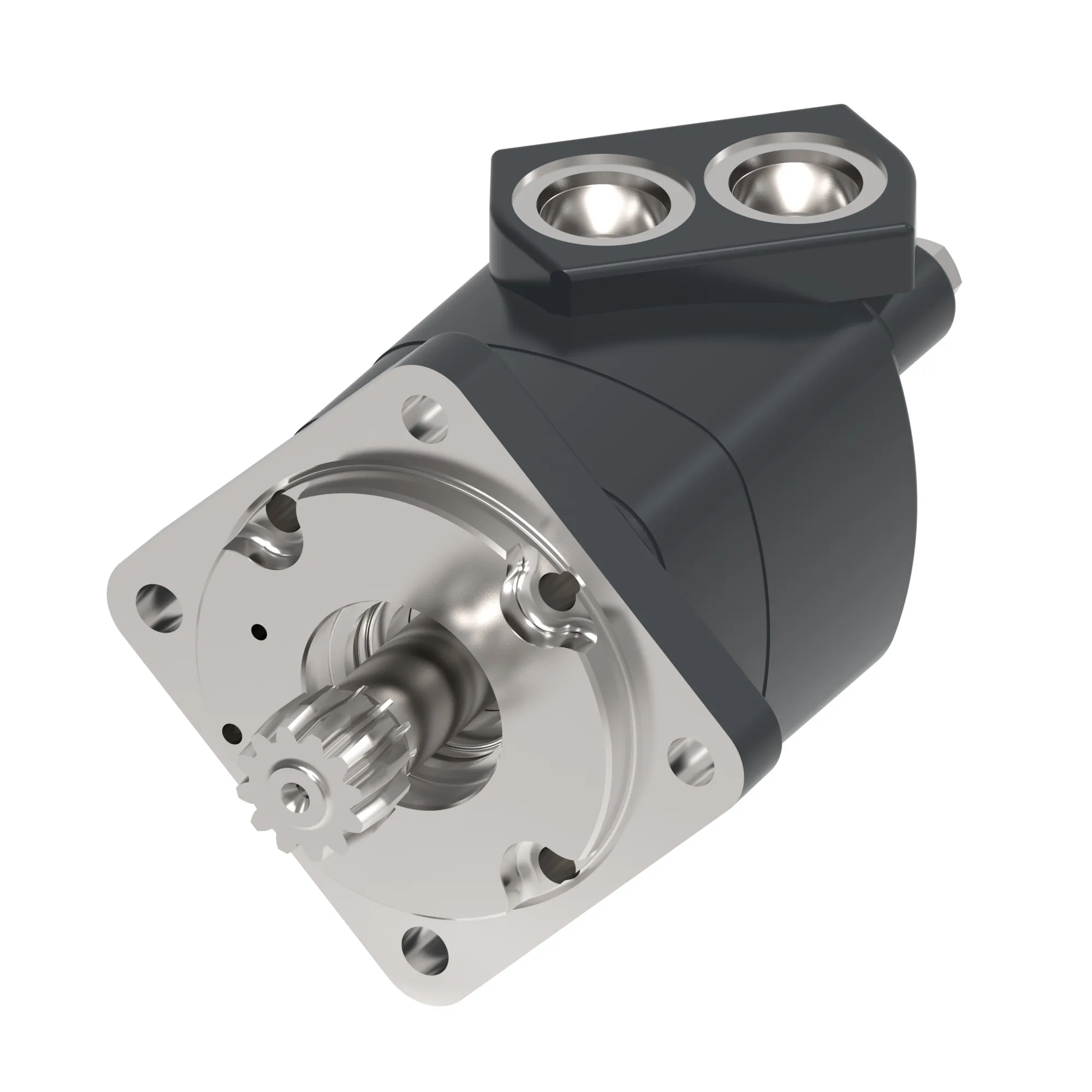

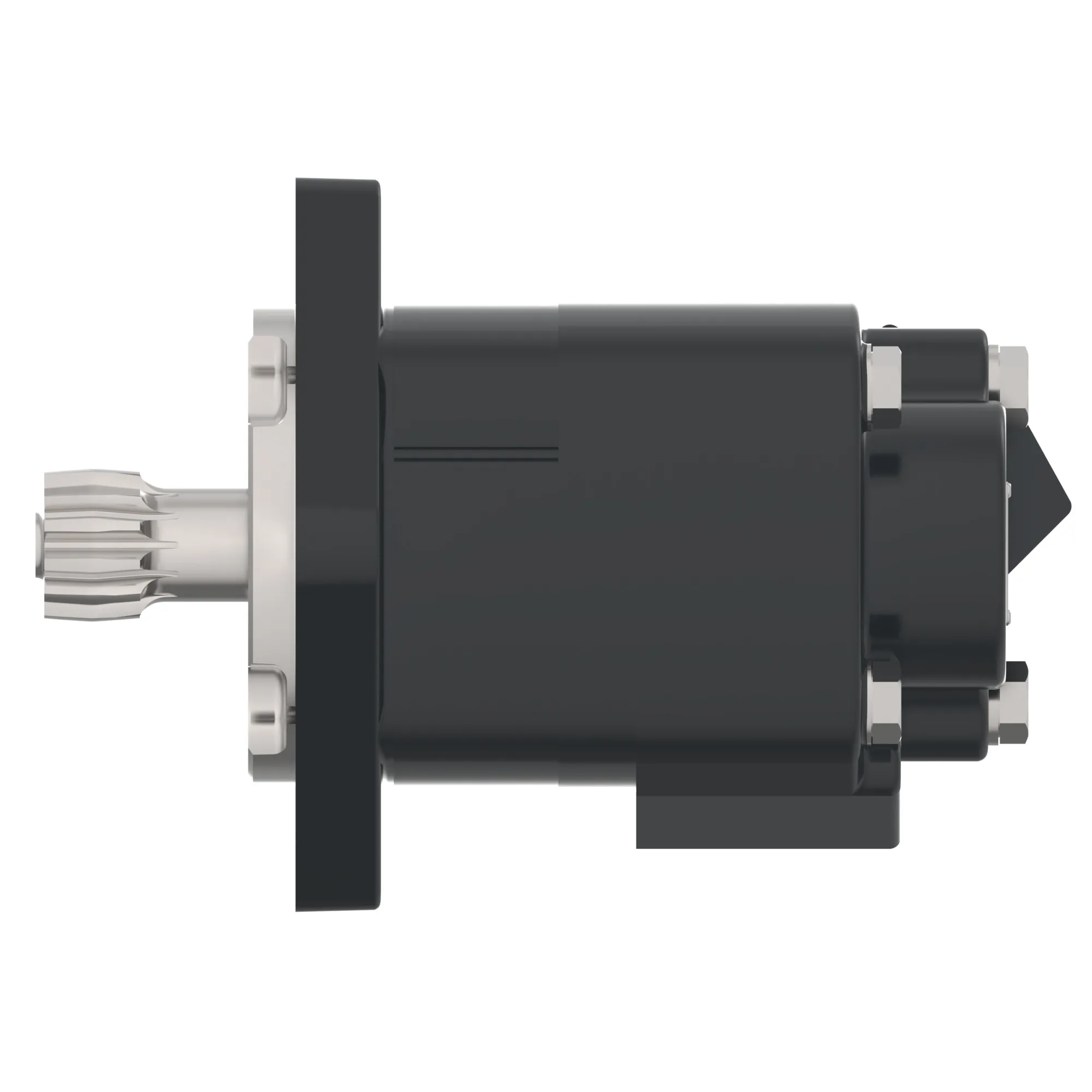

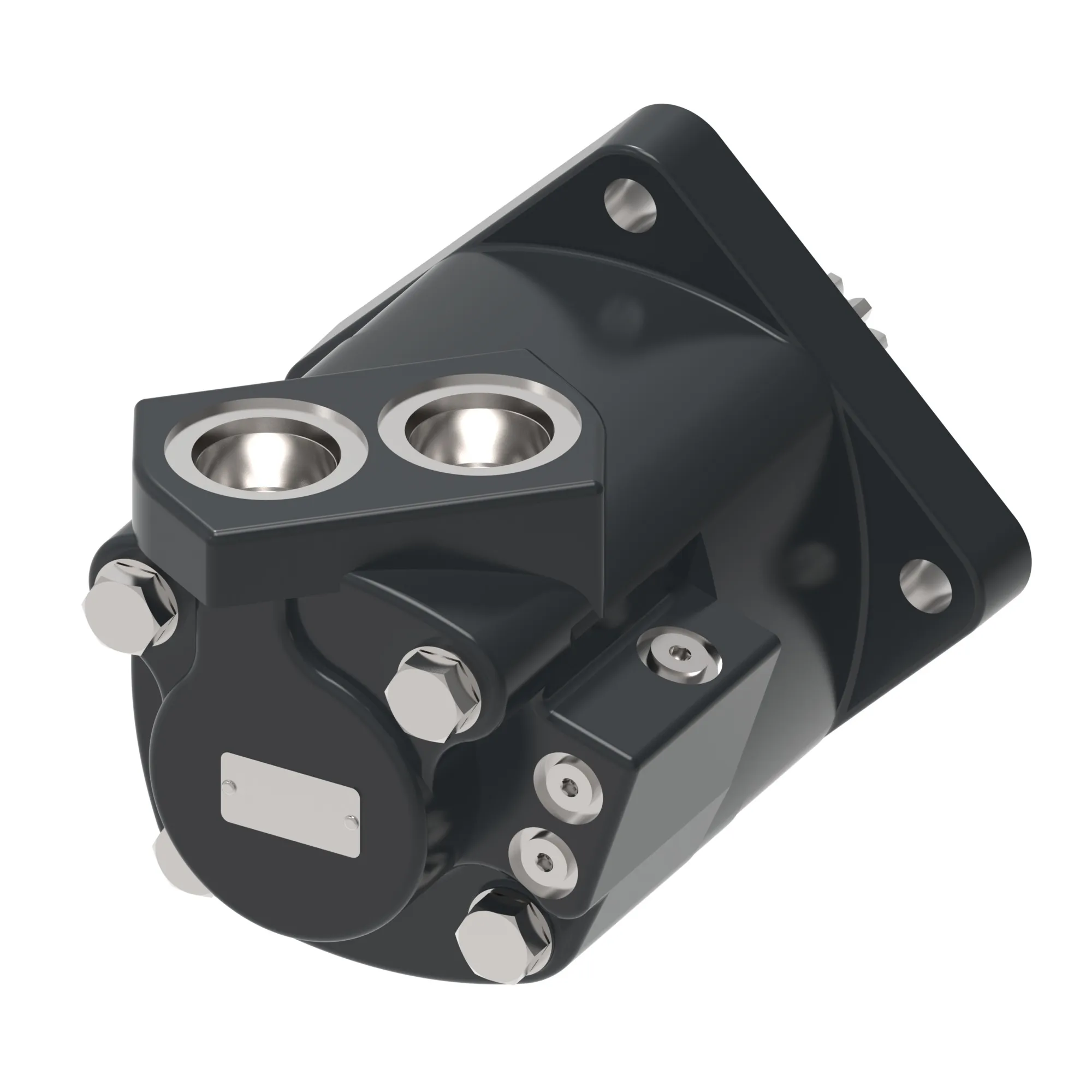

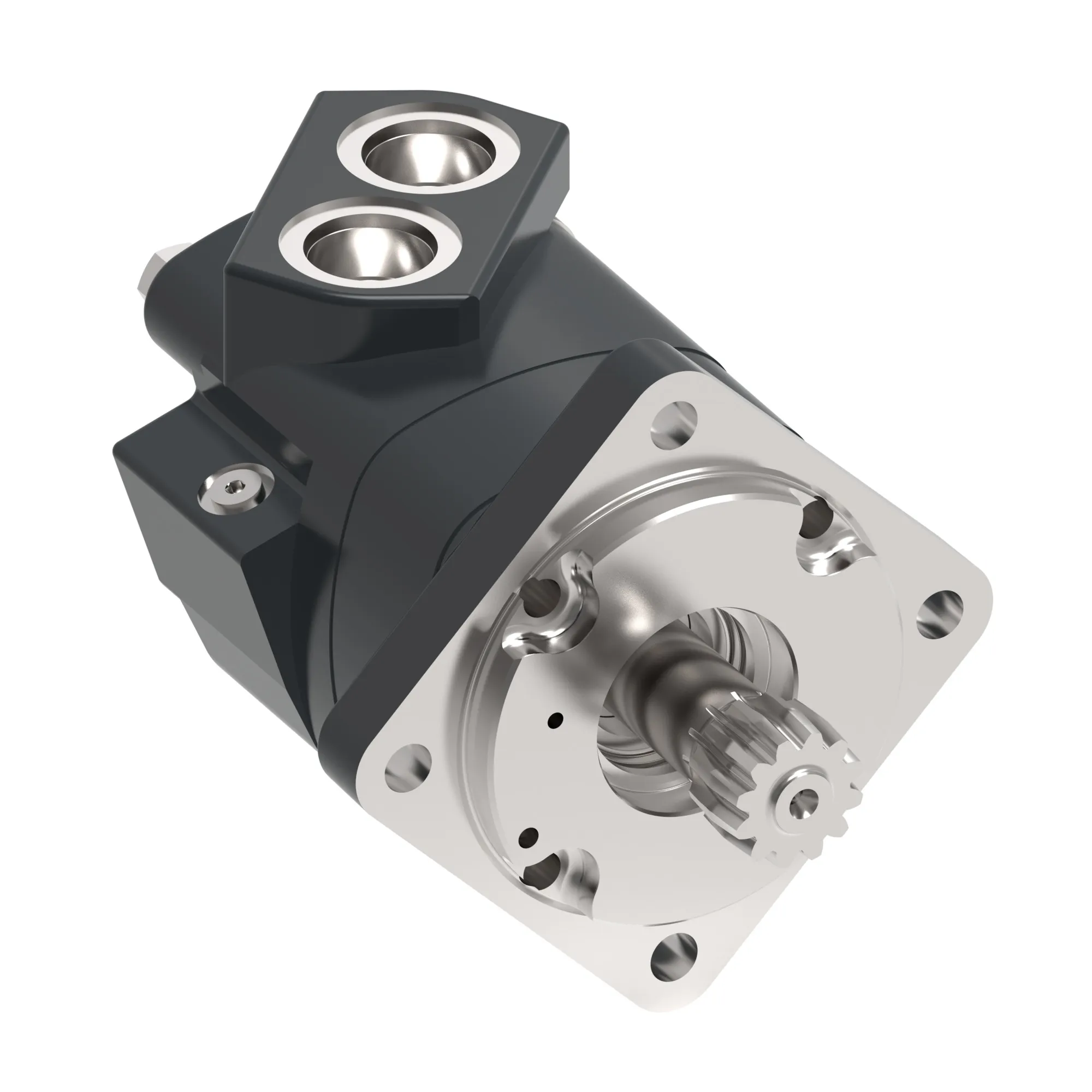

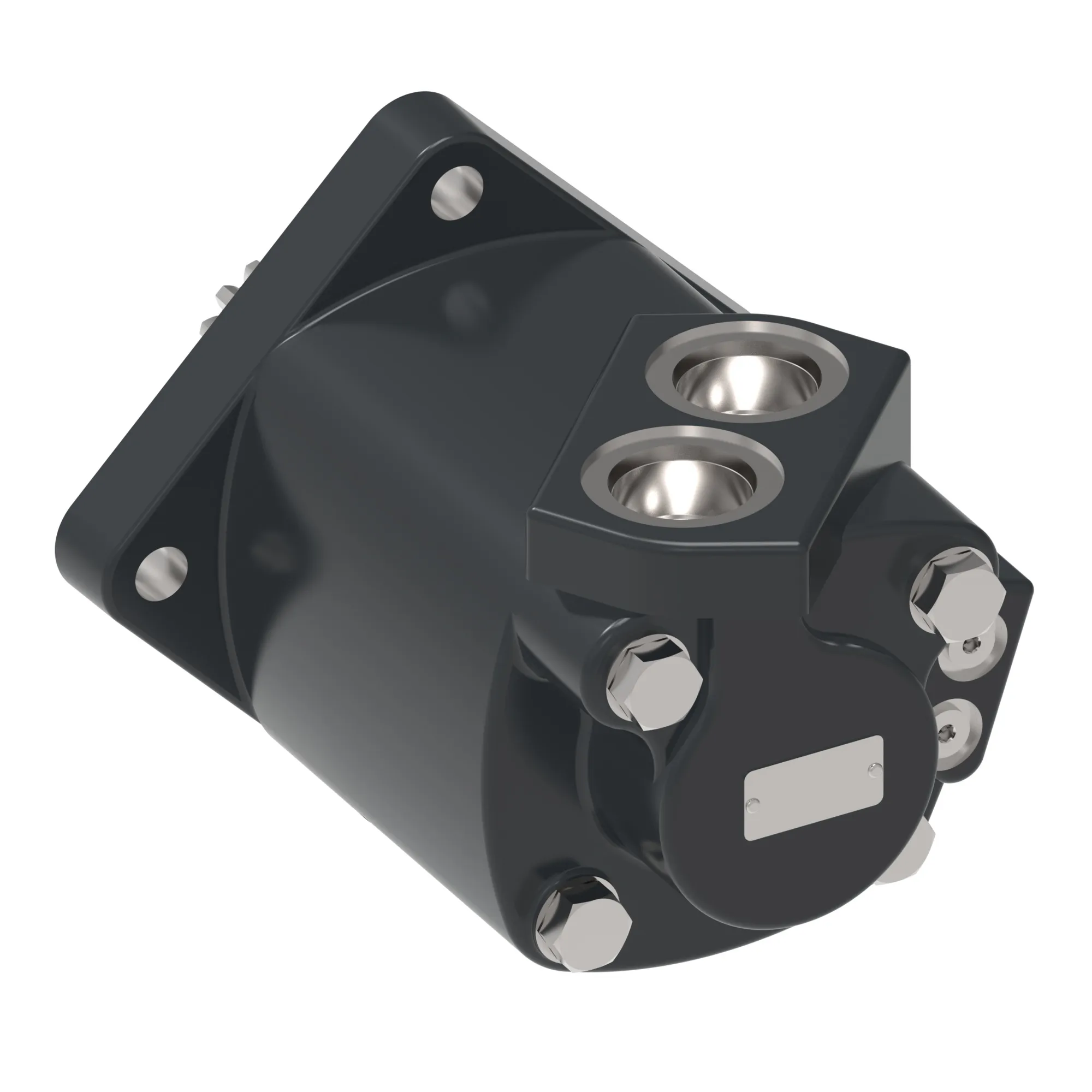

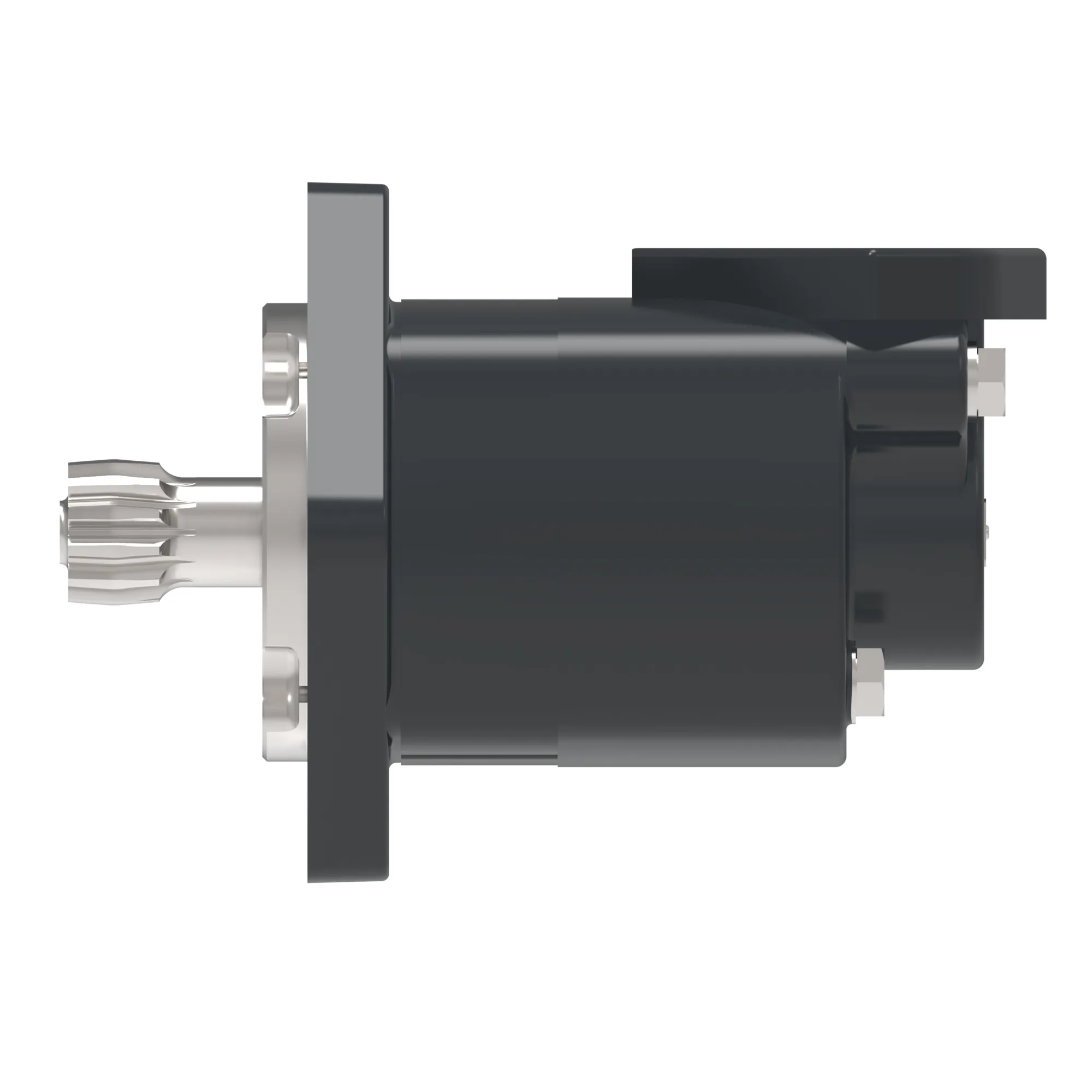

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AG1000630002800AM00F – 114-1130-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AA00AG1000630002800AM00F – 114-1130-006
Specification
| Model Code | M06300AA00AG1000630002800AM00F |
|---|---|
| Motor Series | 6000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 490 |
| Geometric Displacement [Cm3/R [In3/R]] | 491.4 [29.99] |
| Motor Type | Short |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Short |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 12.5, 162.0, 14.4 [5.00 x 0.49, 6.38, 0.57] |
| Shaft Type | None |
| Shaft Dimension | n/a |
| Shaft Key | n/a |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 3/4 – 16 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 3/4 – 16 UNF-2B SAE O-ring port – Spec. Component |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Expoxy Coated, Frost grey |
| Special Features Assembly | Standard |
| Dust Seal | n/a |
| Shaft Seal | n/a |
| Front Bearing Type | n/a |
| Rear Bearing Type | n/a |
| Orbital Gearwheel Set | Tight – Spec. Component |
| Check Valve Function | No |
| Sensor | None |
| Packaging | Bulk box |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
