Danfoss (Drives) 11346560
V2020HS01F08S09SS001CC00ZAR000AZ31, V2020HS01F08S09SS001CC00ZAR000AZ31 – 11346560
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

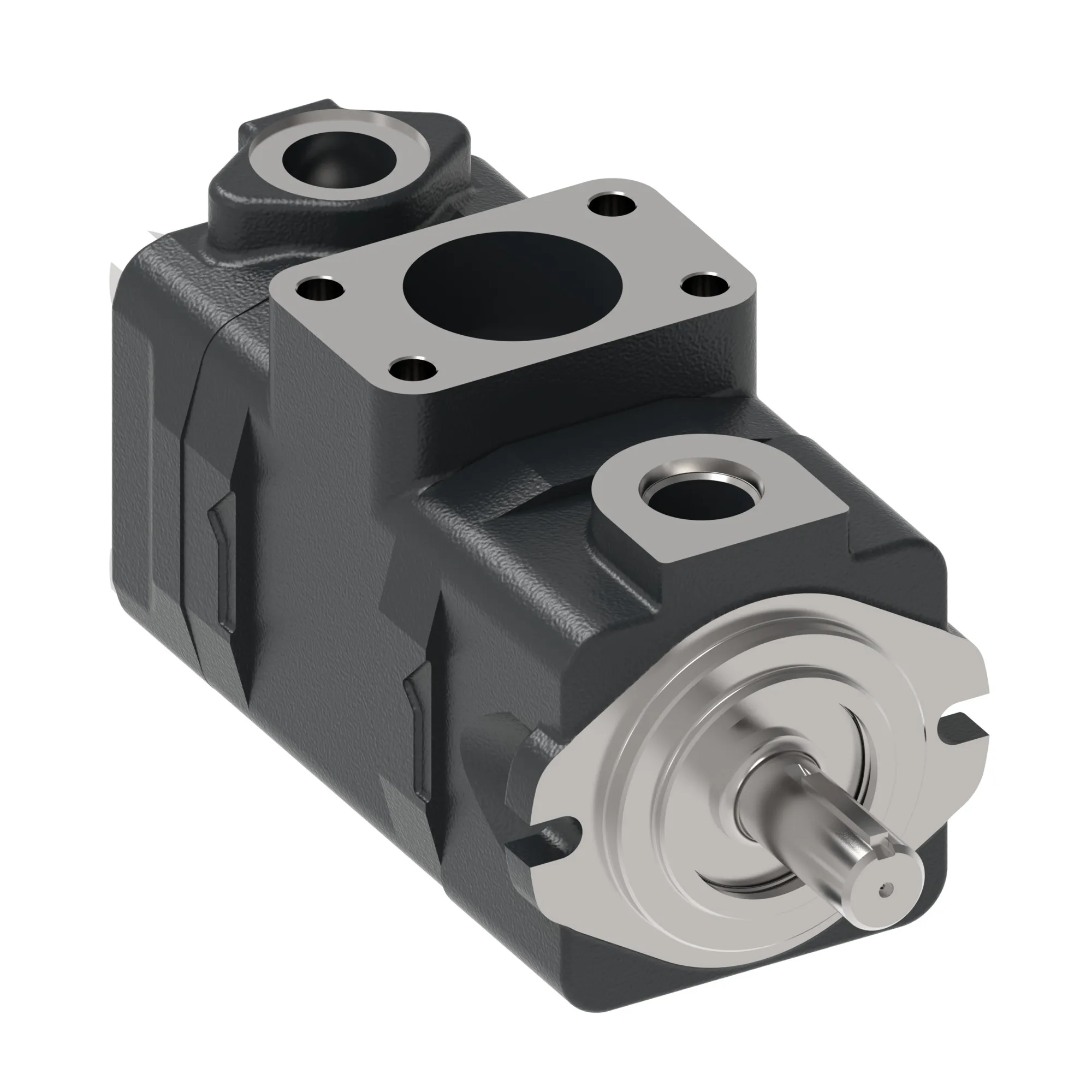

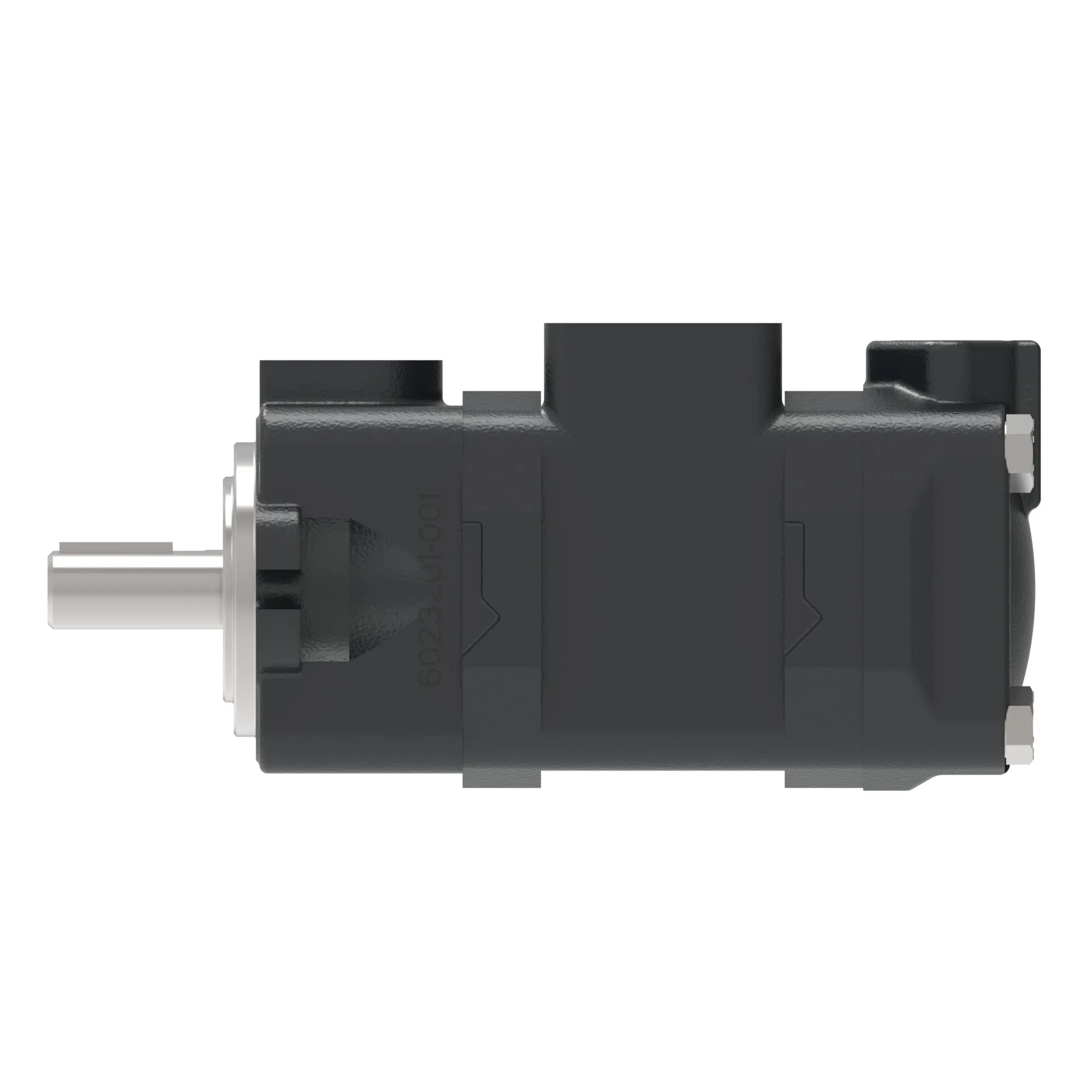

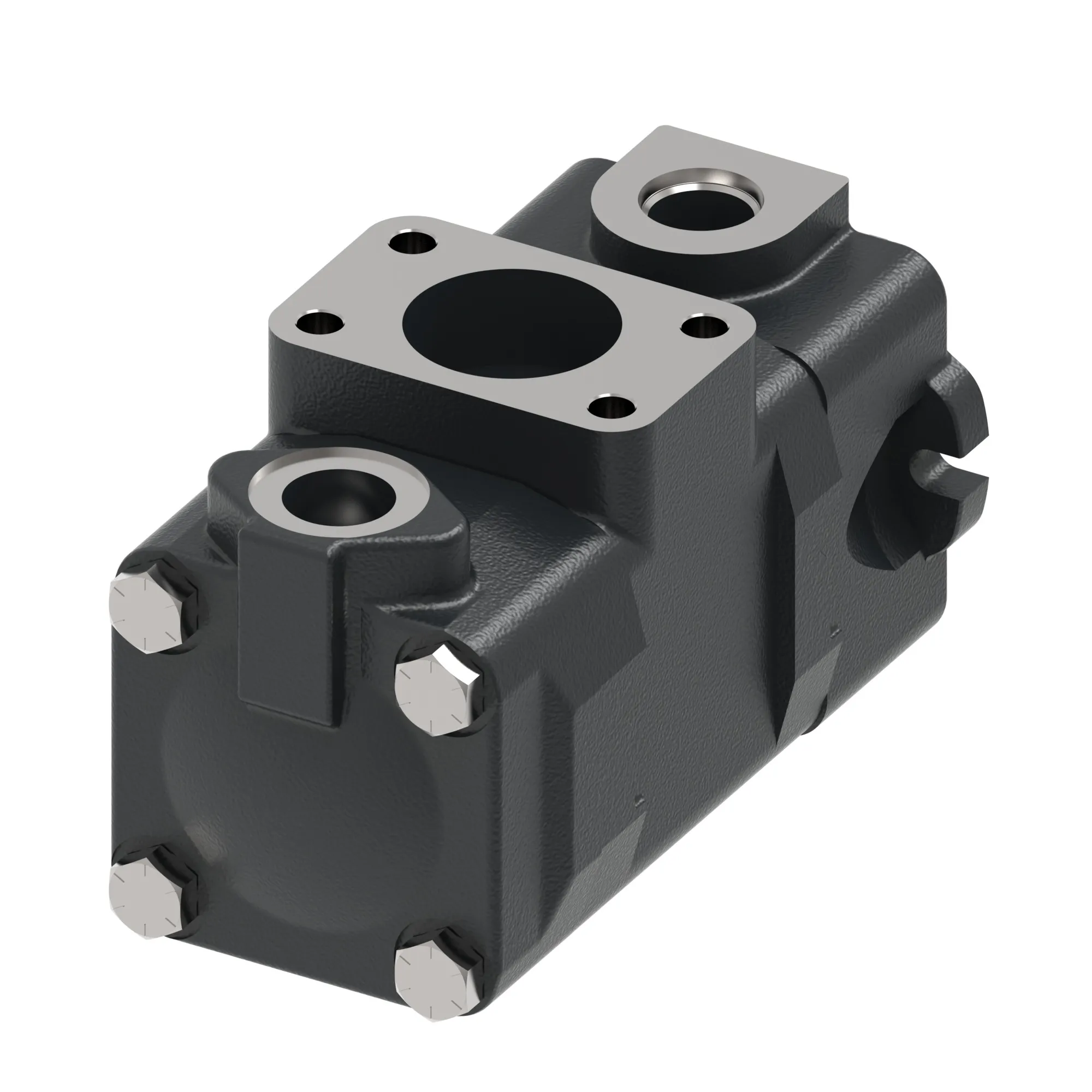

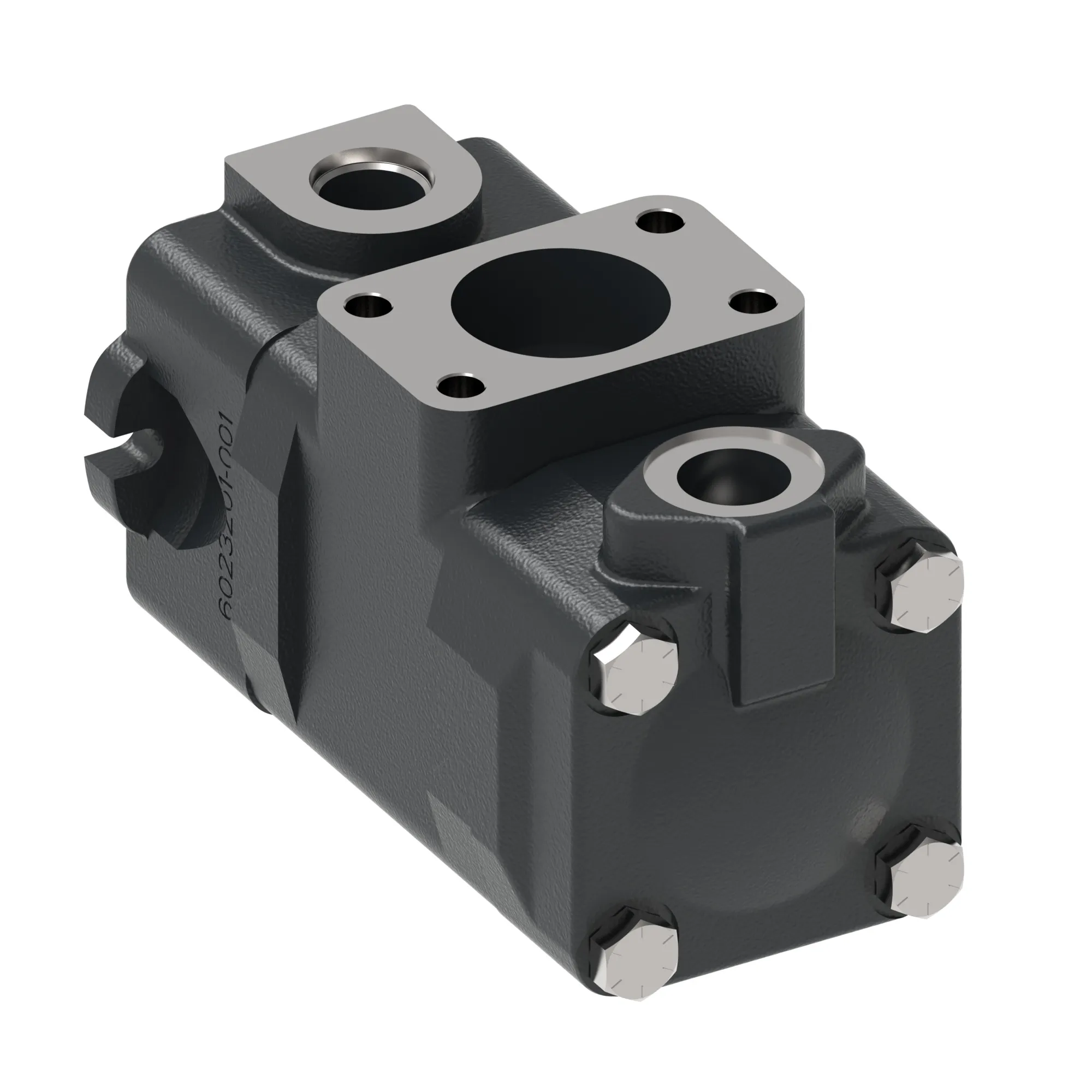

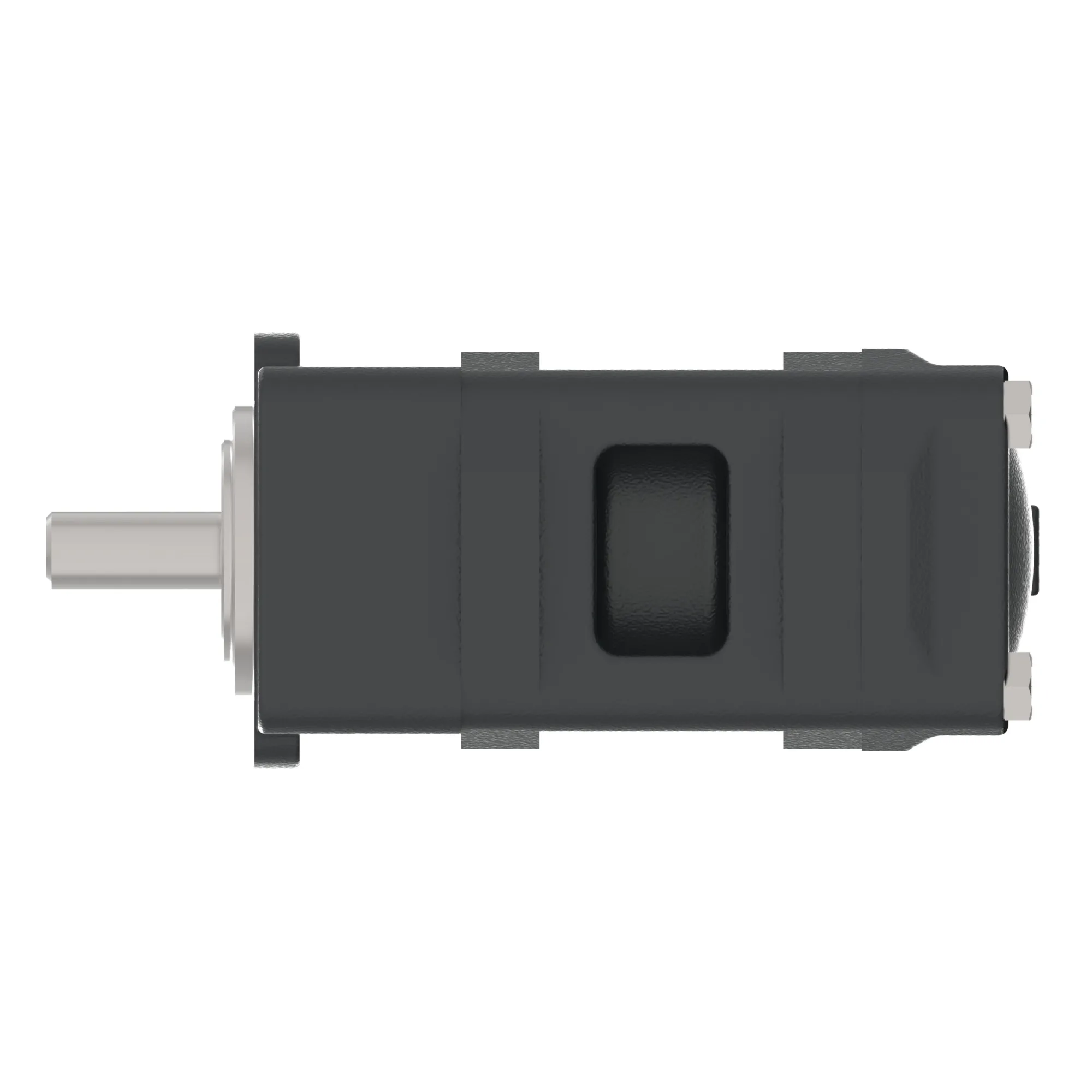

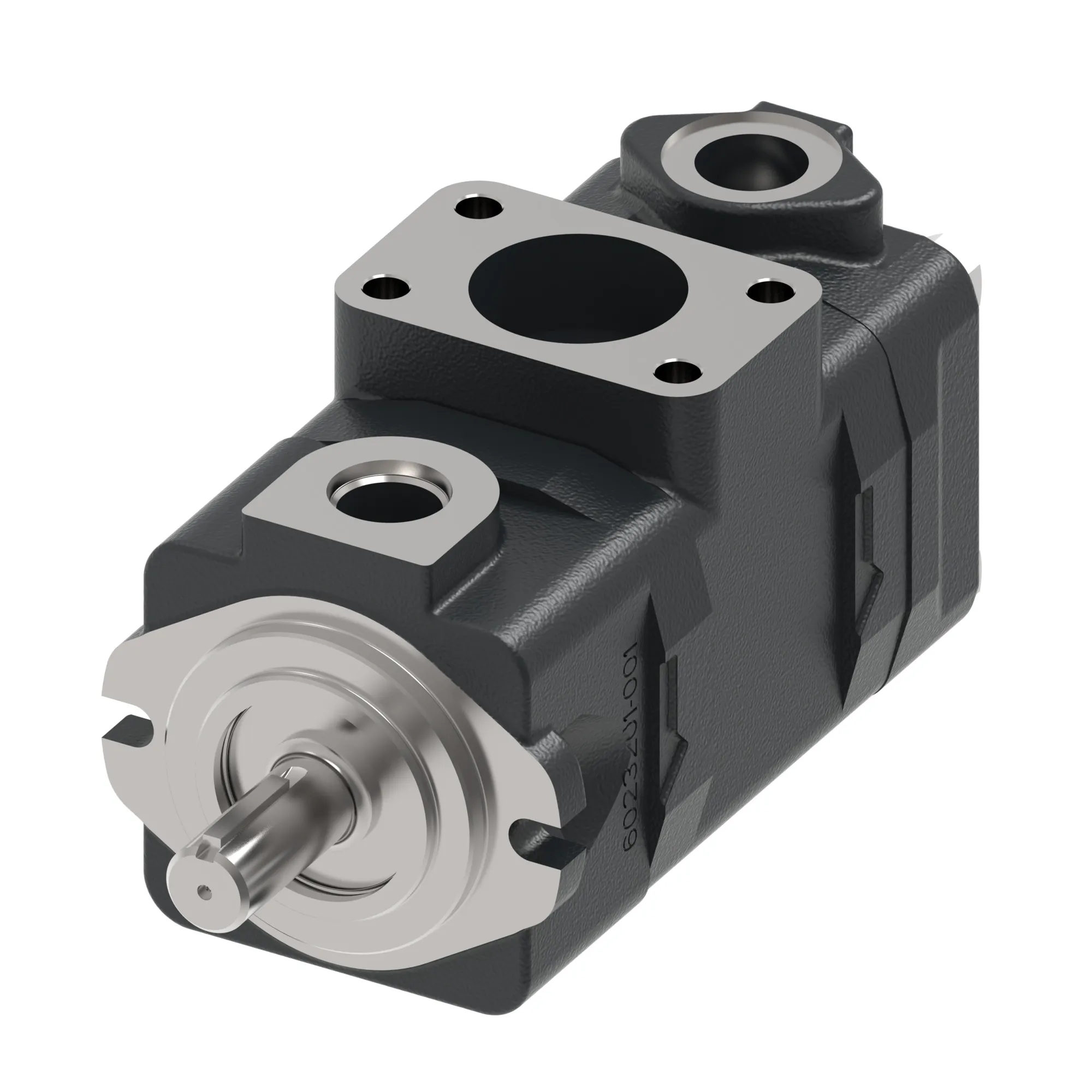

V2020HS01F08S09SS001CC00ZAR000AZ31, V2020HS01F08S09SS001CC00ZAR000AZ31 – 11346560
Specification
| Seals Type | ALL SEALS VITON |
|---|---|
| Pump Type | VANE PUMP |
| Series | DOUBLE SQUARE VANE PUMP |
| Cover Type | STANDARD COVER |
| Mounting Type | 2 BOLT FLANGE SAE-B SIZE |
| Inlet Port Type | 4 BOLT FLANGE |
| Ring Capacity Cover Side | 9 GPM |
| Ring Capacity Shaft End | 8 GPM |
| Outlet Port Type Shaft End | 1.0625-12 UN-2B THREAD |
| Shaft Seal And Bearing | SINGLE LIP SEAL & SEALED BEARING |
| Shaft Type | 3/16 SQUARE KEY, MAJOR DIA-.875, EXTENSION-2.31 |
| Outletcover Port Orientation | OUTLET#2: INLINE WITH INLET PORT,OUTLET#1:INLINE WITH INLET PORT |
| Outlet Port Type Cover Side | COVER STANDARD – 1.062-12 UN-2B THRD, F COVER – PRESSURE PORT -.750-16 UN-2B THRD, TANK PORT-1.0625-12 UN-2B THRD |
| Shaft Rotation | RH CW ROTATION VIEWED FROM SHAFT END |
| Brand | Vickers by Danfoss |
| Model Code 1 | V2020HS01F08S09SS001CC00ZAR000 |
| Model Code 2 | AZ31 |
