Danfoss (Drives) 11345075

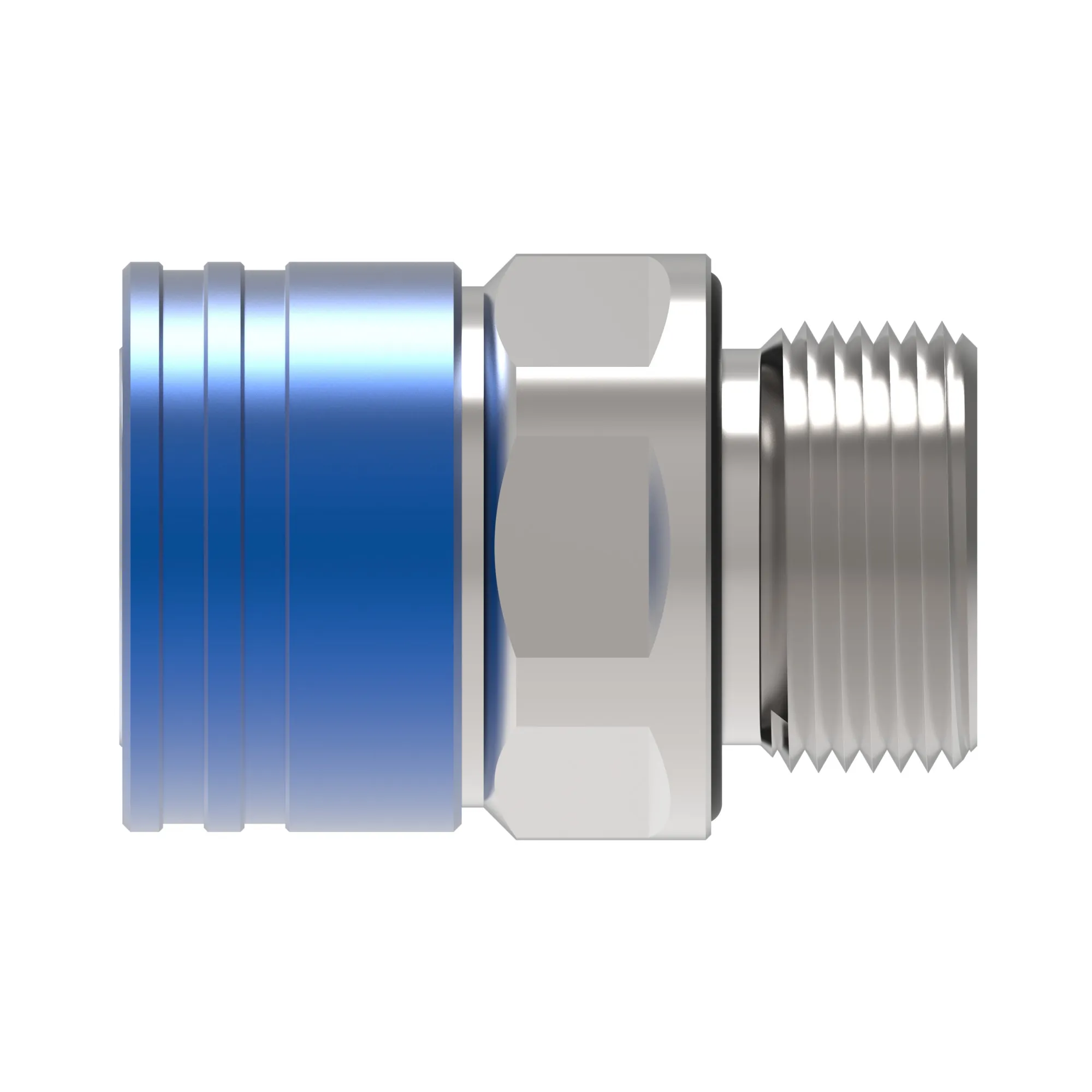

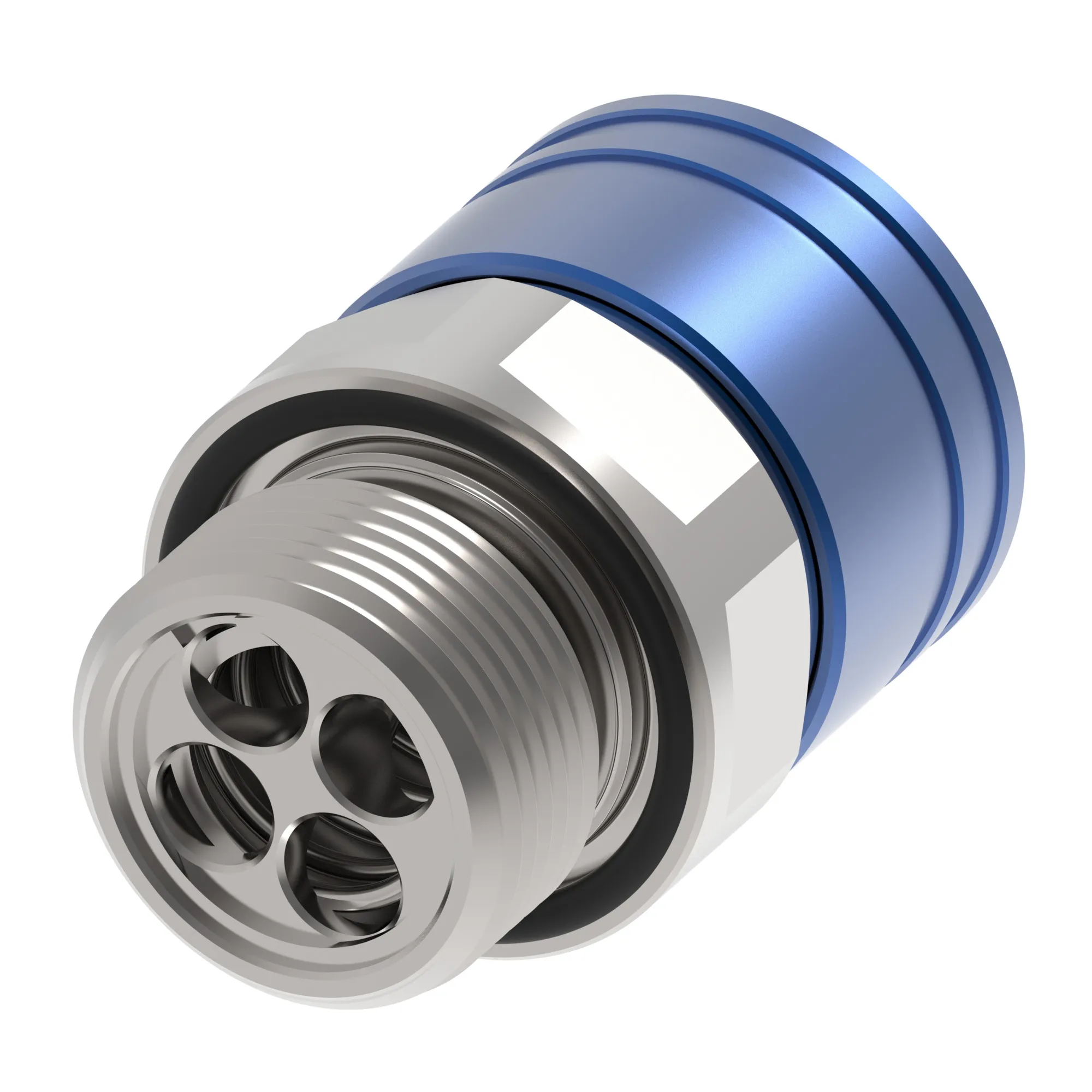

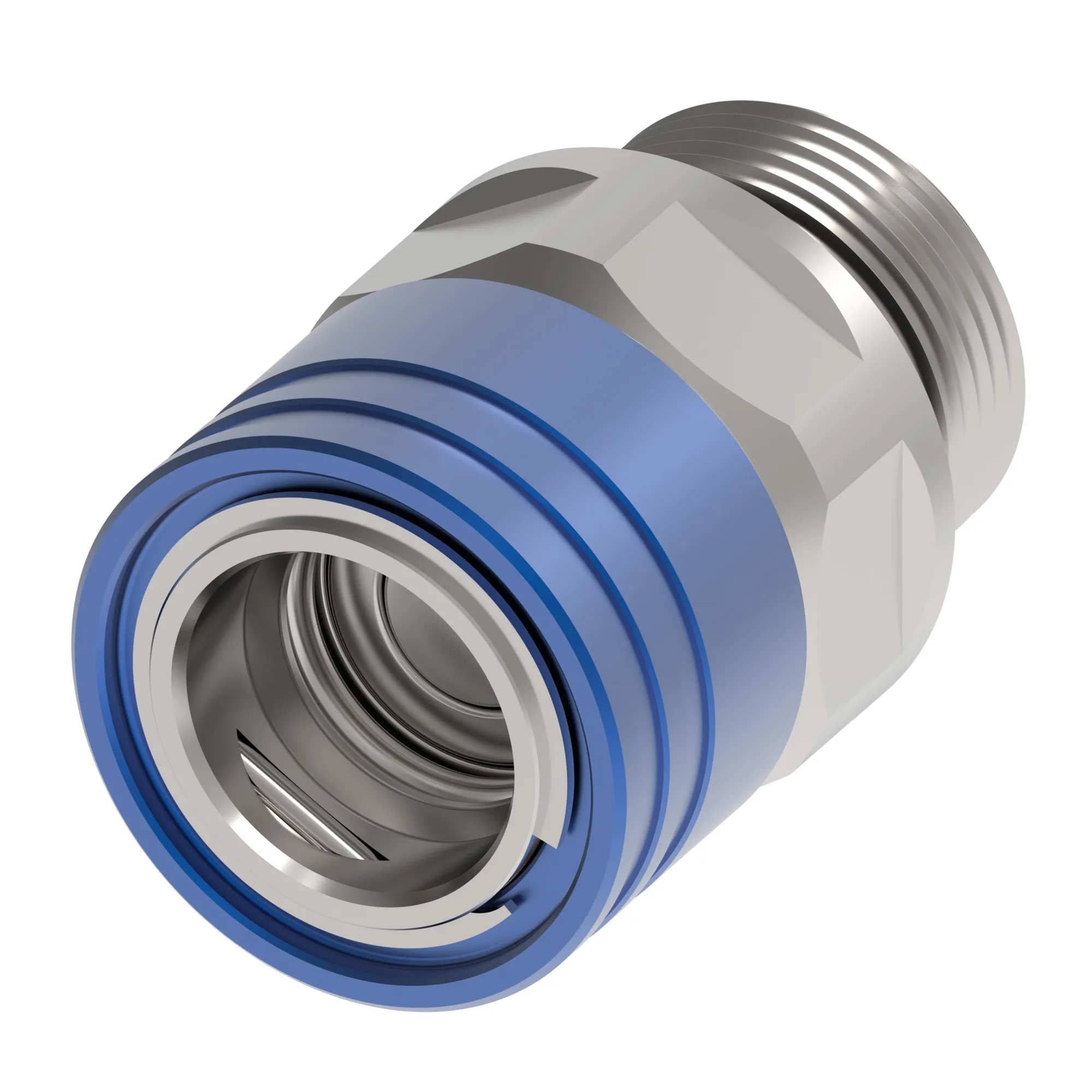

COUPLING,MQD,FEM,1/4,304,-6MBS,EPDM,BL – 11345075
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
COUPLING,MQD,FEM,1/4,304,-6MBS,EPDM,BL – 11345075
Specification
| Air Inclusion Max Cc | 0.05 |
|---|---|
| Angle Shape | Straight |
| Application | Cooling applications |
| Body Size | 1/4 |
| Brand | Danfoss |
| Burst Pressure Min Bar | 21 |
| Burst Pressure Min Psi | 300 |
| Connection Style | Manual connect |
| End Size 1 | -6 |
| End Type 1 | Male ORB BSPP |
| Flow Rate Gpm | 1.80 |
| Flow Rate Lpm | 6.81 |
| Fluid Loss Cc | 0.02500 |
| Hex Size 1 In | 0.790 |
| Hex Size 1 Mm | 20.000 |
| Item Type | Female half |
| Latch Type | Push to connect |
| Product Material | 304 Stainless Steel |
| Seal Material | Ethylene propylene (EPDM) |
| Sub Brand | Hansen |
| Thread Size 1 | G 3/8 |
| Valve Type | 2 way |
| Working Pressure Max Psi | 100 |
| Working Pressure Max Bar | 7.00 |
| Working Temperature Max C | 150 |
| Working Temperature Max F | 302 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
