Danfoss (Drives) 11340231
PVMX028R05B2B0B10AAA-50000000 – 11340231
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVMX028R05B2B0B10AAA-50000000 – 11340231
Specification

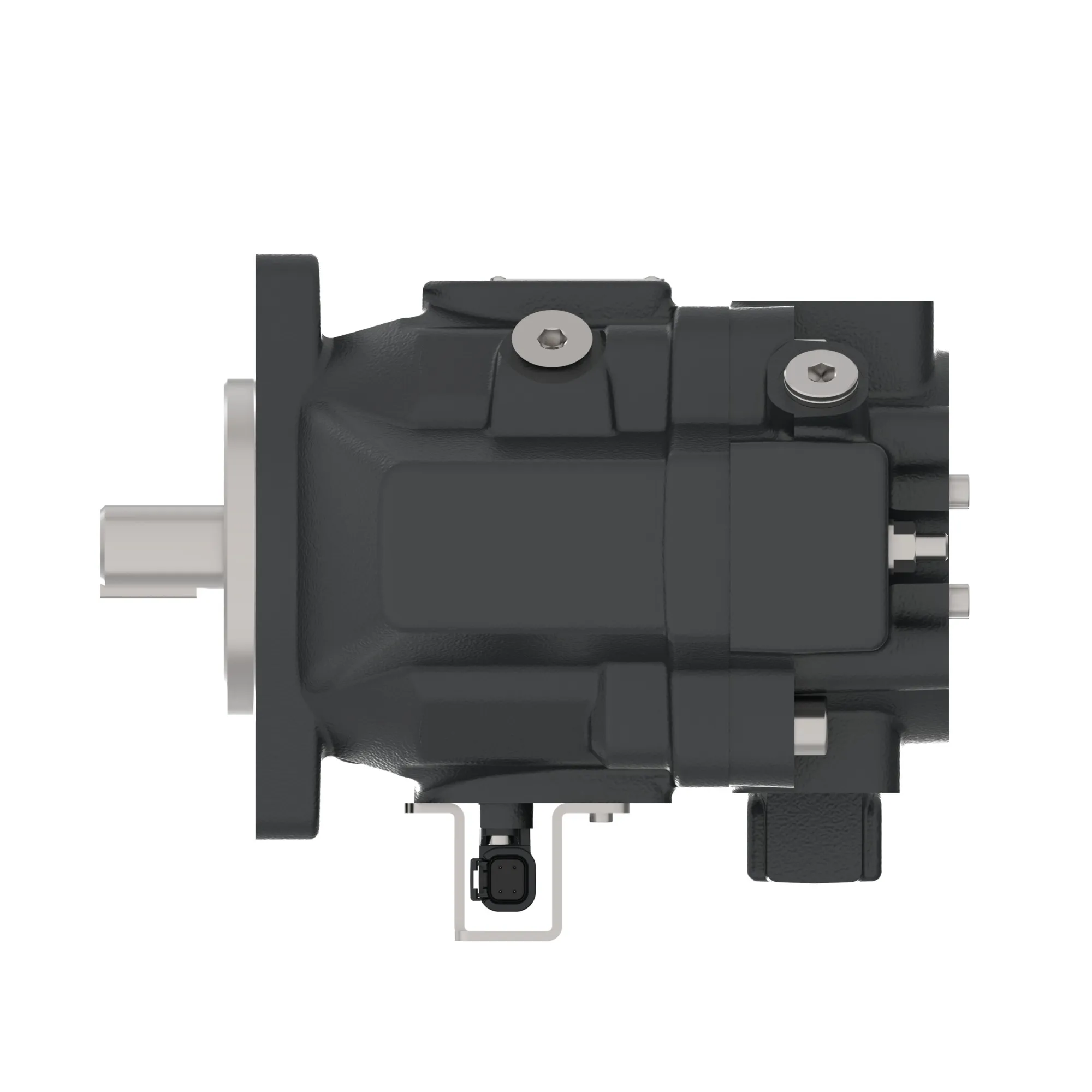

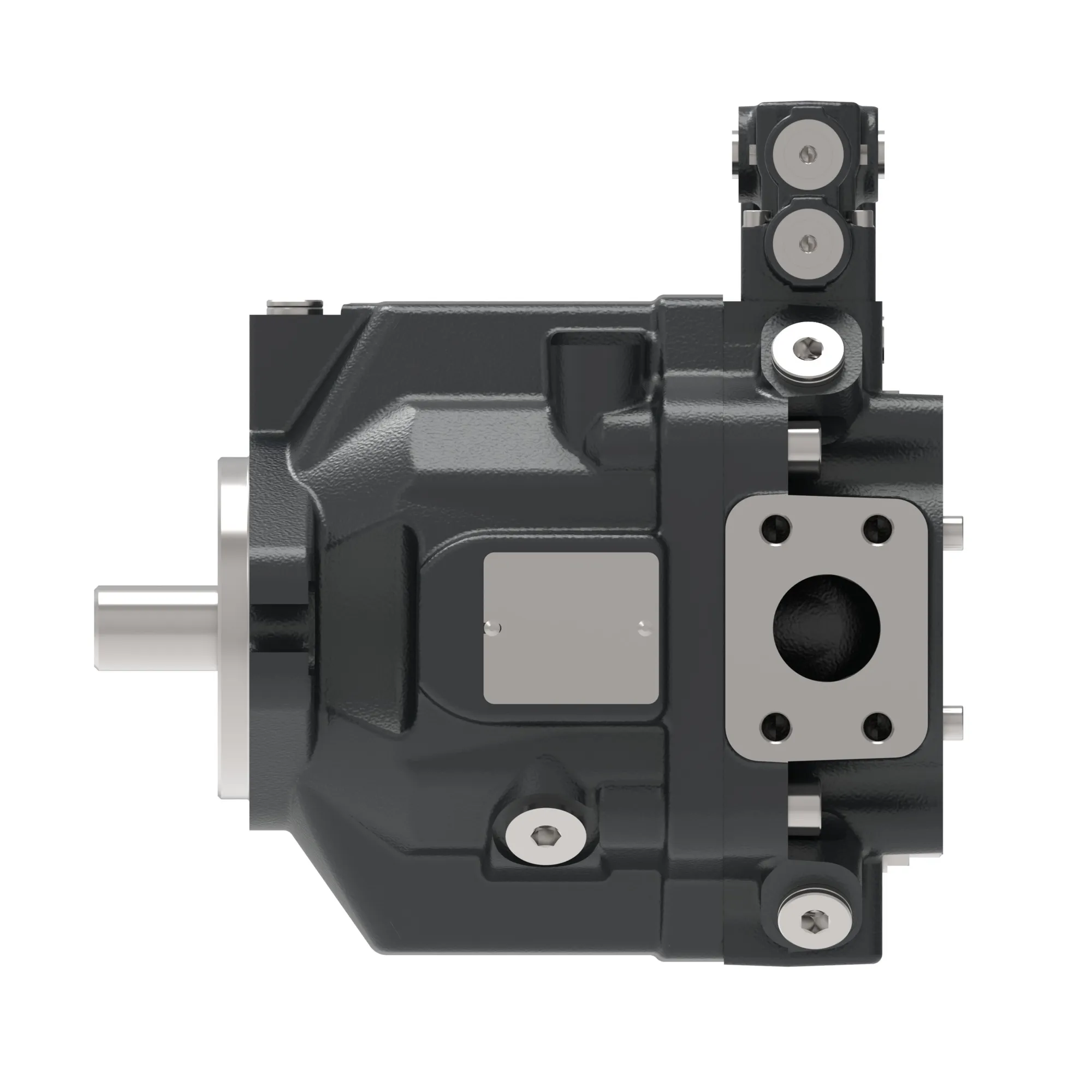

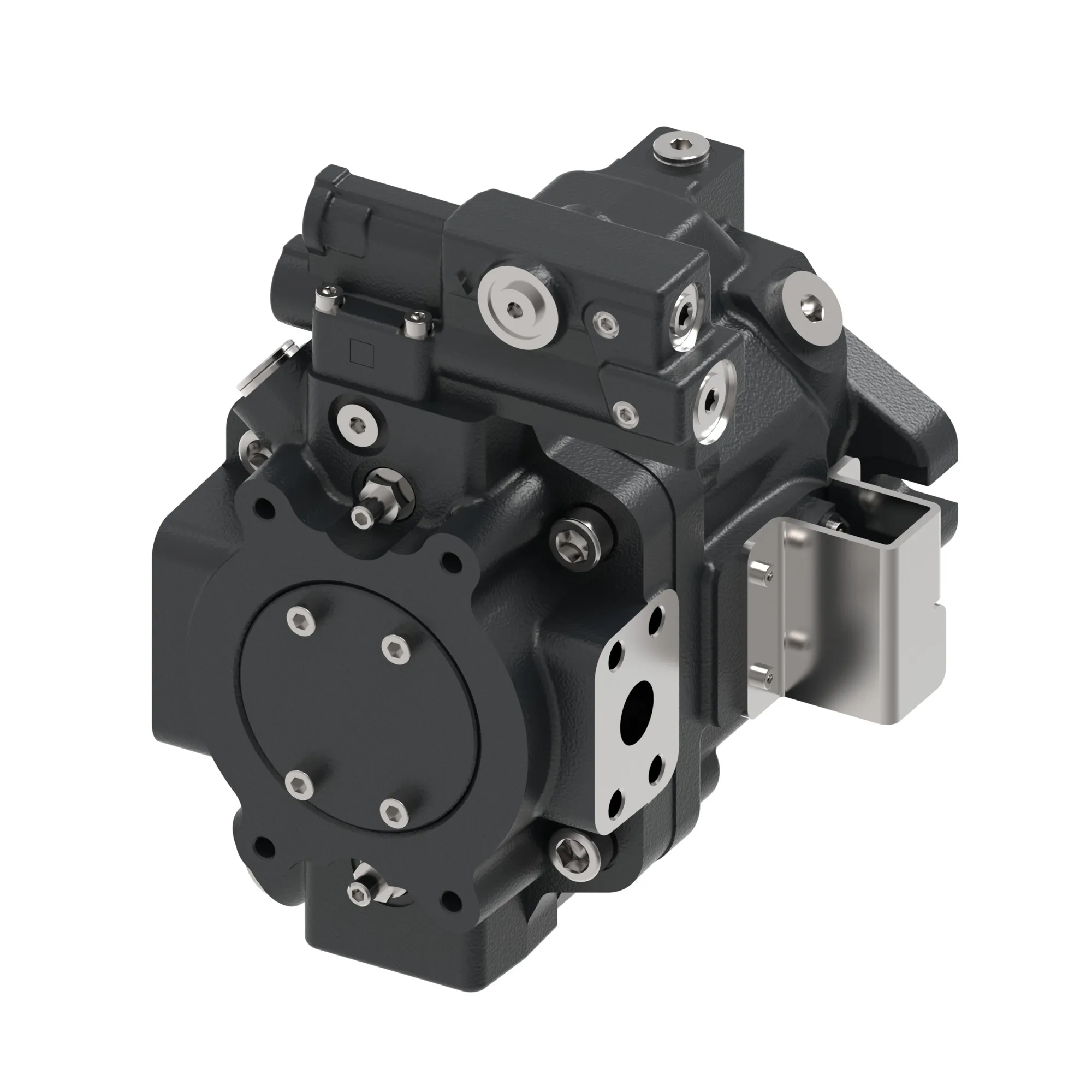

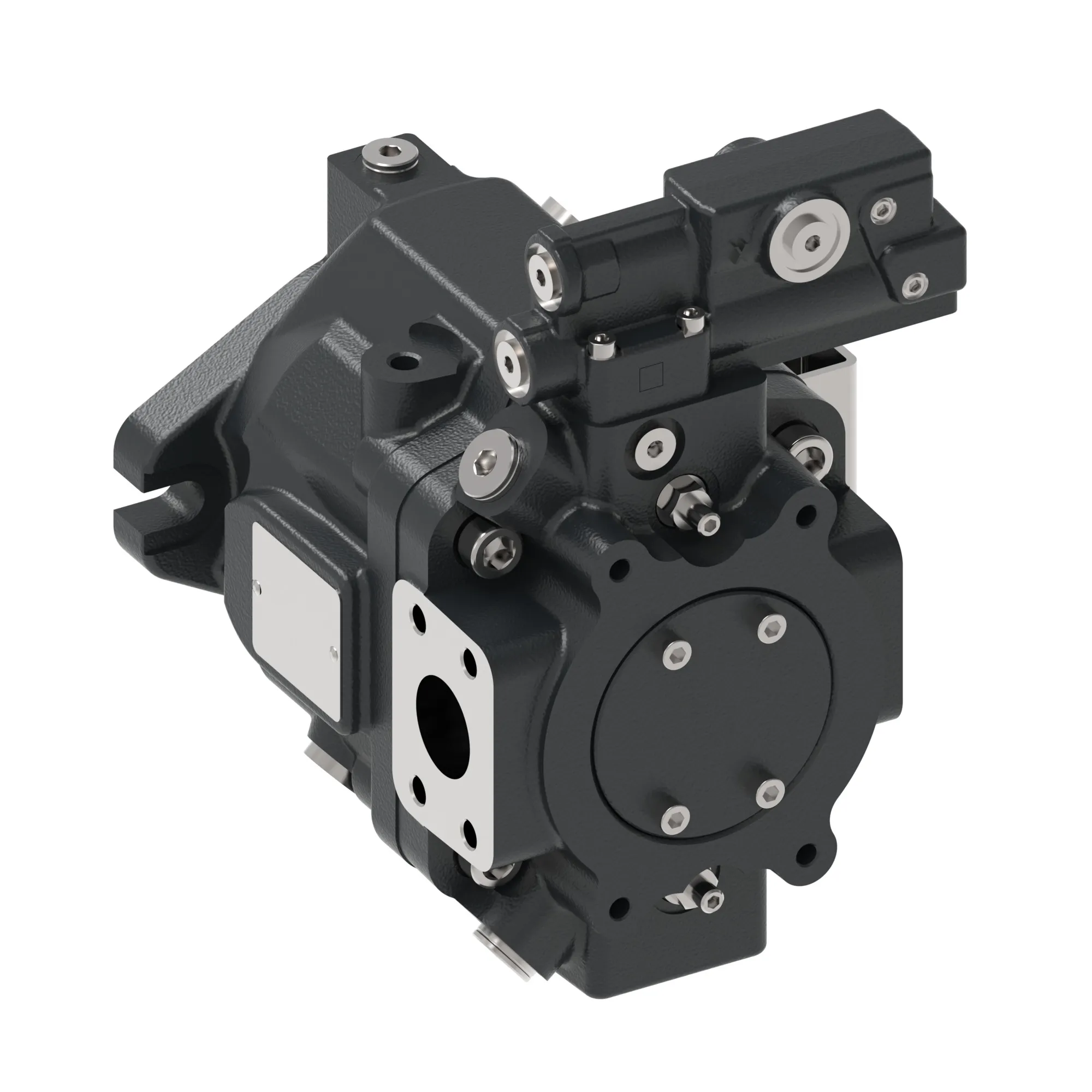

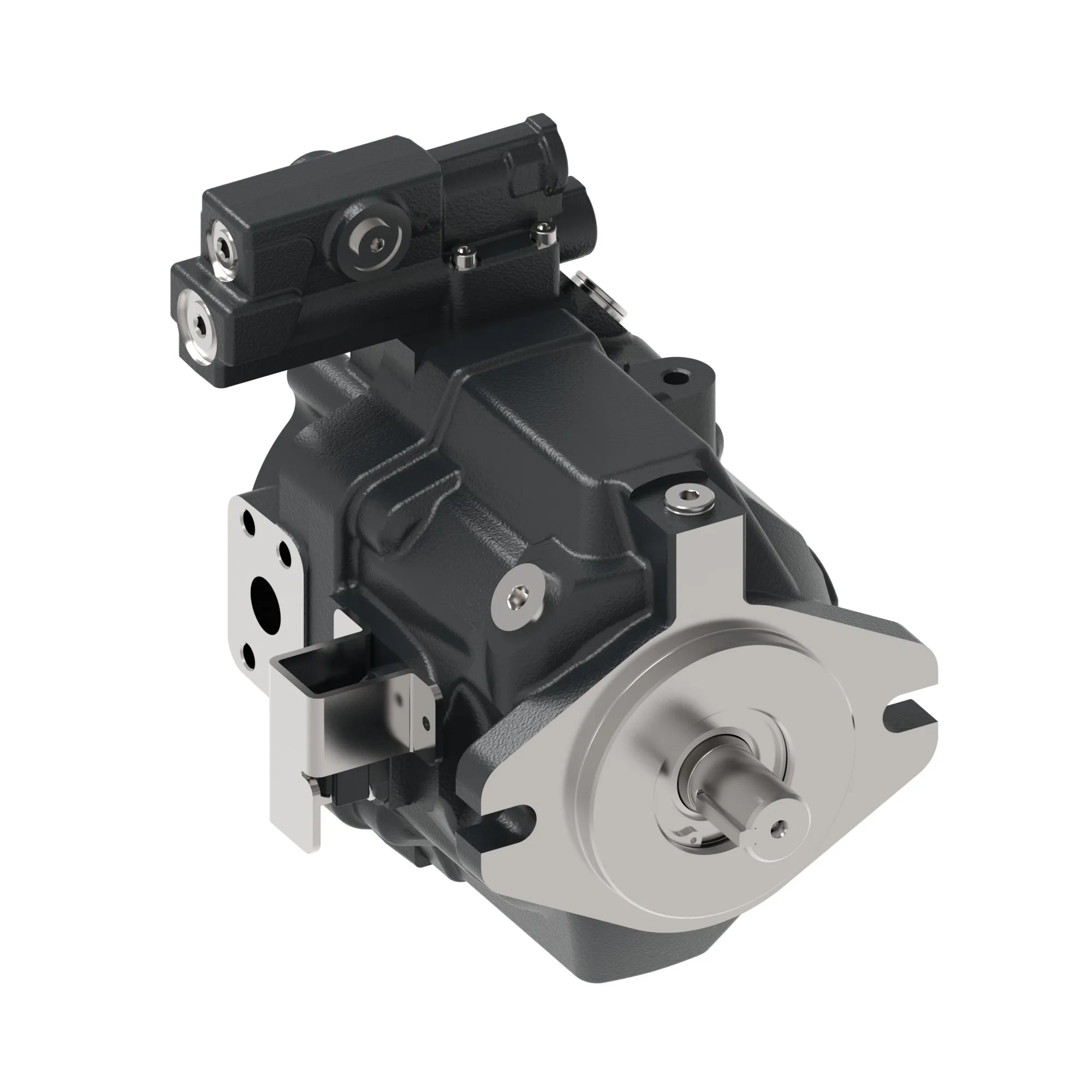

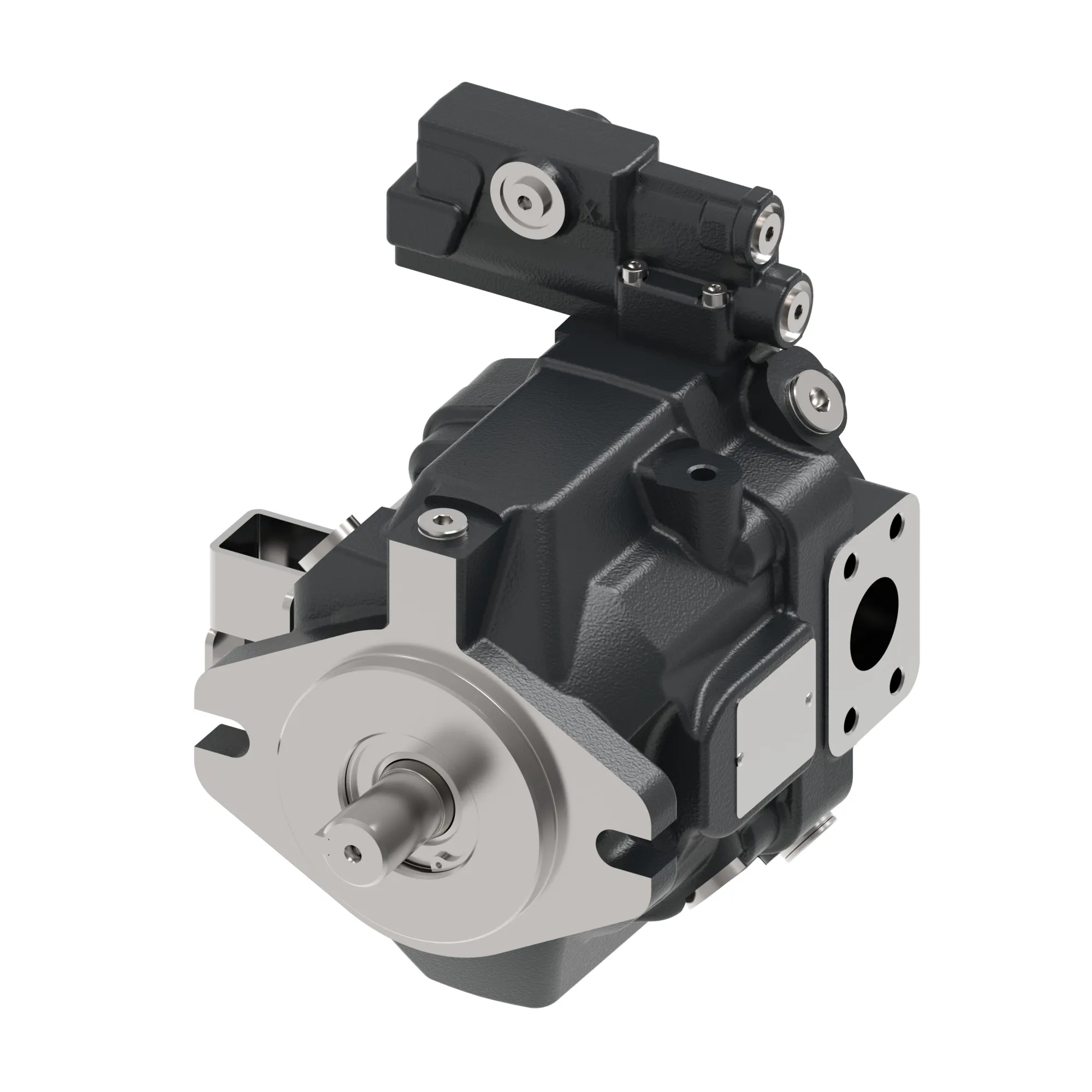

| Code Title | Variable displacement open circuit piston pumps |
|---|---|
| Displacement | 28 cm3/r [1.7 in3/r] |
| Input Rotation | Clockwise (right-hand) |
| Input Shaft | SAE J744-22-1, SAE B, straight keyed (model 28) |
| Mounting Flange | SAE B 2-Bolt (J744-101-2)(MODEL 28) |
| Port Options | Main ports – SAE J518 FLANGE PORTS (DRAIN PORT – SAE J1926-1, LOAD SENSE PORT – SAE J1926-1) |
| Control | Pressure and flow compensator with bleed down |
| Pressure Comp Setting | 100-280bar range 250±4 bar [1015±58 lbf/in2]- Default setting |
| Flow Comp Setting | 10bar-40bar (DEFAULT 20±1bar [290±14.5 lbf/in2]) |
| Power Control Setting | None |
| Paint | Black [Default] |
| Design Code | DESIGN VERSION A |
| Differentiator | – |
| Max Displacement Setting | Max displacement set to 50% |
| Min Displacement Setting | No min displacement setting (default zero swash) |
| Pump Special Features | No pump special feature |
| Control Special Features | None |
| Pump Certification | No certification |
| Customer Identification | None |
| Proposition 65 | Cancer and Reproductive Harm |
