Description

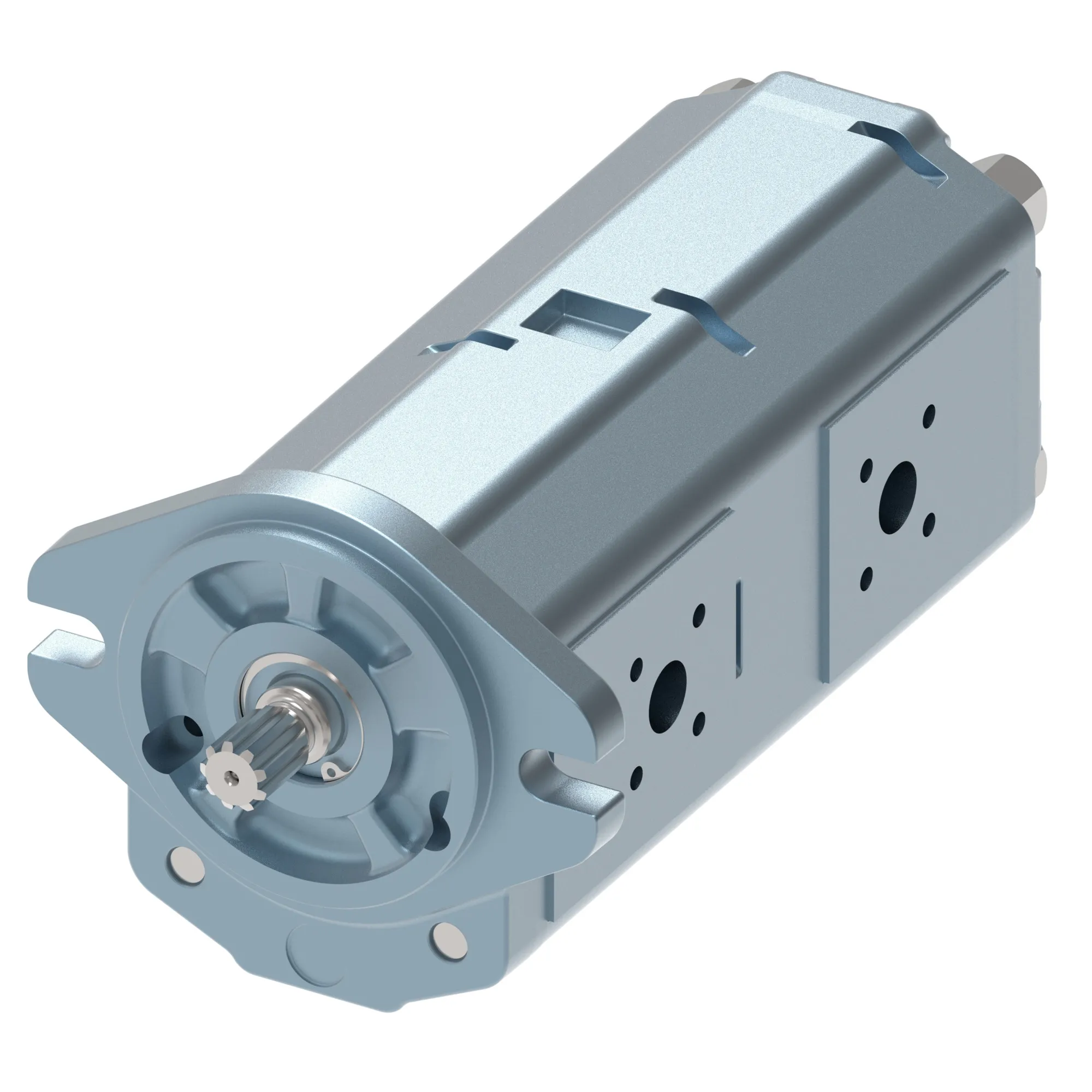

TANDEM GEAR PUMP GR2 FIXED DISPL – 11334358
Specification
| A: Tandem Gr.2 Family | SKW2NN+SNP2EN |
|---|---|
| B: 1St Stage Displacement | Displacement 14 cc |
| C: 2Nd Stage Displacement | Displacement 14 cc |
| D: Rotation | Product with counter-clockwise rotation |
| E: Project Version | Standard ( without intermediate flange ) |
| F: Mounting Flange | Flange SAE A, pilot D.82,55 and 2 holes for bolts |
| G: Drive Gear | Splined SAE J498-11T-16/32-Dp Class 1FIT – ( rear tang 8 x 19,94 x L=6,5 ) (type 36) |
| H: Rear Cover | Cover for pump with relief valve with external drain 3/4-16UNF-2B with holes M5 |
| I: 1St Stage Inlet Size | 20x40xM8 |
| J: 1St Stage Outlet Size | 13,5x30xM6 |
| K: 1St Stage Ports Position | Standard from catalogue |
| L: 2Nd Stage Inlet Size | 20x40xM8 |
| M: 2Nd Stage Outlet Size | 13,5x30xM6 |
| N: 2Nd Stage Ports Position | Standard from catalogue |
| O Ring, Inside Diameter | Slash |
| O: Seals | Standard seal |
| Oc Delimiter ( ) | – |
| P: Screws | Standard screws |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: Valve Setting | Setting relief valve, velocity of product per checked setting 2250 rpm and pressure 180 bar with oil ISO VG68 a 40°-50°C |
| R: Mark Type | Std Sauer Danfoss Marking |
| S: Mark Position | Std Position Marking |
| Slash Separator | Slash |
