Danfoss (Drives) 11322318

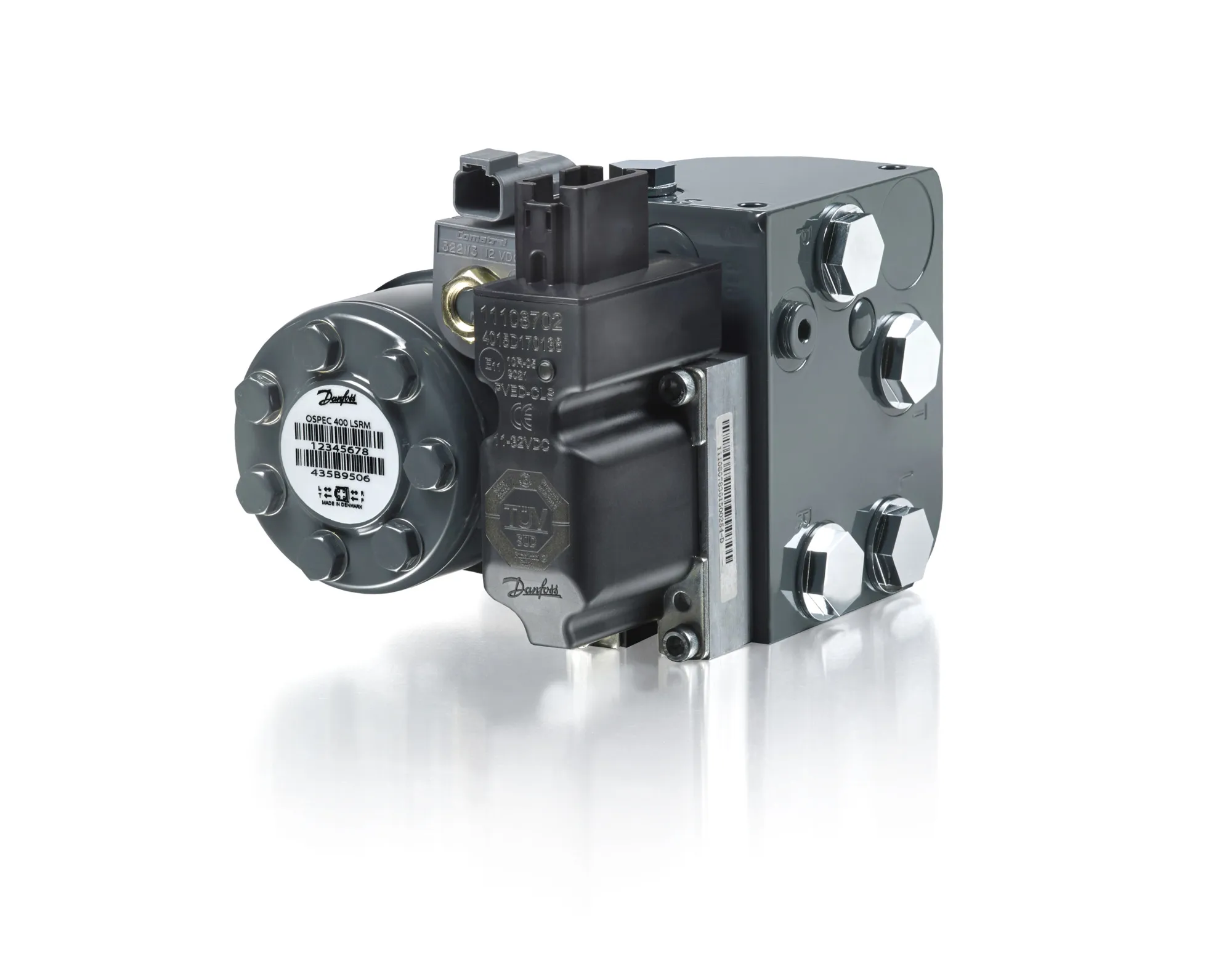

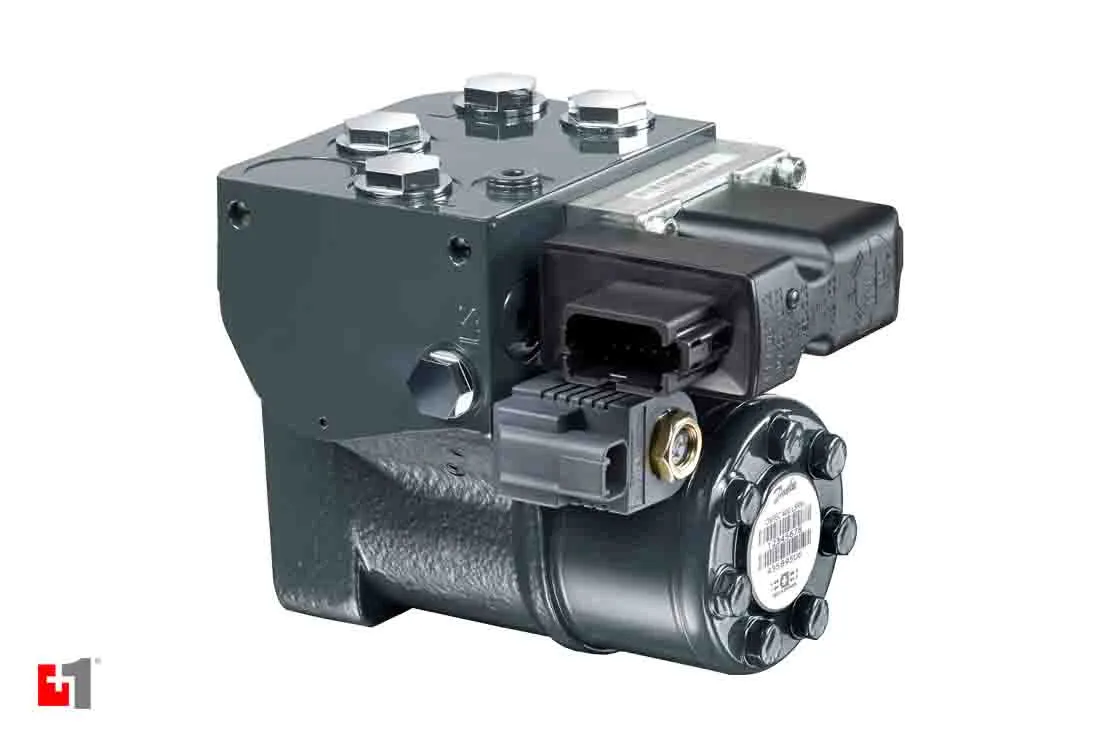

OSPEC 315 LS STEERING UNIT – 11322318
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
OSPEC 315 LS STEERING UNIT – 11322318
Specification
| Additional Information | No additional info |
|---|---|
| Anti Cavitation Valves | With anti-cavitation valves |
| Aux Port | Not available |
| Check Valve In P And Ls | Check valve in P and LS |
| Circuit Type | Load sense non reaction |
| Cut Off Coil Connector | Deutsch |
| Cut Off Coil Voltage | 12 VDC |
| Dynamic Orifice | 0.9 mm dyn. orifice |
| Ef Port | Plastic plug |
| Electrohydraulic Flow, Nominal | 30 L/min |
| Emergency Steering Displ. | Single displacement |
| Excess Flow | Excess flow available |
| Firmware Package | Not applicable |
| Firmware Revision | 2.02 |
| Firmware Type | Standard |
| First Gear Size | 315 |
| Gear Set Type | Single |
| Gearset Option | Regular |
| Housing Type | SEHS |
| Housing Variant | 1604 |
| Integrated Priority Valve | 90 L/min |
| Integrated Priority Valve Type | Dynamic |
| Integrated Pv Spring | 7 bar spring |
| Label | Danfoss Standard Label |
| Ls Front Port | Plastic plug |
| Ls Orifice | 1.2 mm LS orifice |
| Ls Side Port | Steel plug |
| Number Of Edges | 2 edge |
| P Spool | A900911 |
| P Ls Orifice | NN |
| Paint | Painted black |
| Ports Sizing | M22, M18, M12 |
| Ports Standard | ISO 6149-1 |
| Pp Orifice | 1.1 mm PP orifice |
| Product Label | Danfoss Standard Label |
| Product Type | OSPE |
| Proposition 65 | Cancer and Reproductive Harm |
| Pve Actuator | PVED-CLS s5 Deutsch (SIL2) |
| Relief Valve Setting | 200-210 Bar |
| Relief Valve Y/N | Present |
| Second Gear Size | NNN |
| Shock Valves Setting | 250-270 Bar |
| Shock Valves Y/N | Present |
| Software Id | SWID005455 |
| Special Feature | None |
| Spool/Sleeve Set | High dynamic (240-500 ccm) |
| Spool/Sleeve Set Centering Spr | Regular (11004855) |
| Spool/Sleeve Set Type | C type |
| Steering Column Interface Type | 4x M10x1.5 bolt holes for colu |
| Total Steering Displacement | 315 ccm |
