Danfoss (Drives) 11304673

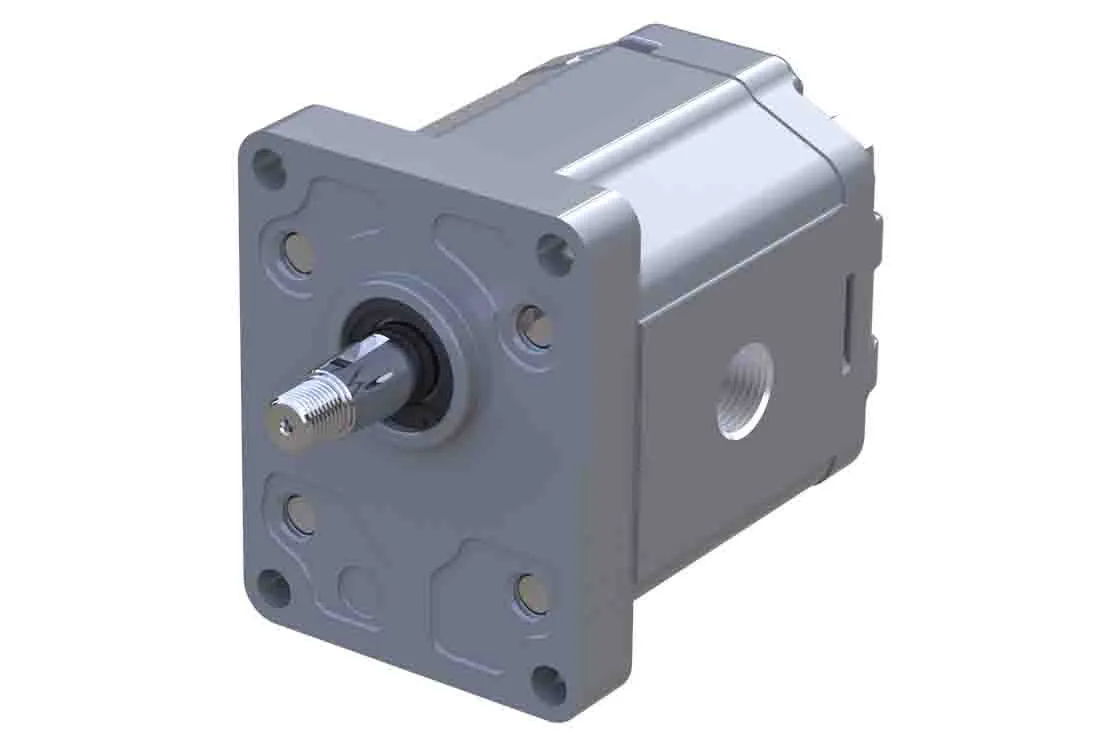

GEAR MOTOR GR2 FAN DRIVE WITH VALVE – 11304673
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR MOTOR GR2 FAN DRIVE WITH VALVE – 11304673
Specification
| D Size Group2 | 2 |
|---|---|
| Displacement | Displacement 11 cc |
| Drive Gear | Taper 1:8 – M12 x 1,25 – Key = 4 CO01 |
| E Valve Group2 | Proportional Valve with internal drain and anti-cavitation check valve on the bearings |
| F Drain Group2 | Inlet on body – Outlet on body – Drain on cover in vertical position driven gear side |
| Inlet Size | 3/4-16UNF |
| Mark Position | Position Marking standard (on the top in relation to drive gear) |
| Mark Type | Standard Marking |
| Mounting Flange | Flange with pilot Ø80 mm and 4 holes for bolts |
| O Ring, Inside Diameter | Slash |
| Outlet Size | 7/8-14UNF |
| Ports Position | Standard from catalogue |
| Project Version | Standard Version of Project |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Cover | Cover for motor per proportional valve and vertical drain 9/16-18UNF-2B |
| R O T A T I O N | Product with clockwise rotation |
| Screws | Product with galvanized assembly screws ( +nuts, washers or cap nuts if listed on the Bill of Material ) |
| Seals | With VITON seals + Dust Cover (see SGM2) |
| Single Stage Family | Gr2 Bid.Mot+PRV Valve-Vert.dr. |
| Slash Separator | Slash |
| Valve Setting | Setting proportional valve, type of connector 12 DT Volt and pressure 190 bar with oil ISO VG68 a 40°-50°C |
