Danfoss (Drives) 113-1154-006

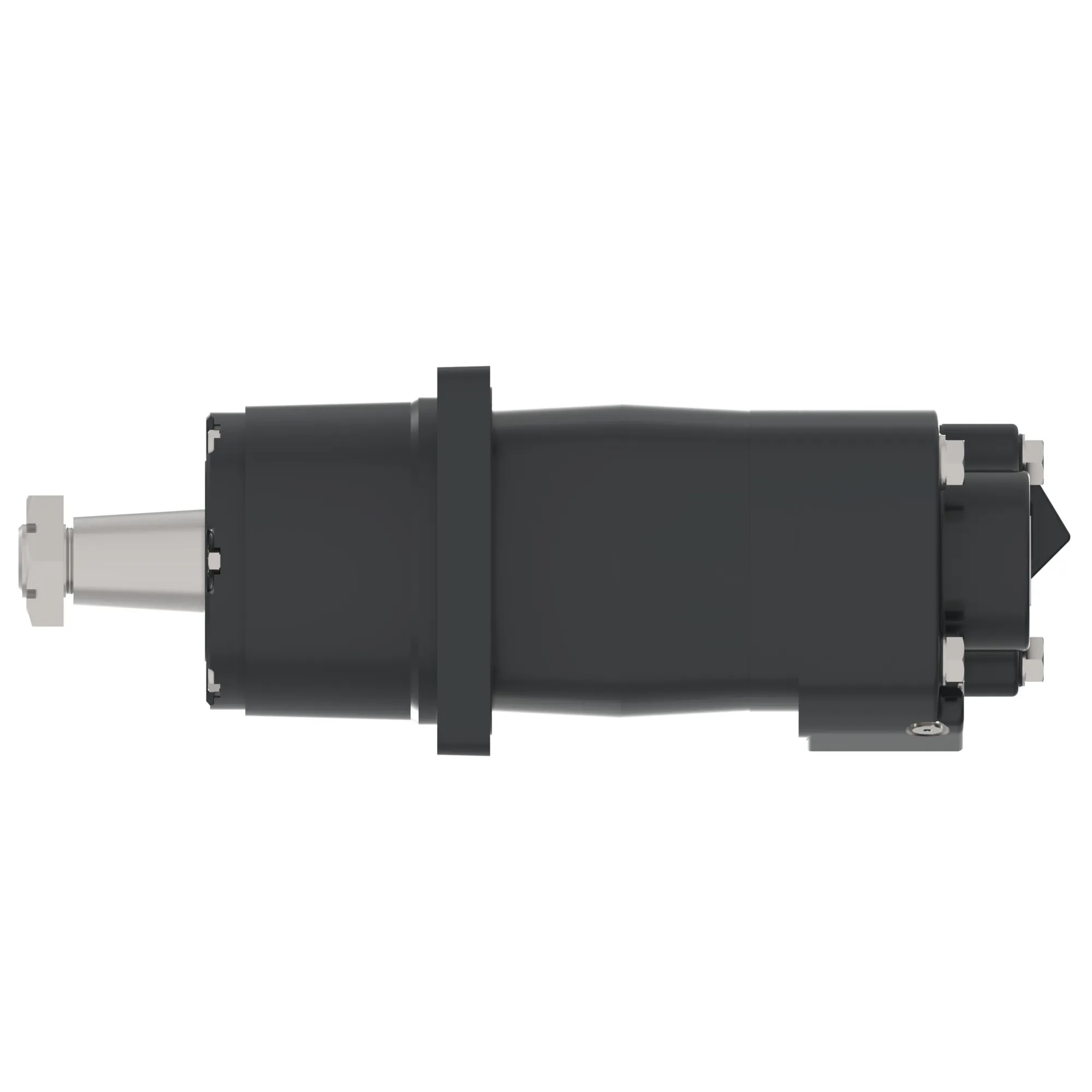

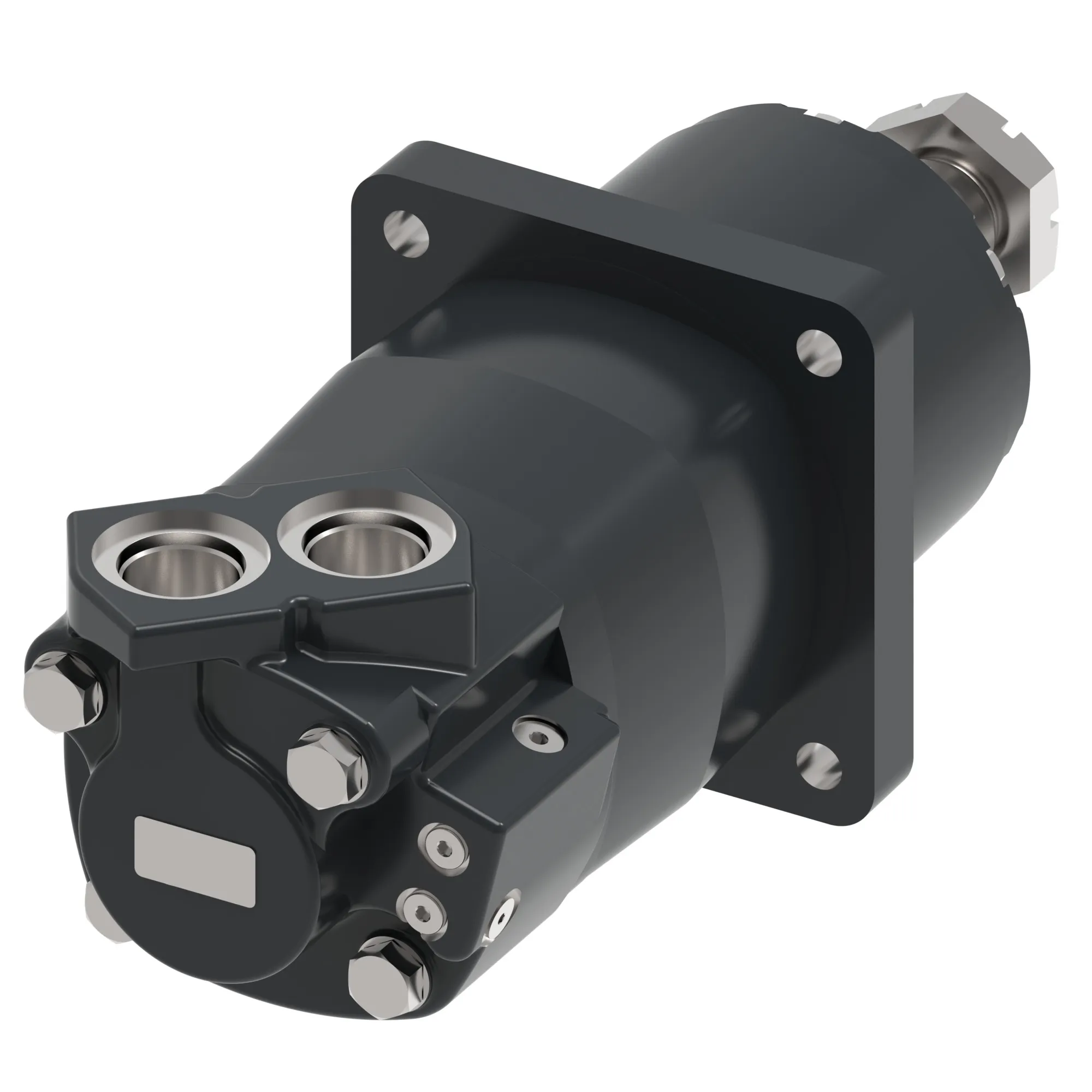

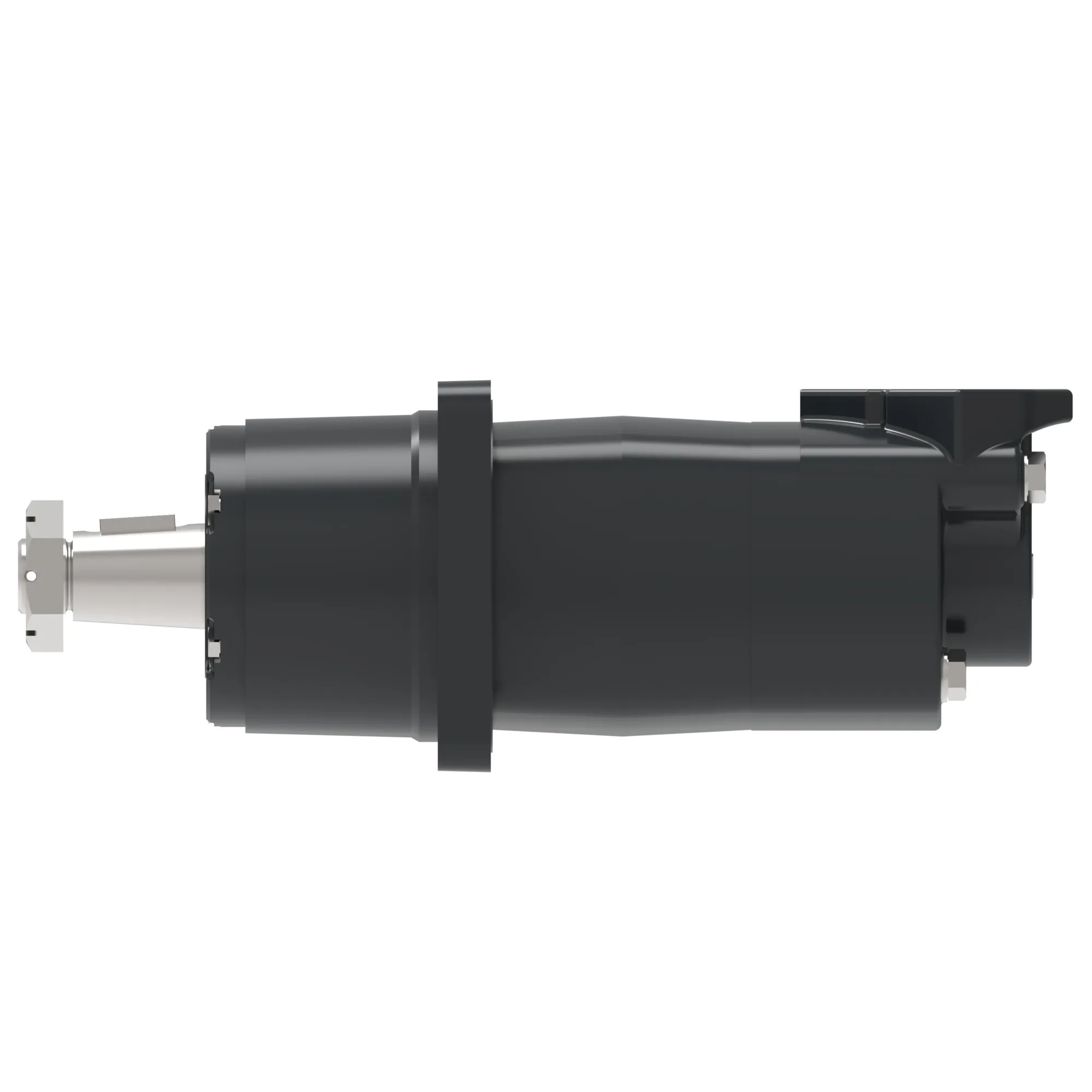

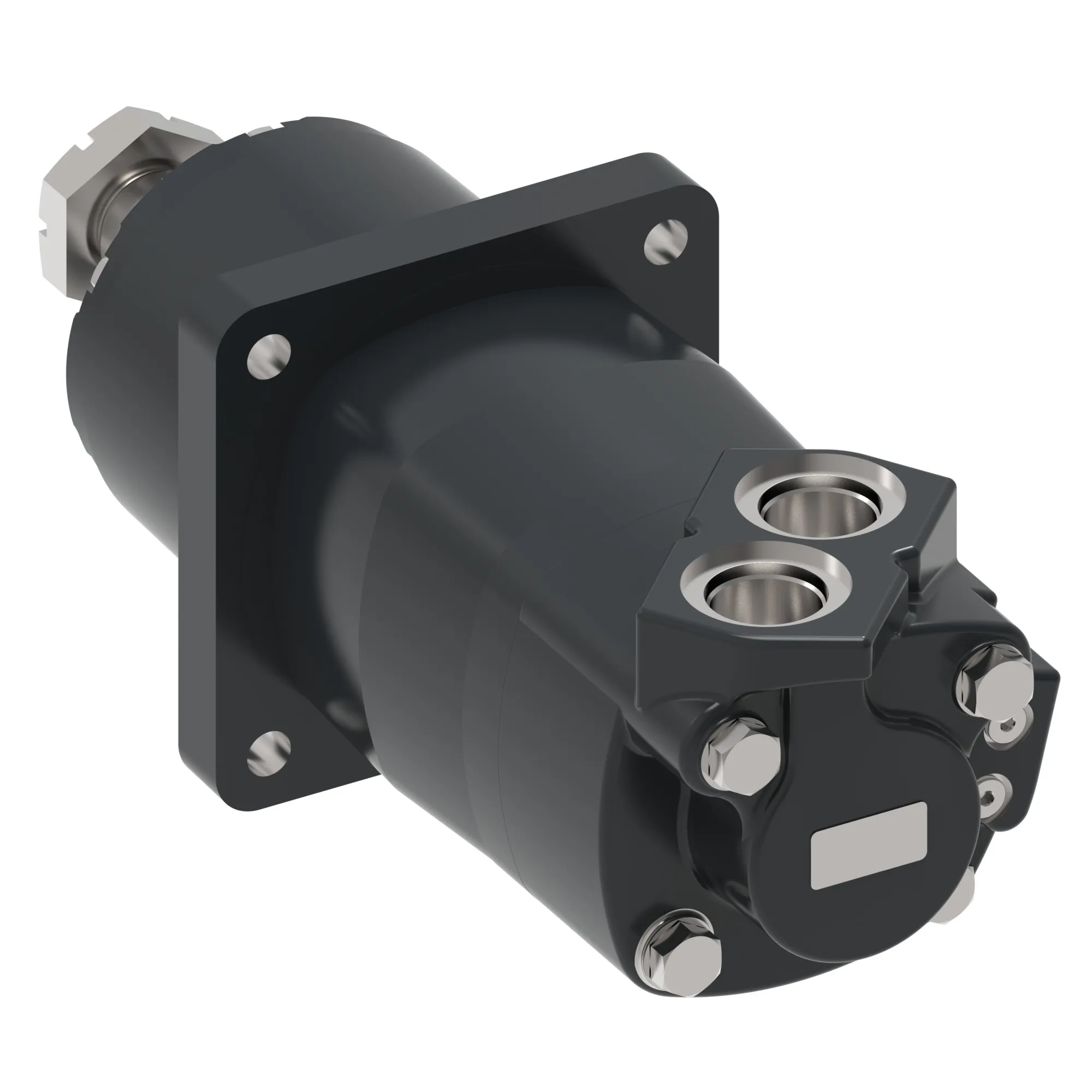

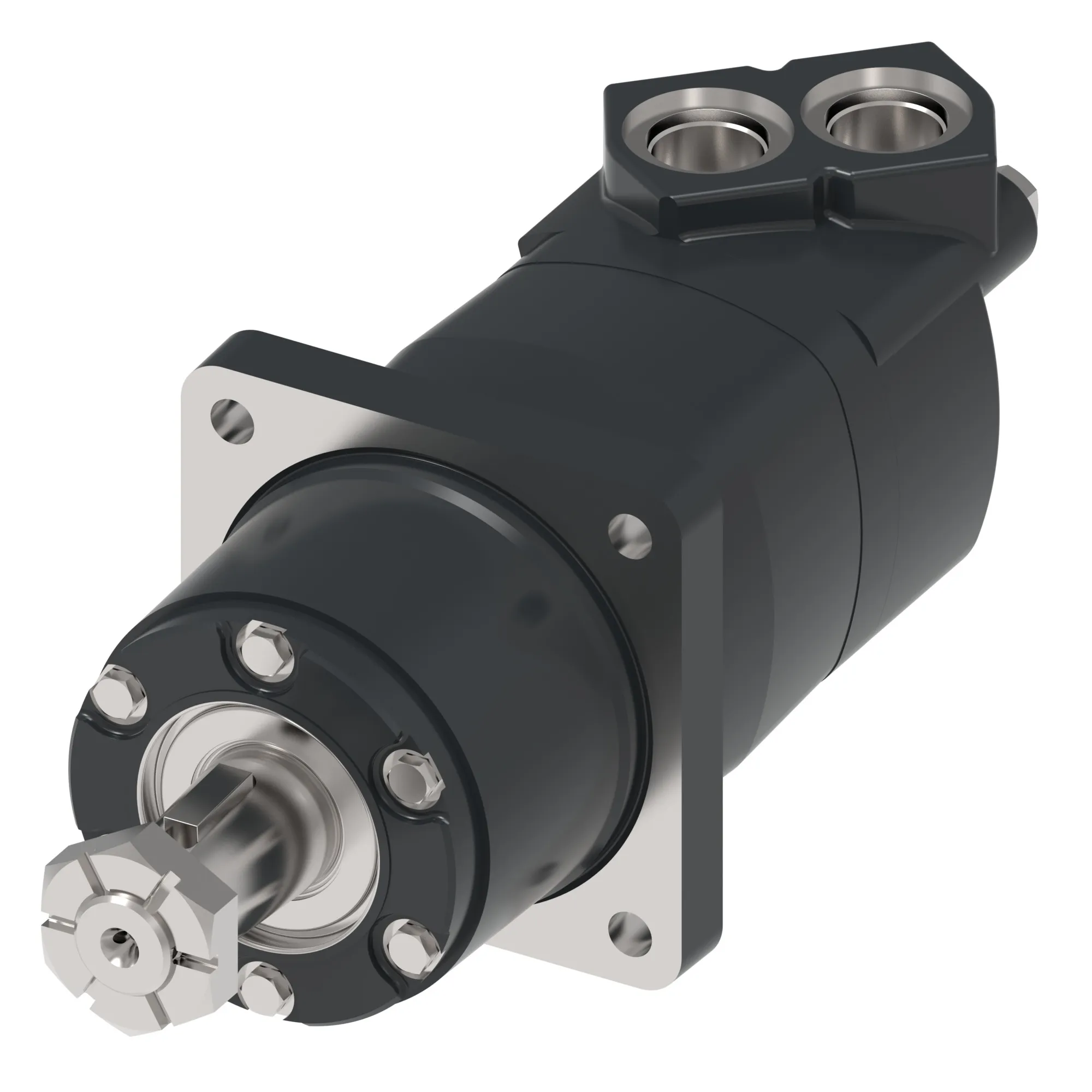

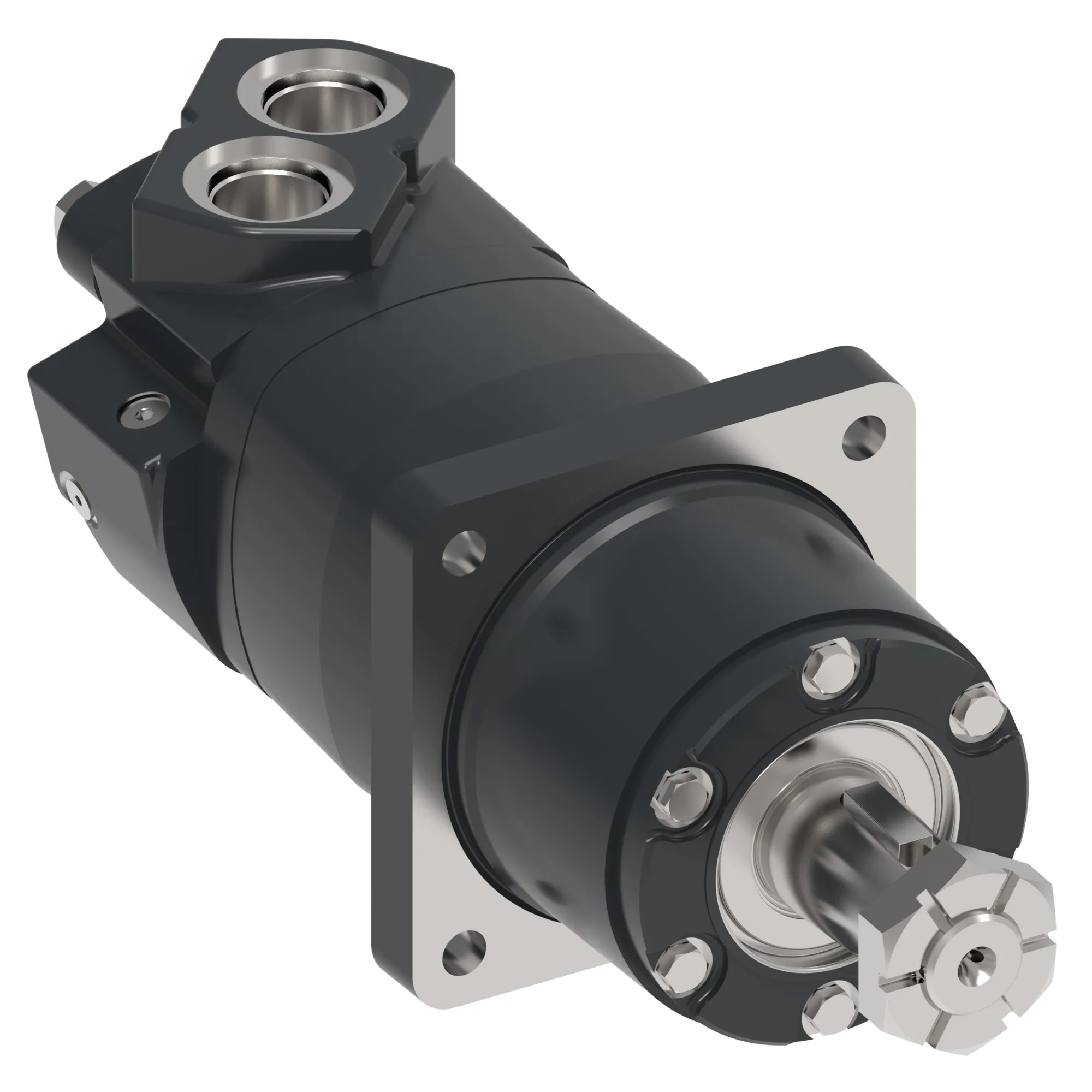

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC06AA02000000000AA0000F, M06300AC06AA02000000000AA0000F – 113-1154-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC06AA02000000000AA0000F, M06300AC06AA02000000000AA0000F – 113-1154-006
Specification
| Model Code | M06300AC06AA02000000000AA0000F |
|---|---|
| Motor Series | 6000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 4 w p140 b184 h14 |
| Motor Size | 490 |
| Geometric Displacement [Cm3/R [In3/R]] | 491.4 [29.99] |
| Motor Type | Wheel |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 139.7 x 7.9, 184.2, 14.4 [5.50 x 0.31, 7.25, 0.57] |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 1.73 inch, 13T, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 5/16 – 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Assembly | Direction of rotation |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Low Pressure Relief | None |
| Seal Options | Standard |
| Series | 6000 series |
| Sub Brand | Char-Lynn |
