Danfoss (Drives) 11298814
PUMP-VAR DISPL, D1P193 – 11298814
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

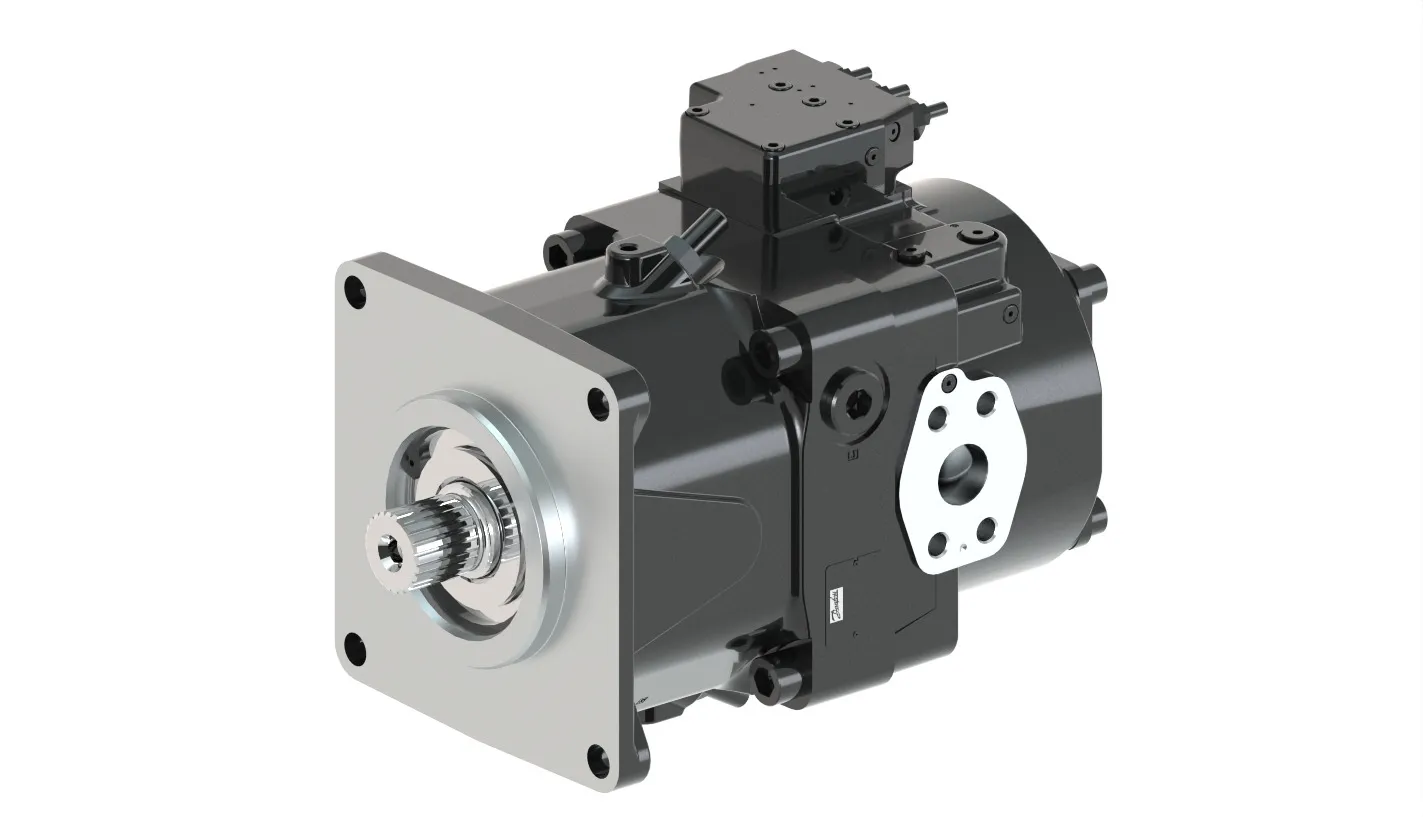

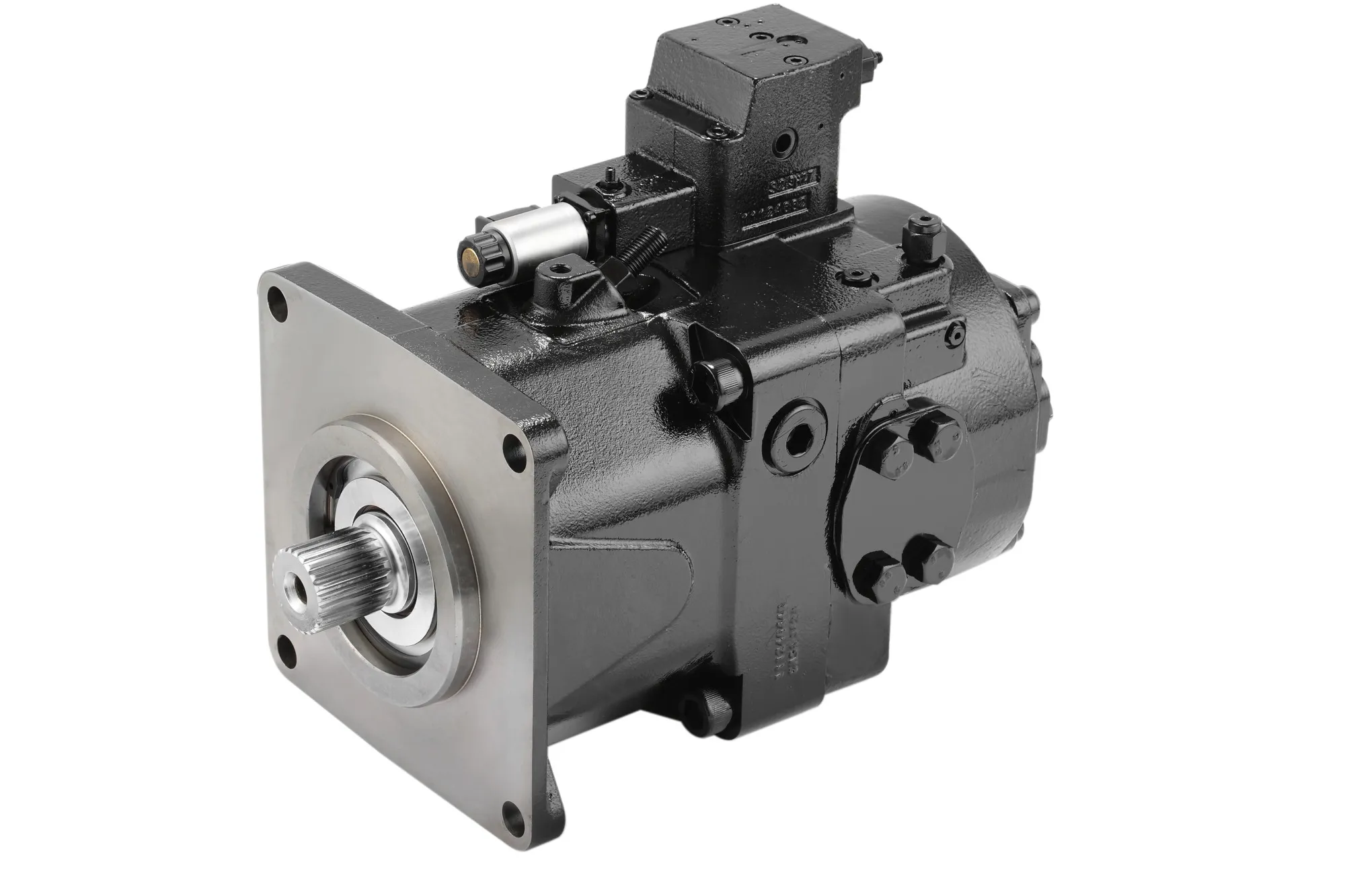

PUMP-VAR DISPL, D1P193 – 11298814
Specification
| D1P Product | D1P variable axial piston pump |
|---|---|
| Displacement | 193cc/rev max/variable displacement |
| Rotation | Left hand – counter clockwise |
| Product Version | Product version A |
| Control Type | Pressure compensated control + positive electric displacement control, 24V Deutsch 2 pin connector |
| Input Shaft | Spline shaft DIN5480, W50 x 2 x 30 x 24 x 9g for size 130 &145 &193 W60 x 2 x 30 x 28 x 9g for size 260 W30 x 2 x 30 x 14 x 9g forsize 065 |
| Front Mounting Flange | SAE J744 165-4 (E) |
| Endcap | Radial side flange ports inlet: SAE J518, 3 1/2 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 without impeller |
| Auxiliary Flange | SAE J744 127-2&4 (C), spline coupling: 1 1/4in 14 tooth 12/24 diametrical pitch |
| Power Control Setting | No power control |
| Pressure Compensator Setting | 350 bar pressure compensated control setting |
| Load Sense Setting | No load sensing control |
| Hydraulic Displacement Control Start Pressure Setting | No hydraulic displacement control |
| Maximum Displacement Setting | 100% of maximum displacement |
| Minimum Displacement Setting | 0% of displacement |
| Special Hardware | No special hardware |
| Special Feature | Black paint, SANY tag, format A, with control oil filter |
| Proposition 65 | Cancer and Reproductive Harm |
