Danfoss (Drives) 11298204

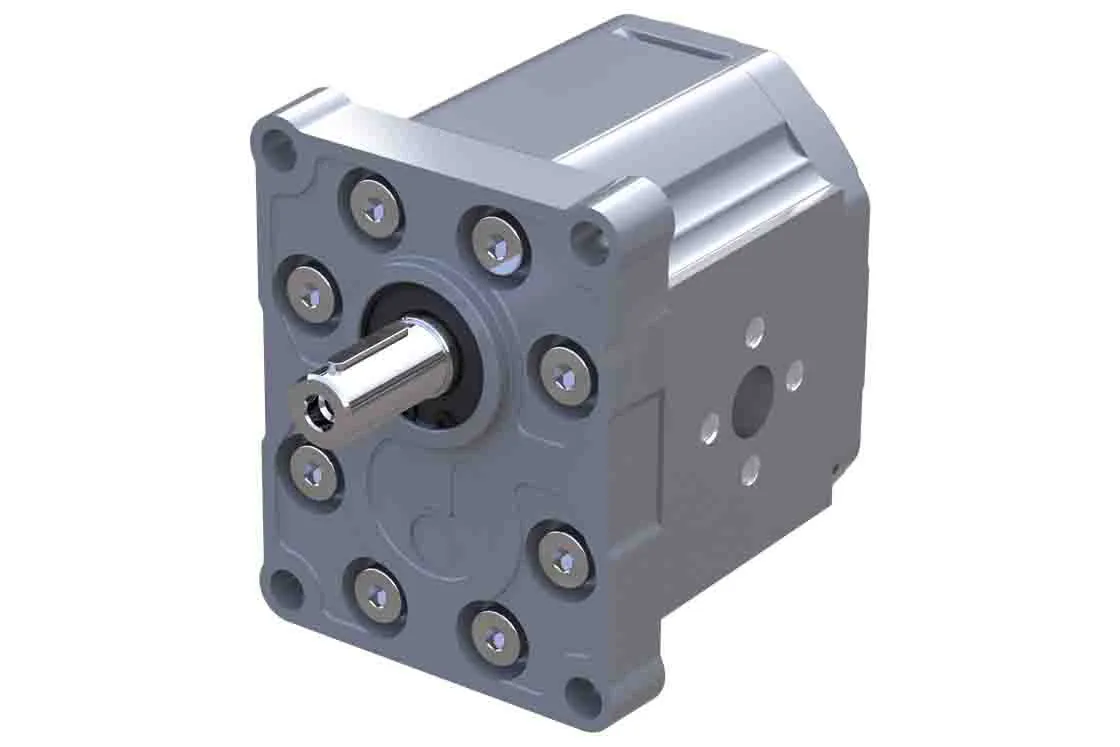

GEAR MOTOR GR3 BIDIRECT FIXED DISPL – 11298204
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR MOTOR GR3 BIDIRECT FIXED DISPL – 11298204
Specification
| B: Displacement | Displacement 22 cc |
|---|---|
| C: Rotation | Bidirectional |
| D Size Group3 | 3 |
| D: Project Version | Standard Version of Project |
| E Valve Group3 | Without valve |
| E: Mounting Flange | Flange SAE b with pilot D.101,6 and 2 holes for bolts |
| F Drain Group3 | Inlet-outlet body – Drain on cover in vertical position driven gear side |
| F: Drive Gear | Parallel drive diam. 22,225 L=25,4 , Key 6,375 x 6,375 x 25,4; with threaded hole: 1/4-20UNC-2B CI07 AKT |
| G: Rear Cover | Cover for motor with side drain in vertical axis M14x1,5 |
| H: Inlet Size | 18x55xM8 |
| I: Outlet Size | 18x55xM8 |
| J: Ports Position | Standard from catalogue |
| K: Seals | With VITON seals + Dust Cover (see SGM3) |
| L: Screws | Product assembled with ‘DACROMET’or ‘GEOMET’ covering screws (+nuts, washers or cap nuts galvanized if listed on the Bill of Materia) (LML) |
| M: Valve Setting | without setting |
| N: Mark Type | Standard Marking |
| O Ring, Inside Diameter | Slash |
| O: Mark Position | Position Marking standard |
| Proposition 65 | Cancer and Reproductive Harm |
| Single Stage Family | Gr3 Bid.Motor-Vert.drain |
| Slash Separator | Slash |
