Danfoss (Drives) 11294599

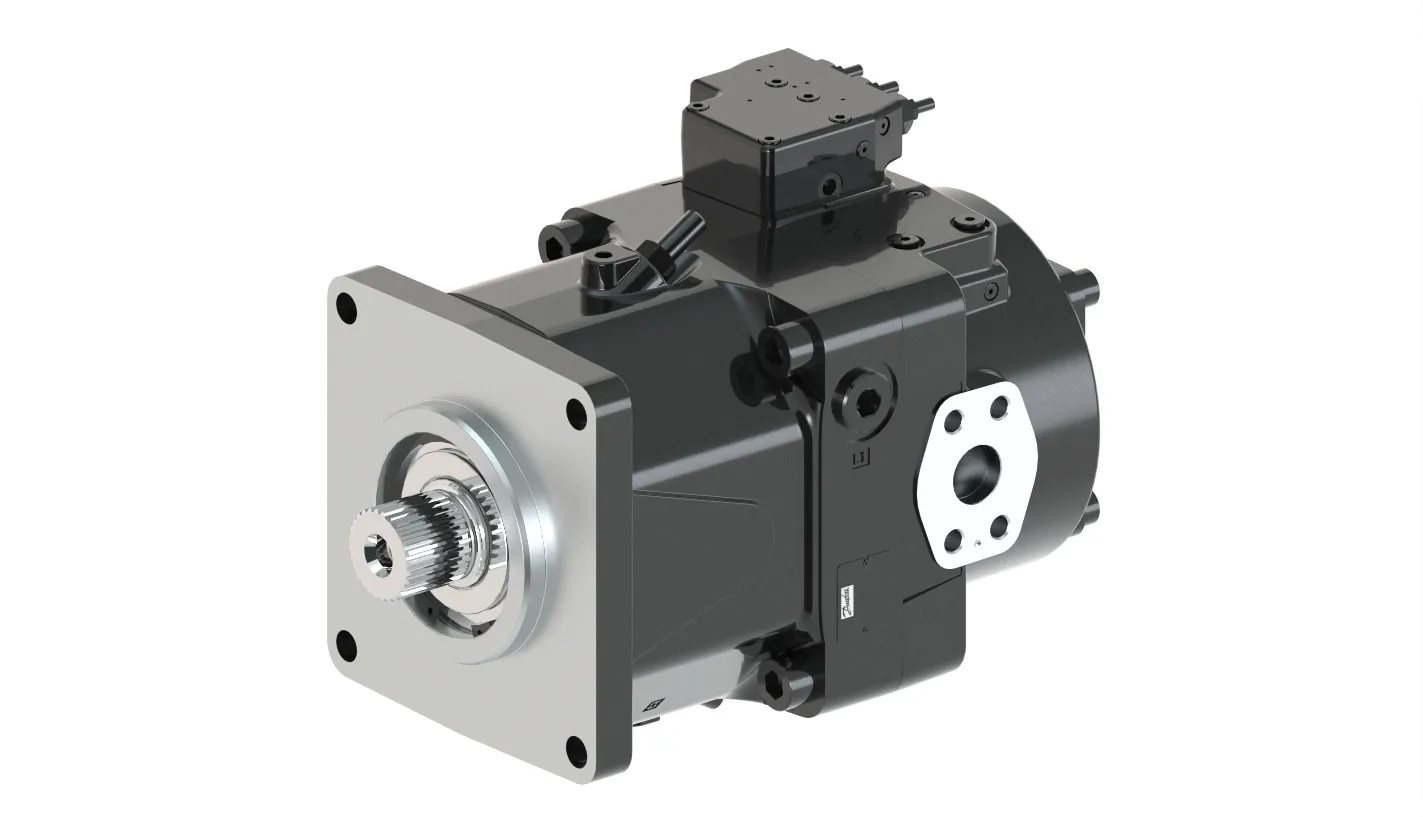

PUMP-VAR DISPL, D1P260 – 11294599
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PUMP-VAR DISPL, D1P260 – 11294599
Specification
| D1P Product | D1P variable axial piston pump |
|---|---|
| Displacement | 260cc/rev max/variable displacement |
| Rotation | Right hand – clockwise |
| Product Version | Product version A |
| Control Type | Power control + pressure compensated control + negative hydraulic displacement control |
| Input Shaft | Spline shaft, D1P130-290 13 tooth 8/16 diametrical pitch D1P065 14 tooth 12/24 diametrical pitch |
| Front Mounting Flange | SAE J744 165-4 (E) |
| Endcap | Radial side flange ports inlet: SAE J518, 4 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 with impeller |
| Auxiliary Flange | SAE J744 101-2 (B), spline coupling: 7/8in 13 tooth 16/32 diametrical pitch |
| Power Control Setting | 140 kW power control setting @ 1500 rpm |
| Pressure Compensator Setting | 350 bar pressure compensated control setting |
| Load Sense Setting | No load sensing control |
| Hydraulic Displacement Control Start Pressure Setting | 4 bar hydraulic displacement control start pressure |
| Maximum Displacement Setting | 100% of maximum displacement |
| Minimum Displacement Setting | 5% of displacement |
| Special Hardware | No special hardware |
| Special Feature | Black paint, Danfoss tag, format A, without control oil filter |
| Proposition 65 | Cancer and Reproductive Harm |
