Danfoss (Drives) 11288522

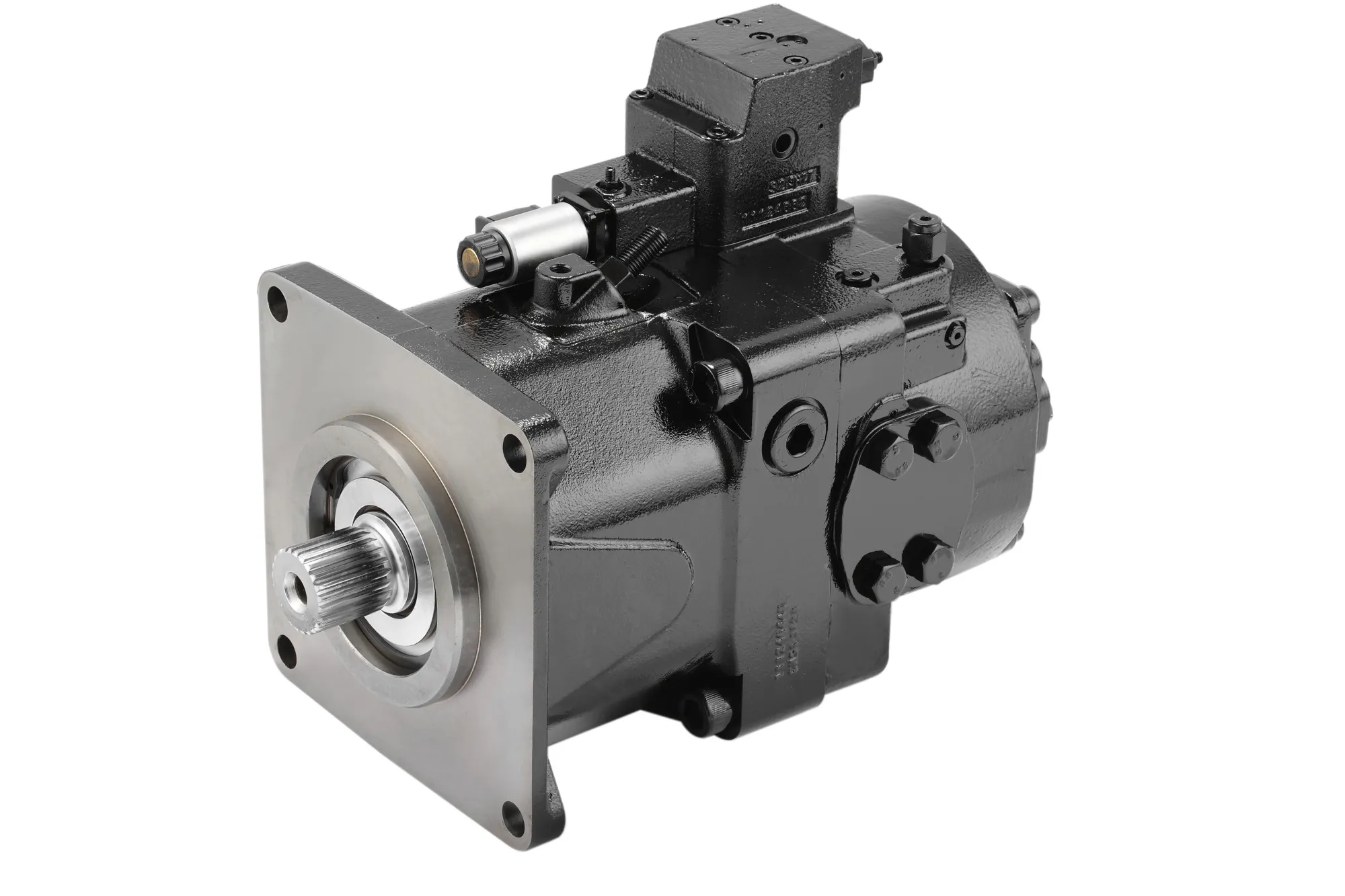

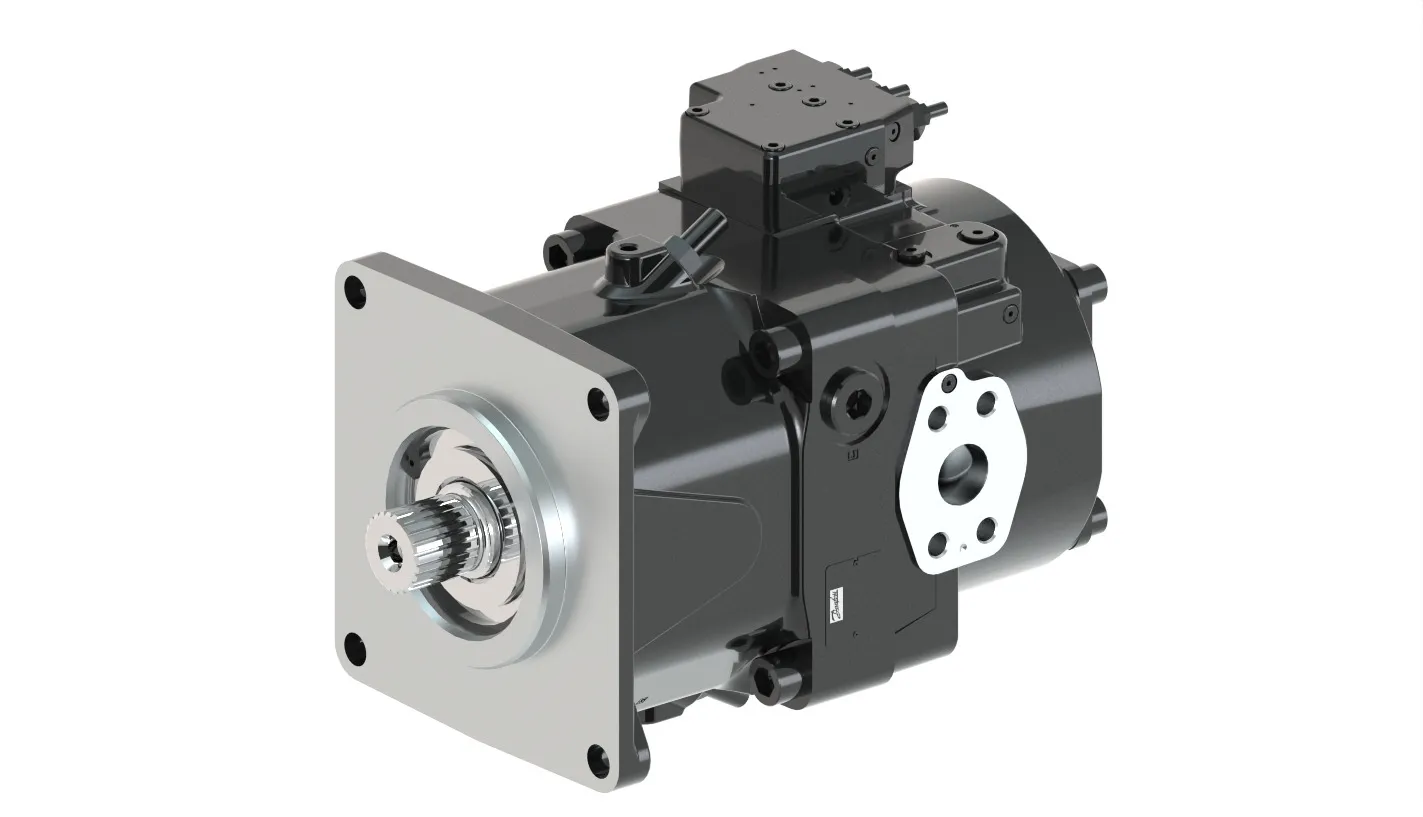

PUMP-VAR DISPL, D1P193 – 11288522
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PUMP-VAR DISPL, D1P193 – 11288522
Specification
| D1P Product | D1P variable axial piston pump |
|---|---|
| Displacement | 193cc/rev max/variable displacement |
| Rotation | Right hand – clockwise |
| Product Version | Product version A |
| Control Type | Electric power control + load sending control, 24V Deutsch 2 pin connector |
| Input Shaft | Spline shaft DIN5480, W50 x 2 x 30 x 24 x 9g for size 130 &145 &193 W60 x 2 x 30 x 28 x 9g for size 260 W30 x 2 x 30 x 14 x 9g forsize 065 |
| Front Mounting Flange | SAE J744 165-4 (E) |
| Endcap | Radial side flange ports inlet: SAE J518, 3 1/2 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 with impeller |
| Auxiliary Flange | SAE J744 82-2 (A), spline coupling: 5/8in 9 tooth 16/32 diametrical pitch |
| Power Control Setting | 125 kW power control setting @ 1500 rpm |
| Pressure Compensator Setting | No pressure compensated control |
| Load Sense Setting | 25 bar load sensing control setting |
| Hydraulic Displacement Control Start Pressure Setting | No hydraulic displacement control |
| Maximum Displacement Setting | 100% of maximum displacement |
| Minimum Displacement Setting | 5% of displacement |
| Special Hardware | No special hardware |
| Special Feature | No paint, Danfoss tag, format A, without control oil filter |
| Proposition 65 | Cancer and Reproductive Harm |
