Description

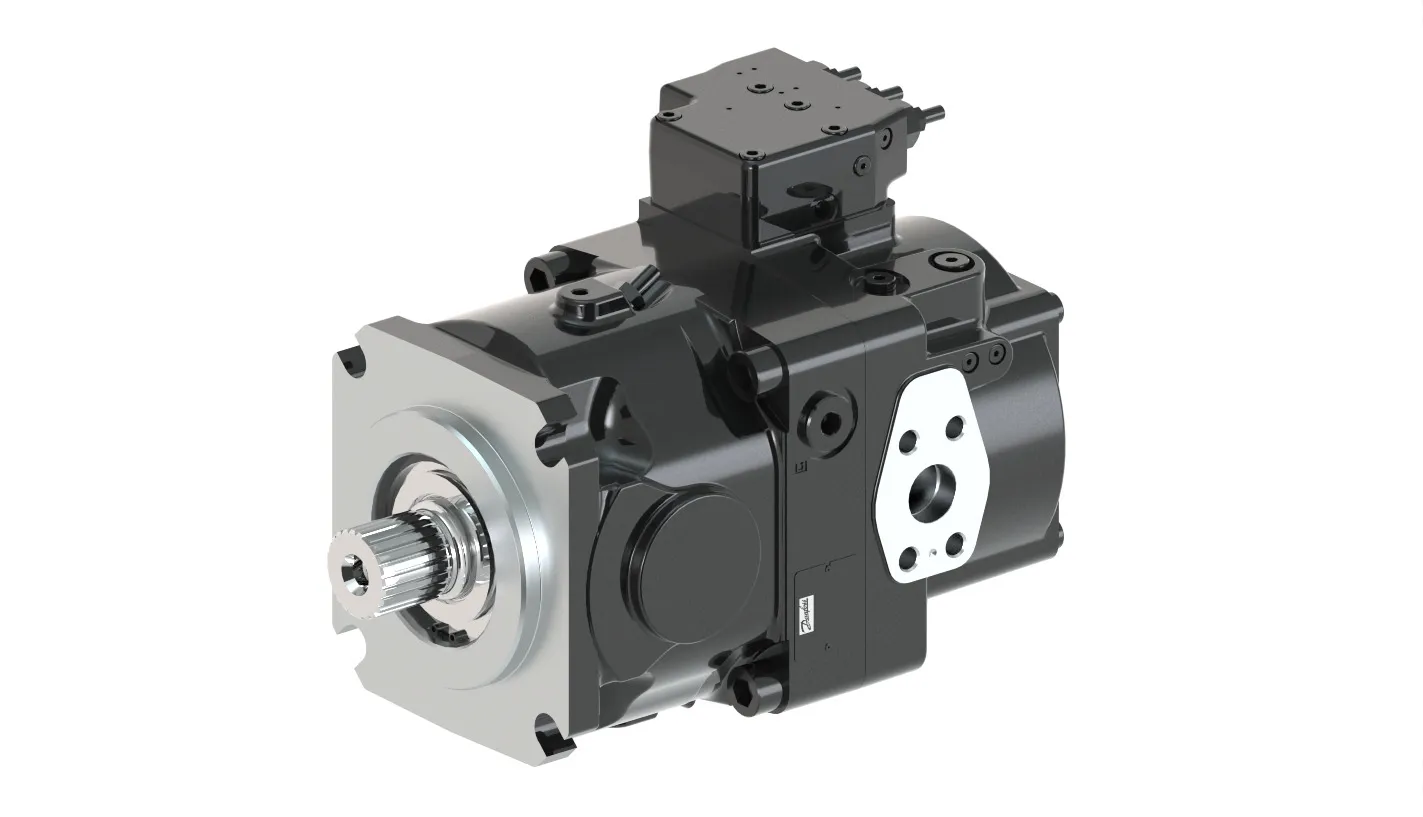

PUMP-VAR DISPL, D1P160 – 11286825
Specification
| D1P Product | D1P variable axial piston pump |
|---|---|
| Displacement | 160cc/rev max/variable displacement |
| Rotation | Left hand – counter clockwise |
| Product Version | Product version A |
| Control Type | Power control + pressure compensated control + load sensing control |
| Input Shaft | Spline shaft DIN5480, W50 x 2 x 30 x 24 x 9g for size 130 &145 &193 W60 x 2 x 30 x 28 x 9g for size 260 W30 x 2 x 30 x 14 x 9g forsize 065 |
| Front Mounting Flange | SAE J744 152-4 (D) |
| Endcap | Radial side flange ports inlet: SAE J518, 3 inch, M16x2 outlet: SAE J518, 1 inch, M12x1.75 without impeller |
| Auxiliary Flange | No auxiliary flange |
| Power Control Setting | 55 kW power control setting @ 1500 rpm |
| Pressure Compensator Setting | 210 bar pressure compensated control setting |
| Load Sense Setting | 26 bar load sensing control setting |
| Hydraulic Displacement Control Start Pressure Setting | No hydraulic displacement control |
| Maximum Displacement Setting | 100% of maximum displacement |
| Minimum Displacement Setting | 0% of displacement |
| Special Hardware | No special hardware |
| Special Feature | Black paint, Danfoss tag, format A, without control oil filter |
| Proposition 65 | Cancer and Reproductive Harm |
