Danfoss (Drives) 11281484

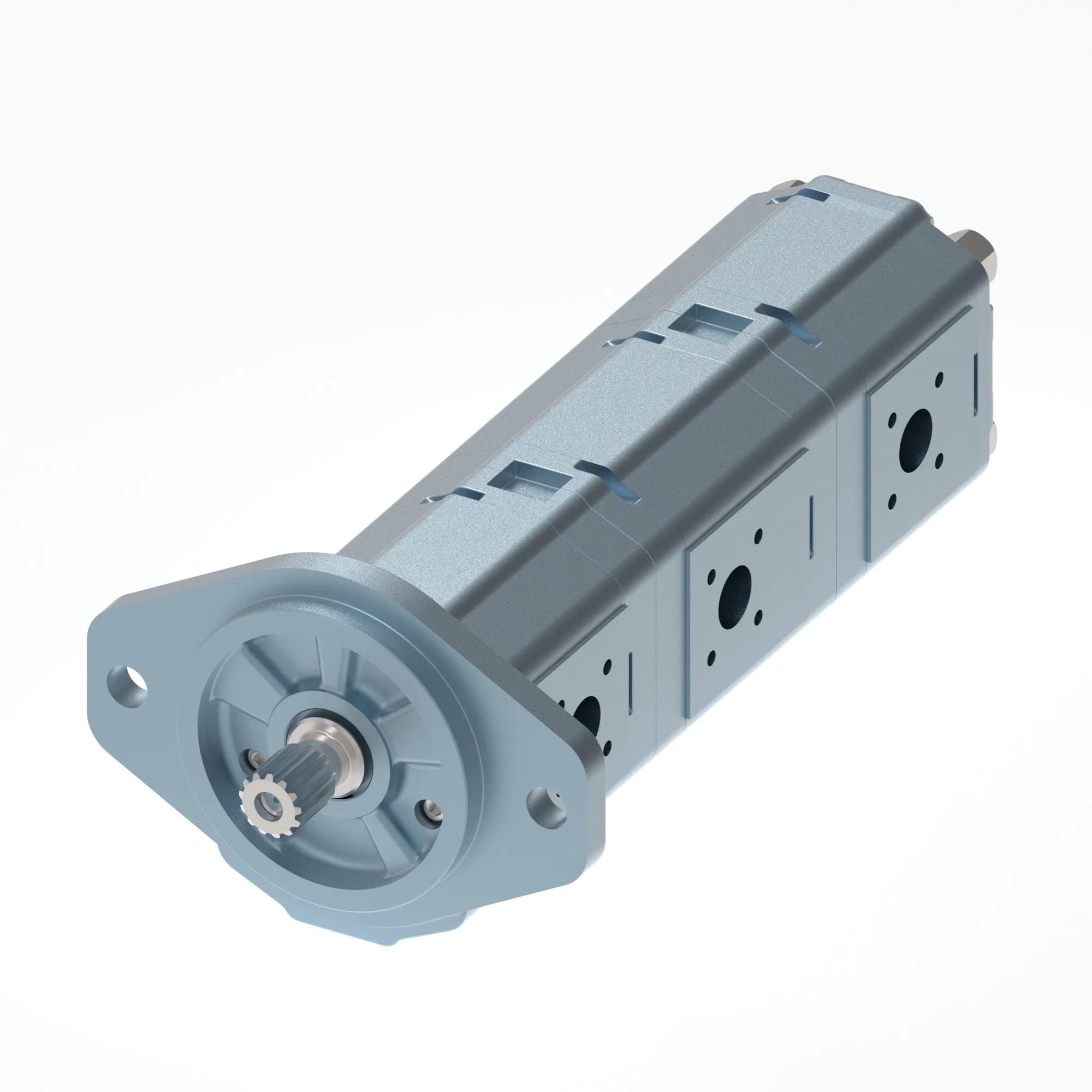

TRIPLE GEAR PUMP=GR2+GR1+GR1 – 11281484
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TRIPLE GEAR PUMP=GR2+GR1+GR1 – 11281484
Specification
| A Family Gr2+1+1 | SNW2NN+SNW1NN+SNP1NN |
|---|---|
| B 1St Displ Gr2+1+1 | Displacement 8,0cc |
| B: 1St Stage Displacement | Displacement 8,0cc |
| C: 2Nd Stage Displacement | Displacement 2,2cc |
| D: 3Rd Stage Displacement | Displacement 2,2cc |
| E: Rotation | Right rotation |
| F: Project Version | With intermediate flange all stages |
| G Flange Gr1+1+1 | Slash |
| G: Mounting Flange | Flange-pilot D36,5+4 holes for bolts |
| H Drive Gr2+1+1 | Taper-1:8-M12x1,25-Key4+Rear shaft tang |
| H: Drive Gear | Taper-1:8-M12x1,25-Key4+Rear shaft tang |
| I: Rear Cover | Std Cover for pump |
| J: 1St Stage Inlet Size | 13,5x30xM6 |
| K: 1St Stage Outlet Size | 13,5x30xM6 |
| L: 1St Stage Ports Position | Std from catalogue |
| M: 2Nd Stage Inlet Size | 12x26xM5 |
| N: 2Nd Stage Outlet Size | 12x26xM5 |
| O Ring, Inside Diameter | Slash |
| O: 2Nd Stage Ports Position | Std from catalogue |
| Oc Delimiter ( ) | – |
| P: 3Rd Stage Inlet Size | 12x26xM5 |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: 3Rd Stage Outlet Size | 12x26xM5 |
| R: 3Rd Stage Ports Position | Std from catalogue |
| S: Seals | Std seal |
| Slash Separator | Slash |
| T: Screws | Screws standard |
| U: Valve Setting | without setting |
| V: Mark Type | Std Sauer Danfoss Marking |
| W: Mark Position | Std mark position |
