Danfoss (Drives) 11280428

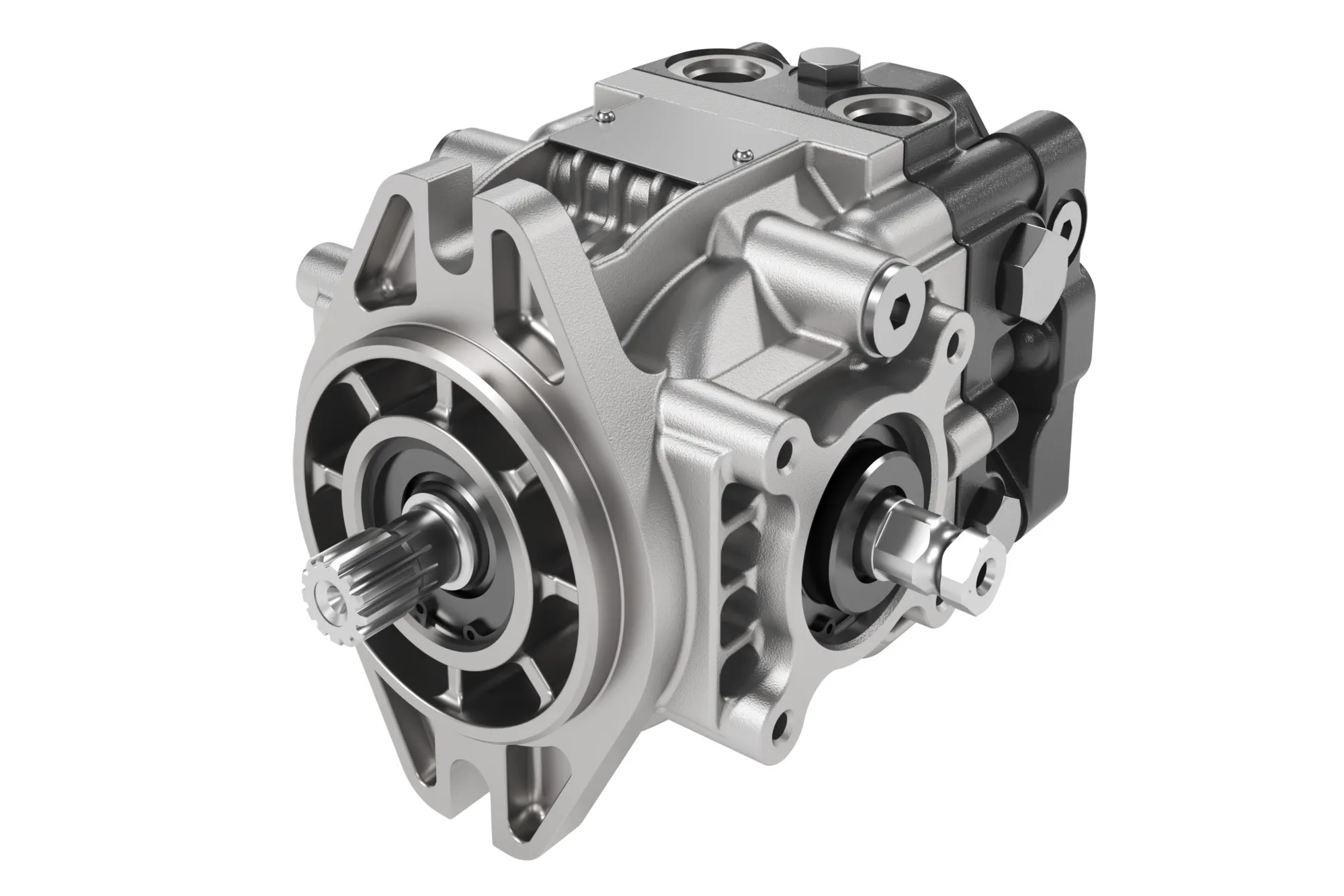

PUMP-VAR-DISPL CW DDC24 – 11280428
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PUMP-VAR-DISPL CW DDC24 – 11280428
Specification
| Ddc Product | DDC Axial Piston Closed Circuit Pump |
|---|---|
| A: Base Frame Size | Rotating group displacement: 24 cc/rev |
| B: Product Version | Variable Displacement Pump Product Version “A” |
| R: Rotation | Rotation,Right-hand, CW, Clockwise Rotation |
| E: Contrl Arm Config/Max Displ | Control Arm Location: Left side, 17mm square trunion shaft |
| G: Nam Conf & Orientation | Without Neutral Assist Mechanism/ With Detent |
| M: Bypass Valve | With Bypass Valve |
| H: Loop Flhushing Setting | Defeated Loop Flushing |
| K: Charge Pump Displ | No Charge Pump |
| F: Pump Ip Shft/Aux Spline/Chp | Pump Input Shaft, No Charge pump, With Aux, SAE B, 13 teeth |
| J: Endcp/Auxp/Chp/Lpfls&Byps | Endcap with Bypass and Defeated Loop Flush, No Charge pump, External Filtration, Aux Pad SAE-A, 13T |
| S: Input Flnge & Housing | Mounting Flange & Housing Features, SAE ‘B’ Flange, Three drain ports with steel case drain plugs |
| L: Charge Relief Setting | 7 bar charge pump relief setting |
| N: Sys Pressure Protection A | System Pressure Protection Port A, High Pressure Relief Valve 300 bar |
| P: Sys Pressure Protection B | System Pressure Protection Port B, High Pressure Relief Valve 300 bar w/ Orifice, (0.85mm dia.) |
| Y: Special Hardware | No Special Hardware |
| Z: Paint & Tag | Black Paint, Daikin logo, Format A |
| C: Valve Plate | Rotation CW (R) Valve Plate, Low control moment |
| Proposition 65 | Cancer and Reproductive Harm |
