Danfoss (Drives) 11263818

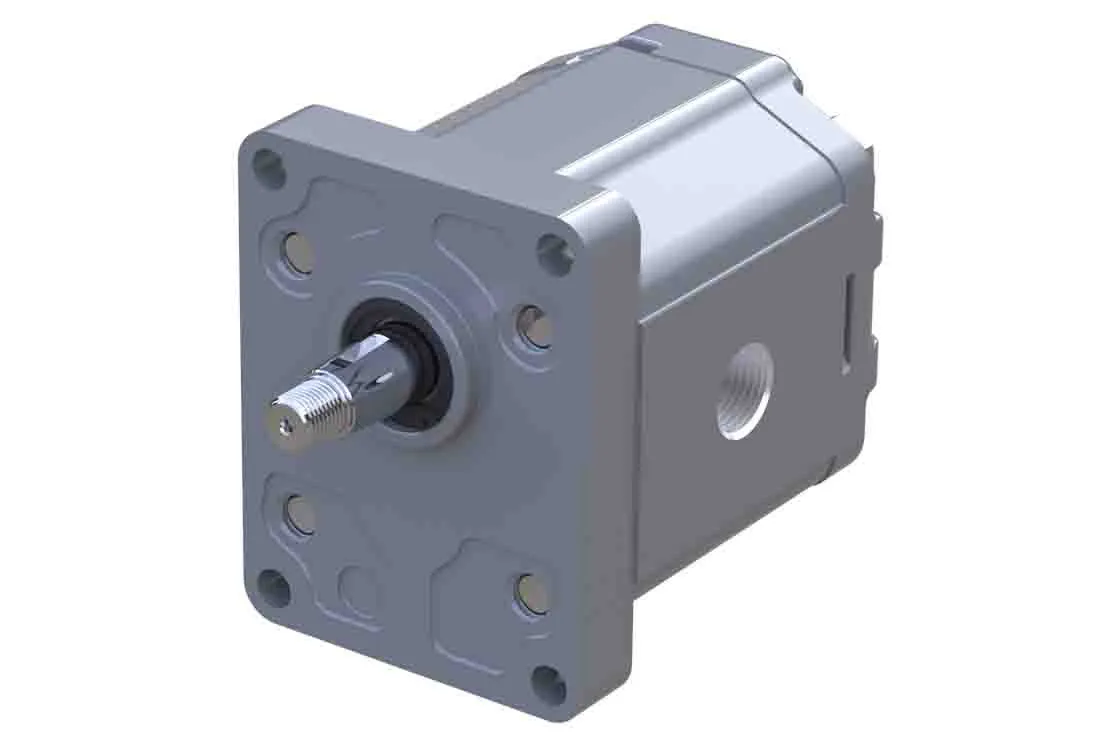

GEAR MOTOR GR2 UNIDIRECT FIXED DISPL – 11263818
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR MOTOR GR2 UNIDIRECT FIXED DISPL – 11263818
Specification
| D Size Group2 | Group 2:from 3 to 28 cc |
|---|---|
| Displacement | Displacement 11 cc |
| Drive Gear | Parallel SAE diam. 15,875 L=23,8 , Key 4×18 CI06 |
| E Valve Group2 | Without Valve |
| F Drain Group2 | Standard |
| Inlet Size | 13,5x30xM6 |
| Mark Position | Position Marking standard (on the top in relation to drive gear) |
| Mark Type | Standard Marking |
| Mounting Flange | Flange SAE A, pilot Ø82,55 mm and 2 holes for bolts |
| O Ring, Inside Diameter | Slash |
| Outlet Size | 13,5x30xM6 |
| Ports Position | Standard from catalogue |
| Project Version | Standard Version of Project |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Cover | Standard cover for pump |
| R O T A T I O N | Product with clockwise rotation |
| Screws | Screws standard |
| Seals | Standard seal |
| Slash Separator | Slash |
| Valve Setting | without setting |
