Danfoss (Drives) 11257029
PUMP-VAR DISPL, D1P260 – 11257029
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

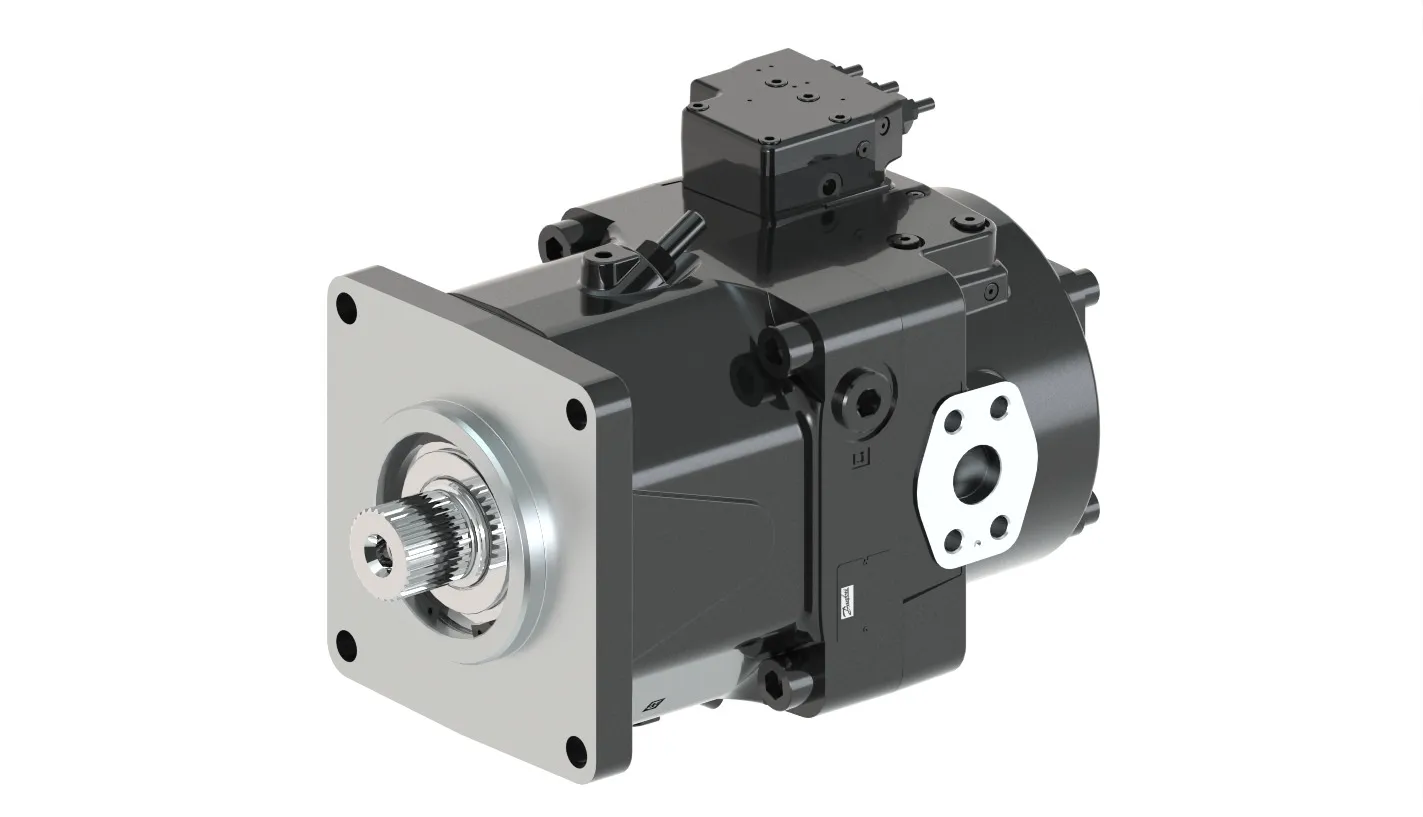

PUMP-VAR DISPL, D1P260 – 11257029
Specification
| D1P Product | D1P variable axial piston pump |
|---|---|
| Displacement | 260cc/rev max/variable displacement |
| Rotation | Right hand – clockwise |
| Product Version | Product version A |
| Control Type | Pressure compensated control + remote pressure compensated control |
| Input Shaft | Spline shaft, SAE J744 2 in, 15 tooth, 8/16 diametrical pitch for size 193 2 1/4 in, 17 tooth, 8/16 diametrical pitch for size 260 |
| Front Mounting Flange | SAE J744 165-4 (E) |
| Endcap | Radial side flange ports inlet: SAE J518, 4 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 with impeller |
| Auxiliary Flange | SAE J744 E, coupling 13 tooth |
| Power Control Setting | No power control |
| Pressure Compensator Setting | 310 bar pressure compensated control setting |
| Load Sense Setting | 31 bar load sensing control setting |
| Hydraulic Displacement Control Start Pressure Setting | No hydraulic displacement control |
| Maximum Displacement Setting | 100% of maximum displacement |
| Minimum Displacement Setting | 0% of displacement |
| Special Hardware | No special hardware |
| Special Feature | Black paint, Danfoss tag, format A, without control oil filter |
| Proposition 65 | Cancer and Reproductive Harm |
