Danfoss (Drives) 11254385

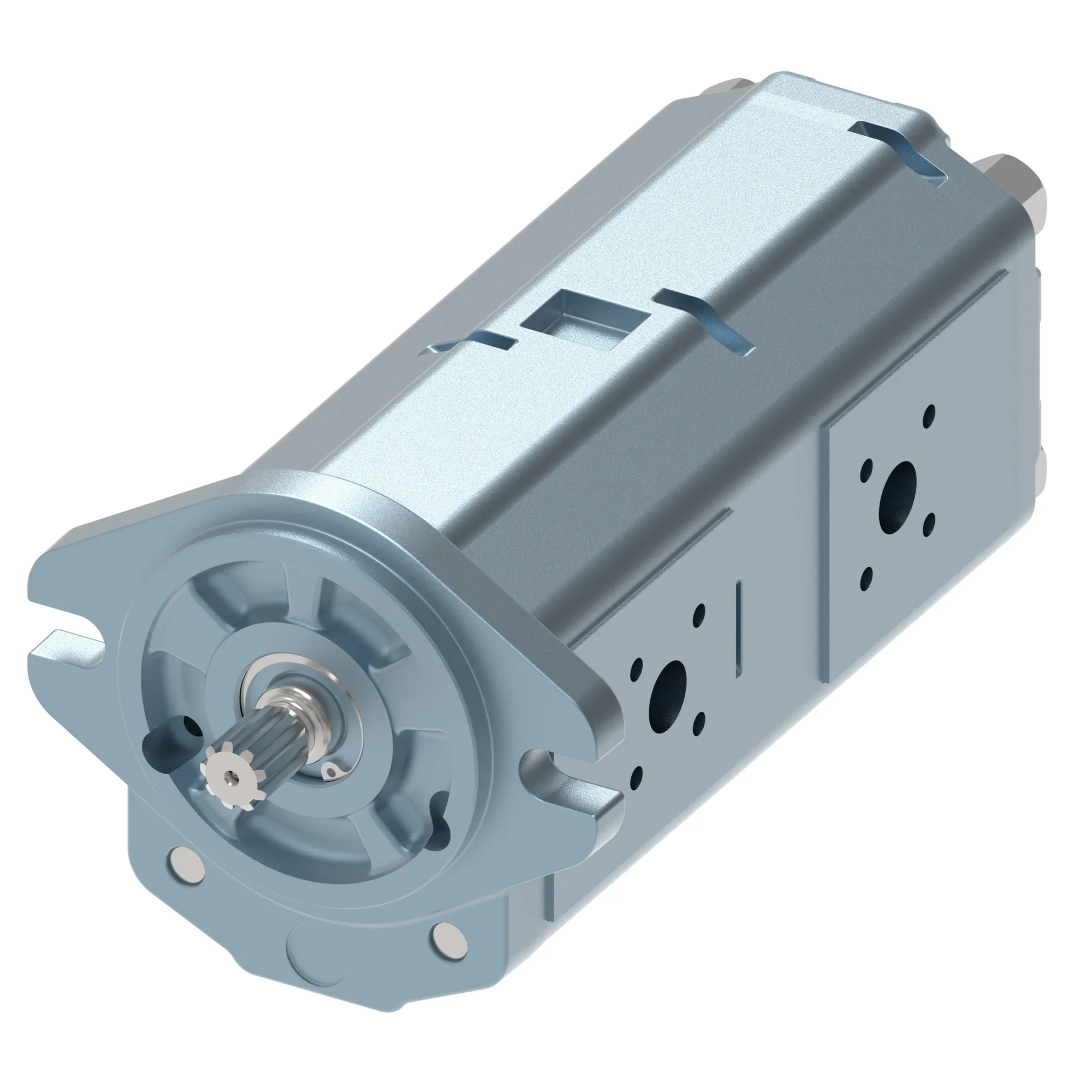

TANDEM GEAR PUMP GR2 FIXED DISPL – 11254385
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TANDEM GEAR PUMP GR2 FIXED DISPL – 11254385
Specification
| A: Tandem Gr.2 Family | SNW2NN+SNP2NN |
|---|---|
| B: 1St Stage Displacement | Displacement 17 cc |
| C: 2Nd Stage Displacement | Displacement 17 cc |
| D: Rotation | Product with counter-clockwise rotation |
| E: Project Version | With SAE intemediate flange |
| F: Mounting Flange | Flange SAE A, pilot D.82,55 and 2 holes for bolts |
| G: Drive Gear | Splined SAE J498-9T-16/32-Dp Class 1FIT – rear spline DIN 5482 – 17 x 14 L=14 (type 36 vers.2) |
| H: Rear Cover | Standard cover for pump |
| I: 1St Stage Inlet Size | M33x2-ISO6149 |
| J: 1St Stage Outlet Size | M22x1,5-ISO6149 |
| K: 1St Stage Ports Position | Standard from catalogue |
| L: 2Nd Stage Inlet Size | M33x2-ISO6149 |
| M: 2Nd Stage Outlet Size | M22x1,5-ISO6149 |
| N: 2Nd Stage Ports Position | Standard from catalogue |
| O Ring, Inside Diameter | Slash |
| O: Seals | VITON shaft seal BADUO |
| Oc Delimiter ( ) | – |
| P: Screws | GEOMET screws |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: Valve Setting | without setting |
| R: Mark Type | Std Sauer Danfoss Marking |
| S: Mark Position | Std Position Marking |
| Slash Separator | Slash |
