Danfoss (Drives) 11230746

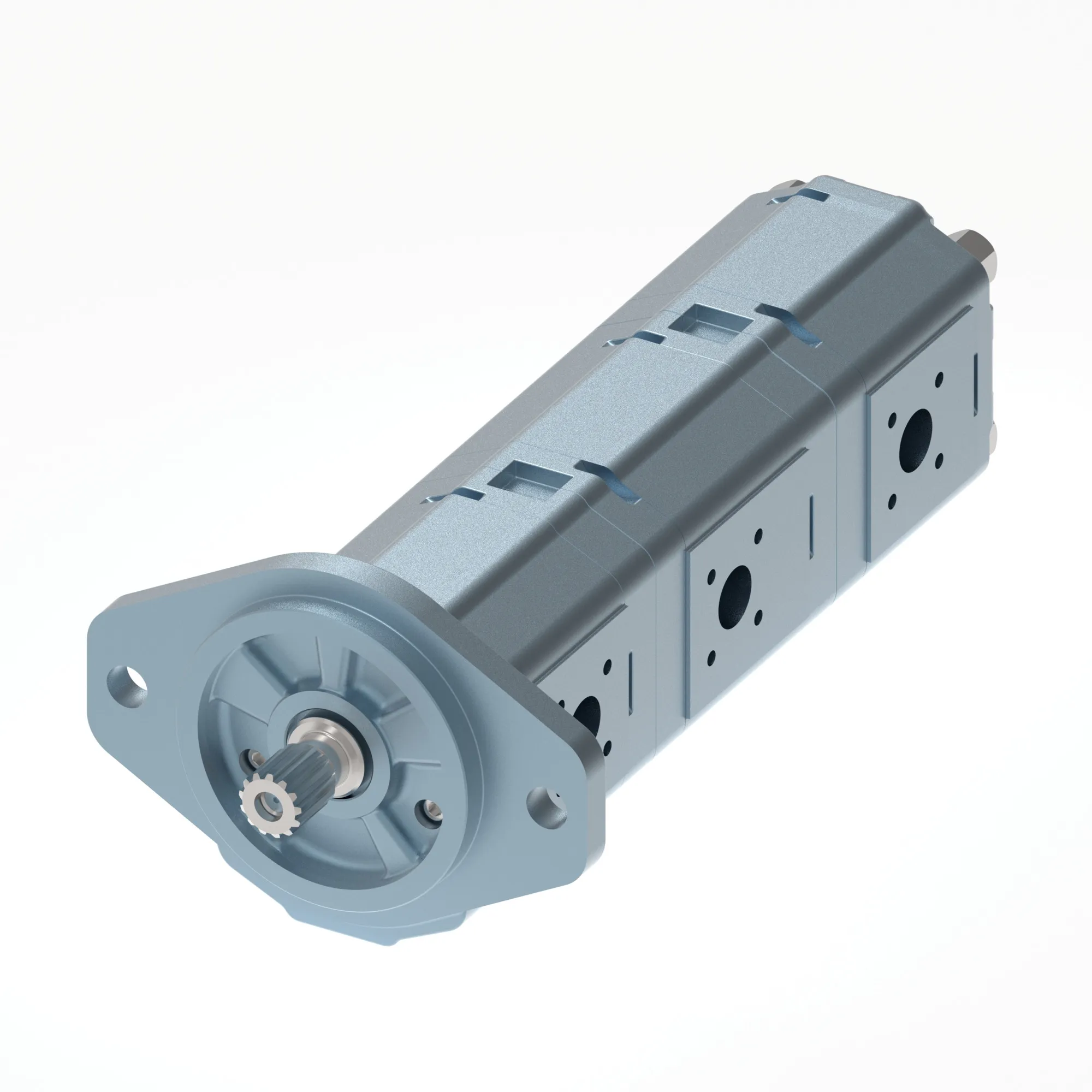

TRIPLE GEAR PUMP=GR2+GR2+GR1 – 11230746
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TRIPLE GEAR PUMP=GR2+GR2+GR1 – 11230746
Specification
| A Family Gr2+2+1 | SKW2NN+SNO2NN+SNP1NN |
|---|---|
| B: 1St Stage Displacement | Displacement 17 cc |
| C: 2Nd Stage Displacement | Displacement 4,0 cc |
| D: 3Rd Stage Displacement | Displacement 3,2cc |
| E: Rotation | Right rotation |
| F: Project Version | Interm.flange-different Gr |
| G Flange Gr1+1+1 | Slash |
| G: Mounting Flange | Flange-SAE A-pilot D82,55+2 holes for bolts |
| H: Drive Gear | Splined SAE J498-11T-16/32-Dp Class 1FIT+Rear tang 8×19,94xL6,5 SKP2 SC36 |
| I: Rear Cover | Std Cover for pump |
| J: 1St Stage Inlet Size | 20x40xM6 |
| K: 1St Stage Outlet Size | 15x35xM6 |
| L: 1St Stage Ports Position | Bx-Bx with SAE-A flange off-set from the std position to cover(LCX) |
| M: 2Nd Stage Inlet Size | 15x40xM6 |
| N: 2Nd Stage Outlet Size | 15x35xM6 |
| O Ring, Inside Diameter | Slash |
| O: 2Nd Stage Ports Position | Std from catalogue |
| Oc Delimiter ( ) | – |
| P: 3Rd Stage Inlet Size | 13x30xM6 |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: 3Rd Stage Outlet Size | 8x30xM6 |
| R: 3Rd Stage Ports Position | Std from catalogue |
| S: Seals | Std seal |
| Slash Separator | Slash |
| T: Screws | Galvanized assembly screws+nuts-washers-cap nuts listed in BOM |
| U: Valve Setting | without setting |
| V: Mark Type | Std Sauer Danfoss Marking |
| W: Mark Position | Std mark position |
