Danfoss (Drives) 11230494

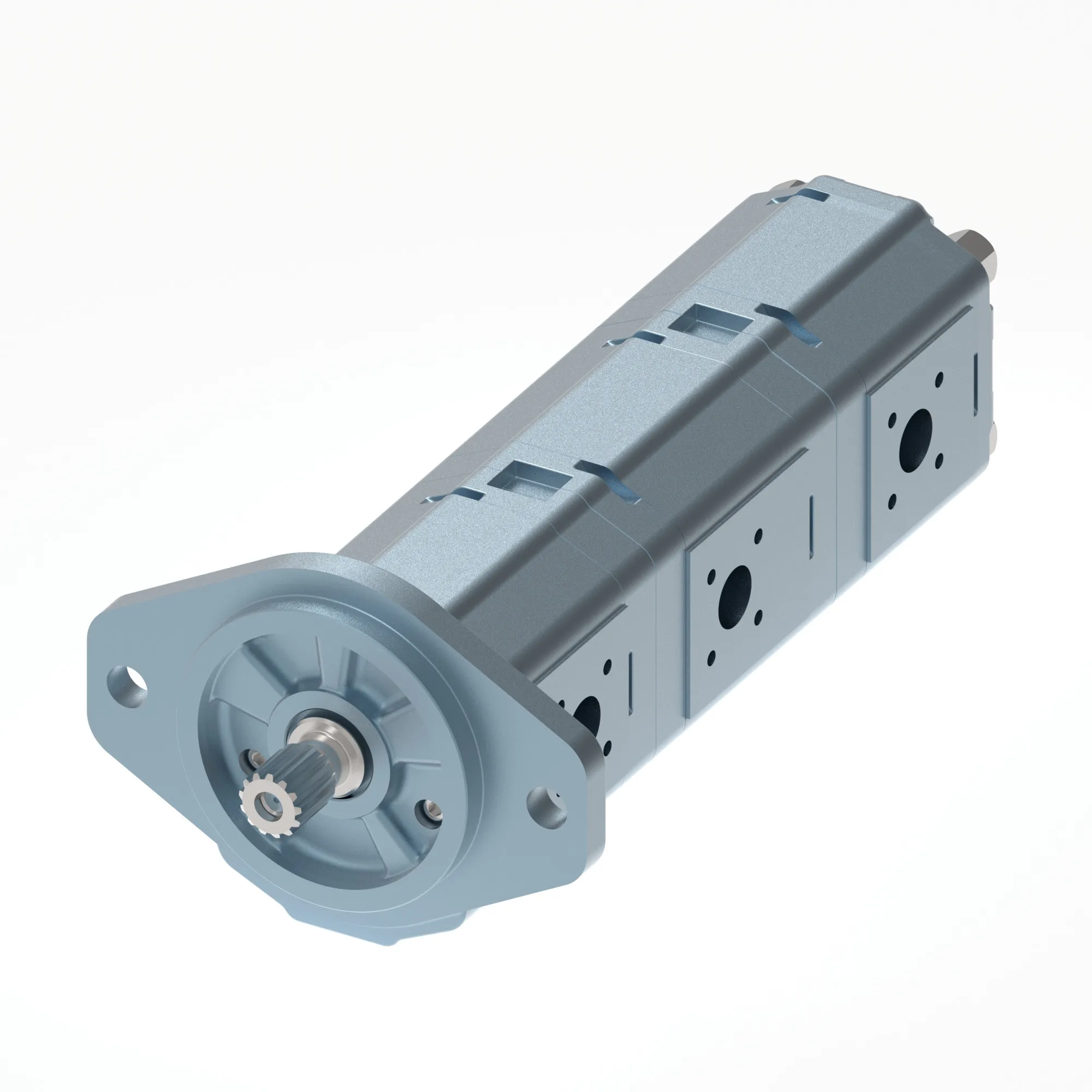

TRIPLE GEAR PUMP= GR2+GR2+GR2 VALVE – 11230494
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TRIPLE GEAR PUMP= GR2+GR2+GR2 VALVE – 11230494
Specification
| A: Triple Gr.2+2+2 Family | SKW2NN+SNO2NN+SNP2IN |
|---|---|
| B: 1St Stage Displacement | Displacement 8,0 cc |
| C: 2Nd Stage Displacement | Displacement 22 cc |
| D: 3Rd Stage Displacement | Displacement 22 cc |
| E: Rotation | Right rotation |
| F: Project Version | Std without interm.flange |
| G Flange Gr1+1+1 | Slash |
| G: Mounting Flange | SAE A seal pilot D82,55+2bolts |
| H: Drive Gear | Splined SAE J498-11T-16/32-Dp Class 1FIT+Rear tang 8×19,94xL6,5 SKP2 SC36 |
| I: Rear Cover | Cover for pump+RV with holes M5 |
| J: 1St Stage Inlet Size | 1/2 GAS |
| K: 1St Stage Outlet Size | 1/2 GAS |
| L: 1St Stage Ports Position | Std from catalogue |
| M: 2Nd Stage Inlet Size | 18,5×47,63×22,23xM6(=) |
| N: 2Nd Stage Outlet Size | 12×17,48×38,1xM6 |
| O Ring, Inside Diameter | Slash |
| O: 2Nd Stage Ports Position | Std from catalogue |
| Oc Delimiter ( ) | – |
| P: 3Rd Stage Inlet Size | 18,5×47,63×22,23xM6(=) |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: 3Rd Stage Outlet Size | 12×17,48×38,1xM6 |
| R: 3Rd Stage Ports Position | Std from catalogue |
| S: Seals | Std seal |
| Slash Separator | Slash |
| T: Screws | Screws standard |
| U: Valve Setting | Speed not defined at pressure no setting :oil ISO VG68 at 40° |
| V: Mark Type | Std Sauer Danfoss Marking |
| W: Mark Position | Std mark position |
