Danfoss (Drives) 11223783

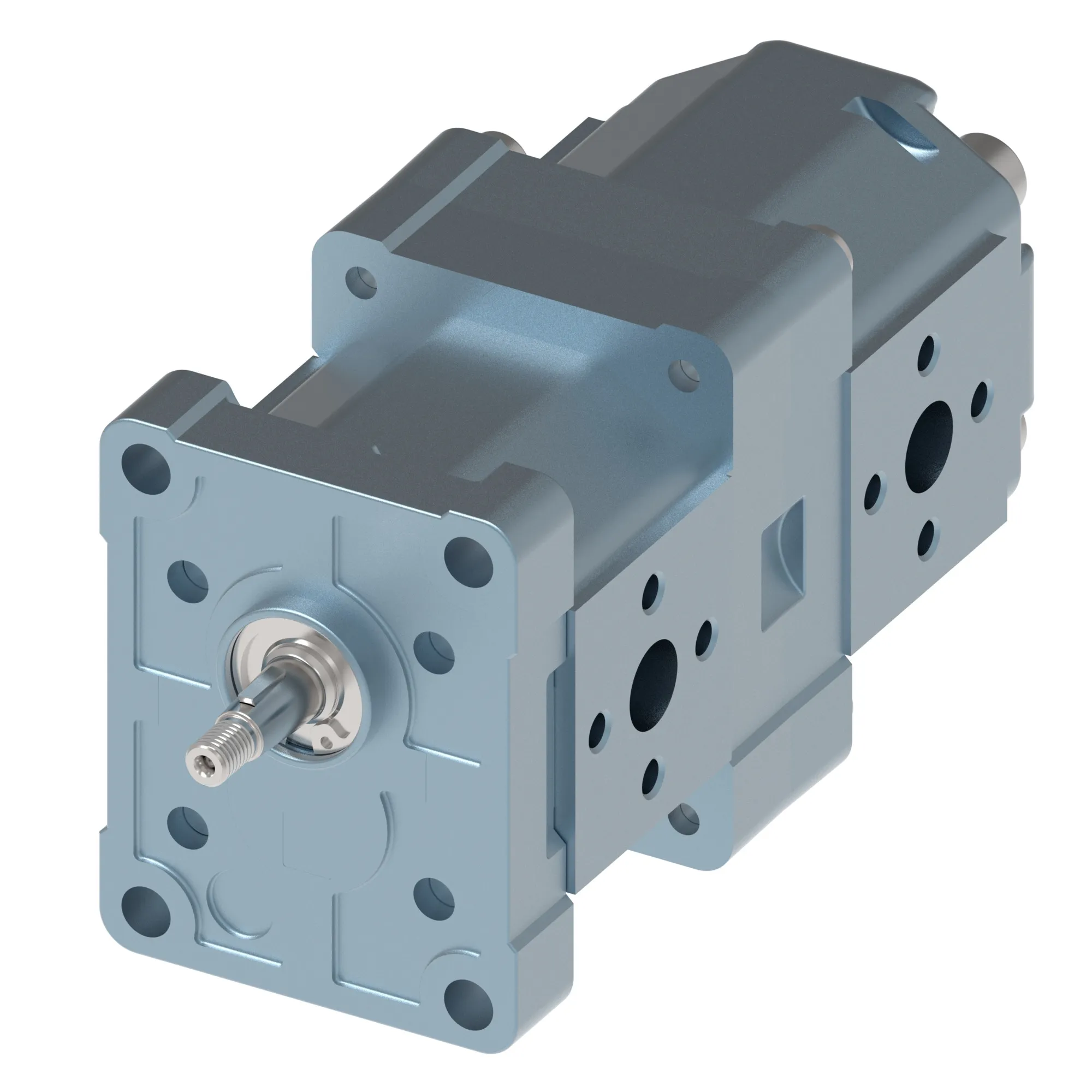

TANDEM GEAR PUMP GR1 FIXED DISPL – 11223783
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TANDEM GEAR PUMP GR1 FIXED DISPL – 11223783
Specification
| A Family Gr1+1 | SNW1NN + SNP1NN |
|---|---|
| B 1 Stage Displ Gr1+1 | Displacement 2,2 cc |
| C 2 Stage Displ Gr1+1 | Displacement 1,7 cc |
| D Rotation Gr1+1 | Product with clockwise rotation |
| E Project Version Gr1+1 | Standard ( without intermediate flange ) |
| F Flange Gr1+1 | pilot Ø32+O-ring+2 holes th |
| G Gear Drive Gr1+1 | Tang 5xD10+Spline Z15 M0,75 |
| H Cover Gr1+1 | Cover 03 |
| I In Body 1 Stage Gr1+1 | 3/8 GAS |
| J Out 1 Stage Gr1+1 | 3/8 GAS |
| K Ports Pos 1 Stage Gr1+1 | Standard from catalogue |
| L In Body 2 Stage Gr1+1 | 3/8 GAS |
| M Out Body 2 Stage Gr1+1 | 3/8 GAS |
| N Ports Pos 2 Stage Gr1+1 | Standard from catalogue |
| O Sealing Gr1+1 | Standard from catalogue |
| O Ring, Inside Diameter | Slash |
| Oc Delimiter ( ) | – |
| P Screws Gr1+1 | Standard from catalogue |
| Proposition 65 | Cancer and Reproductive Harm |
| Q Set Valve Gr1+1 | without setting |
| R Type Of Mark Gr1+1 | Std Sauer Danfoss Marking |
| S Mark Position Gr1+1 | Std Position Marking |
| Slash Separator | Slash |
