Danfoss (Drives) 11218869

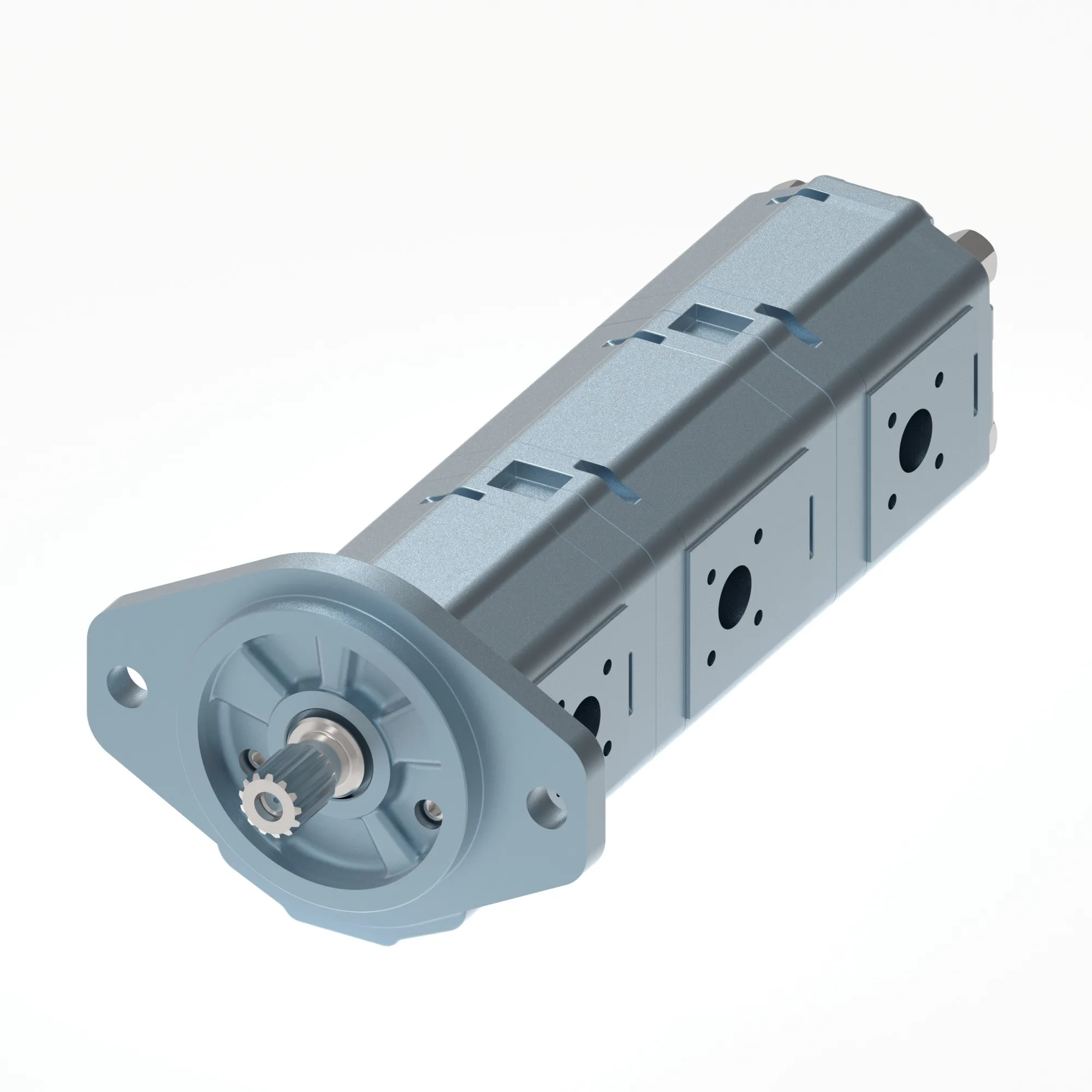

TRIPLE GEAR PUMP=GR2+GR2+GR2 – 11218869
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TRIPLE GEAR PUMP=GR2+GR2+GR2 – 11218869
Specification
| A: Triple Gr.2+2+2 Family | SKW2NN+SNO2NN+SNP2NN |
|---|---|
| B: 1St Stage Displacement | Displacement 25 cc |
| C: 2Nd Stage Displacement | Displacement 17 cc |
| D: 3Rd Stage Displacement | Displacement 11 cc |
| E: Rotation | Right rotation |
| F: Project Version | Std without interm.flange |
| G Flange Gr1+1+1 | Slash |
| G: Mounting Flange | SAE B pilot D101,6+2 holes |
| H: Drive Gear | SAE J498-13T-16/32+Tang |
| I: Rear Cover | Cover for pump with holes M5 |
| J: 1St Stage Inlet Size | 23,5x40xM8 |
| K: 1St Stage Outlet Size | 20x40xM8 |
| L: 1St Stage Ports Position | Std from catalogue |
| M: 2Nd Stage Inlet Size | 20x40xM8 |
| N: 2Nd Stage Outlet Size | 13,5x30xM6 |
| O Ring, Inside Diameter | Slash |
| O: 2Nd Stage Ports Position | Std from catalogue |
| Oc Delimiter ( ) | – |
| P: 3Rd Stage Inlet Size | 20x40xM8 |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: 3Rd Stage Outlet Size | 13,5x30xM6 |
| R: 3Rd Stage Ports Position | Std from catalogue |
| S: Seals | Std seal |
| Slash Separator | Slash |
| T: Screws | Screws standard |
| U: Valve Setting | without setting |
| V: Mark Type | Std Sauer Danfoss Marking |
| W: Mark Position | Std mark position |
