Description

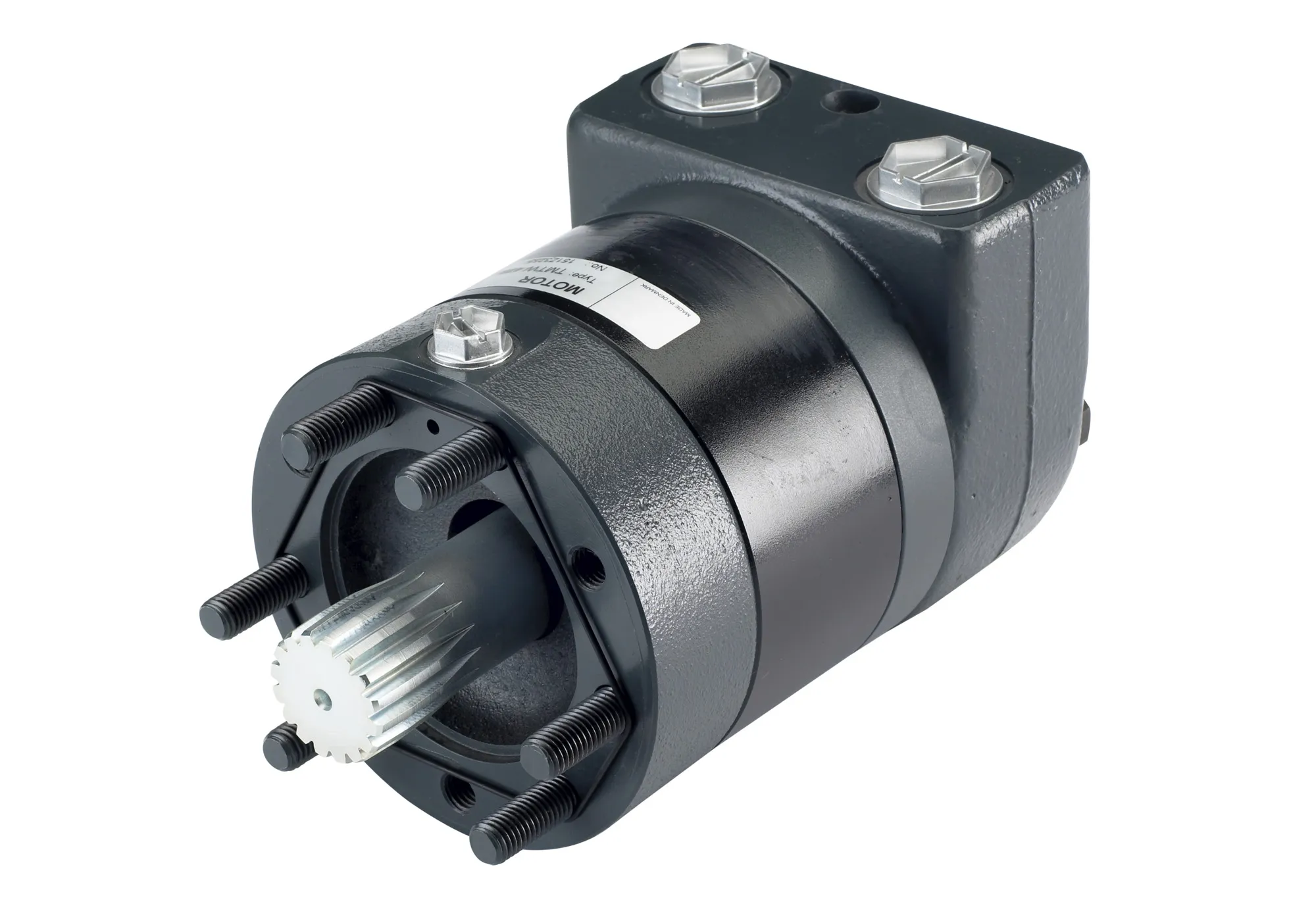

TMTU 500 HYDRAULIC MOTOR – 11216726
Specification
| Model Code | TMT-0500-D-NN-U16-AF-1D-NNN-N-N-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN |
|---|---|
| Motor Series | TMT Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 500 |
| Geometric Displacement [Cm3/R [In3/R]] | 494.8 [30.19] |
| Motor Type | Short |
| Motor Function | Standard |
| Mounting Flange Type | 6 Bolt – Short |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 140.0 x 0.0, 110.0, M12 [5.51 x 0.0, 4.33, M12] |
| Shaft Type | None |
| Shaft Dimension | n/a |
| Shaft Key | n/a |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 3/4, 5 x M10 block mounting threads |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Hardware | Standard |
| Special Features Assembly | Standard |
| Dust Seal | n/a |
| Shaft Seal | n/a |
| Seal Kit | 151B0176 |
| Front Bearing Type | n/a |
| Rear Bearing Type | n/a |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 00 |
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
