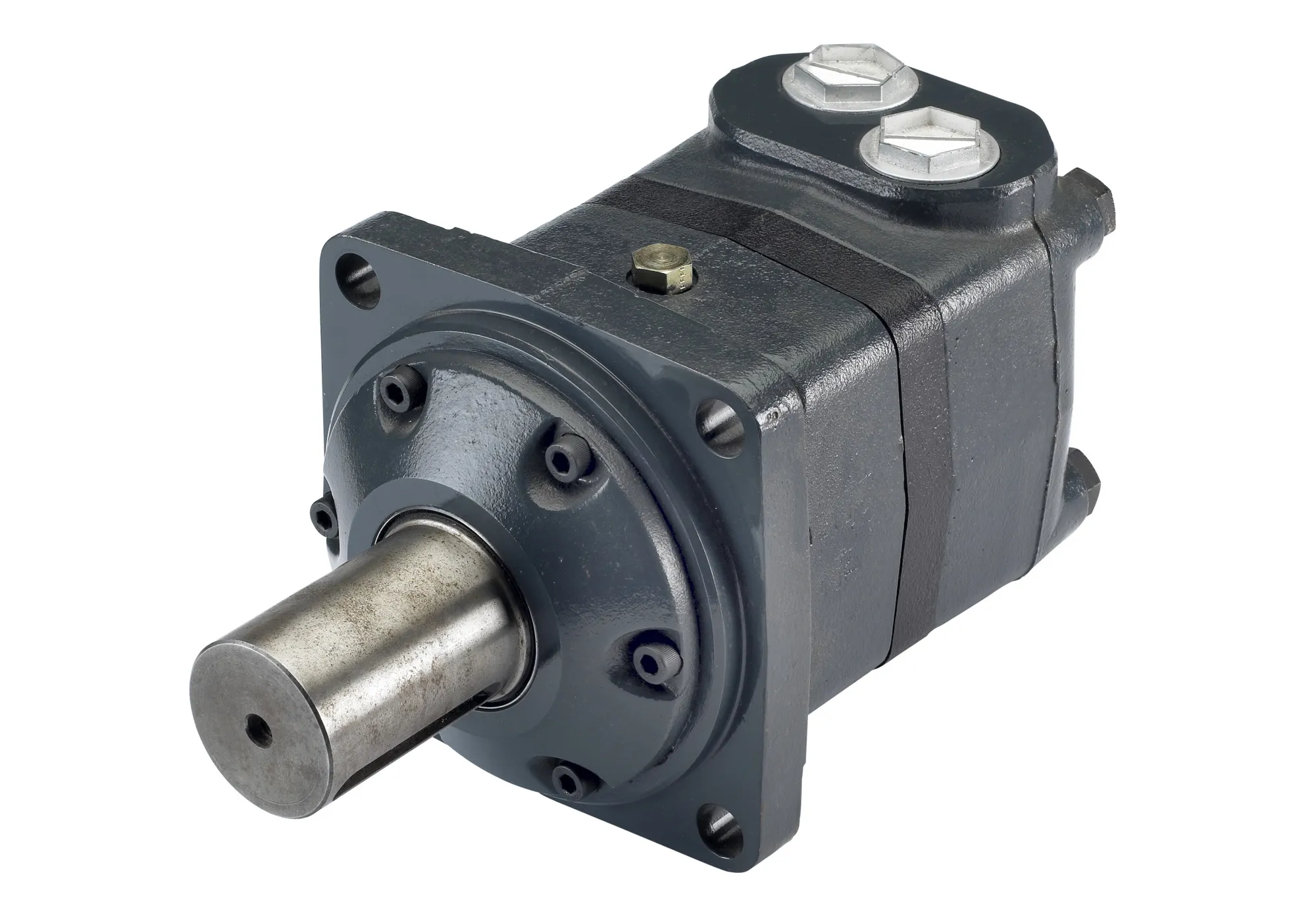

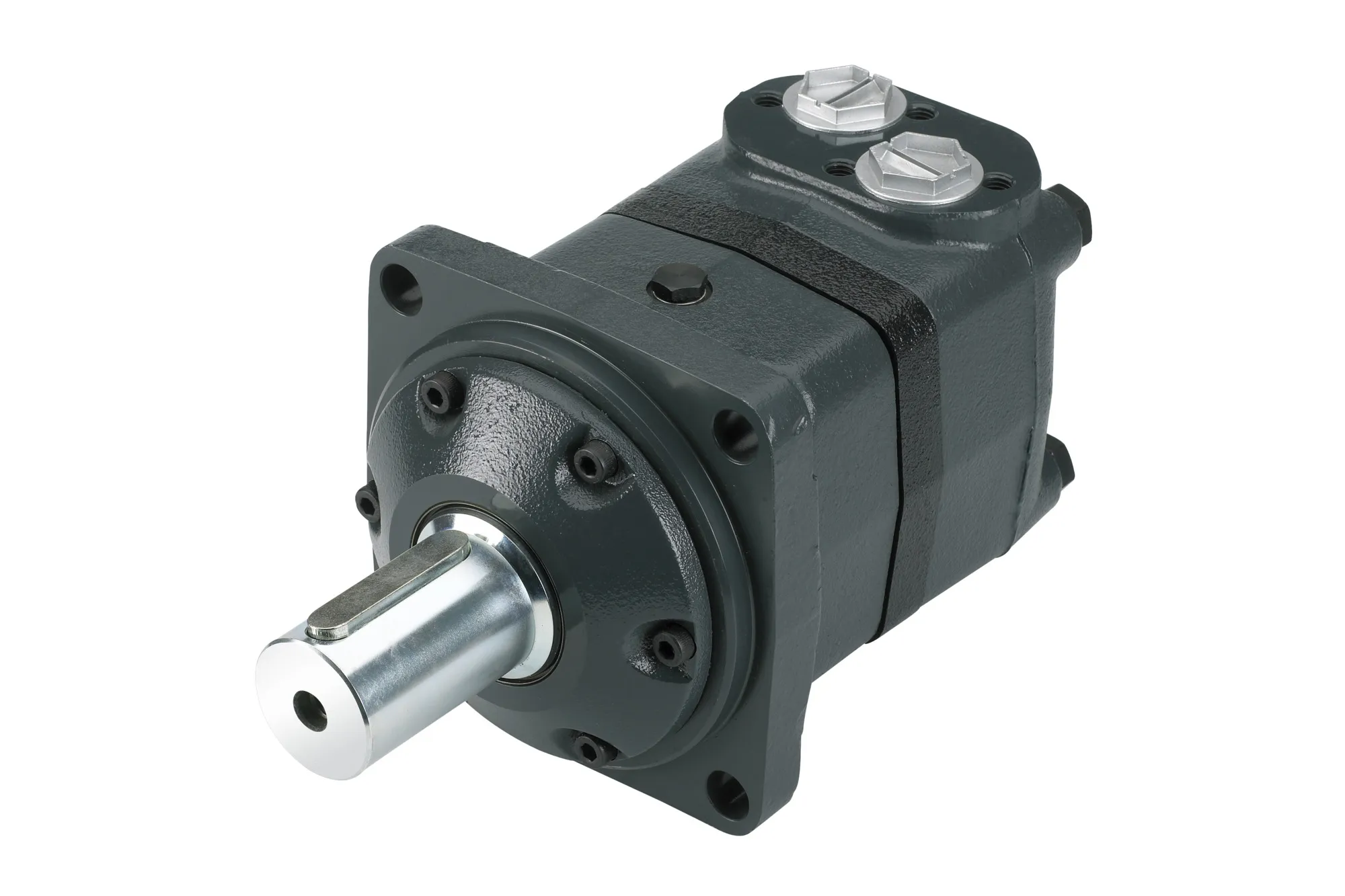

OMV 630 EMD HYDRAULIC MOTOR – 11216153
Specification
| Model Code | OMV-0630-A-NN-C24-AV-2F-E25-A-A-2C-1-N-AA-NNNNN-NN-NN-NN-SP-NNN |
|---|---|
| Motor Series | OMV Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 630 |
| Geometric Displacement [Cm3/R [In3/R]] | 629.1 [38.39] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – C |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 13.5, 161.9, 17.5 [5.00 x 0.53, 6.37, 0.69] |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 2 1/8 inch, 16T, 1/2 – 20-2B UNF thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 5/16 – 12 UN-2B SAE O-Ring port, |
| Drain Port Dimension | 9/16 – 18 UNF-2B O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Hardware | Standard |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 151B0129 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | Speed Sensor ready (EMD) |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 2 |
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
